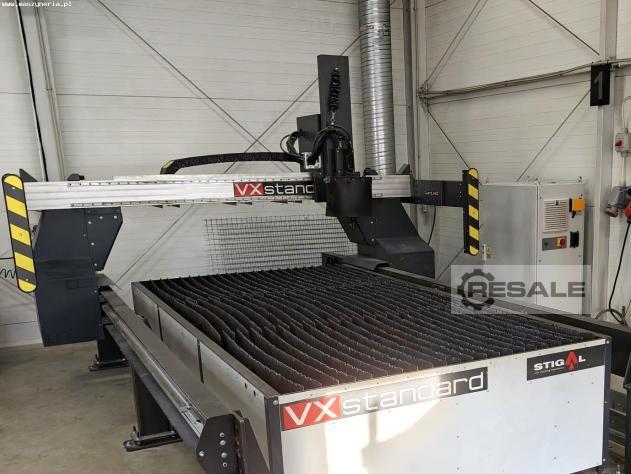

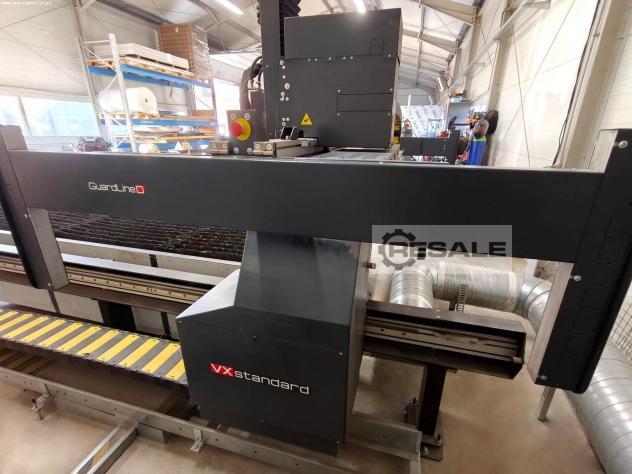

STIGAL VXstandard plasma cutting machine was built in 2020 in Poland
by STIGAL Marcin Stępień. The machine, distinguished by its
exceptional precision, is the perfect choice for thermal cutting of
workpieces with a maximum thickness of 20 mm. The machining process is
performed on a stable work table, whose open design offers free access
to the workspace from all sides. The dust and gas extraction system
(ECTS), which is integrated into the worktable, effectively removes
contaminants generated during machining, providing a comfortable work

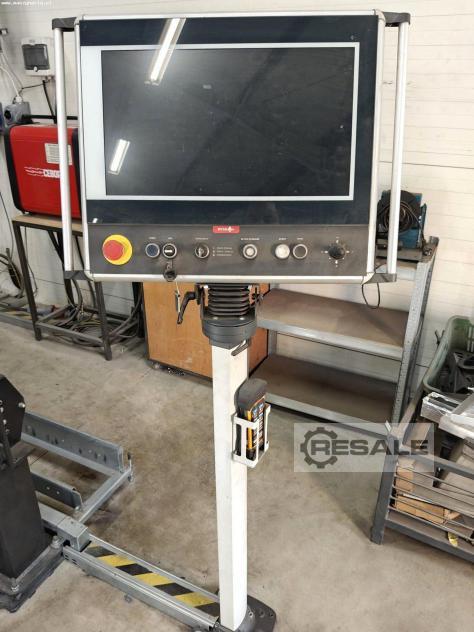

environment. This is all complemented by a touchscreen operator panel
with CNC control. The STIGAL VX-standard plasma cutting machine is
offered with a reliable CEBORA plasma source of the highest energy
efficiency.
Technical specifications of STIGAL VXstandard plasma cutting
machine
- touchscreen operator panel with CNC controller
- maximum sheet metal thickness: 20 mm
- work table dimensions (L x W): 3000 x 1500 mm
- maximum working table load: 800 kg/m2
- maximum traverse speed: 30 m/min

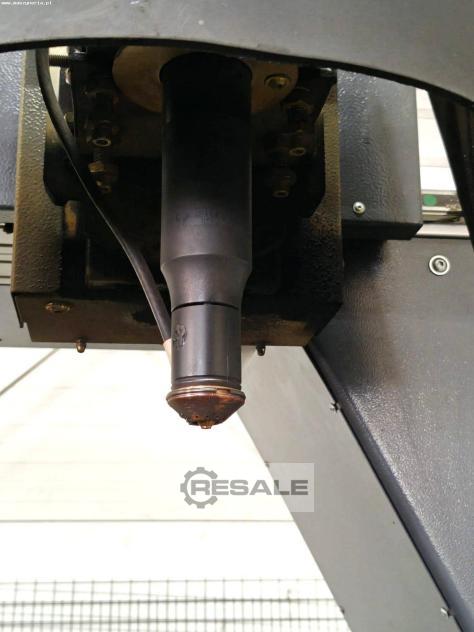

- type of M6351405 torch height adjustment: voltage
- torch up/down movement speed: 330 mm/s
- torch positioning accuracy: ± 0.05 mm
- programming format: G-CODE

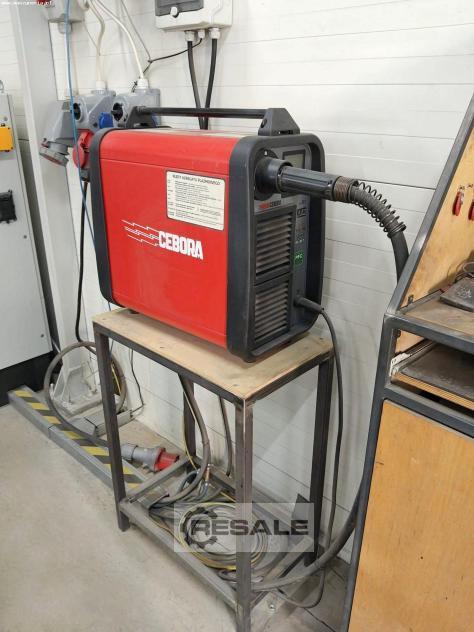

- plasma source: CEBORA PLASMA SOUND PC 130/T
- dust and gas extraction system (ECTS)
- suction nozzle: ⌀ 315 mm
- power consumption: 4000 W
- ambient temperature: +5°C/+40°C
- maximum humidity (non-condensing): 90%
- power supply: 400 V; 50 Hz
- weight of the STIGAL VXstandard machine: approx. 6000 kg
