OVERWRAPPING MACHINE SOLLAS 19

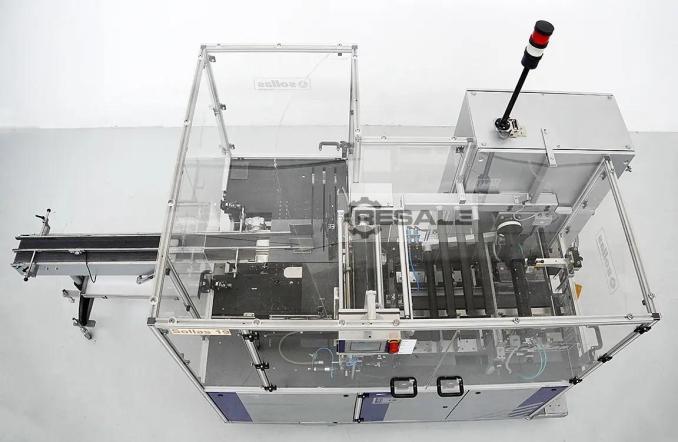

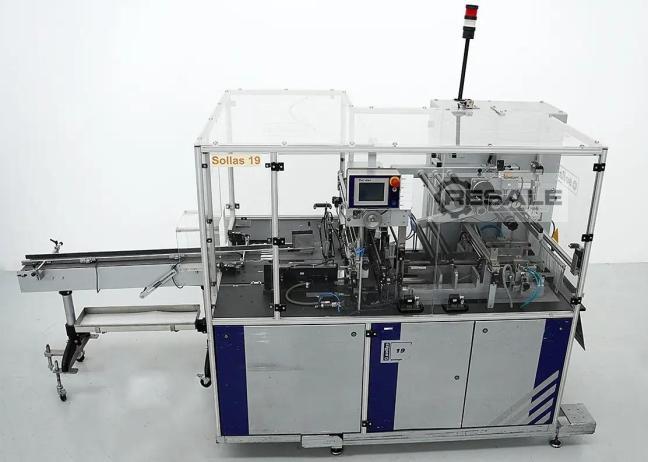

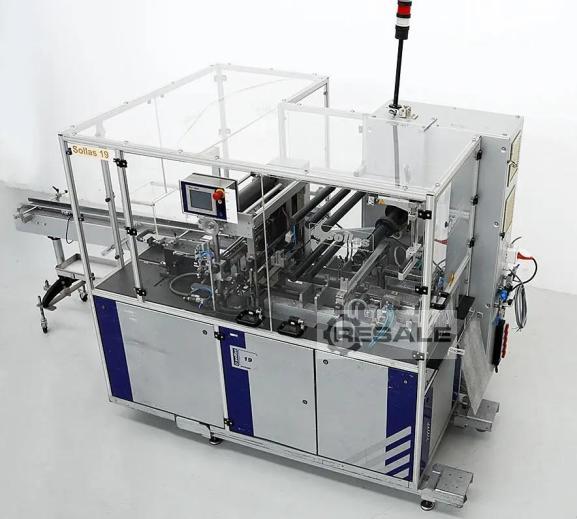

Mobile automatic overwrapping machine, designed for precise single

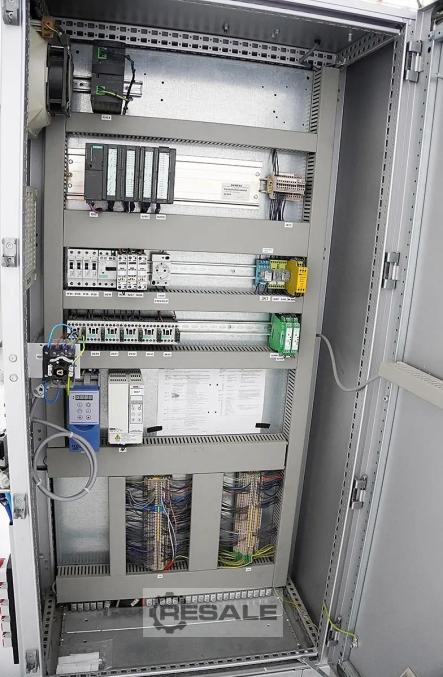

wrapping of folding cartons in the cosmetics sector. SIEMENS, Simatic

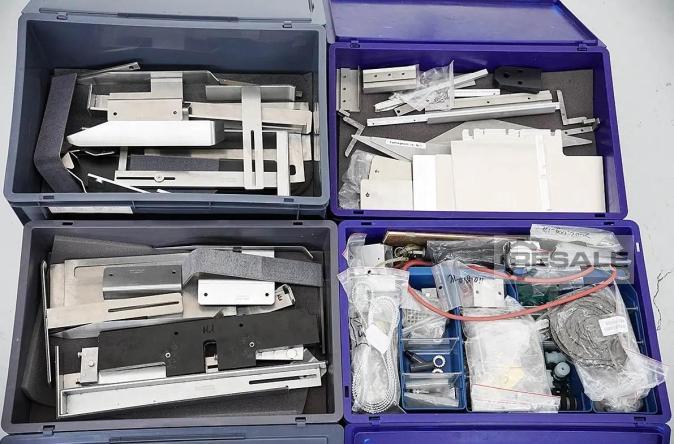

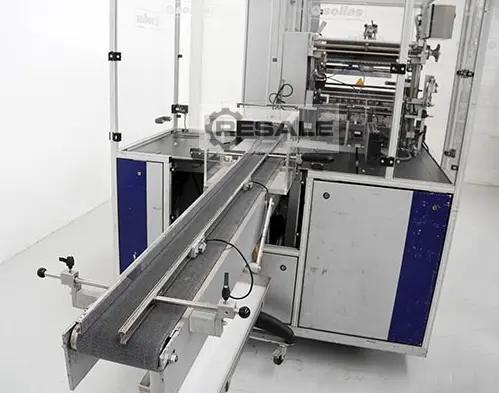

S7-300 PLC. With linear infeed conveyor, 2 format sets and spare
parts. Built in 2004.
PRODUCTION
- Machine speed: 50 cycles per minute max. (depending on setup,
product, feed system, film type)
Processable materials: PP, PE, and coated paper
Package dimensions
- Width (W): min. 40 mm; max. 200 mm
- Length (L): min. 45 mm; max. 300 mm
- Height (H): min. 16 mm; max. 140 mm
Film roll dimensions
- Outer diameter: 320 mm
- Maximum roll width: min. 50 mm; max. 425 mm
- Inner diameter: 45-80 mm
- Film cut length: min. 110 mm; max. 590 mm
SIZE
- Dimensions: 3700 x 1800 x 2000 mm (ca)
- Weight: 1200 kg (ca)
ENERGY CONSUMPTION
- Power supply: 230/400V - 3 phases + neutral 50/60Hz
- Control current: 24V DC
- Heating: 230V - 50/60Hz
Italy
