SCHULER PDr 40/220 Eccentric Press - Single Column

1962ID 170392173

1962ID 170392173

usedVerified seller
Request price Directly to the seller

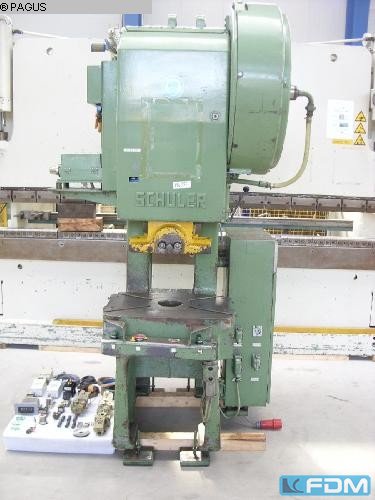

SCHULER PDr 40/220 Eccentric Press - Single Column
1 / 3

Technical data

· ID 170392173
Source: seller information

Used machinery

Condition
used
Year of manufacture
1962
Location
Pagus NL. Jena Deutschland

Identifikation

ManufacturerSCHULER
ModelPDr 40/220
Item number1106-PR133

Technik

Quantity1

Description

pressure:40 t
throat:220 mm
stroke:8 / 88 mm
table pass:ø- abgesetzt 225/200 mm
ram head dimension:400 x 250 mm
distance table/ram:228 mm
stroke adjustable from - to:30 - 140 mm
ram adjustment:63 mm
thickness of bolster:80 mm
no. of strokes:70 Hub/min
total power requirement:5,5 kW
weight of the machine ca.:2600 kg
dimensions of the machine ca.:1100 x 1300 x 2300 mm
Documents:vorhanden
