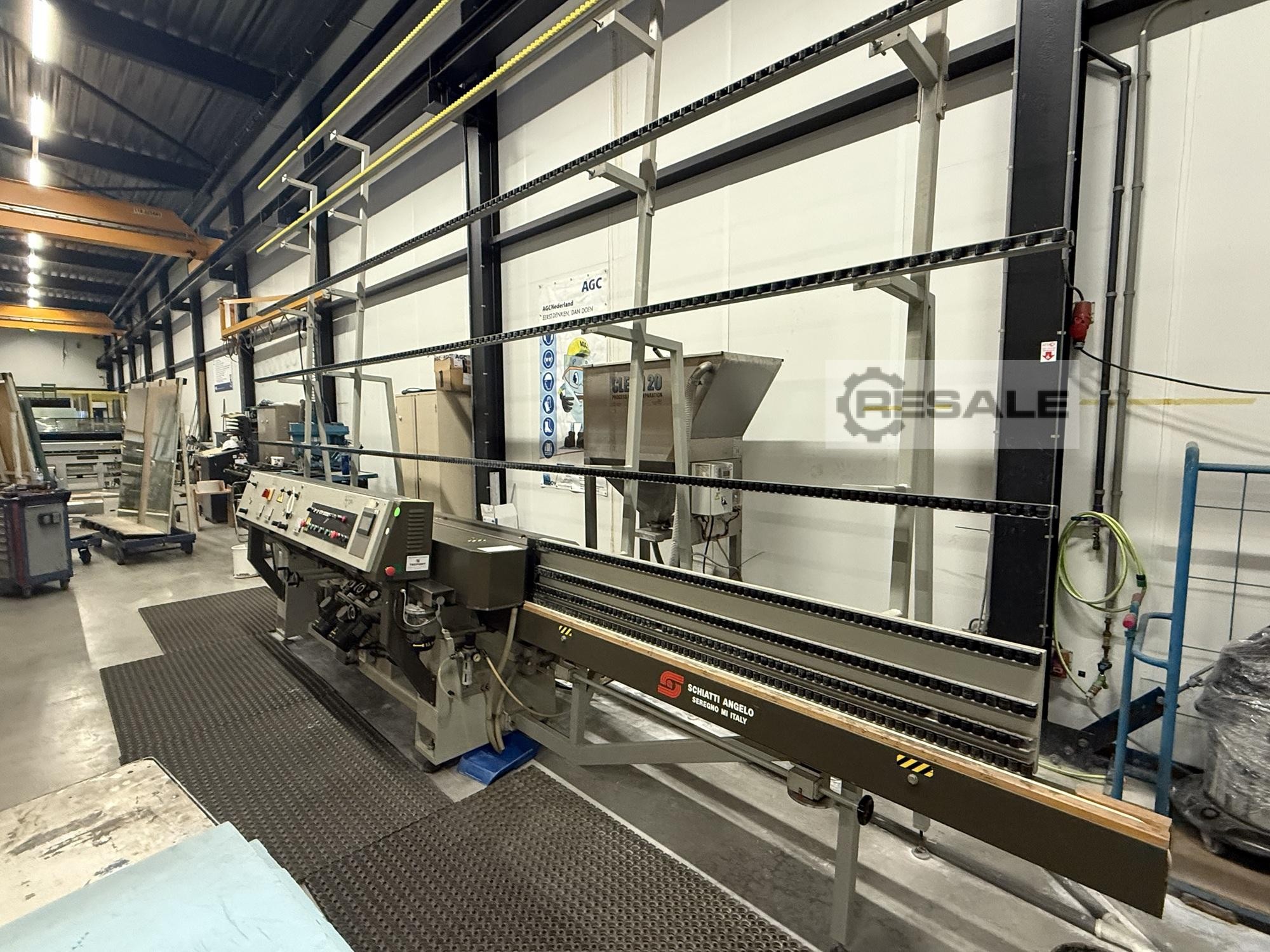

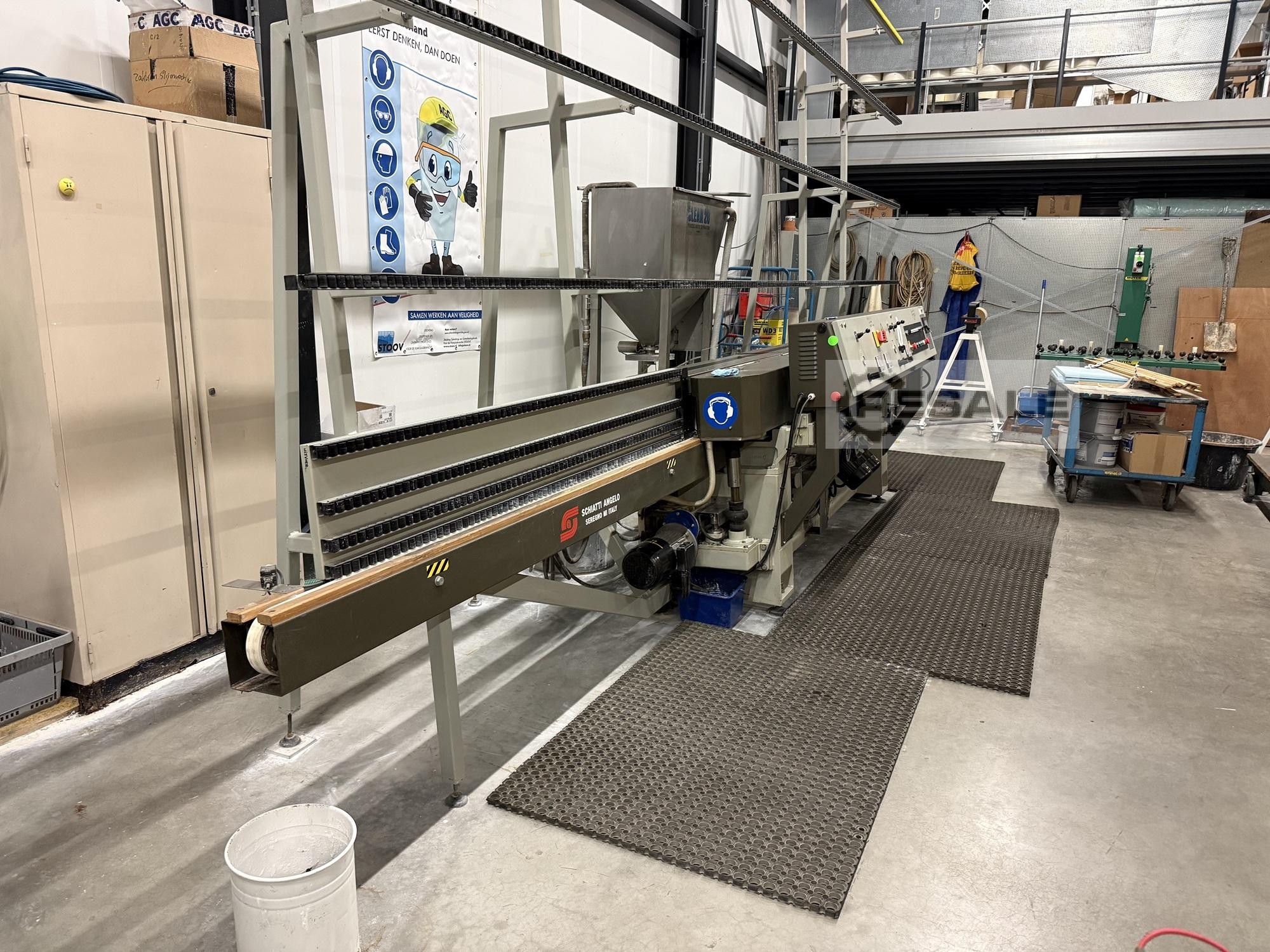

Schiatti FPS 20RBS Flat Poly Grinder
usedVerified seller
1 / 6
Technical data
· ID 168205352Machines
- Condition
- used
- Year of manufacture
- 2009
- Location
- 9047K Minnertsga
Identifikation

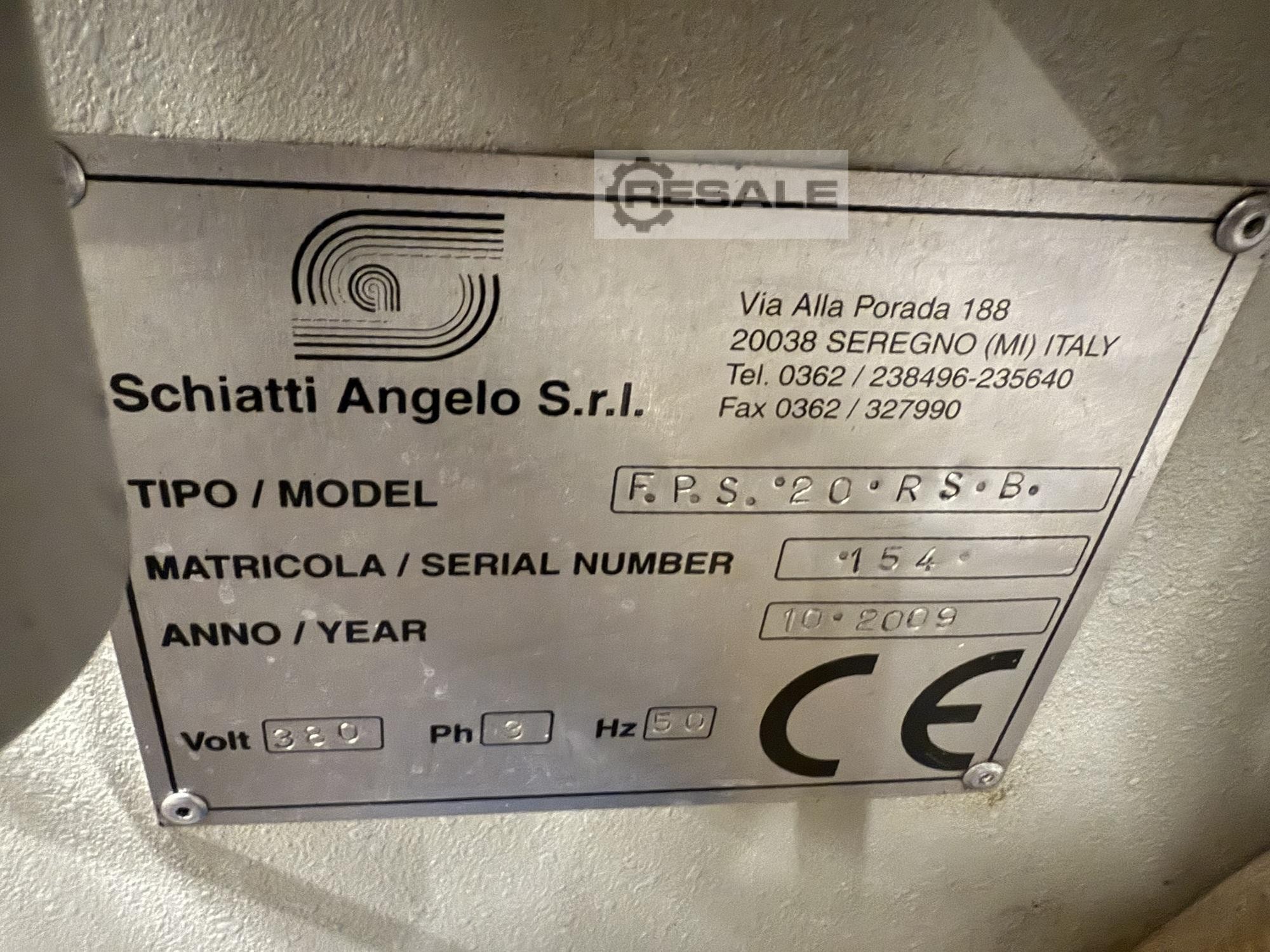

ManufacturerSchiatti
ModelFPS 20RBS
Item number02.1.207
Technik
Quantity1
Description
The Schiatti FPS 20 RBS is an advanced straight grinder for glass processing, designed for finishing flat edges and bevels with high precision. Here are the key specifications and features that distinguish this machine:
⚙️Technical Specifications
Glass thickness range : from 3 to 20 mm
Minimum glass size : 150 × 150 mm
Maximum load : 1000 kg
Working height : 765 mm
Total power : 8.1 kW
Water tank capacity : 195 liters
Air consumption : 8 Nl/min
Front speed : adjustable from 0.5 to 5 m/min
Total weight : 1823 kg
Features
Sharpening of flat edges and facets up to 45°
Polishing with cerium oxide (liquid or synthetic)
Automatic thickness adjustment
Independent adjustment of diamond and polishing wheels
Double speed motors for polishing wheels

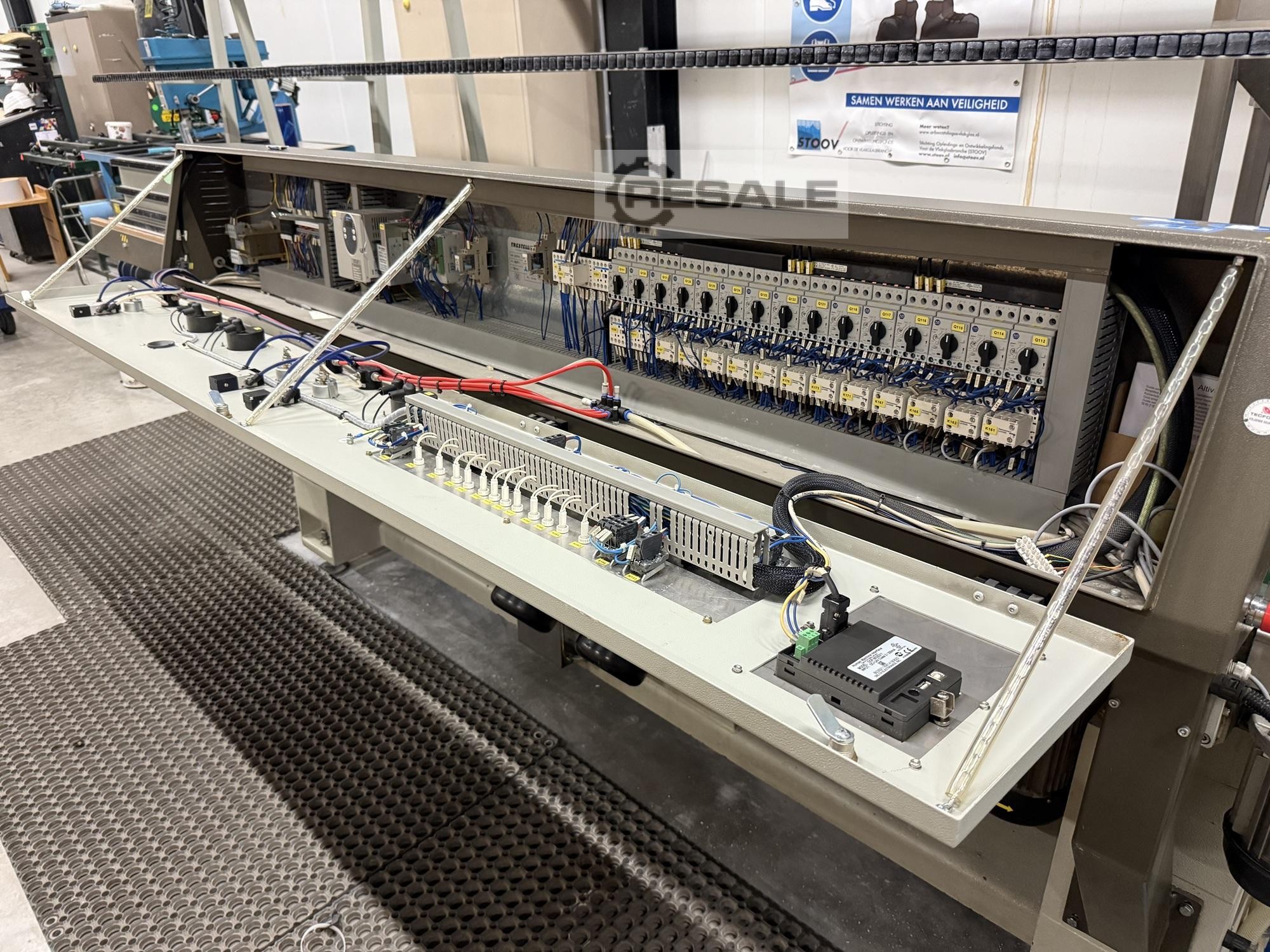

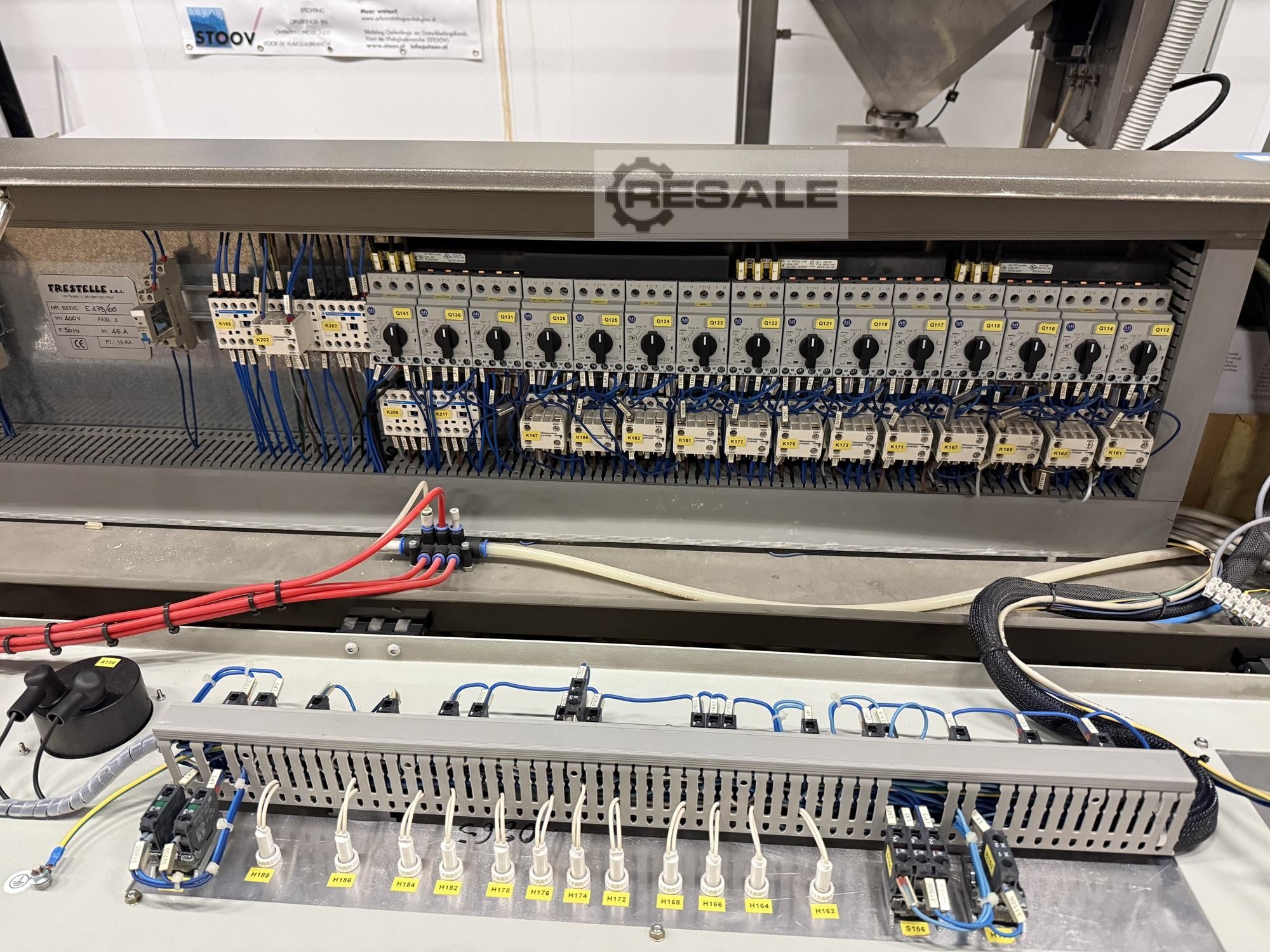

PLC control with input and display of working parameters

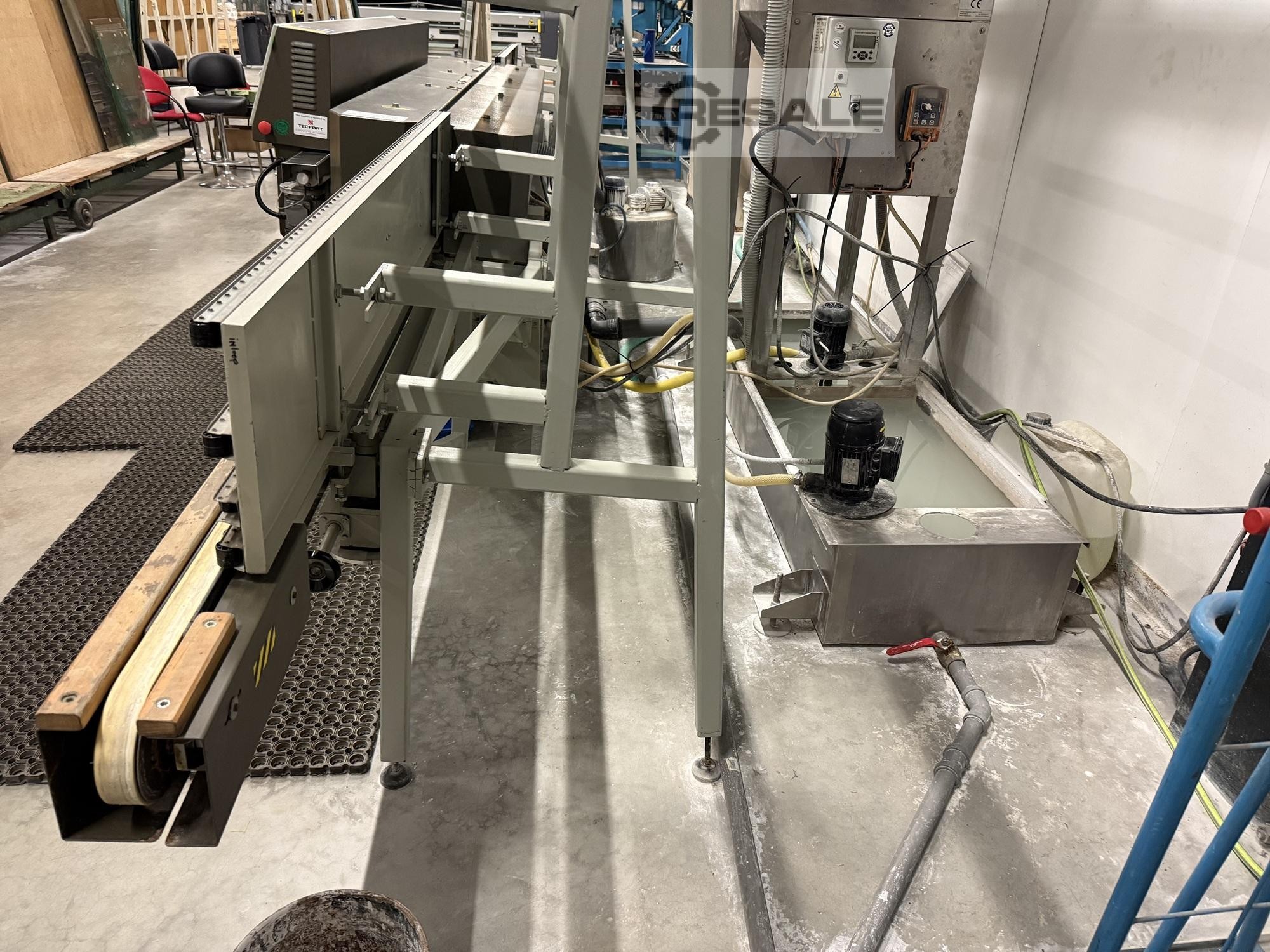

Closed water cooling system
Rubber pads on conveyor chain with six bearings for stable glass guidance
Safety features according to CE standards
This machine is particularly suitable for small to medium sized glass companies that produce mirrors, furniture, stair treads and laminated glass.
02.1.207
⚙️Technical Specifications
Glass thickness range : from 3 to 20 mm
Minimum glass size : 150 × 150 mm
Maximum load : 1000 kg
Working height : 765 mm
Total power : 8.1 kW
Water tank capacity : 195 liters
Air consumption : 8 Nl/min
Front speed : adjustable from 0.5 to 5 m/min
Total weight : 1823 kg
Features
Sharpening of flat edges and facets up to 45°
Polishing with cerium oxide (liquid or synthetic)
Automatic thickness adjustment
Independent adjustment of diamond and polishing wheels
Double speed motors for polishing wheels
PLC control with input and display of working parameters
Closed water cooling system
Rubber pads on conveyor chain with six bearings for stable glass guidance
Safety features according to CE standards
This machine is particularly suitable for small to medium sized glass companies that produce mirrors, furniture, stair treads and laminated glass.
02.1.207
