Numerically Controlled Machining Centres SAC F 12

Code: 0288

Brand: SAC
Model: F 12

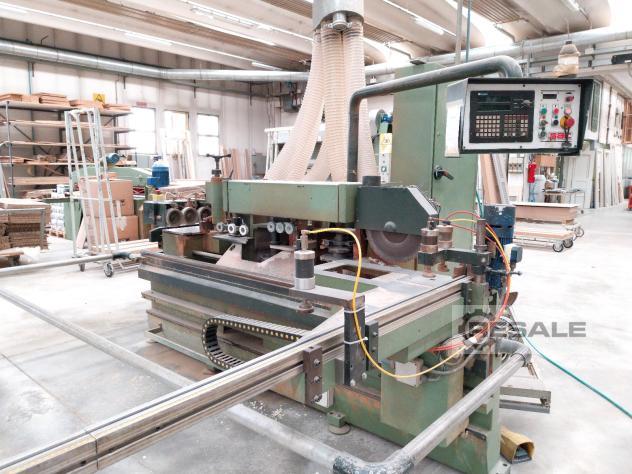

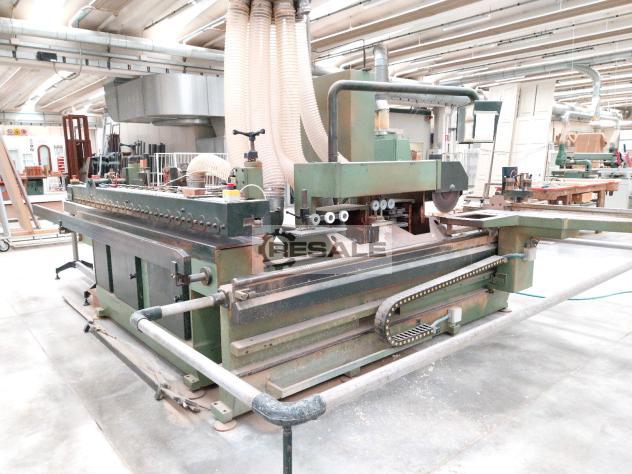

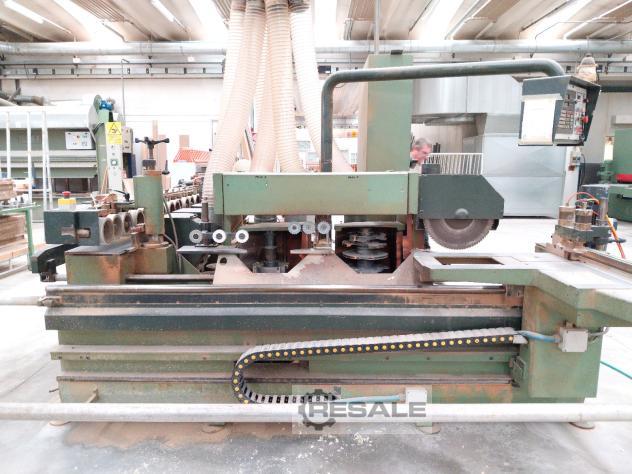

Automatic working center for door and wooden window frames

Technical data:

Tenoning side :
End cutting circular saw - Blade diameter mm 400
Motor power Hp 4
Horizontal positioning with indexing stops
N° 2 tenoning spindles each lenght mm 320
Max tools diameter mm 320
Spindle diameter mm 50
Motors power each Hp 10
Max thickness of pieces mm 100
N° 2 suction inlets mm 130
Automatic table with guideline

Profiling side:
N° 4 profiling spindles each lenght mm 270 - Spindle diameter mm 50
Motors power each Hp 10
N° 4 suction inlets mm 130
Glass bead recovery device - Motor power Hp 3 - Blade diameter mm 200 T6346512
Exhaust outlet diameter mm T6346512 60
Glass bead recovery device - Motor Hp 3
Exhaust outlet diameter mm 100
Adjustable feed speed
Return roller conveyor
Overall dimensions - tenoning machine : mm 2900 x 2400 x 2200 h
Overall dimensions - profiling machine : mm 2900 x 1400 x 1800 h
Total weight kg 2900



seller offer No. resale Code: 0288
