Rausch RS 3/1000 Broaching Machines
New machineVerified seller
1 / 6
Technical data
· ID 167576430Broaching Machines
- Net price
- 32.400 € netto
- Condition
- New machine
- Year of manufacture
- 2019
- Location
- 75175 Pforzheim
Identifikation
ManufacturerRausch
ModelRS 3/1000
Technik
Quantity1
Technical parameter 130kN
Technical parameter 31000mm
Description
This offer is aimed exclusively at entrepreneurs within the meaning of § 14 BGB. The price is net plus 19% VAT.
*******************

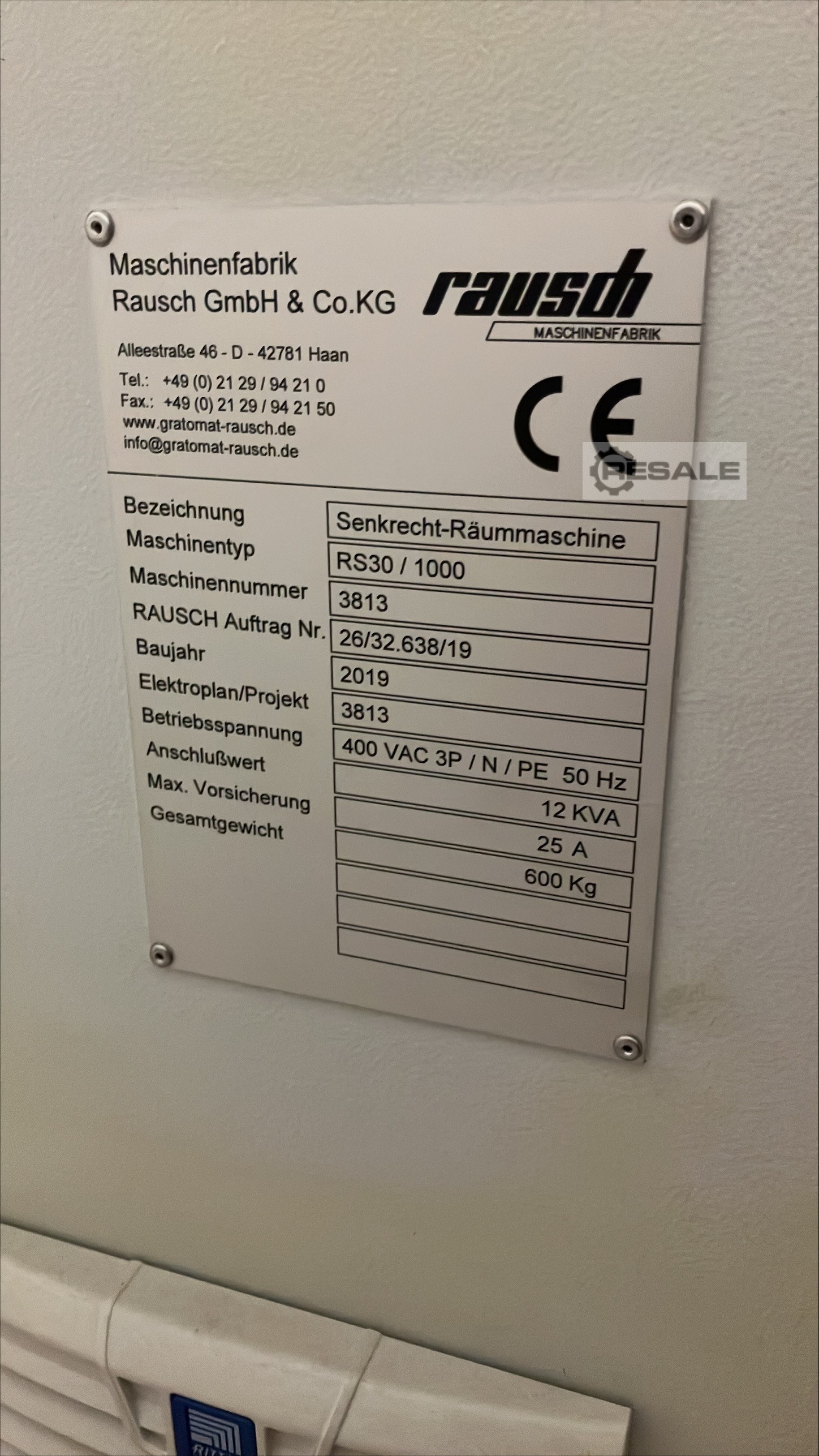

Title: Vertical Broaching Machine
Manufacturer: Rausch GmbH & Co. KG
Type: RS 30/1000
Machine No.: 3813
Year of Make: 2019
*******************
Never put into operation
Full documentation
without broaching needles
*******************
Workspace
Stroke: 1000 mm
Gross tractive force: 30 kN
small/large cutting speed: 1.0 – 7.5 m/min
small/large return speed: 1.0 – 7.5 m/min
Indoors:
Tool feeder: by hand/independently
Large workpiece Ø: 300 mm
Outdoor spaces:
fixed/movable/rotatable workpiece clamping plate
Area of clamping plate: 255mm x 400mm
T-slots: 2 pieces, 14mm wide, parallel/perpendicular to the clamping surface of the tool carriage
Accessories/special equipment:
Coolant Setup
Broaching tool safety
Machine hood to protect the working area
Area requirement: 0.72m x 1.3m x 2.67m (LBH)
Weight: 600 kg
Voltage: 400 V
Type of current: three-phase current Υ/Δ 50 Hz
Connected load: 12 kVA
Max. pre-fuse: 25A
Engine:
Main drive: 7 kW / 2000 rpm
Coolant pump: 0.12 kW / 2700 rpm
Broaching tool holder:
Clamping jaws for flat and profile tools up to 18 mm shank width
Coolant supply: 1/2"
*******************
All information is made to the best of our knowledge, errors excepted.
The sale is subject to exclusion of any warranty. The exclusion does not apply to claims for damages arising from grossly negligent or intentional breach of the Seller's duties or to any injury to life, limb and health.
Imprint:
Witzenmann GmbH
Östliche Karl-Friedrich-Straße 134
75175 Pforzheim
Phone: +49-(0) 7231-581-0
Email: wi(at)witzenmann.com
Mannheim District Court: HRB 500094
Value added tax identification number: DE 144 202 694
Manager:
Dr.-Ing. Andreas Kampf (Chairman)
Dipl.-Ing. /Dipl.-Wirtsch.-Ing. Philip Paschen (Deputy Chairman)
Dipl.-Betriebsw. (FH) Christine Wüst
Dipl.-Kffr. Irene Krings
Chairman of the Supervisory Board:
Prof. Dr. Dr. h.c. Manfred Broy
Further legal Information can be found on the website of Witzenmann GmbH with the keywords "Terms and Conditions" and "Data Protection".
*******************
Title: Vertical Broaching Machine
Manufacturer: Rausch GmbH & Co. KG
Type: RS 30/1000
Machine No.: 3813
Year of Make: 2019
*******************
Never put into operation
Full documentation
without broaching needles
*******************
Workspace
Stroke: 1000 mm
Gross tractive force: 30 kN
small/large cutting speed: 1.0 – 7.5 m/min
small/large return speed: 1.0 – 7.5 m/min
Indoors:
Tool feeder: by hand/independently
Large workpiece Ø: 300 mm
Outdoor spaces:
fixed/movable/rotatable workpiece clamping plate
Area of clamping plate: 255mm x 400mm
T-slots: 2 pieces, 14mm wide, parallel/perpendicular to the clamping surface of the tool carriage
Accessories/special equipment:
Coolant Setup
Broaching tool safety
Machine hood to protect the working area
Area requirement: 0.72m x 1.3m x 2.67m (LBH)
Weight: 600 kg
Voltage: 400 V
Type of current: three-phase current Υ/Δ 50 Hz
Connected load: 12 kVA
Max. pre-fuse: 25A
Engine:
Main drive: 7 kW / 2000 rpm
Coolant pump: 0.12 kW / 2700 rpm
Broaching tool holder:
Clamping jaws for flat and profile tools up to 18 mm shank width
Coolant supply: 1/2"
*******************
All information is made to the best of our knowledge, errors excepted.
The sale is subject to exclusion of any warranty. The exclusion does not apply to claims for damages arising from grossly negligent or intentional breach of the Seller's duties or to any injury to life, limb and health.
