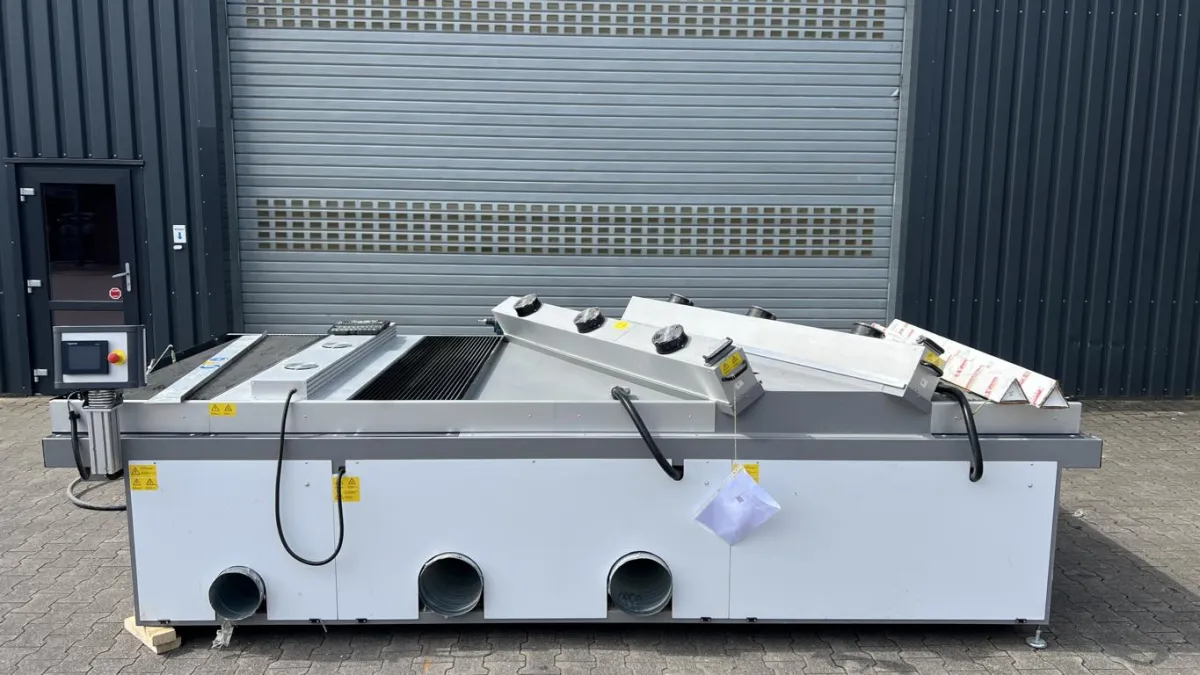

Printworld PUVD

with a new conveyor belt. Functional Description(Source: Excerpt from the operating instructions) This 3D UV dryer is equipped with 2 UV lamps from aboveand 1 UV lamp from below, each with a power outputof 150 W per cm of lamp length (electrode spacing).The UV output can be adjusted from 50–100%.The output of the bottom lamp can be adjusted separately.The drying tunnel features automatic conveyor beltcontrol.The conveyor speed is continuously adjustable (1–20 m/min).The automatic material detection (which can be turned on or off) causesthe UV output to switch to standby mode (?15% UV output)if no material passes the sensor for more than one minute. Technical Specifications:
- Manufacturer: Printworld
- Model: 3D
- PUVD
- Lamp output: 150 W/cm
- Year of manufacture: 2016
- Working width: max. 1,300 mm
- Number of lamps:2 lamps from above1 lamp from below
- UV power control:UV lamps are individually adjustable (50%–100%)
- Reflector: Printworld Multifocal reflector
- Conveyor belt transport width: 1,400 mm
- Total length: 4.5 m
- Conveyor belt speed: 1–20 m/min
- Max. part height: max. 60 mm
- Conveyor belt type:PTFE glass fiber fabric conveyor belt
- Conveyor speed control:Infinitely variable with digital control and monitoring
- Conveyor drive: Stepper motor with variable conveyorspeed and digital control and monitoring
- Energy savings: Automatic standby modewith power reduction of approx. 10%
- Operation/control: Schneider Modicon M258 LogicController processor with Magelis color touchscreen
- Infeed height: 850 – 900 mm
- Outfeed height: 850 – 900 mm
- Electrical connection: 400 V~, 50 Hz, 3
-phase +N +PE
- Current: 135 A
- Location: from stock
