Okuma LB400M-1SC CNC Turning Machines
usedVerified seller
Request price
Directly to the seller
1 / 5
Technical data
· ID 168274135CNC Turning Machines
- Condition
- used
- Year of manufacture
- 2000
- Location
- 32139 Spenge
Identifikation
ManufacturerOkuma
ModelLB400M-1SC
Technik
Quantity1
Technical parameter 1420mm
Technical parameter 2650mm
Description
Machine Type: CNC Lathe
Manufacturer: Okuma
Type: LB400M-1SC
Year of Make: 2000
Commissioning: 2001

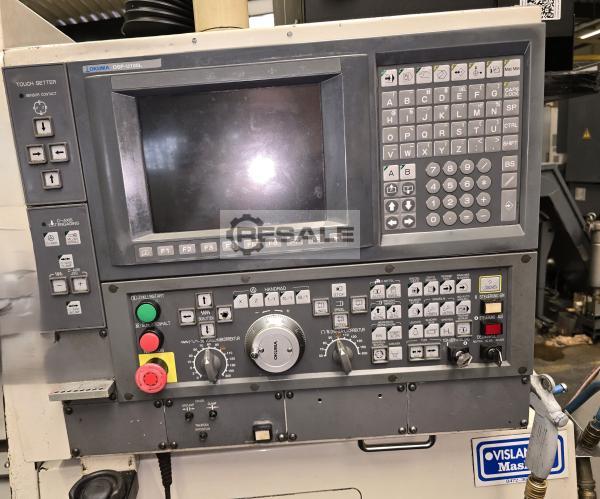

Control: OSP-U100L
Spindle hours: 14502 hrs
Delivery time: in stock
Machinery
- Interior extraction from Hengst Filtration (built in 2023)
- Touchsetter, tool measurement
- C-axis (main spindle)
- Tool breakage and wear monitoring
- 3-jaw chuck, Kitagawa B210, Ø250
- Tailstock available
- Coolant supply, also available through the tool
- Dialogue programming IGF
- Chip conveyor (scraper)
Technical details
- Max. turning length: 650 mm
- Max. turning diameter: 420 mm
- X-axis travel: 300 mm
- Travel Z-axis: 675 mm
- Travel C-axis: 360°
- Chuck passage: 72 mm
- Spindle passage: 95 mm
- Clamping cylinder passage: 95 mm
- Tool holder: VDI 40
- Tool stations: Stations 12
- Spindle speed: 2800 rpm
- Main spindle power: 22/30 kW
- M-spindle – driven stations: 12
- M-spindle: 5.5 kW
- M-speed: 3000 rpm
- Machine dimensions without accessories LxW: approx. 2700 x 1900 mm
- Machine height: approx. 1885 mm
- Weight: approx. 5500 kg
Optional
- Transport organisation and implementation
- Machine insertion and installation
- Machine commissioning
Manufacturer: Okuma
Type: LB400M-1SC
Year of Make: 2000
Commissioning: 2001
Control: OSP-U100L
Spindle hours: 14502 hrs
Delivery time: in stock
Machinery
- Interior extraction from Hengst Filtration (built in 2023)
- Touchsetter, tool measurement
- C-axis (main spindle)
- Tool breakage and wear monitoring
- 3-jaw chuck, Kitagawa B210, Ø250
- Tailstock available
- Coolant supply, also available through the tool
- Dialogue programming IGF
- Chip conveyor (scraper)
Technical details
- Max. turning length: 650 mm
- Max. turning diameter: 420 mm
- X-axis travel: 300 mm
- Travel Z-axis: 675 mm
- Travel C-axis: 360°
- Chuck passage: 72 mm
- Spindle passage: 95 mm
- Clamping cylinder passage: 95 mm
- Tool holder: VDI 40
- Tool stations: Stations 12
- Spindle speed: 2800 rpm
- Main spindle power: 22/30 kW
- M-spindle – driven stations: 12
- M-spindle: 5.5 kW
- M-speed: 3000 rpm
- Machine dimensions without accessories LxW: approx. 2700 x 1900 mm
- Machine height: approx. 1885 mm
- Weight: approx. 5500 kg
Optional
- Transport organisation and implementation
- Machine insertion and installation
- Machine commissioning
