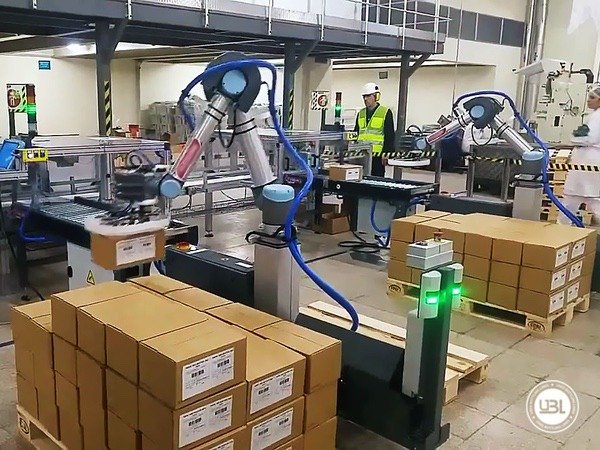

New Palletizer ROBOT-ARM PALLETIZER Automatic palletizing group
specially designed for high speed applications with Fast Pack
Formation Table at High Elevation – Speed suitable for 72.000
cans/hour line for 250 ml slim cans with 6×4 configuration, on
1200×1000 mm pallets – Package infeed height, H=2000 mm –
Designed for pallet dimensions 1000x1200mm – Max. standard pallet
height 1900mm – Pallet transfer height, H=500mm Machine is composed
of: Fast Pack Formation Table at High Elevation – Mechanism to turn
packs automatically at inlet of the palletizer according to the
predetermined configuration of each layer. It is controlled by the PLC
and. The device is equipped with a turner, which turns the product of
90°, if required. Intermediate Table – Consists of conveyor table,
a product pushing device to pallet lifter. Driven by a geared motor.
The translation of the layer from the performer to the palletiser is
carried out by a pushing device. Double Speed Inlet Belts – The
double speed belts are used for spacing the products in order to allow
the counting and a possible rotation on the preformer. A transmission
and a gear change allow to vary the speed between the first and the
second segment of the belt Layer Transfer Table with Stopper Mechanism
– It transfers the ready layer into intermediate table before
sending to pallet lifter group. Robot Arm: Ability to raise up 110 kg
mass load. 2.4 m working range 4 axis motion capability Average 3.67
kW power consumption IP67 protection class 145 degrees orientation
ability User friendly hand terminal accessElectrical Control Panel- It
is made of a painted metallic structure in compliance with the
security regulations IP 54, and contains electromechanical
instruments. Keyboard and lighting display to show failures, to change
format and receive production data. Programmable PLC for controlling
the machine. ACCESSORIES INCLUDED: Safety Guards Around The Palletizer
– Constructed in modular metal netting, plastic-coated during
painting for greater against scuffing. Fixed to the ground by
expansion bolts. – Entry doors for inspection with microswitch
safety system which activates an emergency stop if opened when the
machine is running. Empty Pallet Dispensing Unit (Pallet Magazine) –
Used to store empty pallets and feed them to the palletizer
automatically when required – Movement is by two chains which are
connected by a drive shaft. – Two pneumatic cylinders mounted at the
rear of the unit are used for opening and closing the pallet magazine
arms” to allow pallets to be discharged. Empty Pallet Infeed
Conveyors – The conveyor top is composed of zinc-coated steel
rollers, whilst the pitch is dependent upon the product being conveyed
– Load capacity 1000 kg per meter – The (tangential) transmission
is via a chain powered by a geared motor – The electrical and
pneumatic installation is controlled by the main electrical cabinet of
the Palletiser Full Pallet Outlet Conveyors – The conveyor top is
composed of zinc-coated steel rollers, whilst the pitch is dependent
upon the product being conveyed – Load capacity up to 2000 kg –
The (tangential) transmission is via a chain powered by a geared motor
– The electrical and pneumatic installation is controlled y the main
electrical cabinet of the palletiser. AUTOMATIC PALLET STRETCH WRAPPER
(ROTATING ARM) Max pallet weight 1200 kg – Speed upto 65
pallets/hour – Required height for the ceiling 6m – The machine is
equipped with film clamping and cutting system as well as standard
metal grid safety-guardings all around, with access door controlled by
safety limit switch. Arm rotation speed adjustable through inverter.
Spool carriage lift/descent speed adjustable through mechanical speed
variator – The machine is fitted with reflection photocell for the
automatic reading of pallet height – The wrapping machine is also
equipped with electric control cabinet for the control of the
functions, and alphanumeric display TOUCH SCREEN
