Mithraeum Brewiks 500 microbrewery Beverage equipment

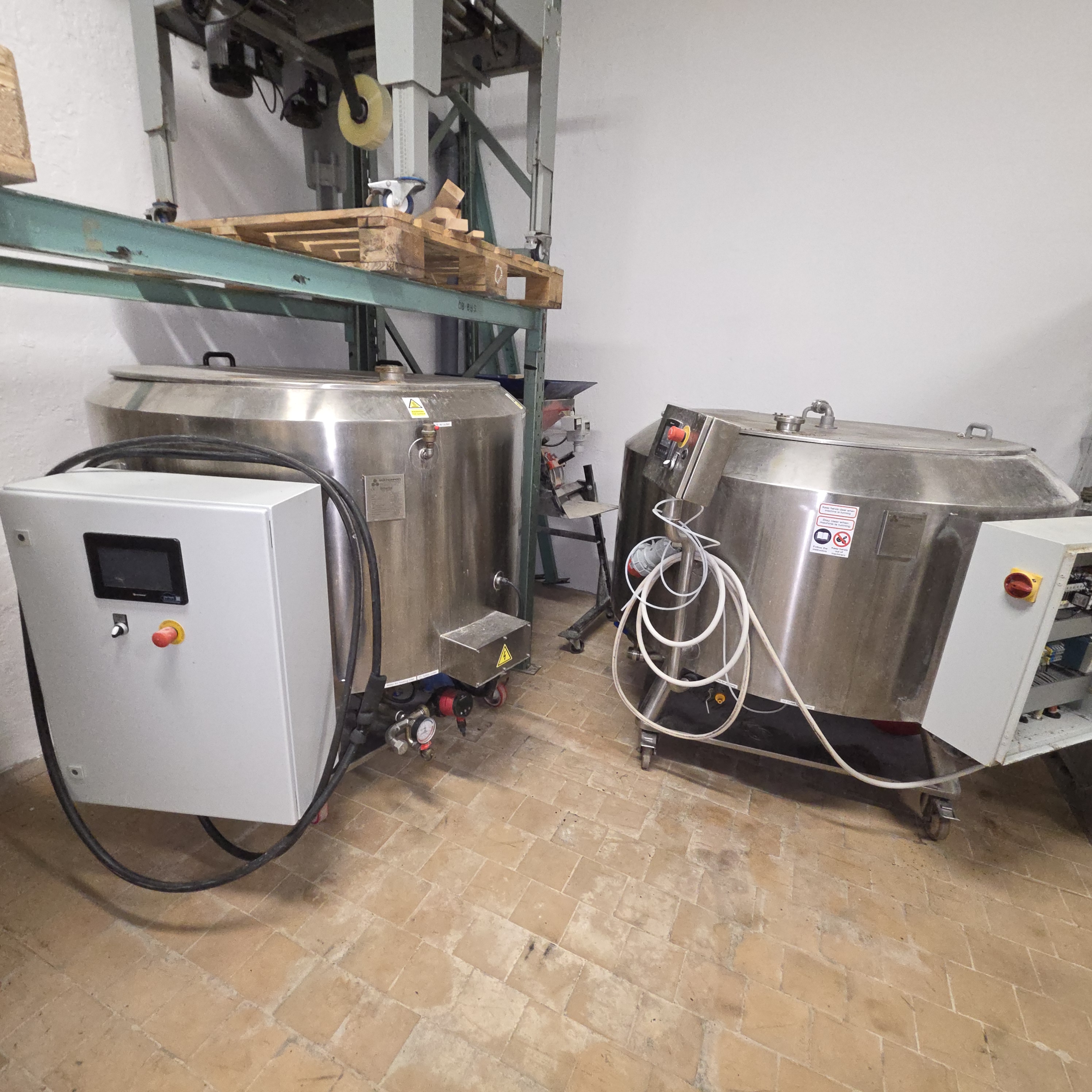

The Brewiks 500 is a two-vessel microbrewery system operating on a plug-and-brew principle. It consists of a mash tun and a lauter tun, both on wheels, which together function as mash tun, filter tun, boiler, and whirlpool. Average output is up to 580 litres of high gravity wort per 6-hour brew

cycle.

Construction and Certification

- The system is manufactured from quality stainless steel AISI 304/316 and carries a CE certificate.
- Both vessels are stone wool insulated and mounted on stands with wheels for easy repositioning.

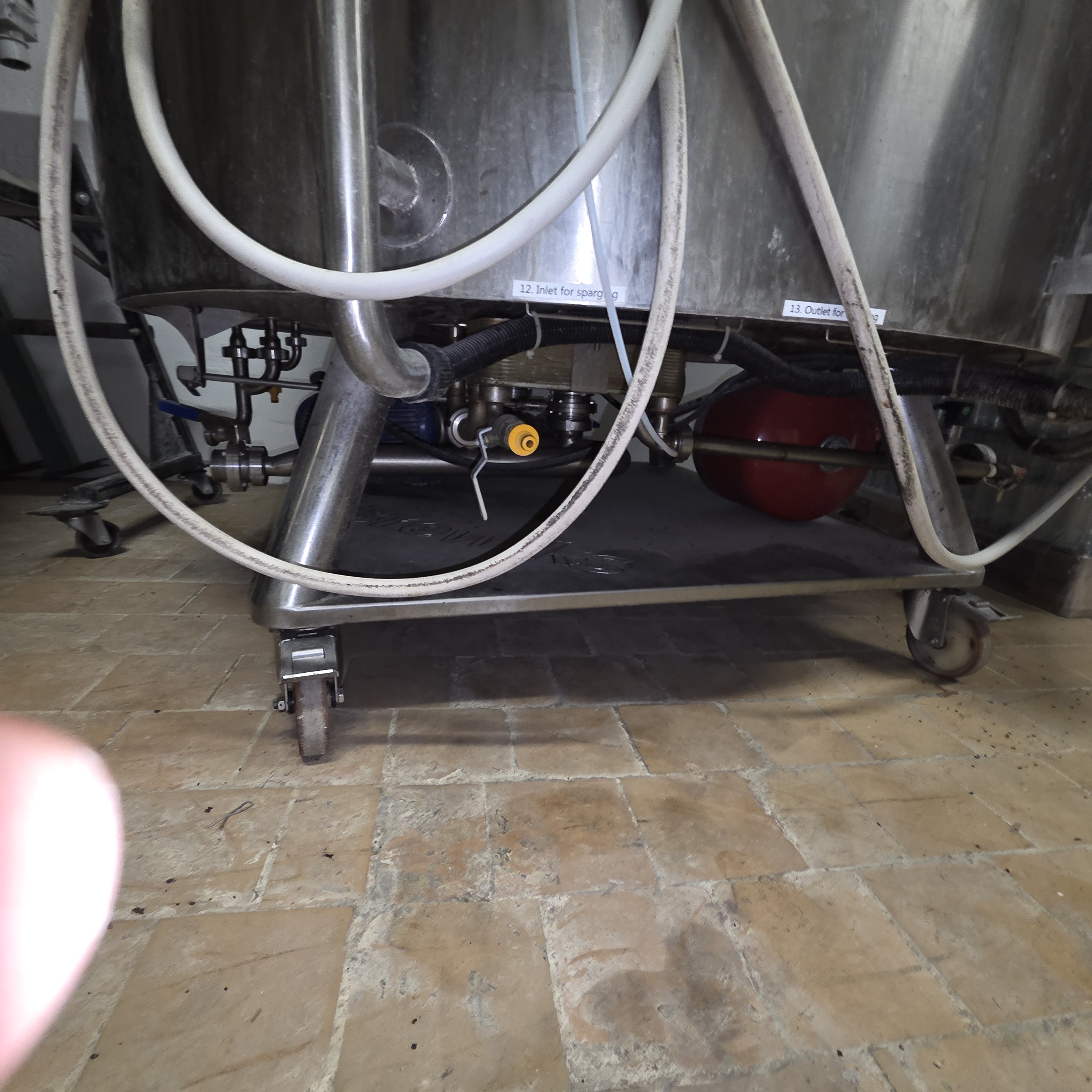

Mash Tun - Included Equipment

- 7-inch touchscreen controller
- Electrical installation with 40 kW electrical heaters
- Hygienic pump
- Water heating system
- Heat exchanger for heating sparging water
- Pipe heat exchanger with hot water recuperation
- Stone wool insulation
- Valves and fittings
- Stand on wheels
- Condensing lid with silicon seal and drain tube

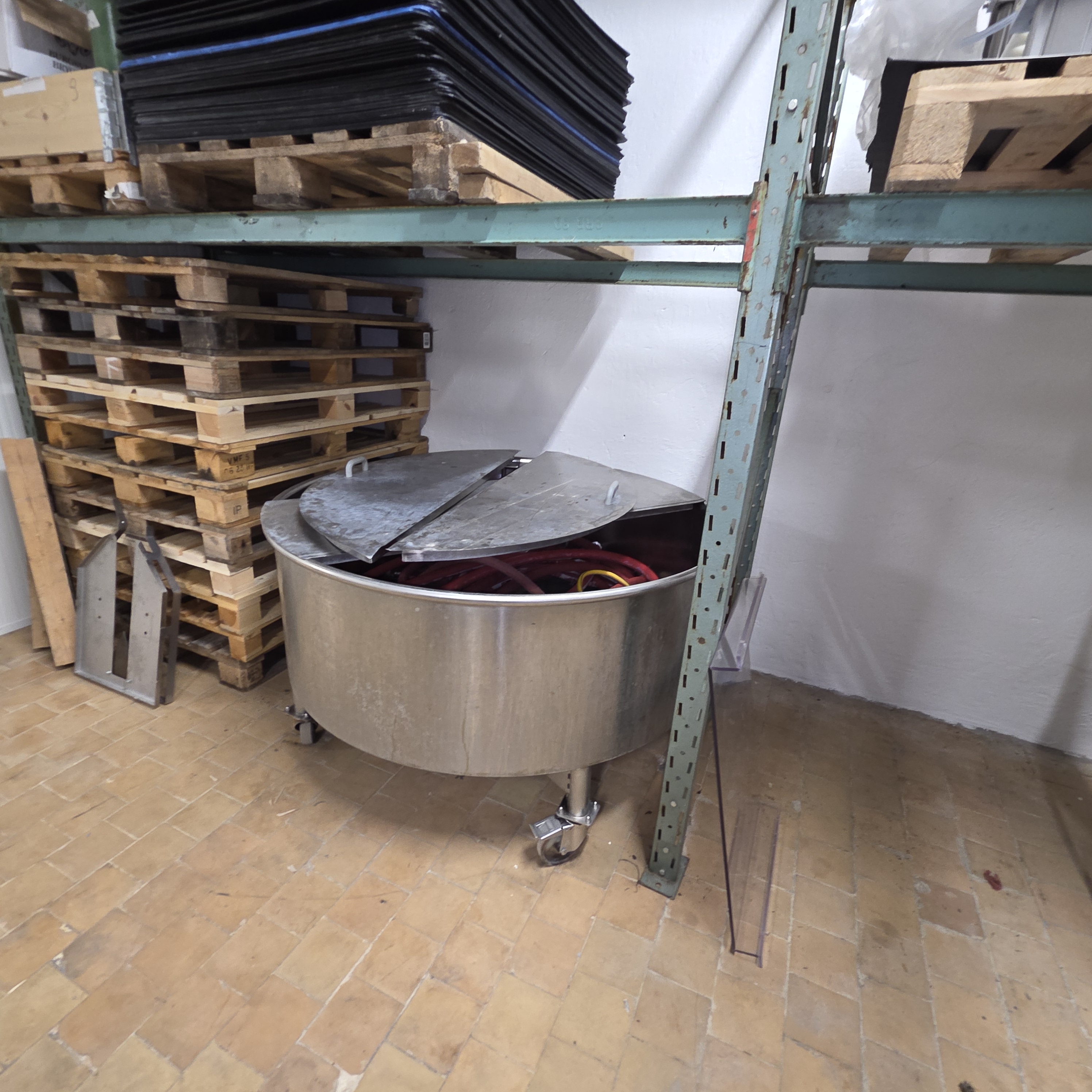

Lauter Tun - Included Equipment

- Whirlpool
- Sparge nozzle
- Valves and connections
- Stand on wheels
- Set of hygienic hoses (5 m, 3 m, 2 m) with hygienic fittings
- Connection to external hot water system

Technical Specifications

- Mash tun weight: 550 kg
- Mash tun dimensions (L x W x H): 1.7 m x 1.7 m x 1.6 m
- Maximum mash tun volume: 730 litres
- Average malt quantity per brew: 190 kg
- Standard connection power: 40 kW
- Lauter tun weight: 100 kg
- Lauter tun dimensions (L x W x H): 1.5 m x 1.5 m x 0.8 m
- Maximum lauter tun volume: 840 litres
