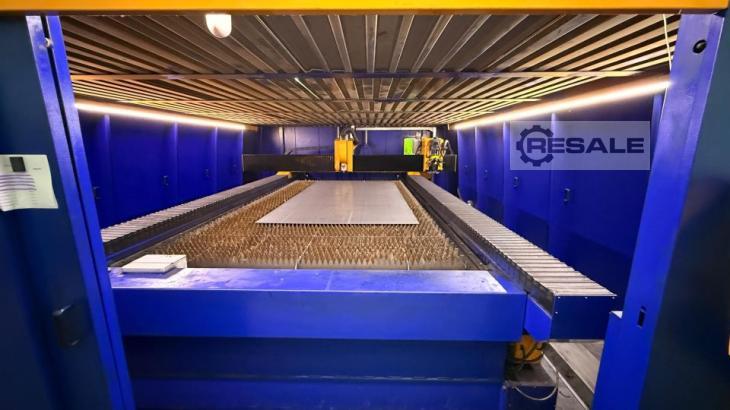

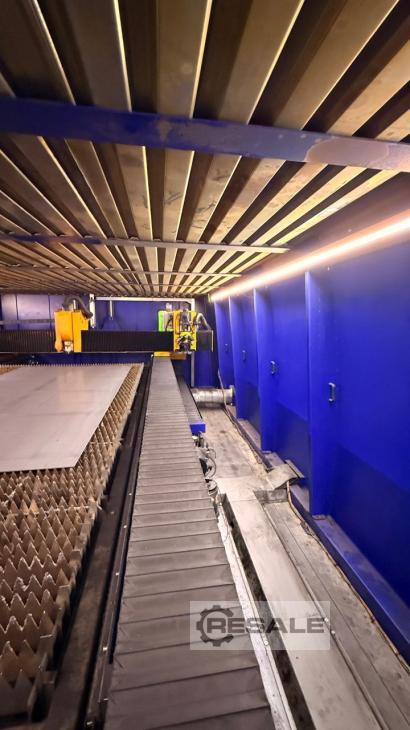

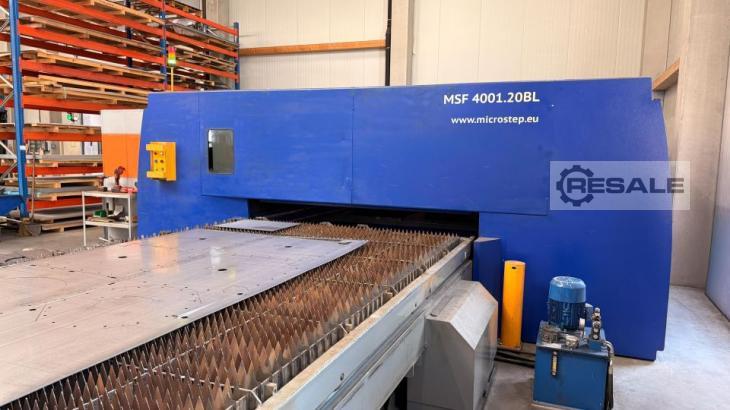

Laser Cutting Machines MICROSTEP FIBERLAS MSF 4001.20BL

CNC Laser Cutting Machine Fiber Laser 3kW
Manufacturer: Microstep
Type: FIBERLAS MSF 4001.20BL
Year of Make: 2015

Complete system consisting of:
- Cutting system,
- IPG fiber laser source,
- HIGHYAG cutting head and
- KEMPER suction.

Laser
IPG Ytterblum Laser System YLS-3000-CUT-Y14
Nominal power: 3,000 W (3kW)
Operating Mode: CW/Modulated
Power consumption: approx. 9.kW max. (8.3 kW typ.) at 3,000 W
Cooling IPG Air-Water Chiller
Operating hours. approx. 26,819 h
Dimensions:
W/D/H: 1,004 x 804 x 556 mm

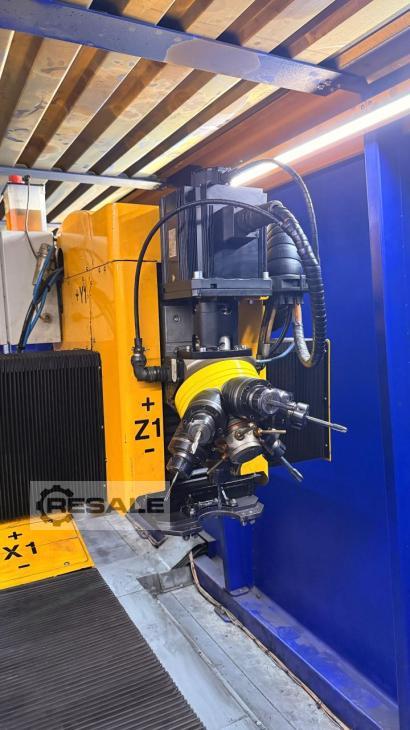

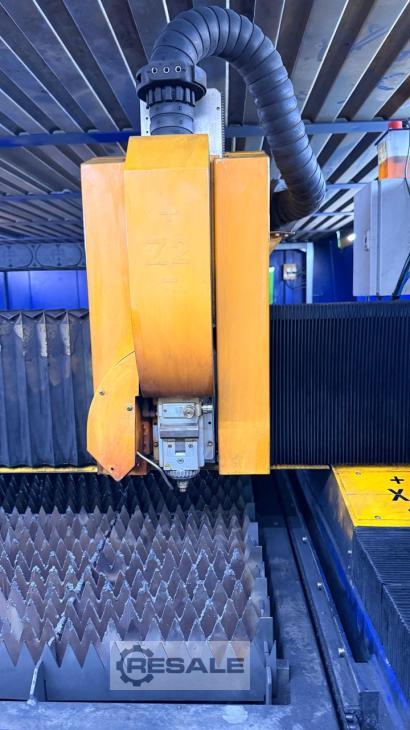

Cutting head
II-VI HIGHYAG BIMO-FSC
Permissible laser power: up to 4 kW
Focal length f: 150 mm (focusing module 1.5)
Focus diameter: approx. 300 μm with 200 μm optical fiber
Weight: approx. 6.2 kg

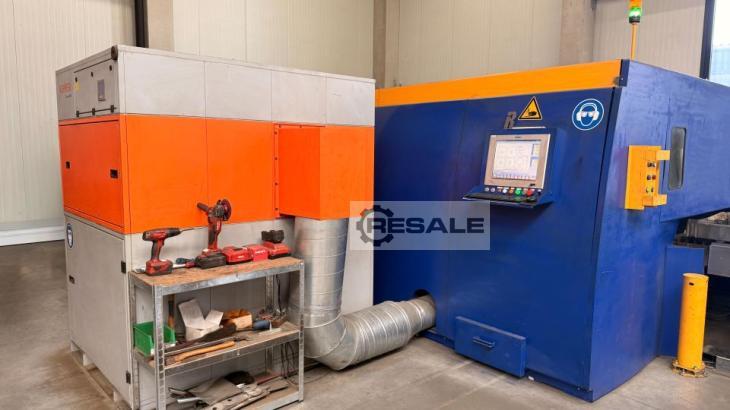

Extraction KEMPER SYSTEM 8000
Extraction capacity: 5,000 m³/h
Filter area: 50 m²
Filter: KEMPER KemTex ePTFE membrane filter
Testing: IFA-tested, welding fumes class W3 (high-alloy steels)

Availability from 10/2026


seller offer No. resale C2177
