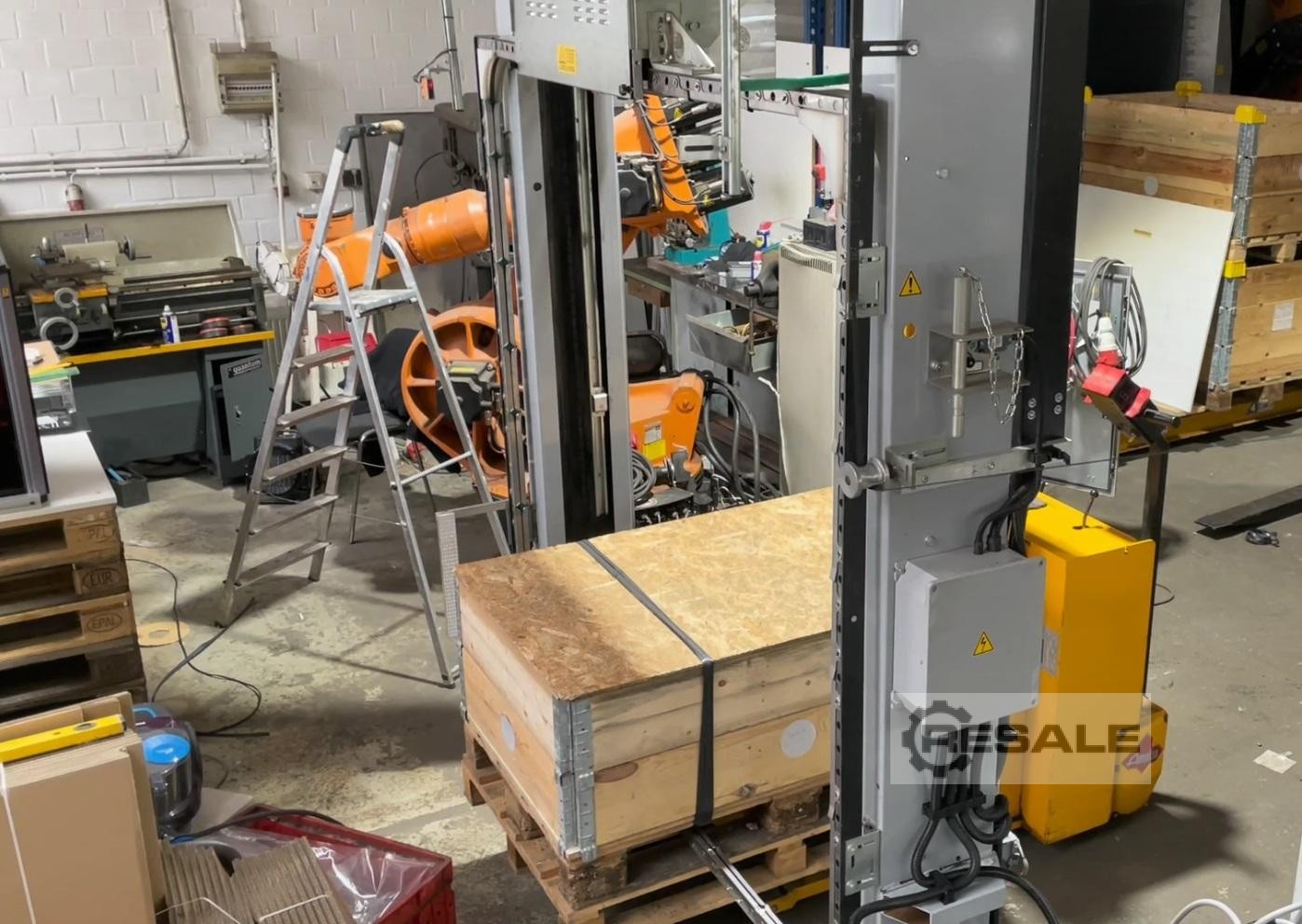

Automatic Vertical Strapping Machine VR 88
Year of Make: 2008
Machine Type: VR88
Machine number: 3177
The VR 88 automatic vertical strapping machine is ideal for strapping
pallets.
It is suitable for installation in both driven and non-driven conveyor
elements.
The lower lance allows the belt to be pulled through the pallet.
During the strapping process, the strapping head moves horizontally to
compensate for tolerances and ensure uniform strap tension and high
stability.
The control panel program allows the execution of one or more
strappings, depending on the customer's specific packaging
requirements.
The machine has been completely overhauled by us and is fully
functional.
Technical data
Supply voltage: 230 V / 400 V / 3 Ph / 50 Hz
Power consumption: 3 kW
Belt types: PP or PET
Band width: 12 mm
Strip thickness: 0.6 – 1.0 mm
Belt tension: up to 200 kg (optionally up to 500 kg)
Closure 16317451 Type: Hot Wedge Welding
Shutter speed: approx. 1 – 3 s, depending on the strap type
Strip penetration speed: 2.5 – 5.5 m/s
Belt retraction speed: 2.5 – 5.5 m/s
Belt tensioning speed: approx. 0.25 m/s
Belt dispenser: 405 mm core
Belt frame: 1,200 × 1,600 mm (conversion to 2500 mm clearance height
possible)
1/2 year warranty possible for assembly or installation at the
customer's site
Germany
42551 Velbert
