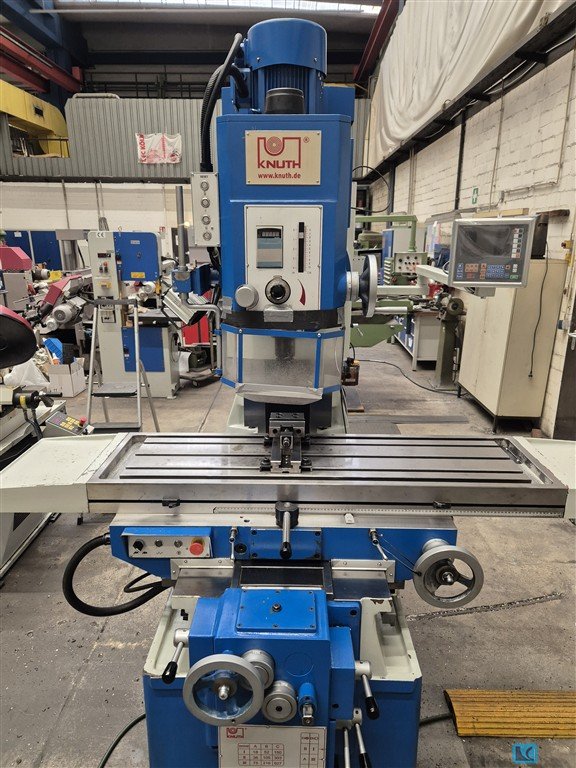

KNUTH KB 1400 Bed Type Milling Machine - Vertical

x-travel:1400 mm
y-travel:400 mm
z-travel:500 mm
total power requirement:ca. 7,5 kW
weight of the machine ca.:ca. 2,7 t
dimensions of the machine ca.:ca. 2,60 × 2,30 × 2,20 m
The KNUTH KB 1400 is a conventional bed-type milling machine designed for precise milling, drilling and threading operations on medium to large workpieces. The robust bed construction ensures high rigidity and machining accuracy, even for demanding machining tasks. Thanks to its robust construction, the machine is ideally suited for use in mechanical engineering, toolmaking, maintenance, and in single-part and small-batch production.
Technical data
·X-axis travel: 1,400 mm
·Y-axis travel: 400 mm
·Z-axis travel: 500 mm
·Table size: 1,700 × 400 mm
·Table load capacity: approx. 800 kg
·Spindle chuck: SK 40 (DIN 69871)
·Spindle speed: 40?2,000 min?¹
·Main drive: 7.5 kW
·Machine weight: approx. 2,700 kg
·Footprint (L × W × H): approx. 2.60 × 2.30 × 2.20 m
Features
·Vertical milling head
·Automatic feed in the axes
·Coolant lubrication system
·Centralised lubrication
·Machine light
·Robust bed construction
