Overview This KHS Innopro warmer-cooler is a skid-mounted
thermoregulator for wine, built in 2006 by KHS AG in Dortmund,
Germany. It brings wine to a set temperature, heating or cooling as
required, at up to 9,900 l/h (99 hl/h), designed for an outlet

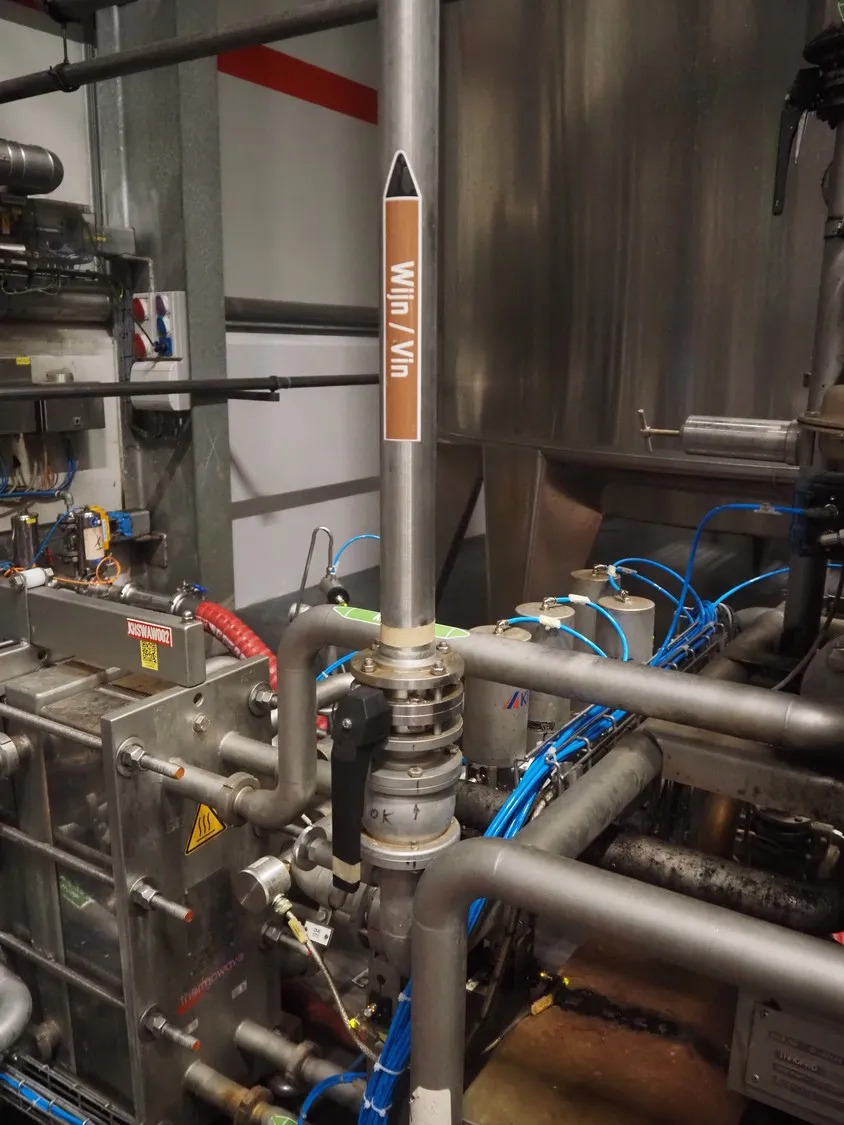

temperature of 18 °C. The core is a three-section Thermowave plate

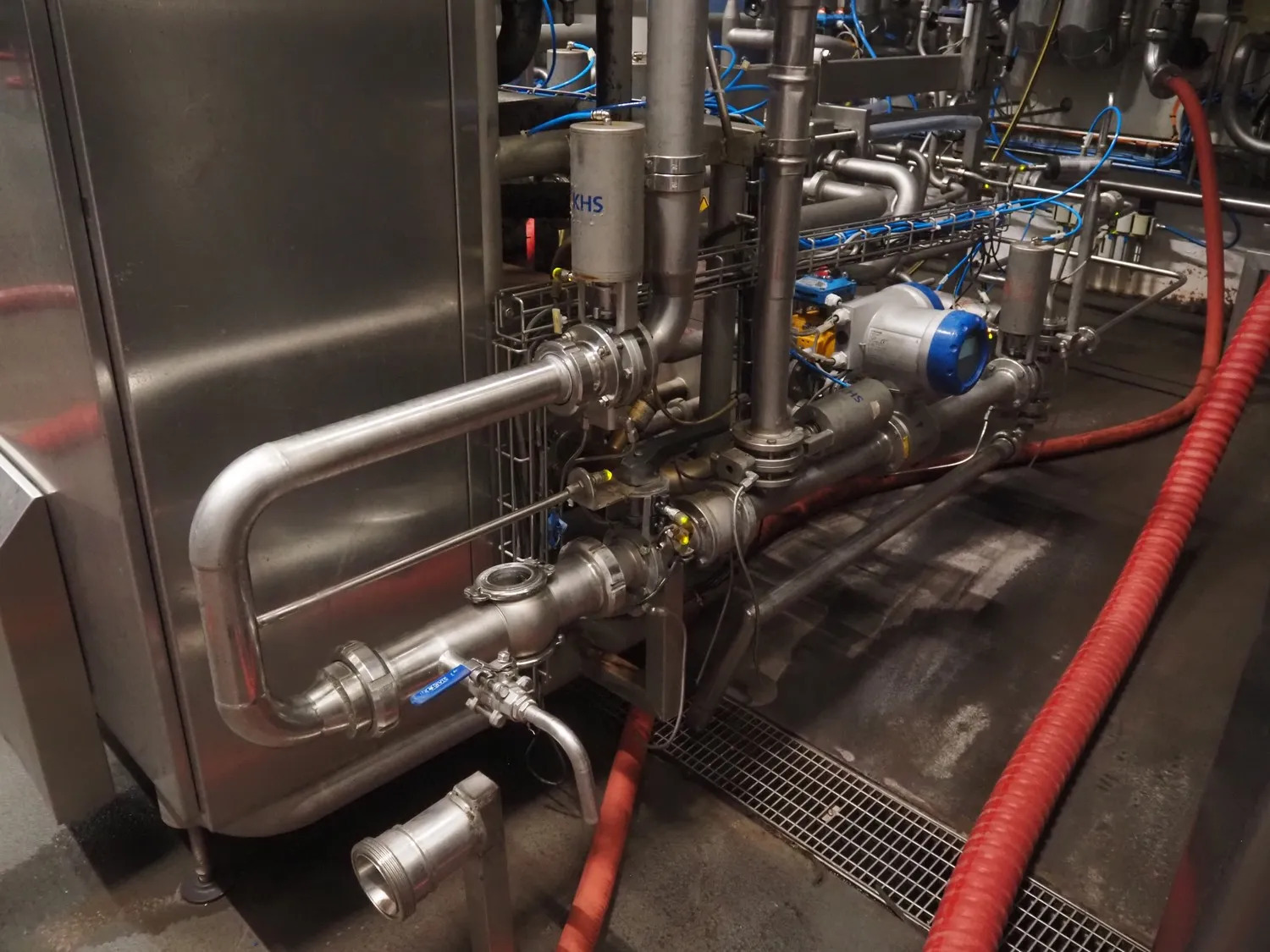

heat exchanger; stainless steel piping, pumps, pneumatically operated
valves and instrumentation are mounted on one frame and run from a
freestanding KHS stainless steel control cabinet with touch panel. The
unit was last used in a wine bottling line. Technical data
Manufacturer: KHS AG (Dortmund, Germany) Model: Innopro warmer-cooler
Year of manufacture: 2006 (control cabinet 2007) Machine type:
thermoregulator for heating or cooling wine, skid-mounted Product:
wine Throughput: 9,900 l/h (99 hl/h) Cooling section: wine from 26 °C
to 18 °C, cold water 10 °C to 14 °C at 18,328 l/h Heating section:
wine from 9 °C to 18 °C via a warm-water circuit (25 °C to 21 °C,
20,516 l/h), which is heated by hot water from 100 °C to 55 °C Plate

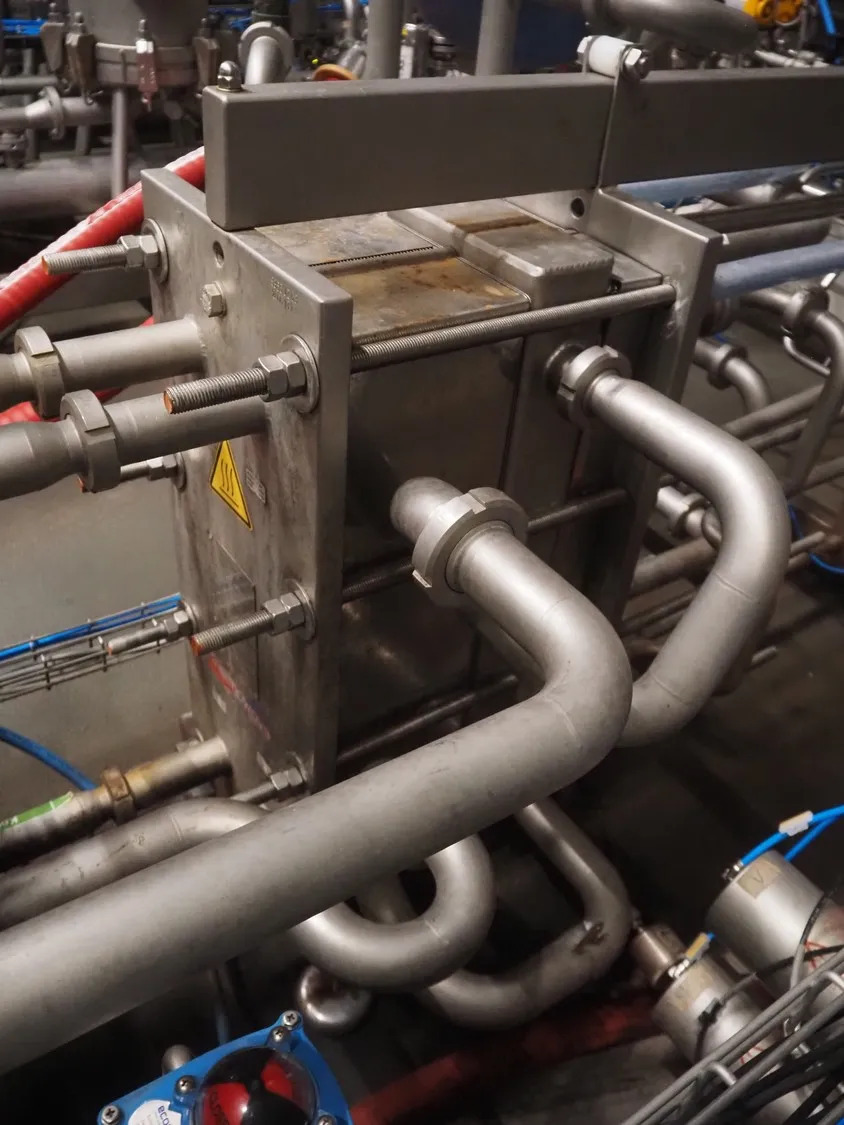

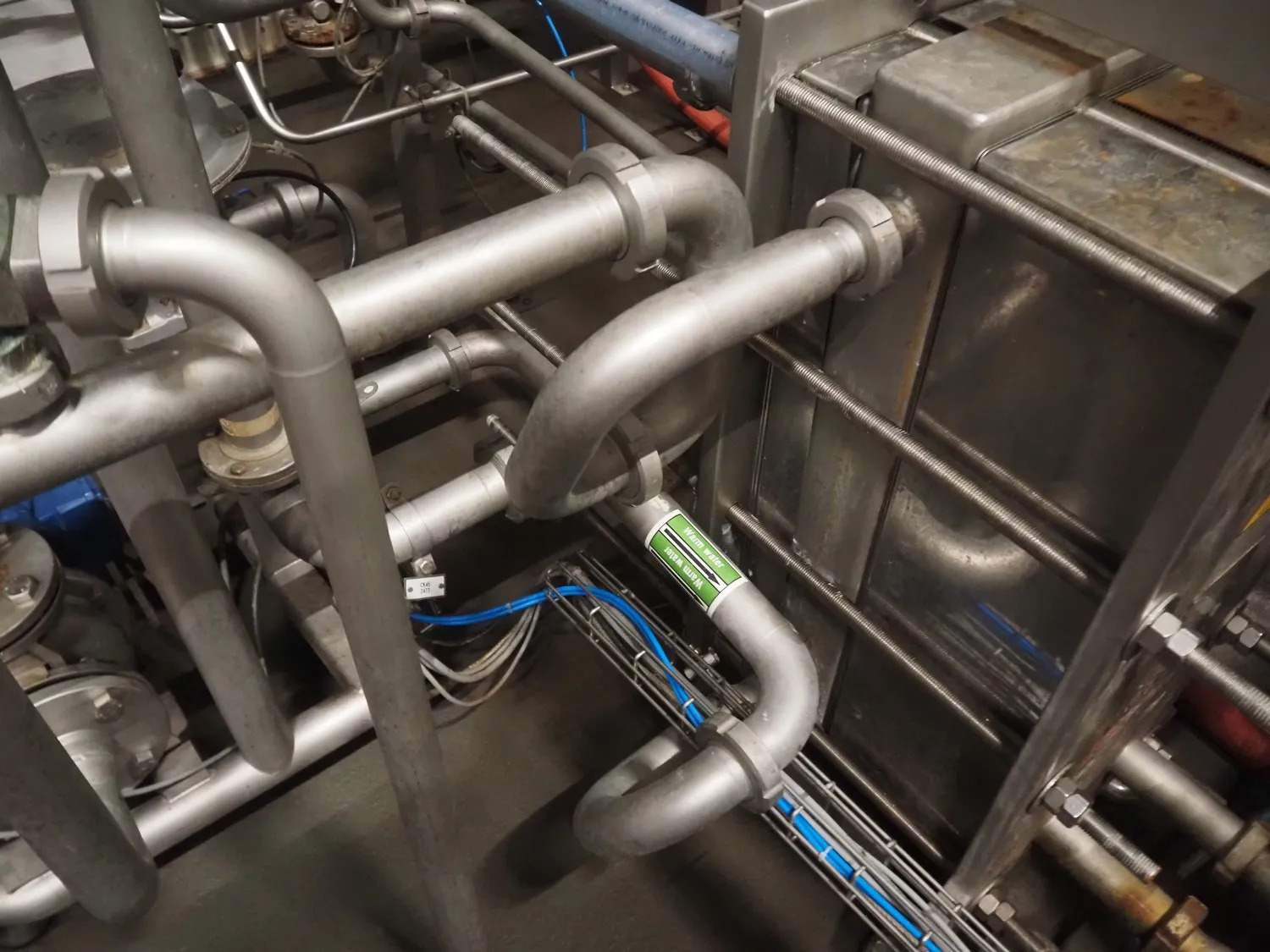

heat exchanger: Thermowave, 3 sections, 71 plates, total heat transfer
area 6.1 m² Plate heat exchanger ratings: operating pressure 10 bar,
test pressure 12.5 bar, max. operating temperature 100 °C Power
supply: 400 V, 50 Hz, 3/N/PE, rated current 25 A; control voltage 24 V
DC Overall dimensions: approx. 3,100 x 1,850 x H 2,330 mm Equipment
Thermowave plate heat exchanger with cooling, wine heating and
warm-water heating sections Warm-water circuit and membrane expansion
vessel Centrifugal pumps, including a Hilge stainless steel pump
Pneumatically operated valves and a pneumatic control valve with
positioner Pressure gauges and process instrumentation Freestanding
KHS stainless steel control cabinet with touch panel Stainless steel
skid frame with interconnecting piping Condition Used. Still installed
and can be inspected by appointment. Availability Immediately.
Location: Belgium.
