IXION AUERBACH TL 1004 Deep Hole Drilling Machines

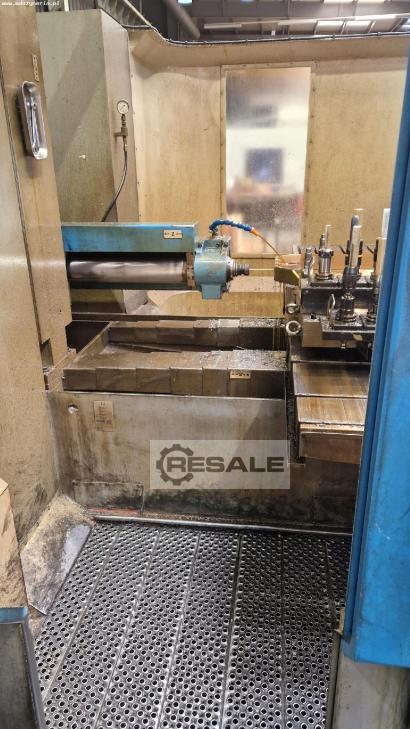

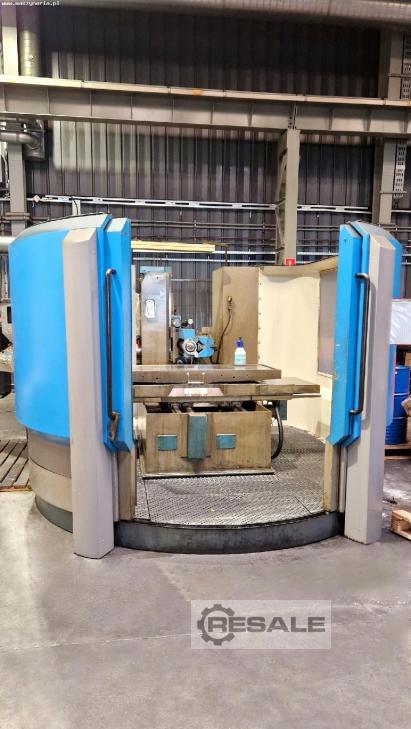

IXION AUERBACH TL 1004 deep hole drilling machine was built in 2004 in Germany by Ixion Auerbach Maschinenfabrik GmbH. The machine is designed for precision drilling of deep holes with a maximum depth of 1000 mm. Workpieces made of various types of material are machined fully automatically by means of precisely guided tools, which keeps the hole perfectly straight. All machining parameters are programmed in an advanced control system with many useful functions. The offer also includes an extensive equipment, consisting of, among others, a measuring probe, gun drills and a chip conveyor. The IXION TL1004 deep hole drilling machine weighs 3500 kg.

Technical specifications of the IXION AUERBACH TL 1004 deep hole drilling machine
- maximum drilling depth: 1000 mm
- maximum hole diameter: 32 mm
- minimum hole diameter: 6 mm
- drilling capacity in 1.2312 steel (carbide gun drill): fi 25 mm
- threading capacity in 1.2312 steel: M20

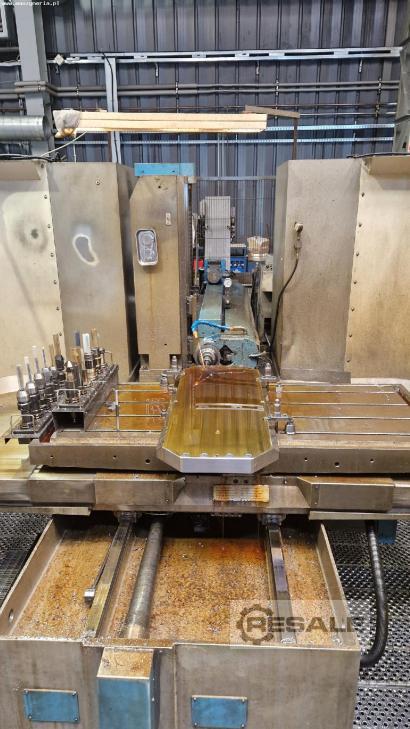

- rotary work table dimensions (L x W): 1200 x 700 mm
- maximum workpiece weight: 3000 kg
- spindle taper: ISO 40
- tool change: manual
- coolant tank capacity: 520 l
- weight of the IXION AUERBACH TL 1004 machine: 3500 kg

Equipment of the IXION AUERBACH deep hole drilling machine

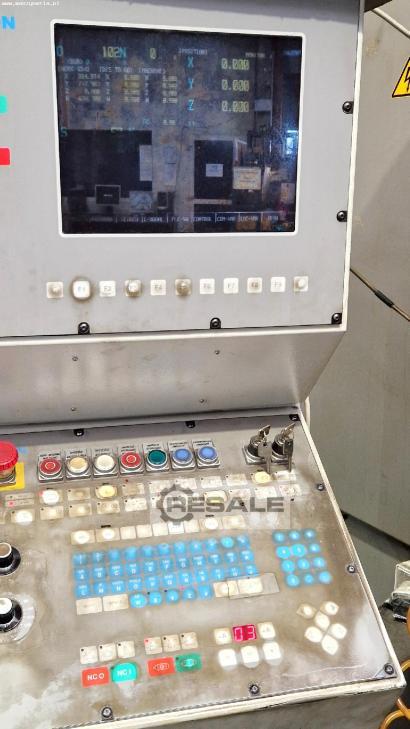

- CNC control: IXION MITSUBISHI M520 MH
- measuring probe in ISO 40 holder

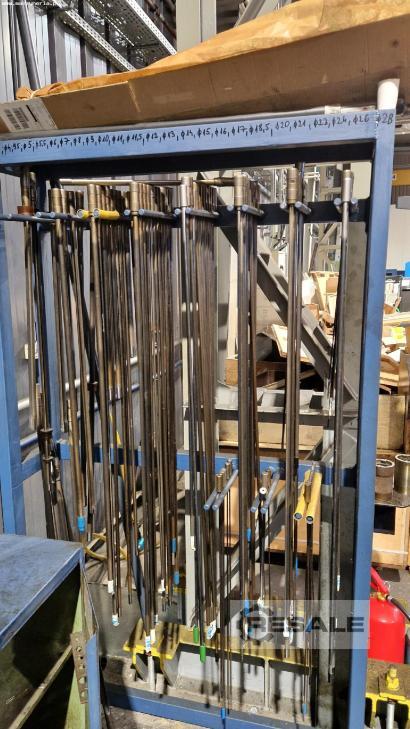

- gun drills 3-22 mm

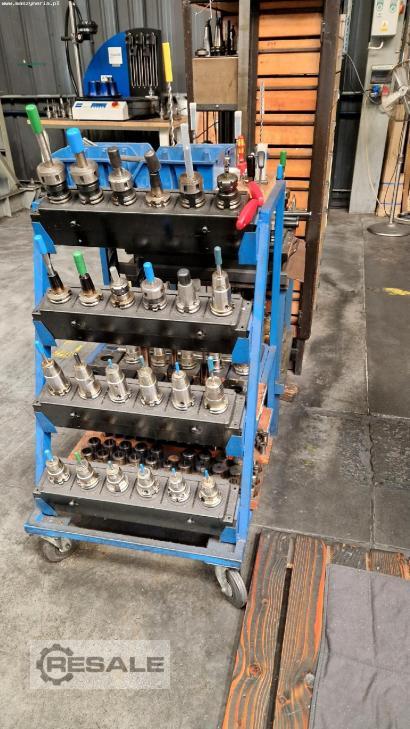

- ISO 40 holders for collets and tools
- tooling for workpiece clamping
- cooling device
- filter unit
- chip conveyor
- chip container with emulsion separator

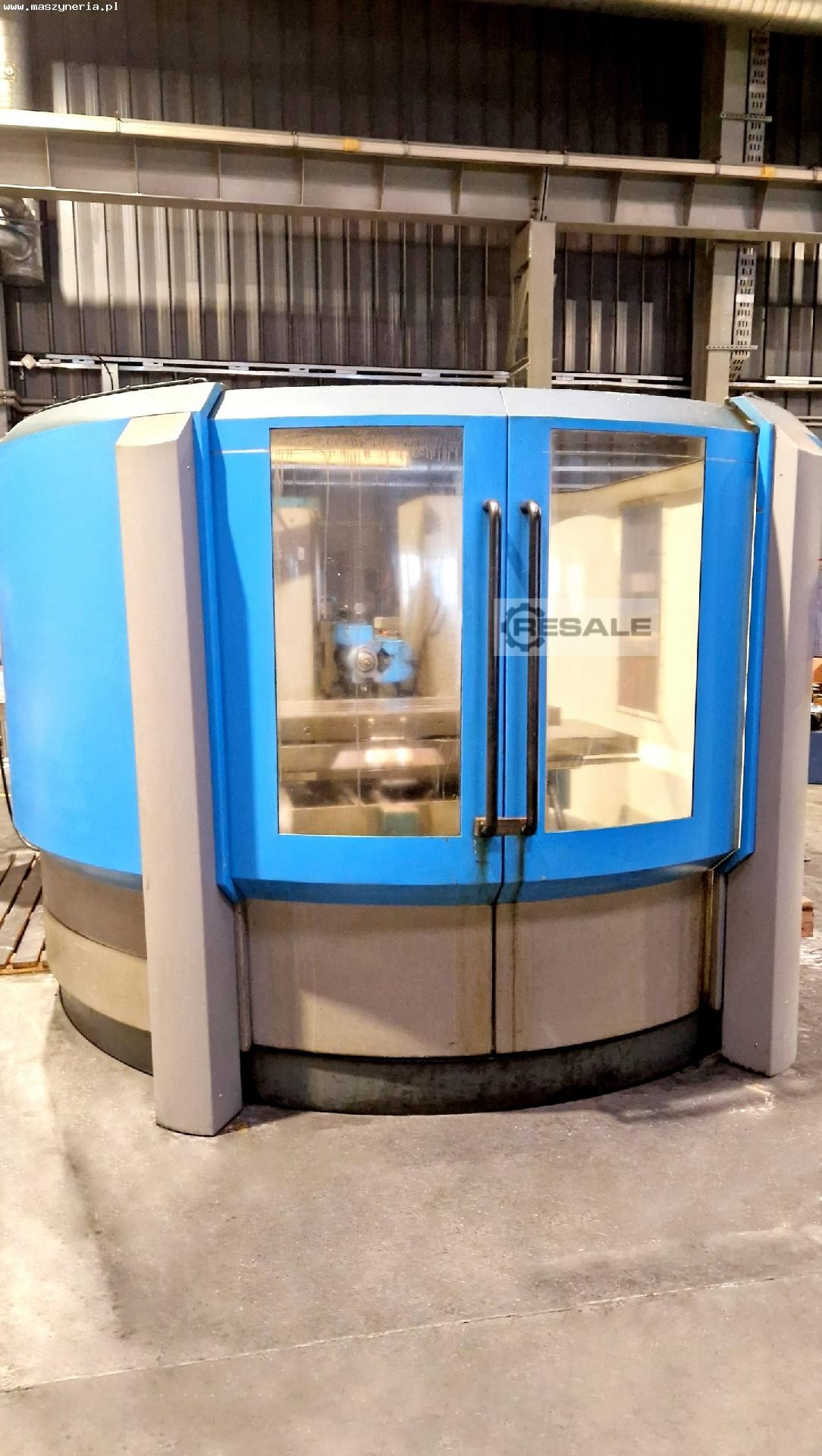

- workspace enclosure
