sheet width: 2050 mm
plate thickness: 8.0 mm
pre-bending
capacity: 6.0 mm
upper roll diameter: 190 mm
lower roll
diameter: 180 mm
bending speed: 5.2 m/min
work height max.:
ca. 980 mm
total power requirement: 5.5 kW
weight of the
machine ca.: 3500 kg.
range L-W-H: 2900 x 1200 x 1280
mm
Furnishing:

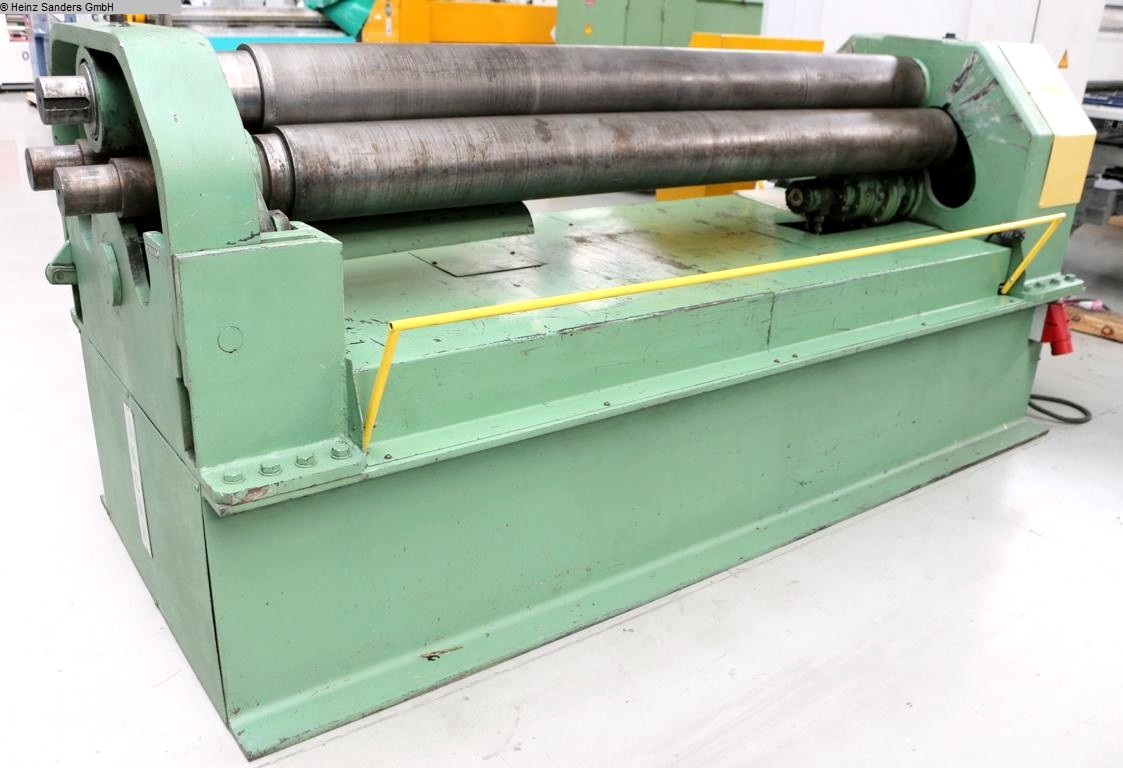

- Robust electro-hydraulic 3-roller bending
machine
- planetary movement of the bending rollers with reduced
center distance
- Hydraulic motors combined with planetary
gears
for driving the 3 rollers

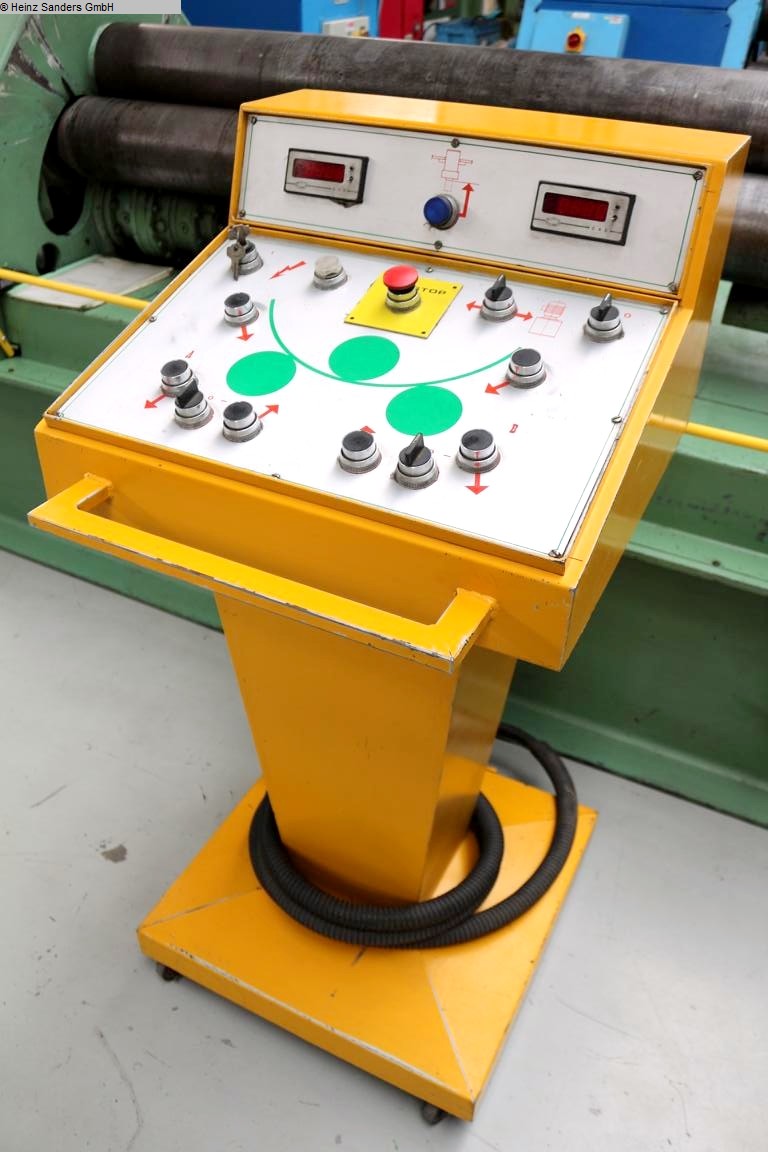

- mobile operating unit, with
connection cable + plug
- extended roll ends for profile bending
rolls

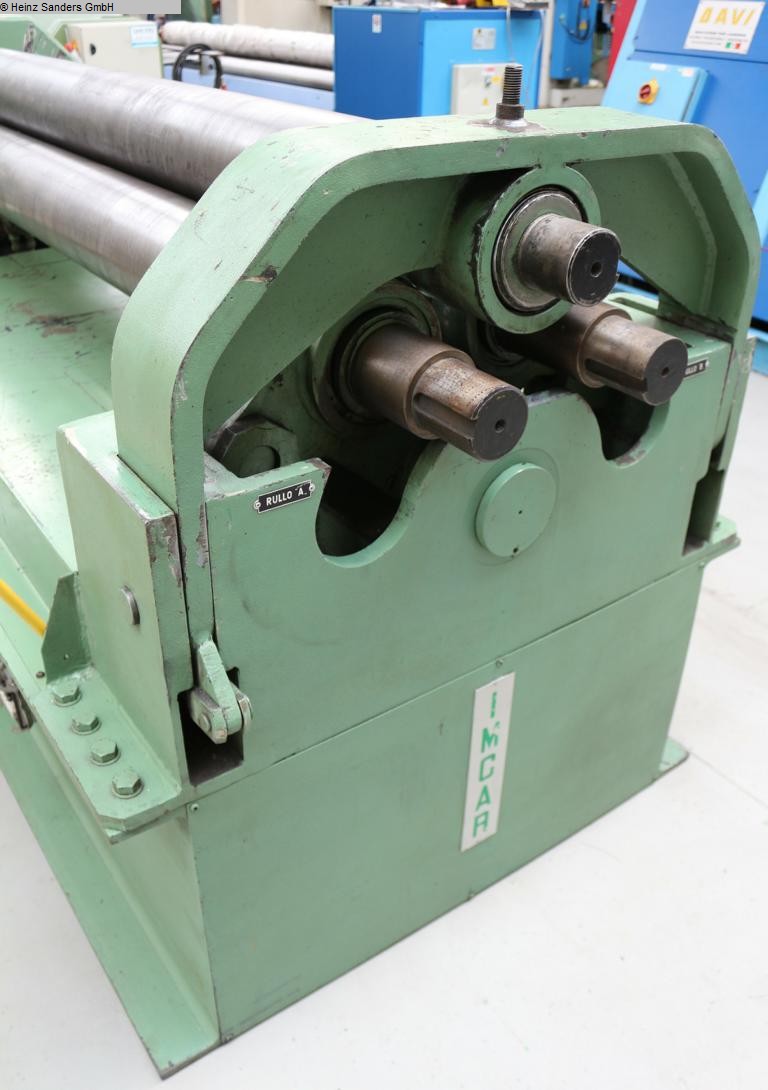

- with conical bending device
Inclination of the side
rollers by handwheels
Workpiece limitation for a cone with a 45°
pitch:
Working length max: 60%
Bending capacity max:
50%
- free-moving operation
electric delivery rollers
electric turning/rolling movement
digital position display of the
reels
- hardened rollers SAE 1050 CK 45
- Hydraulic folding
store for removing closed pipes
- safety device (cable)
-
Original instruction manual + CE declaration
