x-axis: 2200 mm
y-axis: 1700 mm
z-axis: 750 mm
total power
requirement: kW
weight of the machine ca.: t
dimensions of
the machine ca.: m
CNC control: WinMax
Travel
ranges:
X/Y/Z: 2200 x 1700 x 750 mm
Spindle speed: 12,000
rpm
Tool holder: SK 40 Big Plus
Drive power: 18/26 kW
Tool
changer: 40-station

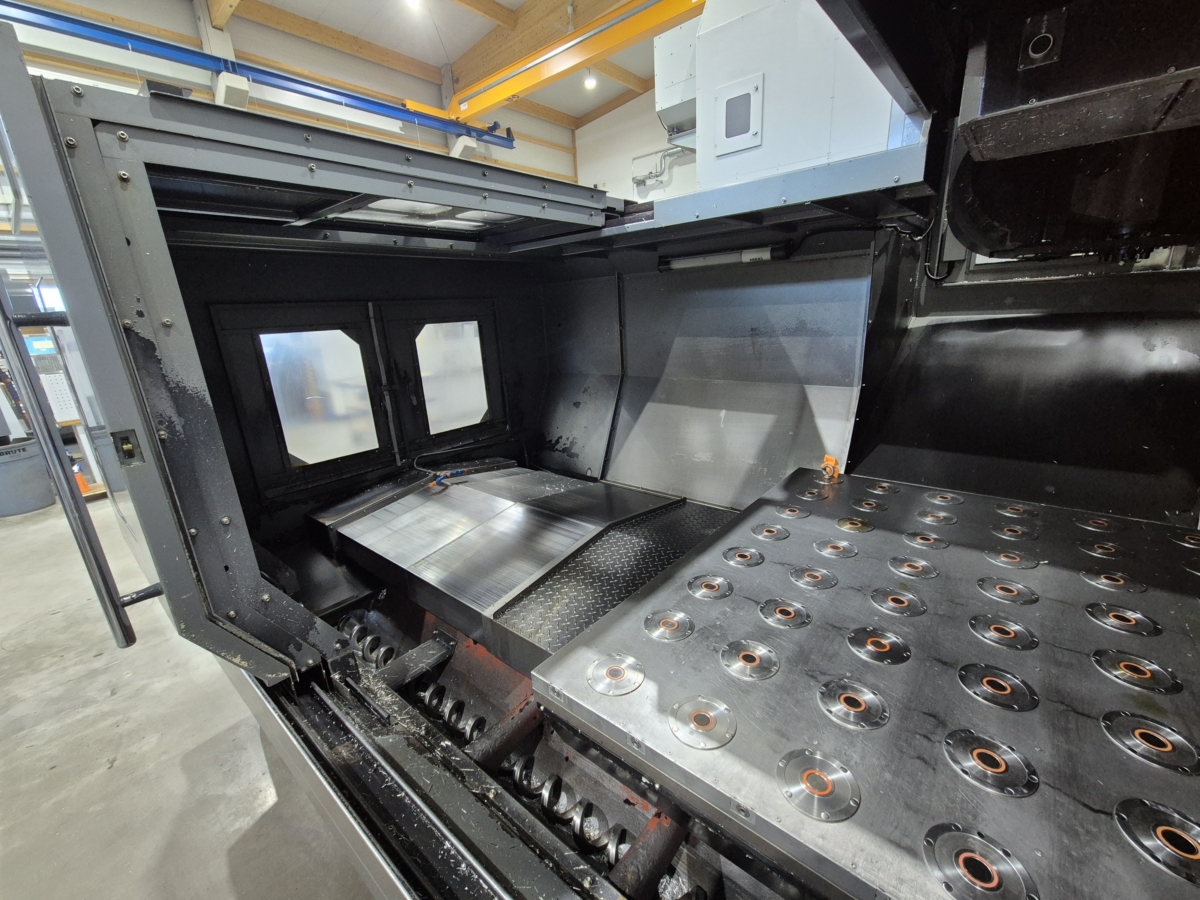

Table clamping surface: 2100 x 1600
mm
Distance from spindle nose to table: 150 – 900
mm
Equipment/Accessories:
Workpiece positioning detection
and tool length calibration via probe
Direct measuring system
(X/Y/Z axes)
Production package for high-performance chip
removal
Internal coolant supply (ICS) 20 bar
Chip
conveyor
Coolant system (1050 liters) with belt filter
unit
Coolant spray gun
Chip splash guard enclosure
Machine
status signal light
LED machine light
Set of machine leveling
pads
Parts list and circuit diagrams on CD
Programming and
maintenance manuals via control help
function
