HEILBRONN REP 100 (UVV) Eccentric Press - Single Column

1977ID 170392417

1977ID 170392417

usedVerified seller
Request price Directly to the seller

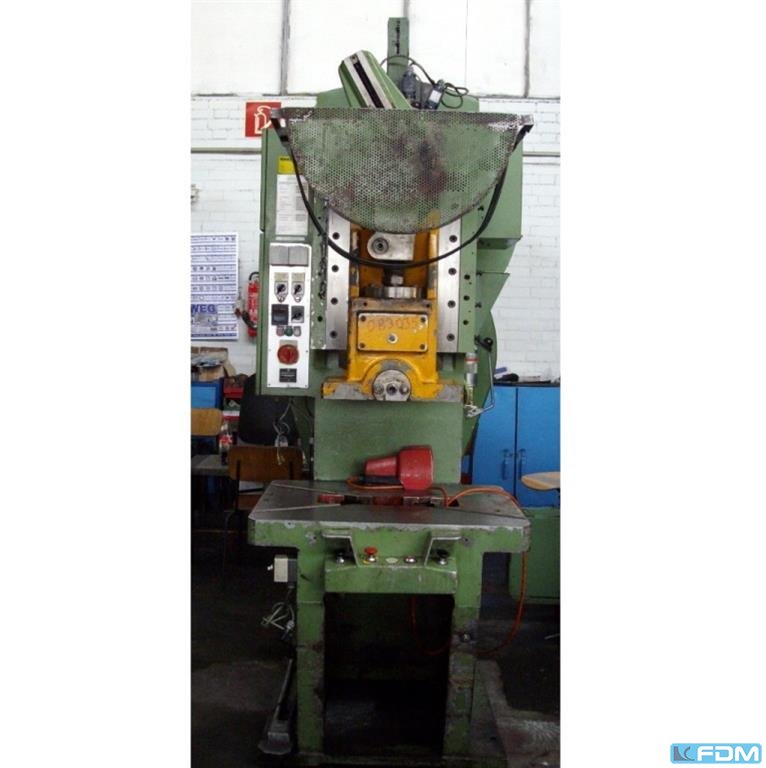

HEILBRONN REP 100 (UVV) Eccentric Press - Single Column
1 / 1

Technical data

· ID 170392417
Source: seller information

Used machinery

Condition
used
Year of manufacture
1977
Location
Lager Eislingen, Baden-Württemberg

Identifikation

ManufacturerHEILBRONN
ModelREP 100 (UVV)
Item number1050-083035

Technik

Quantity1

Description

pressure:100 t
throat:350 mm
stroke:6 - 100 mm
no. of strokes:60 /min
distance table/ram, max. stroke up, adjustment up:400 mm
table surface area:850 x 700 mm
hole in the table:470 x 150 mm
table height over floor:855 mm
ram surface:450 x 300 mm
ram adjustment:80 mm
power requirement:7,5 kW
weight:5,0 t
dimensions (WxDxH):1,5 x 2,3 x 2,6 m
German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1
clutch:pneumatic
overload protection in ram:mechanical
