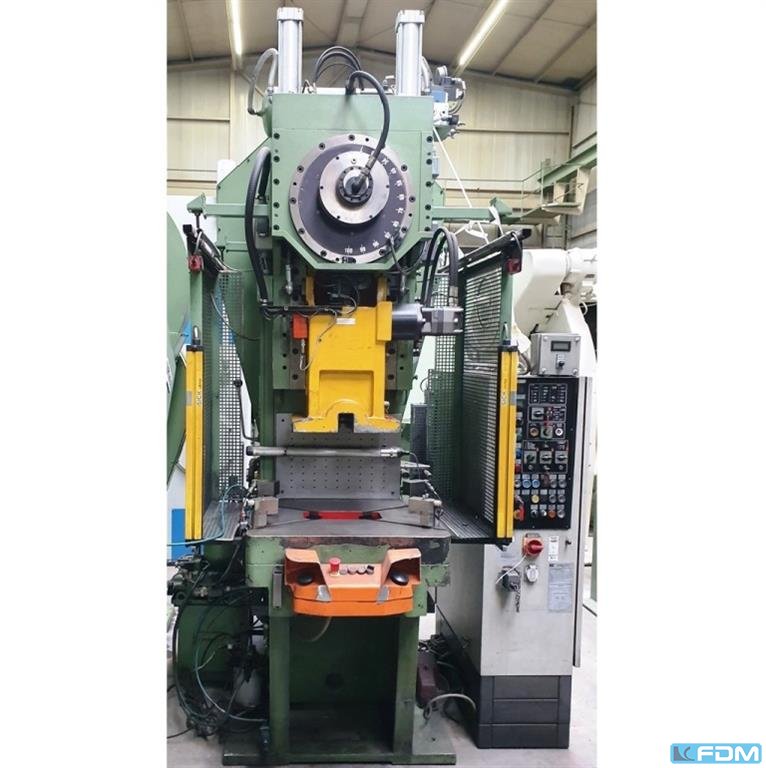

HEILBRONN EP 80 (CE) Eccentric Press - Single Column

1999ID 170392501

1999ID 170392501

usedVerified seller
Request price Directly to the seller
HEILBRONN EP 80 (CE) Eccentric Press - Single Column
1 / 2

Technical data

· ID 170392501
Source: seller information

Used machinery

Condition
used
Year of manufacture
1999
Location
Lager Eislingen, Baden-Württemberg

Identifikation

ManufacturerHEILBRONN
ModelEP 80 (CE)
Item number1050-133024

Technik

Quantity1

Description

pressure:080 t
throat:300 mm
stroke:7 - 100 mm
no. of strokes:120 /min
distance table/ram, max. stroke up, adjustment up:450 mm
table surface area:720 x 600 mm
hole in the table:300 x 120 mm
table height over floor:850 mm
ram surface:400 x 275 mm
ram adjustment:60 mm
power requirement:5,5 kW
weight:6,5 t
dimensions (WxDxH):1,2 x 2,0 x 2,9 m
German Safety: permitted for manual loading:CE-sign
light guard:Sick
clutch:hydraulic
overload protection in ram:hydraulic
ram adjustment:motoric
stroke adjustment:automatic
