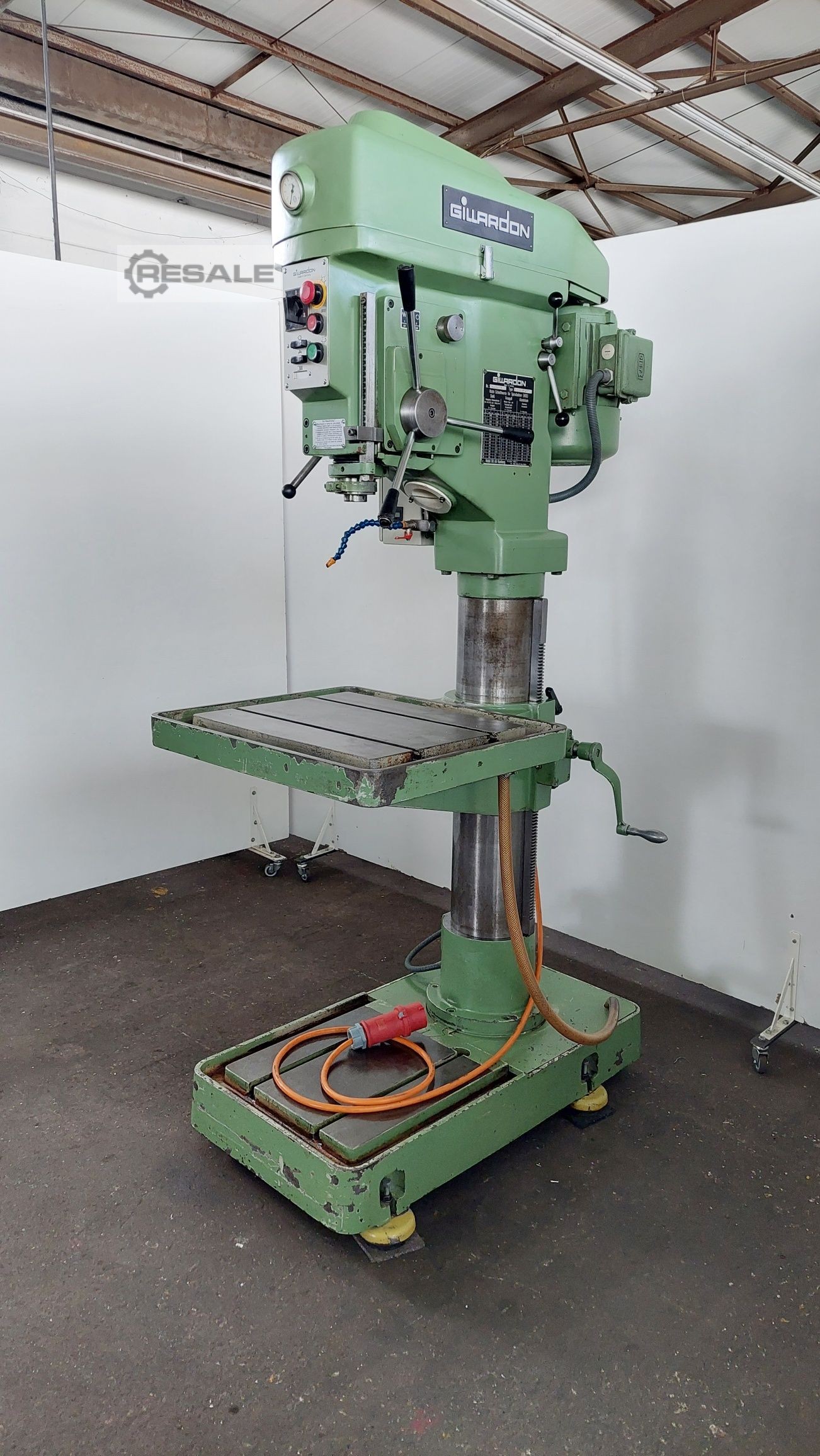

GILLARDON GB 45 VE Column-Type Drilling Machines
usedVerified seller
Request price
Directly to the seller
1 / 7
Technical data
· ID 167640271Column-Type Drilling Machines
- Condition
- used
- Year of manufacture
- 1992
- Location
- 63322 Rödermark
Identifikation
ManufacturerGILLARDON
ModelGB 45 VE
Item numberLg.-Nr. 25251
Technik
Quantity1
Description
Offer 25251
Specifications:
- Drilling capacity in steel ST 60 45 mm
- Drilling capacity in steel ST 60 55 mm
- Drilling spindle holder MK 4
- Drilling spindle stroke 200 mm
- Drilling spindle speeds infinitely adjustable 60 – 1600 rpm
- Right - Counterclockwise rotation

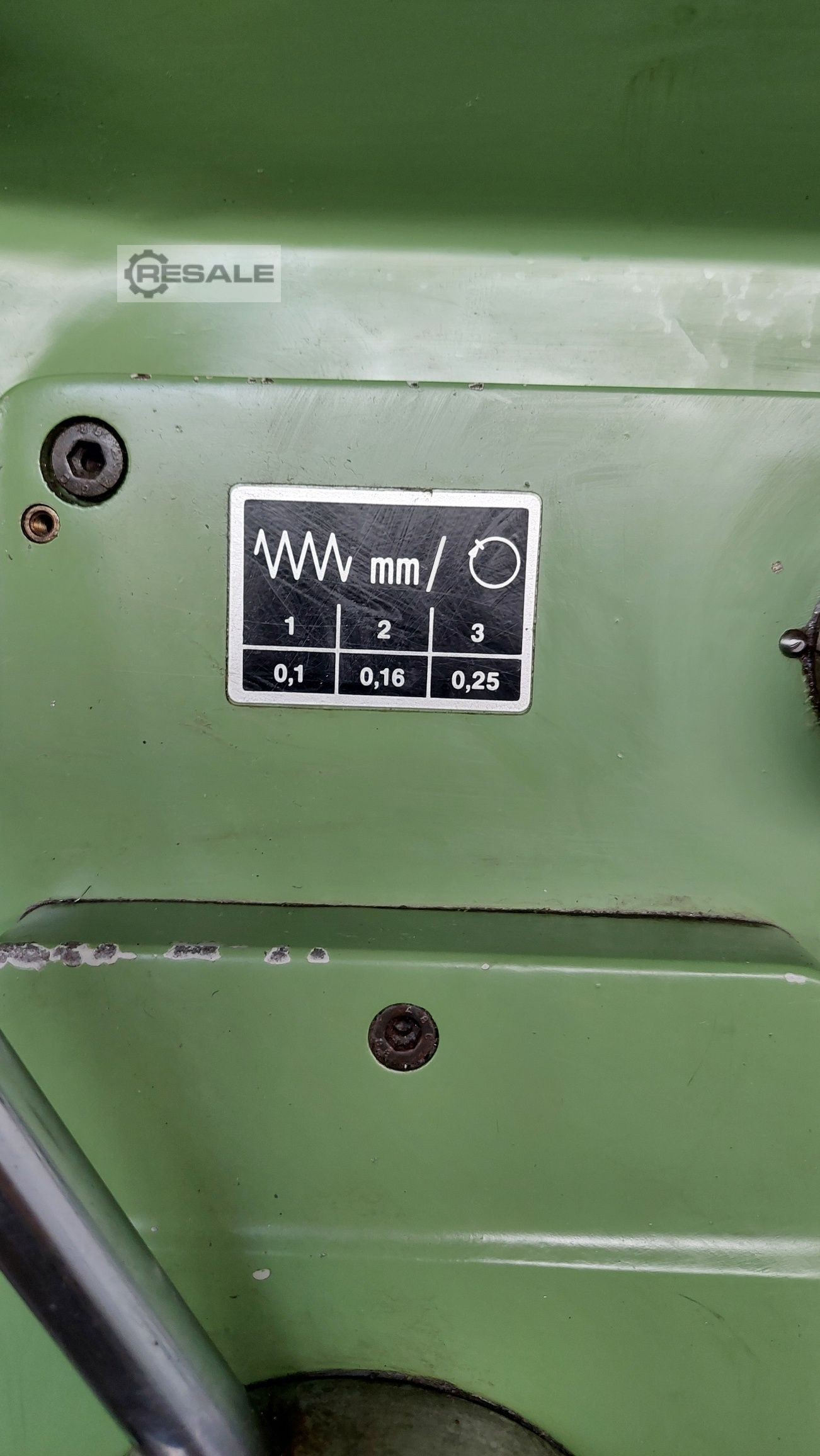

- 3 Feeds electr. Magnetic indentation 0.1; 0,16; 0.25 mm/rev
- Projection 360 mm
- Max distance drilling spindle – table / base plate 775 / 1255 mm
- Table with 2 T-slots 630 x 540 mm
- Height adjustable via rack with hand crank
- Drive 400 V / 2.7 / 4.0 kW
- Space requirement approx. W 800 x H 2100 x D 980 mm
- Weight approx. 750 kg
- with: - Machine vise
- Keyless chuck 1 - 13 mm
- Emergency stop button
-Lighting
Specifications:
- Drilling capacity in steel ST 60 45 mm
- Drilling capacity in steel ST 60 55 mm
- Drilling spindle holder MK 4
- Drilling spindle stroke 200 mm
- Drilling spindle speeds infinitely adjustable 60 – 1600 rpm
- Right - Counterclockwise rotation
- 3 Feeds electr. Magnetic indentation 0.1; 0,16; 0.25 mm/rev
- Projection 360 mm
- Max distance drilling spindle – table / base plate 775 / 1255 mm
- Table with 2 T-slots 630 x 540 mm
- Height adjustable via rack with hand crank
- Drive 400 V / 2.7 / 4.0 kW
- Space requirement approx. W 800 x H 2100 x D 980 mm
- Weight approx. 750 kg
- with: - Machine vise
- Keyless chuck 1 - 13 mm
- Emergency stop button
-Lighting
