Roller Compactor Faytec - CP 1000
Manufacturer: Faytec
Type: CP 1000
Year of Make: 2022
Operating hours: < 500 hours
Location: DE - 549399 Olfen
The flagship of the CP series!
High-end roller compactors with a throughput of up to 400 kg/h.
Laboratory and test machine
Exceptionally few operating hours.
The machine was not operated in regular production and is in a very
good, almost mint condition.
Features and benefits of the Faytec CP1000:
Designed for products with bulk densities up to 0.1g/cm3.
High-performance roller feeding with two horizontal and two vertical
dosing screws

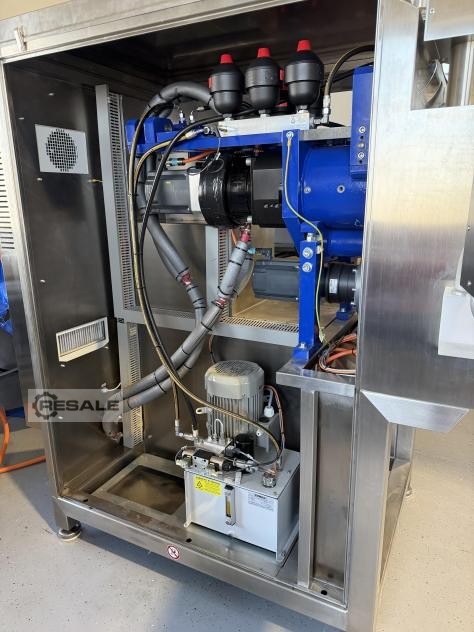

Hydraulically generated pressing force for precise control of the roll
gap
High-quality roller sealing with side plates
Easily dismountable parts for quick cleaning
Space-saving thanks to compact design
Vacuum venting without additional parts
Professional operating system and data processing
Batch-oriented operation
Large 19" touchscreen
The machine has the following standard and optional equipment:
Complete documentation in duplicate + CD-ROM
Instruction manual in German and English
Qualification documents in English, consisting of: HDS + SDS + FS +
IQ/OQ
CE Declaration of Conformity
Integrated cooling system incl. external cooling unit
Remote maintenance module
WIP (Wash in place)

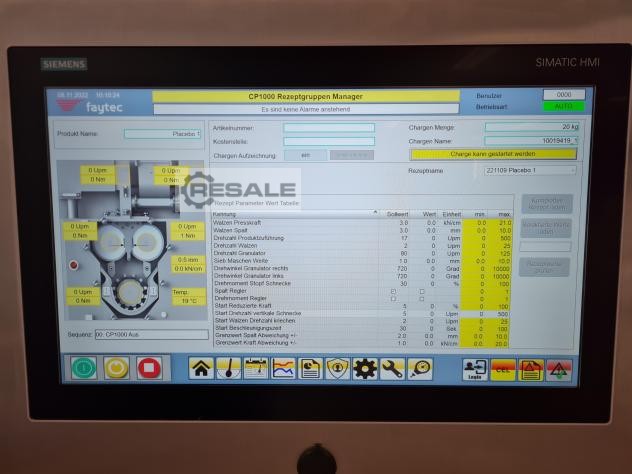

HMI:
Easy operation thanks to graphical user interface
19" Touch Screen
Access control via user management
Format Data Management
PAT System (Process Analysis Tool)
Batch Management
Audit Trail
21 CFR Part 11 compliant
Backup software for data backup
USB port
Product Feeder
via two horizontal and two vertical screw conveyors
Technical data
Output up to 400 kg/h
Press roll diameter 250mm
Press roll force 1-20 kN/cm
Adjustable roller gap 1-6mm
Weight: approx. 1,800kg
Connected loads:
Operating voltage 400V / 50Hz
Control voltage 24V DC
IP54 protection
Connection power 25 kW
Fuse 64 A
Maintenance:
The machine has less than 500 operating hours and is therefore in very
good, almost mint condition.
Subject to technical changes
FAYTEC CP 1000 Roller Compactor
Manufacturer: FAYTEC
Type: CP 1000
Year of manufacture: 2022
Operating hours: < 500 hours
Location: DE – 59399 Olfen, Germany
The Flagship of the CP Series!
High-end roller compactor with a throughput of up to 400 kg/h.
LABORATORY AND TEST MACHINE
Exceptionally low operating hours.
The machine was not used in regular production and is in excellent,
nearly new condition.
Features and Benefits of the FAYTEC CP 1000
Designed for products with bulk densities as low as 0.1 g/cm³
High-performance roller feeding system with two horizontal and two
vertical dosing screws
Hydraulically generated compaction force for precise control of the
roller gap
High-quality roller sealing system with side plates
Easily removable parts for quick and efficient cleaning
Space-saving design due to compact construction
Vacuum deaeration without additional components
Professional operating and data-processing system
Batch-oriented operation
Large 19" touchscreen
Standard and Optional Equipment
The machine is equipped with the following standard and optional
features:
Complete documentation in duplicate plus CD-ROM
Operating manuals in German and English
Qualification documentation in English, including:
HDS
SDS
FS
IQ/OQ
CE Declaration of Conformity
Integrated cooling system including external cooling unit
Remote maintenance module
WIP (Wash-in-Place)
HMI
Easy operation via graphical user interface
19" touchscreen
User access control and user management
Format/recipe data management
PAT system (Process Analysis Tool)
Batch management
Audit trail
21 CFR Part 11 compliant
Backup software for data backup
USB interface
Product Feeding
Product feeding via two horizontal and two vertical conveying/dosing
screws.
Technical Data
Throughput: up to 400 kg/h
Compaction roller diameter: 250 mm
Compaction force: 1–20 kN/cm
Adjustable roller gap: 1–6 mm
Weight: approx. 1,800 kg
Electrical Data
Operating voltage: 400 V / 50 Hz
Control voltage: 24 V DC
Protection class: IP54
Connected load: 25 kW
Fuse protection: 64 A
Condition / Maintenance
The machine has less than 500 operating hours and is therefore in
excellent, nearly new condition.
Germany
59399 Olfen
