DREES VE 100/100 Double Column Press - mechanical

1980ID 170392402

1980ID 170392402

usedVerified seller
Request price Directly to the seller

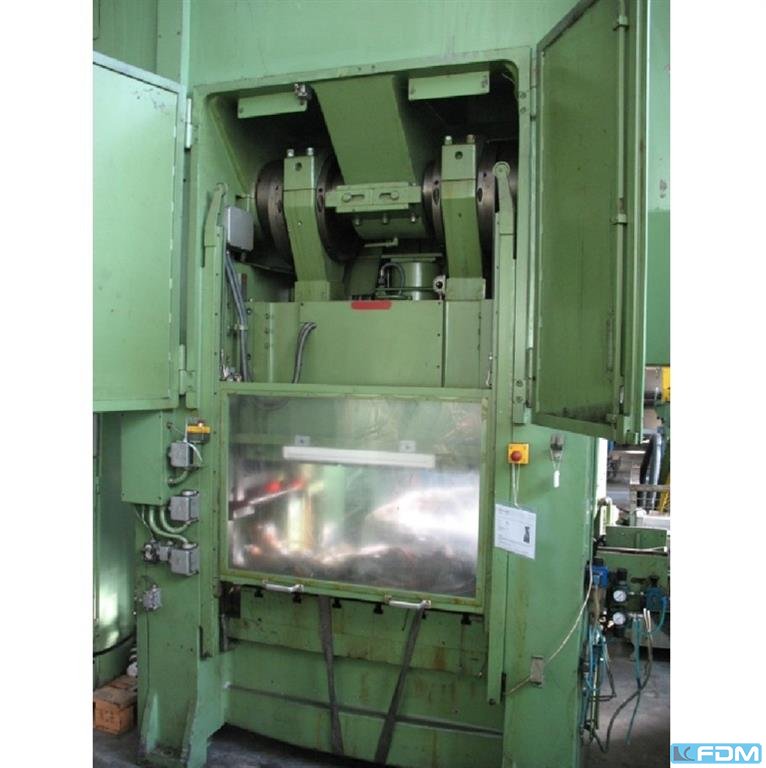

DREES VE 100/100 Double Column Press - mechanical
1 / 3

Technical data

· ID 170392402
Source: seller information

Used machinery

Condition
used
Year of manufacture
1980
Location
Lager Eislingen, Baden-Württemberg

Identifikation

ManufacturerDREES
ModelVE 100/100
Item number1050-073112

Technik

Quantity1

Description

pressure:100 t
distance between columns:1230 mm
stroke:20 - 200 mm
no. of strokes:20 - 60 /min
distance table/ram, max. stroke up, adjustment up:650 mm
table surface area:1050 x 750 mm
table height over floor:760 mm
side window:540 mm
ram surface:1000 x 750 mm
ram adjustment:100 mm
power requirement:18,0 kW
weight:20,5 t
Dimensions (WxDxH):2,8 x 1,9 x 4,3 m
infinitely variable drive:PIV
clutch:pneumatic
overload protection in ram:hydraulic
ram counterbalance:pneumatic
ram adjustment:motoric
