diverse Filling line for non-returnable PET bottles

Filing Line for non-returnable PET-bottles
make KRONES, Kaeser, Comag, Lachenmeier
capacity 14.000 bottles/h at 0,5l bottle
12.000 bottles/h at 1,5l bottle
neck finish PCO 1810
filling product carbonated water, beer and soft drinks with 15°C and 8,0 g/l CO2
year 2004
packing 3 x 2 (with and without handle)
pallet 4 x ¼ Plastic pallet (600 x 400 mm)
2 x half-size pallet (800 x 600 mm)
on Euro pallet (1.200 x 800 mm)
control Uni Siemens S7 300
kind of current TN-S-net, 400 V, 50 Hz

This complete filling line for non-returnable PET bottles was manufactured in 2004 by Krones. The line is for production of high-performance beverages and it is in good condition.

consisting of:

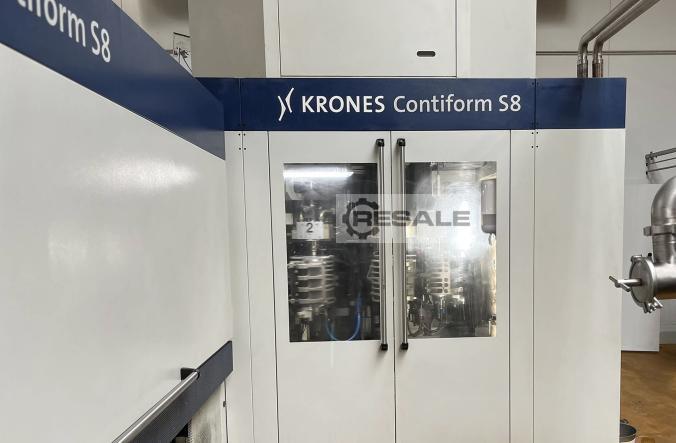

1. Blowmoulder-Filler-Bloc KRONES Contiform S08
Incl. preformtipper Tanner,
Prefromconveyor
Cooling Unit KKT Kraus KLC50N

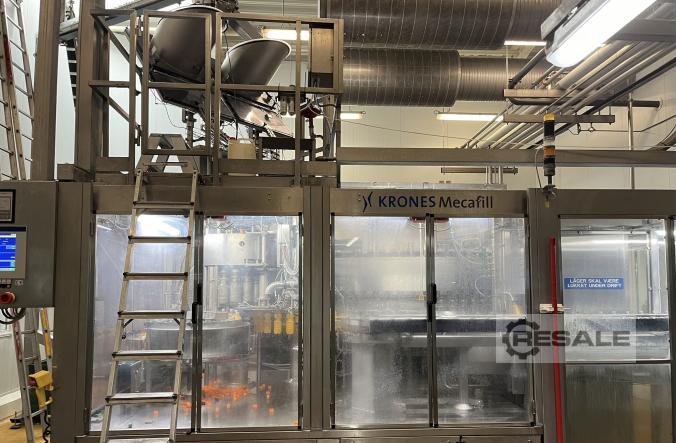

Mecafill VKP-PET 2880-80-113
Neckhandling
Automatic butterfly valves Neumo
Plastic screw capper KRONES with 10 heads
Pick & Place
thread spraying system
Inkl. cap conveyor system

2. Compressor Kaeser ONLY Booster step

3. Mixer KRONES MSF 24/2
vacuum-assisted deaeration
Brixmeter
CO2-meter
Velcorin Dosing Unit Burdomat II G

3. Bottle Inspection KRONES Checkmat FM-G
Fill height (underfill) and cap control with gamma

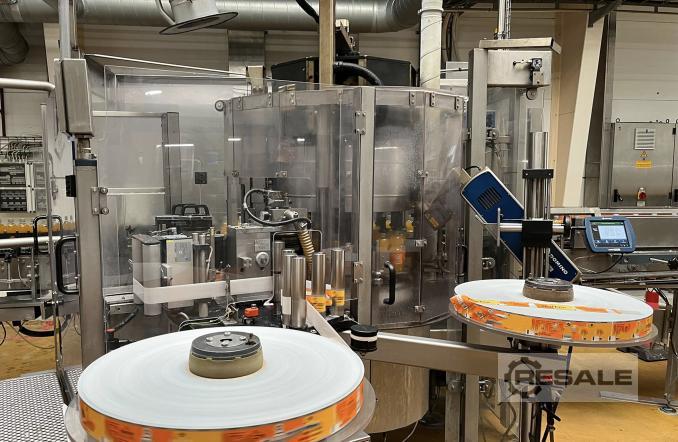

4. Labelling Machine KRONES Unimodul 600-15
Contiroll labelling station 2-3-340 for wrap-around label from a
reel with hotmelt
2 x cold glue labelling station 8-8-130 for paper label

5. Container Inspection KRONES Checkmat E
Label Check existence

6. Code Device Excel 170i UHS

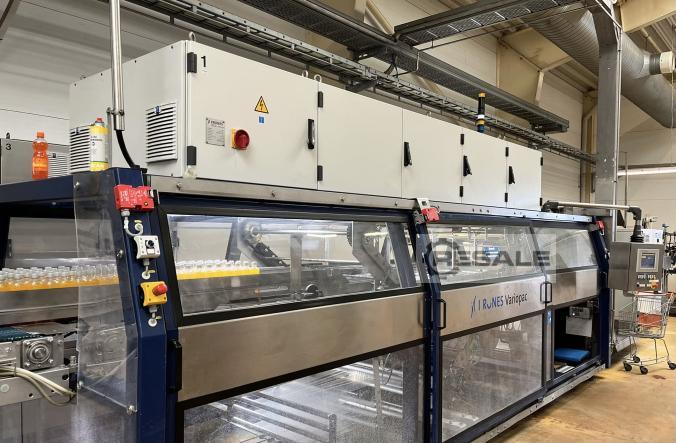

7. Packing Machine KRONES Variopac FS-30
6-lane infeed, 2 lane production (3x2)
Foil only

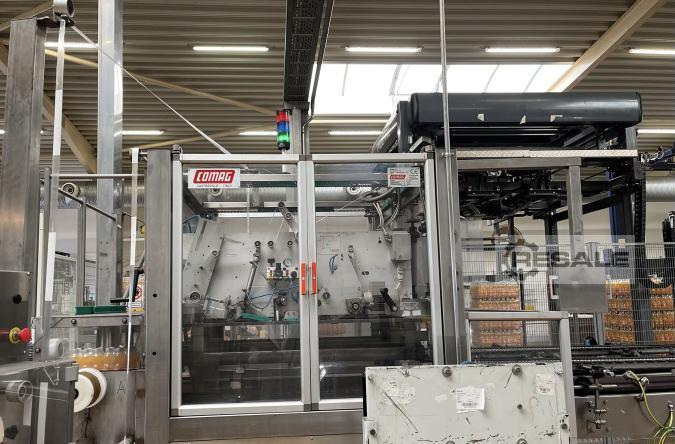

8. Handle Applicator Comag H 40/2
2 lanes

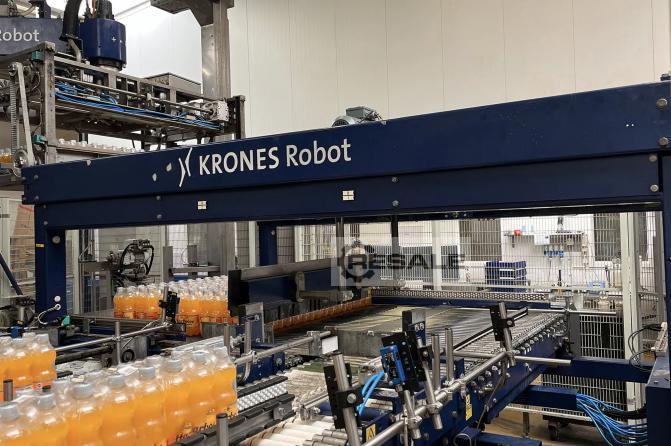

9. Palletizer KRONES Robot 3A
2-lane infeed
Shutter gripper system
Layer pad inserter 4-sections (for ¼-size pallet)

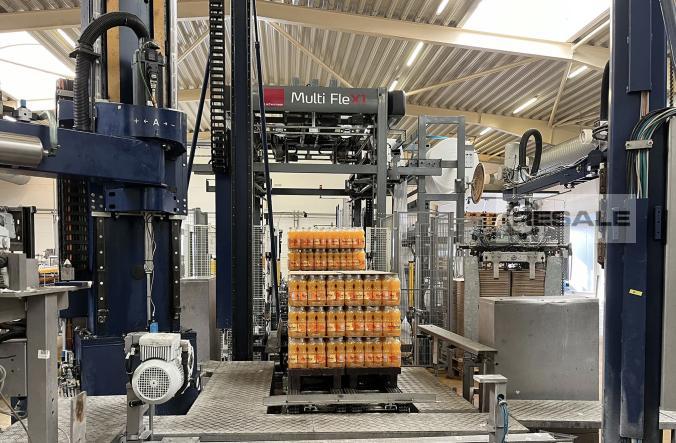

10. Pallet Safety Lachenmeier Multi Flex1
Stretch shroud applicator

Inclusive Bottle-, Pack- and Pallet conveyor according to layout
