Reference ID: PP-60403
Category: Flexo Printer
Manufacturer: Bobst
Model: 20SIX
Year: 2014
Color: 8
Speed: 400 m/min
Max. Size: 1300 mm
Condition: Very Good
Location: Europe
Availability: Immediately
Description
Machine Type: Central Impression (CI) Flexographic Printing Press
Gearless Drive: Yes
Number of Printing Colors: 8
Ink Type: Solvent-Based
Machine Status: In Production
Available From: August 2026
Latest Removal Date: December 2026
Technical Specifications
Maximum Web Width: 1,300 mm
Maximum Printing Width: 1,250 mm
Printing Repeat Range: 320 – 800 mm
Maximum Mechanical Speed: 400 m/min
Suitable Materials
The machine is suitable for printing on: PE, OPP, CPP, PA, PET and
Paper
Material Thickness Range:
Minimum: 12 micron
Maximum: 200 micron
Unwinder
Automatic Turret Unwind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm
Rewinder
Automatic Turret Rewind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm
2 Air Shafts (Ø150 mm)

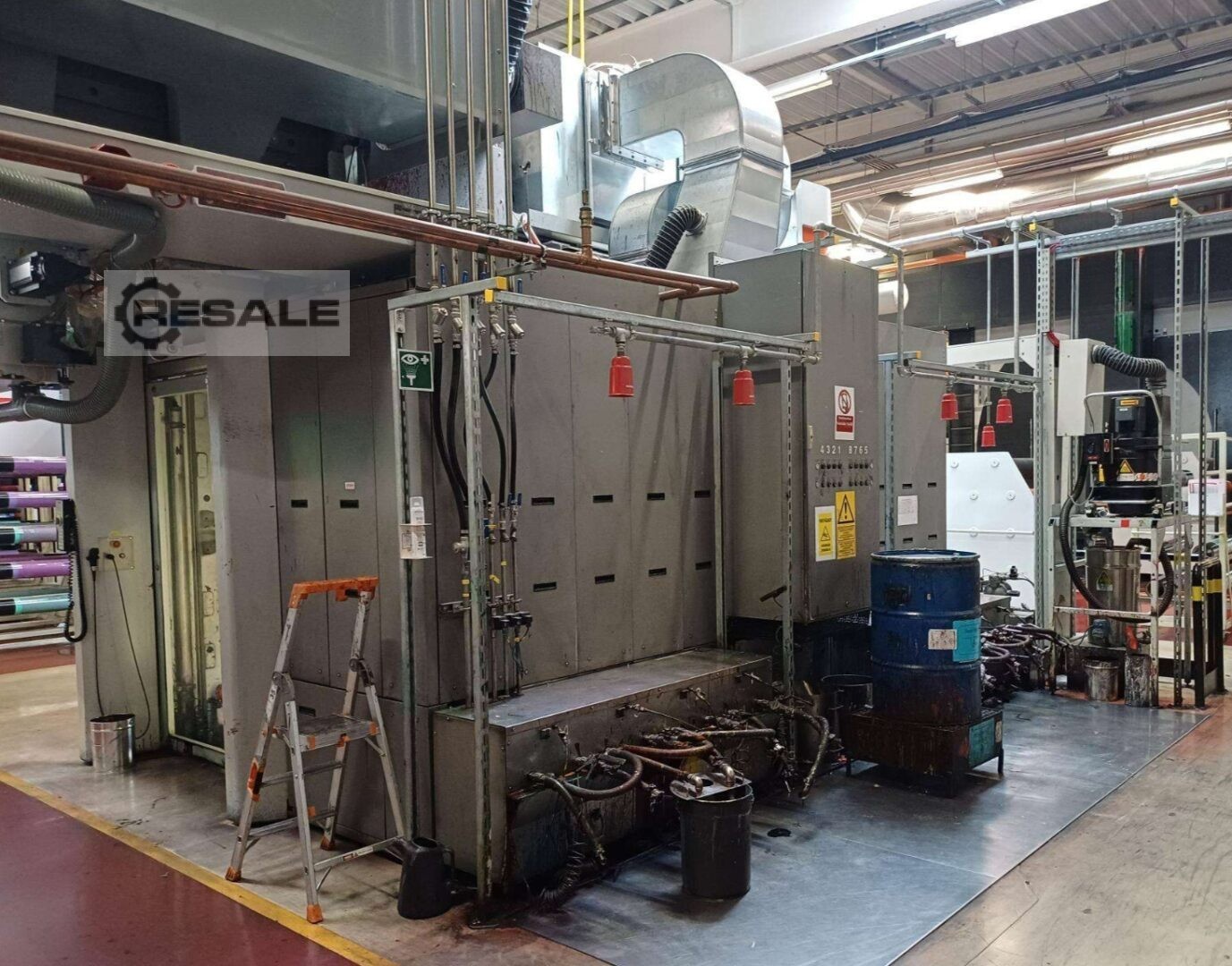

Drying System
Gas Drying System
Machine Equipment
Web Guide System
Video Camera Inspection
AFS Single Side 6 kW Corona Treater
Automatic Cleaning System
INKSPEC Viscosity Control (3 Solvents)
Medium Cut Inline Slitting
Mounting Device Included
Included Accessories
38 Anilox Rollers
649 Printing Sleeves
36 Intermediate Sleeves (4 Different Sizes)
Set of Sleeves & Anilox Rollers
Basic Trolleys
High-Pressure CO₂ System
Basic Spare Parts
Machine Manuals
Printing Tool Inventory
Sleeves: Total Quantity: 649 pcs
Various Repeat Sizes Available
Anilox Rollers: Total Quantity: 38 pcs
Multiple Cell Volumes Available
Adapters: 370 mm, 450 mm, 500 mm, 540 mm, 600 mm (9 pcs of each
size)
Doctor Blade Chambers: 12 pcs
Machine Highlights
8-Color Gearless CI Flexographic Printing Press
High-Speed Production up to 400 m/min
Solvent-Based Printing
Automatic Turret Unwind & Rewind
Fully Equipped with Corona Treatment
Automatic Cleaning System
Camera Inspection System
Comprehensive Sleeve & Anilox Package Included
Machine Available for Inspection in Production
