BALCONI 2 MT RS/L Eccentric Press - Single Column

1982ID 170392490

1982ID 170392490

usedVerified seller
Request price Directly to the seller

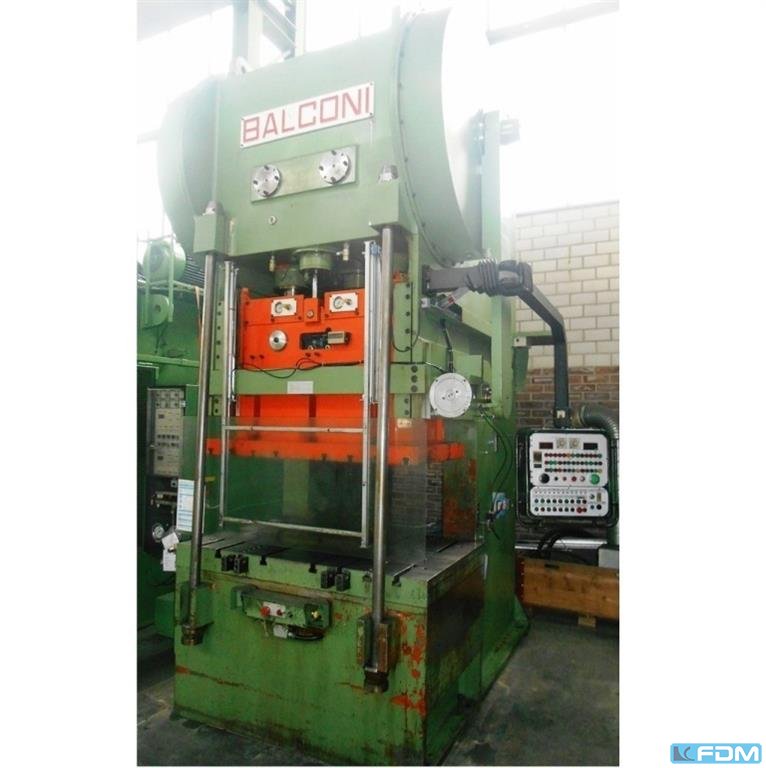

BALCONI 2 MT RS/L Eccentric Press - Single Column
1 / 4

Technical data

· ID 170392490
Source: seller information

Used machinery

Condition
used
Year of manufacture
1982
Location
Lager Eislingen, Baden-Württemberg

Identifikation

ManufacturerBALCONI
Model2 MT RS/L
Item number1050-123074

Technik

Quantity1

Description

pressure:150 t
throat:520 mm
stroke:30 - 200 mm
no. of strokes:15 - 60 /min
distance table/ram, max. stroke up, adjustment up:650 mm
table surface area:1600 x 1000 mm
hole in the table:1040 x 140 mm
table height over floor:1000 mm
passage to the back:1000 mm
ram surface:1400 x 800 mm
ram adjustment:120 mm
power requirement:20,0 kW
weight:27,5 t
dimensions (WxDxH):2,3 x 2,75 x 4,5 m
clutch-/ brake combination:pneumatic; Ortlinghaus
overload protection in ram:hydraulic
ram counterbalance:pneumatic
ram adjustment:semi-automatic
Option: NEW electrical controls:Siemens S7-1500 F
