BAIWEI BW-G3015 1,5 kW fiber laser was built in 2019 in China by
ZHENGZHOU BAIWEI CNC MACHINERY SHARES CO., LTD. The machine, designed
for the precise cutting of sheet metal with a maximum thickness of 14
mm is ideal for both unit and series production. Cutting is performed
using a stable fiber beam generated by a RAYCUS 1,5 kW laser source.
The fiber laser technology offers greater energy efficiency and higher
performance compared to other cutting methods.

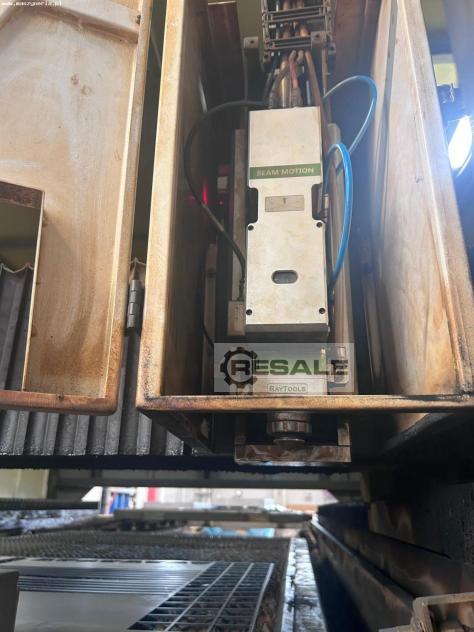

The BAIWEI BW-G3015 is equipped with a RAYTOOLS cutting head with a
range of useful features. The autofocus automatically adjusts the
focal position to the thickness of the material being machined. An
anti-collision system detects obstacles, reducing the risk of the head
colliding with the workpiece. These solutions enable efficient cutting
while maintaining a high level of machining accuracy.

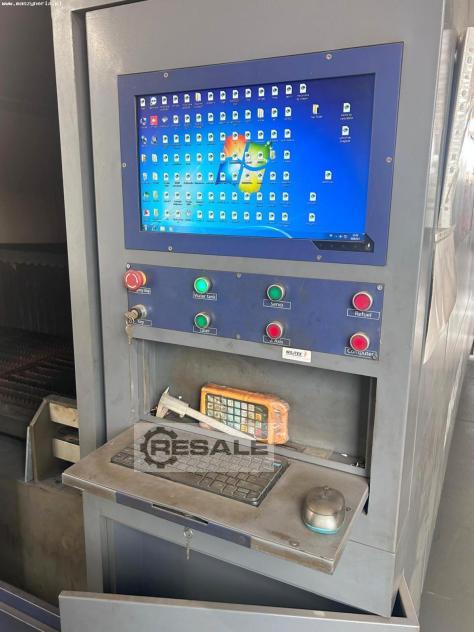

All process parameters are programmed using the intuitive CYPCUT 2000S
CNC controller. The control system features a NESTING module that
optimises material utilisation by appropriately arranging shapes on
the sheet metal surface. This helps to reduce material waste and lower
production costs. The BW-G3015-1500W laser cutting machine weighs 6000
kg.
Technical specifications of the BAIWEI BW-G3015 laser cutting
machine
- laser power: 1,5 kW
- feed in the X/Y/Z axis: 3050/1525/200 mm
- maximum positioning speed: 120 m/min
- maximum sheet metal thickness: 14 mm
- minimum sheet metal thickness: 0,2 mm
- work area (L x W): 3000 x 1500 mm
- positioning accuracy in X,Y axis: ± 0,03 mm/m
- repeatability accuracy in X, Y axis: ± 0,02 mm/m
- cutting accuracy: 0,01 mm
- auxiliary gas (stainless steel): nitrogen
- auxiliary gas (carbon steel): oxygen
- total energy consumption: 21 kW/h
- power supply: 3x 380 V; 60 Hz
- dimensions (L x W x H): 8500 x 3200 x 2100 mm
- weight of the BW-G3015 1,5 kW machine: 6000 kg
Equipment of the BAIWEI BW-G3015 fibre laser
- CYPCUT 2000S CNC controller with NESTING module
- RAYTOOLS cutting head with autofocus, anti-collision system and
height adjustment

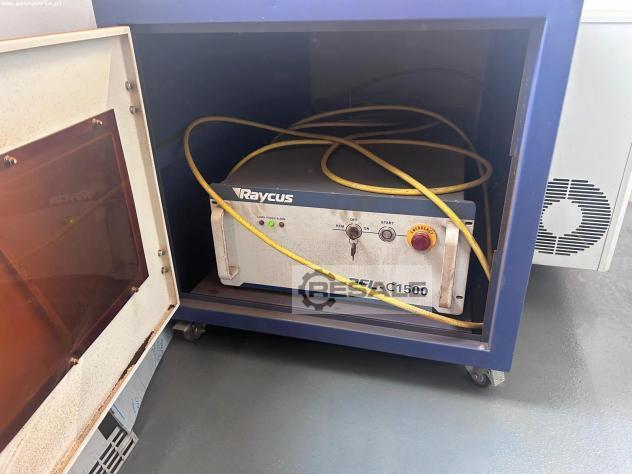

- laser source: RAYCUS RFL-C1500
- servo motor: PANASONIC

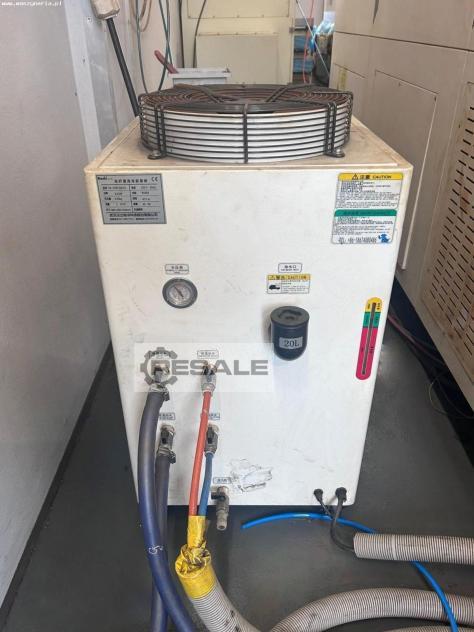

- cooling unit (chiller): HANLI
- automatic lubrication system
- reduce motor: NEUGART
- linear guides: HIWIN
- gears and racks: YYC
- automatic proportional valve: SMC
- bearings: NSK
