ADOLPH G-Trans 25 granulate conveyor ADOLPH

Granulate supply
Make: ADOLPH
Type: G-Trans 25

for continuous granulate supply on edge banding machines

technical details:

System for a machine line with
4 pre-melters (standard)

Pos.1.1

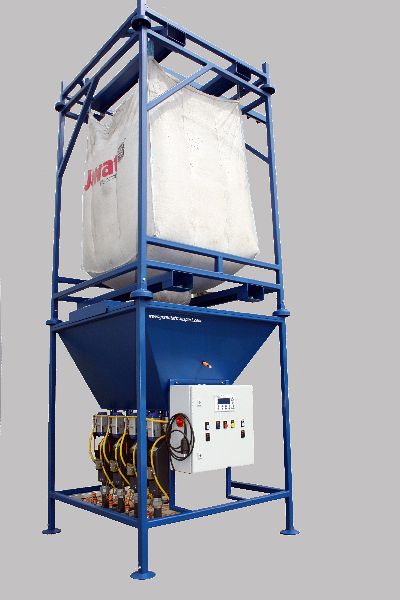

1 basic unit for bag-emptying G-Trans® 25

Portal for Big-Bags with hanging emptying:

Solid steel frame in 40 mm square-tube profile,
torsion-stiff welded construction, main pillars
with base plate for dowel-anchorage.

Solid steel welded construction in
square-tube profile, with fork-lift lugs, 4 hooks
and tapered guide pins for easy touchdown on the
portal.
Sufficient stability for 1.500 kg weight.
Supporting area with bars and stacking corners.
Material container in powder-coated steel,
with cone for free-flowing bulk materials.

Filler plug diam. 300 mm.

Filler opening 350 x 350 mm with sliding cover.

5/8 plugs for granules transport NW 25
Stack frame for Big-Bag -transport incl.
a cargo gear

Pos.1.2
4 feed pump G-Trans® 25

consisting of:

Powerful compressed-air conveyor for rough
industrial applications, developed for material
transportation over long vertical and horizontal
distances.

technical details:

compressed air supply: 3/8?
air consumption at 5,5 bar 733 l/min
suction side: 25 mm
pressure side: 25 mm
pressure: 0,89 bar

Electro-pneumatic operated ball-valve
1 1/2? with 5/2? direction-valve
operating pressure: 2,5 up to 10 bar
operation: electro-pneumatic
features: 5/2
installation: any direction
ambient temperature: -20 up to 80°C

Pos.1.3
4 material separator GT 250

Cyclone-separator with cover and tangential filler
NW 25/32, used for separate dust and granulates.
Fine filter for residue dust
incl. down pipe.

dip- sliding pipe 100/200 with fill-level sensor
for automatic filling.

technical details:

diameter: 250 mm
height: 320 mm

Pos.1.4
4 filler plugs with fill-level sensor

With connecting flange for the pre-melter cover
incl. sensor for granulate fill-level control
(request).

Pos.1.5
1 control cabinet

To control the various G- Trans pumps with the
following functions:

Complete unit with plaintext display for control,
operation, monitor and analyse of
signal requirements to activate the individual
systems via time control with pulse circuit
of the transport pumps.

Control: Siemens S7

Fill-level control of the bag emptying.

Fill-level control of the storage containers
at the machine.

Pressure control of the various pipelines.

Pos.1.6
200 metre transport- and control pipe

From the outfeed plug of the pump to the plug
of the material separator

consisting of:

200 rm vacuums-hose G- Trans 25 with
spring steel spiral for antistatic protection
incl. control cable for requirement, connectors,
adapters and sealing- and mounting materials.

Required cable trays are to build on side

Pos.2.
1 assembly
- not included- billing based on actual effort
