モデル
(生産者： DMG MORI)
中古
C軸とY軸付き 最大ワーク径 366 mm 最大ワークの長さ 708 mm 最大バー容量 直径 105 mm 最大X軸ストローク 260 mm 最大Y軸ストローク 120 mm 最大Z軸ストローク 795 mm コントローラーシーメン
中古
最大ワーク径 400 mm 最大ワークの長さ 800 mm 最大バー容量 直径 80 mm 最大X軸ストローク276 mm 最大Z軸ストローク 755 mm コントローラーシーメンス スピンドル速度4000 rpm C軸付
レーマンロータリーテーブルと高圧クーラントユニ ト付き Xトラベル700 mm Yトラベル420 mm Zトラベル 380 mm スピンドル速度10.000 rpm コントローラー SIEMENS 840D
x-travel: 730 mm y-travel: 730 mm z-travel: 880 mm total power requirement: 57 kVA weight of the machine ca.: 11,5 t dimensions of the machine ca.: 5,5 x 3,0 x 2,8 m Operating hours and spindle hours: 23.323 / 15.894 CNC control: Siemens 840D sl TECHNICAL DATA: X-axis travel: 730 mm Y-axis travel: 730 mm Z-axis travel: 880 mm Max. spindle speed: 12.000 rpm Max. torque: 102 Nm Tool taper: SK40 Max. workpiece weight per pallet: 500 kg Max. workpiece diameter: 630 mm Max. workpiece height: 900 mm B-axis (table) indexing: 360 x 1 degree Number of tool positions: 40 FEED RATES Max. feed rate: 60.000 mm/min Rapid traverse: 60 m/min Jog feed rate: 0 – 5.000 mm/min Total power requirement: 57 kVA Machine weight: approx. 11.5 tonnes Space requirement: 5.5 x 3.0 x 2.8 m EQUIPMENT AND ACCESSORIES 2-station pallet changer, pallet size: 500 x 500 mm Chip conveyor, high-pressure coolant system (40 b ...
x-travel: 700 mm y-travel: 700 mm z-travel: 700 mm control: 840 D sl Siemens Main spindle:: Max. Speed Subspindle: 10.000 min/-1 power capacity - main spindel: 42 kW max. Torque: 236 Nm tool taper: HSK-A 63 DIN 69893 pallet changer:: Number of pallet-stations: 10 pos. size of pallet: 500 x 500 mm max. workpiece weight: 600 kg max. workpiecediameter: 800 mm max. workpiece height: 1.000 mm Tool-Presetter:: number of toolpositions: 180 pos. tool taper: HSK-A63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool length: 550 mm max. tool weight: 12,0 kg change-time tool to tool: 0,9 sec change-time chip to chip: 2,8 sec feeds:: rapid traverse ( X / Y / Z ): 60 m/min feed speeds: max. 60.000 mm/min Accelaration: x/y/z: 6 / 6 / 5 m/s² feed power: 10 kN total power requirement: 67 kW weight of the machine ca.: 9,7 t dimensions of the machine ca.: 7,5 x 5,0 x 2,8 m Do ...
turning diameter: max. 240 mm turning length: 470 mm control: 840 D sl Operate 4.8 Celos greates pass round over bed: 500 mm swing diameter over slide rest: 290 mm centre distance: 780 mm Main spindle:: turning speed range - main spindle: max. 6.000 min/-1 power capacity - main spindel: 13 / 14 kW max. Torque: 171,5 / 192 Nm inner draw tube diameter: 52 mm C-Axis: 0,001 ° spindle diameter in front bearing: 100 mm spindle nose: FL 140H5 Subspindle:: Spindle speed range subspindle: max. 6.000 min/-1 power capacity - Sub spindle: 12,6 / 16,2 kW max. Torque: 48 / 62 Nm inner draw tube diameter: 37 mm C-Axis: 0,001 ° spindle diameter in front bearing: 90 mm spindle nose: FL 140H5 turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. tool taper: VDI 30 Spindle speed - driven tool stations: max. 5.000 min -1 power capacity - driven tool-stations: 4,18 kW max. T ...
turning diameter: max. 500 mm turning length: 800 mm control: sl Operate 3G ShopTurn Siemens swing diameter: 500 mm distance between spindles: 1.020 mm Main spindle:: turning speed range - main spindle: max. 5.000 min/-1 power capacity - main spindel: 25 / 34 kW max. Torque: 280 / 380 Nm spindle head: 170h5 spindle diameter in front bearing: 130 mm spindle bore: 87 mm C-Axis: 0,001 ° tool magazin:: tool taper: HSK 63 A number of toolpositions: 80 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 120 mm max. tool weight: 12 kg max. tool length: 300 mm Milling Spindle:: Speed Milling Spindle: max. 12.000 min/-1 power capacity - milling spindle: 19 / 22 kW Torque: 85 / 100 Nm tool taper: HSK 63 A B-Axis: +/- 110 ° axis stroke:: x-axis: -10 ... +490 mm y-axis: +/- 100 mm z-axis: 1: 845 mm z-axis: 2: 600 mm z-axis: 3: 800 mm Subspindel:: Spindle speed range subspindle: ma ...
x-travel: 500 mm y-travel: 450 mm z-travel: 400 mm Control: total power requirement: --- kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 935 mm y-travel: 850 mm z-travel: 650 mm control: Heidenhain TNC 640 Main spindle:: turning speed range - main spindle: 20000 min/-1 power capacity - main spindel: 35 kW tool taper: SK 40 work table:: table surface area: 1000 x 750 (dia 850) mm max. table load: 1500 kg tool magazin:: number of toolpositions: 60 pos. tool taper: SK40 feeds:: feed speeds: 40.000 mm/min rapid traverse: 40 m/min Accelaration: 5 m/s² c-axis: 360 ° A-Axis: +/- 120 ° total power requirement: 46 kVA weight of the machine ca.: 14 t dimensions of the machine ca.: 3,1 x 4,4 x 3,2 m 5-axis universal machining centre equipped with: - Heidenhain TNC 640 CNC control - 60-position ATC (SK 40) - Heidenhain TS 460 touch probe - Chip conveyor with coolant - Paper belt filter - IKZ 40 bar - Blum laser tool measurement system - NC swivelling rotary table, diameter 850 x 750 mm 16,800 spindle hours and 48,00 ...
5-axis CNC machining center Type: DMU 40 eVo Manufacturer: DMG MORI Year: 2013 Control: Heidenhain iTNC 530 X: 400 mm Y: 400 mm Z: 375 mm B: -5•/+110• C axis Spindle speed: 18000 rpm Spindle taper: HSK 63 Max work diameter: 450 mm Max work height: 460 mm Max work weight: 250 kg Machine weight: 6900 kg Chip conveyor Machine in good condition, fully functional, under power Find more here - .ucymachines/ Contact us at - sales@ucymachines
x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm Control: total power requirement: --- kW weight of the machine ca.: 6,8 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 750 mm y-travel: 650 mm z-travel: 650 mm total power requirement: kW weight of the machine ca.: 12 t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 730 mm y-travel: 730 mm z-travel: 880 mm total power requirement: 46 kW weight of the machine ca.: 15 t required space: 5.5x3.0x2.8 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 1250 mm y-travel: 880 mm z-travel: 800 mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 780 mm y-travel: 560 mm z-travel: 560 mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: max. 356 mm turning length: 705 mm control: M730 UM Mapps CELOS greates pass round over bed: 920 mm Swing dia. over traverse guideway: 742 mm Main spindle:: turning speed range - main spindle: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A2-8 spindle bore: 80 (91) mm C-Axis: 0,001 ° Subspindel:: Spindle speed range subspindle: 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle bore: 43 mm C-Axis: 0,001 ° axis stroke:: x-travel: 260 mm z-travel: 795 mm Y - Axis: +/-50 mm rapid traverse ( X / Y / Z ): 30 / 10 / 30 m/min turret:: number of toolpositions: 12 pos. Schank height for square tool: 25 mm Drill shank diameter: 50 mm turret change time: 0,27 sec. Driven Tool Positions:: Spindle speed - driven tools: max. 10.000 min -1 power capacity - driven tools: 5,5 / 4,2 kW total power requirement: 41 kVA weight of the machine c ...
x-travel: 1050 mm y-travel: 800 mm z-travel: 560 mm Control: HEIDENHAIN iTNC 530 Tools changer: 30 pos. table-size: 950 mm turning speeds: 28000 U/min output: 55/43,5 kw taper: HSK A 63 a-axis: -10º/+110º ° c-axis: 360 ° Internal cooling system: 10 - 80 bar table load: 800 kg total power requirement: 80 kVA Total weight, approx.: 13 t dimensions of the machine ca.: 3,6 x 3,8 x 3,18 m 5-axis machining centre DMG-MORI HSC 105 linear - CNC control Heidenhain TNC 530 - Tool changer 30-fold (HSK A63) - NC rotary table 2606h Spindle Hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 2600 mm y-travel: 1100 mm z-travel: 920 mm tool magazin:: 30 internal coolant system feed: 40 Bar tool taper: SK50 total power requirement: --- kW weight of the machine ca.: 26,1 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 500 mm turning length: 1200 mm control: Siemens 840D greates pass round over bed: 700 mm Main spindle:: turning speed range - main spindle: 20 - 5000 min/-1 power capacity - main spindel: 25 /34 kW C-Axis: 0,0001 ° spindle diameter: 65 mm milling spindle: milling spindle motor: 23 / 13 kW milling head speed: 12000 U/min b-axis: +/- 120 ° axis stroke:: x-axis: 490 mm y-axis: +/- 100 mm z-axis: 1300 mm feeds:: rapid traverse ( X / Y / Z ): 60 / 22,5 / 30 m/min feed power: 5,6 / 5,6 / 7,4 kN number of toolpositions: 24 pos. tool taper: HSK A 63 total power requirement: - kW weight of the machine ca.: 15 t dimensions of the machine ca.: 6 x 3 x 2,3 m CNC turning and milling center - 5 axes simultaneous - CNC control Siemens 840D Ergo Line with ShopTurn - C-axis (0.0001°) - Milling head with B-axis - Y-axis - Coolant device/paper belt filter (through Spindle) - Chip c ...
Xトラベル:200mmy、移動量200mm、移動量280mm。制御:HEIDEN HAIN iTNC 530テーブル - 回転可能 +/-: -10 / +130 -C軸テーブル回転:360 ミリングヘッド:42000rpm 工具マガジン(60 Werkzeugplätzen)機械の重量約5 機械の次元:2 x 2 x 2.4 mこの広告のデータはLogoTech oHGのソフトウェアソリューションModulMWSで作成され した
旋盤直径:100mm 旋盤長:75mm 制御:FANUC Oi-TF 総電力要求:15kW 機械重量 約:機械の大次元 約:mこの広告のデータはLogoTech oHGのソフトウェアソリューションであるModulMWSで作 されました
CNC垂直加工センター タイプ:DMC 1035 V ECOLINE 製造元:DMG MORI 年:2012年 制御:シーメンス・シヌメリック 840D 総時間:12,058 紡錘時間:5,039 X軸:1035mm Y軸:560mm Z:510 mm 作業台:1200 x 560 mm ツールマガジン:20ポジション 最大スピンドル回転数:8,000rpm チップコンベヤー 機械は良好な状態で、完全に機能し、動力も入って ます 詳細はこちらをご覧ください - / お問い合わせはこちらまで -
x-travel: 2100 mm y-travel: 2100 mm z-travel: 1250 mm spindle motor: 20 kW spindle turning speed range: 24000 U/min tool taper: HSK A 63 b-axis: -70 / +180 ° table diameter: 1700 mm table load: 8 t Feed speed: 60 / 40/ 40 m/min. rapid traverse: 60 / 40 / 40 m/min Control: Heidenhain iTNC 530 total power requirement: 89 kVA weight of the machine ca.: 41 t dimensions of the machine ca.: 9,8 x 7,5 x m - CNC Control Heidenhain iTNC 530 - Tool Changer 93-fold (HSK A 63) - Motor Spindle / Pick-Up Spindle approx 40900h Working Hours and 27100 Spindle Hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

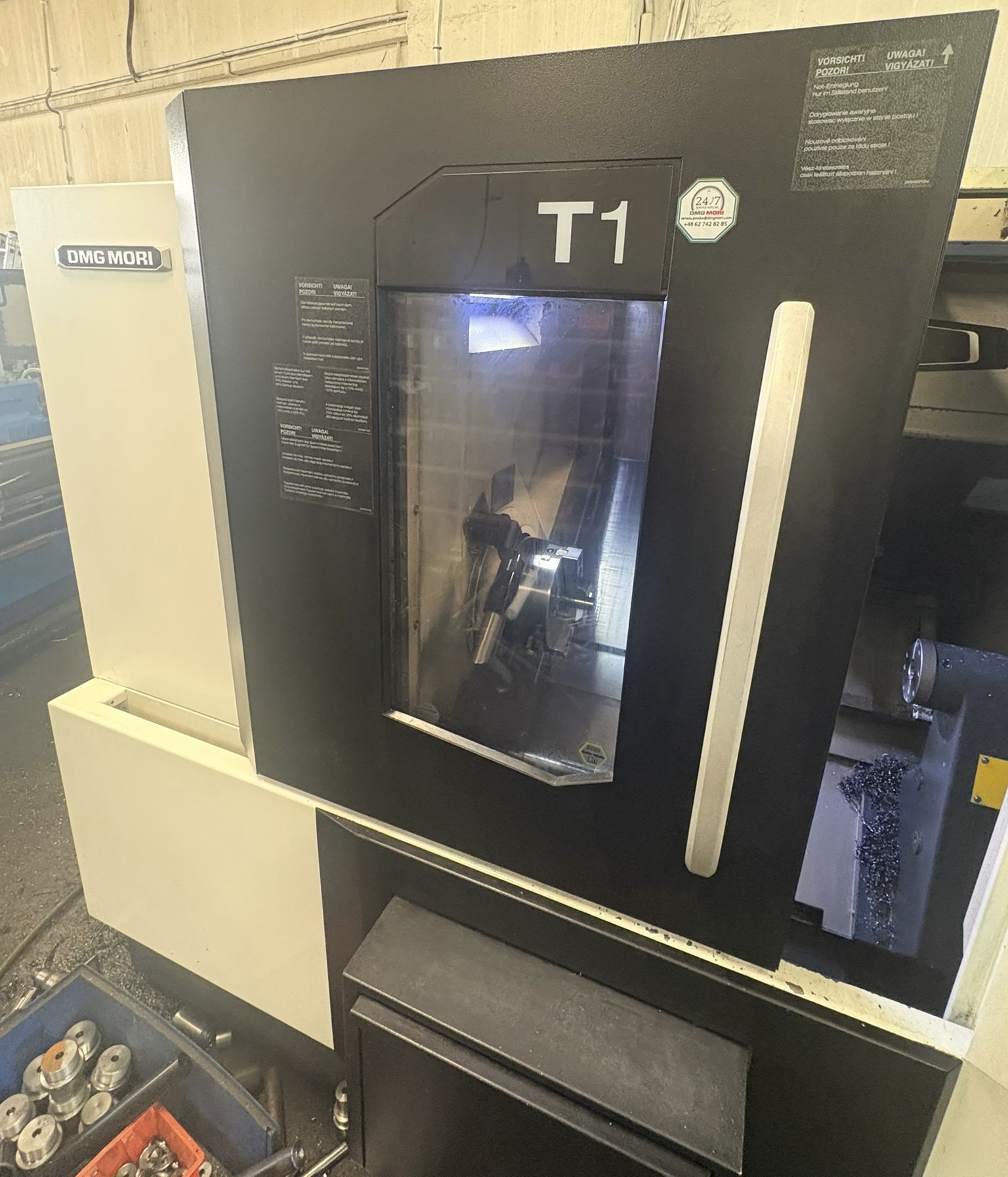

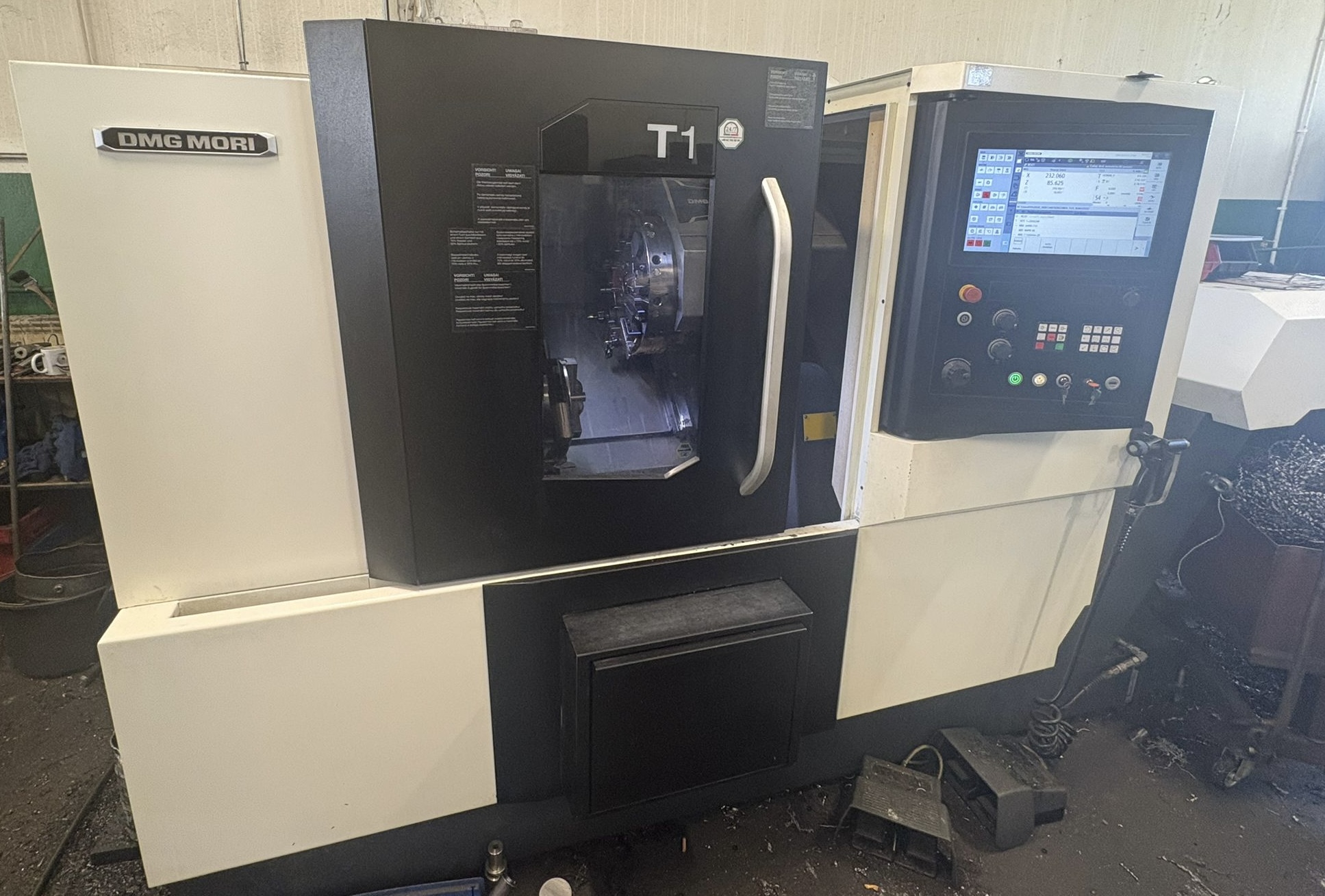

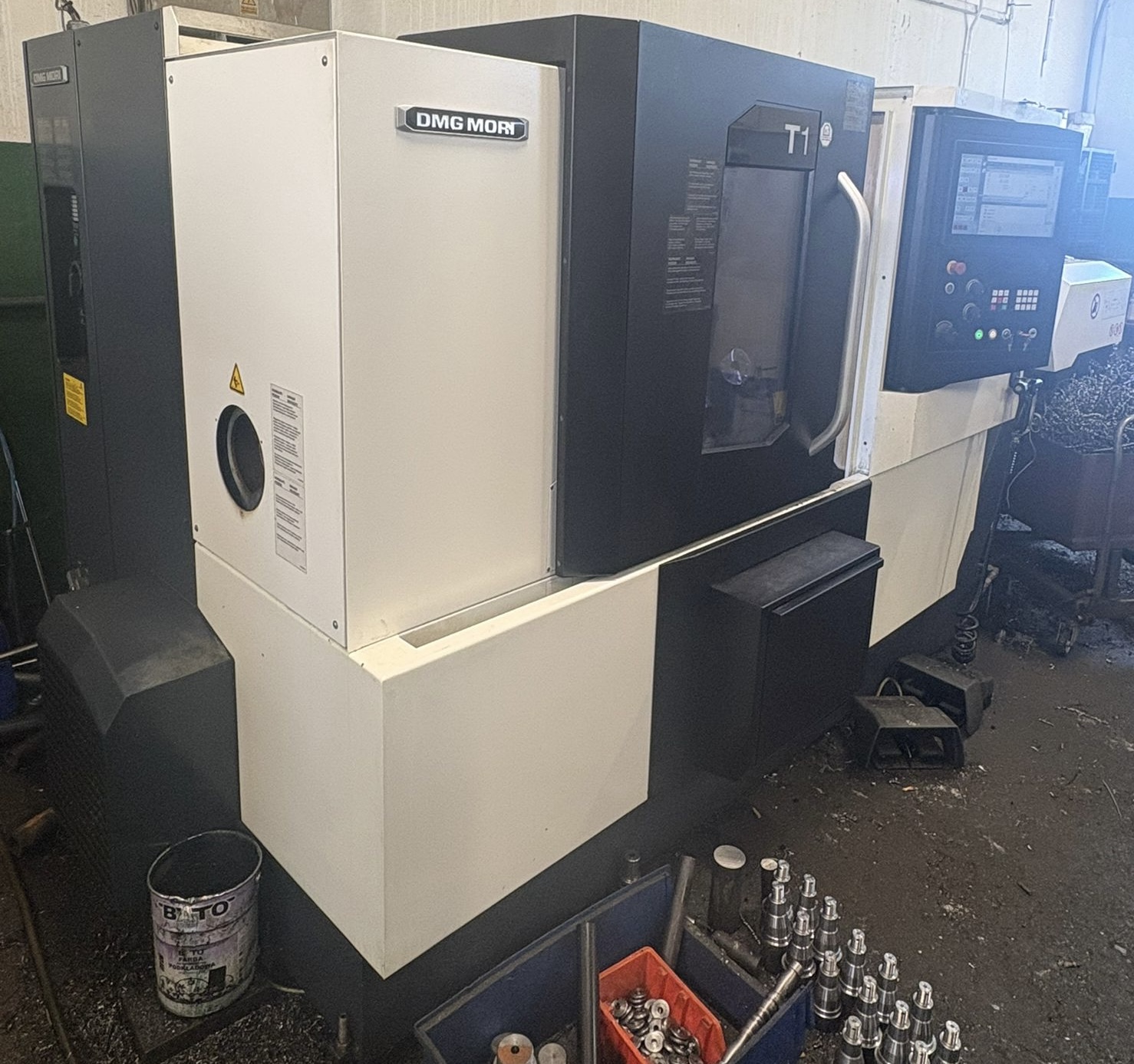

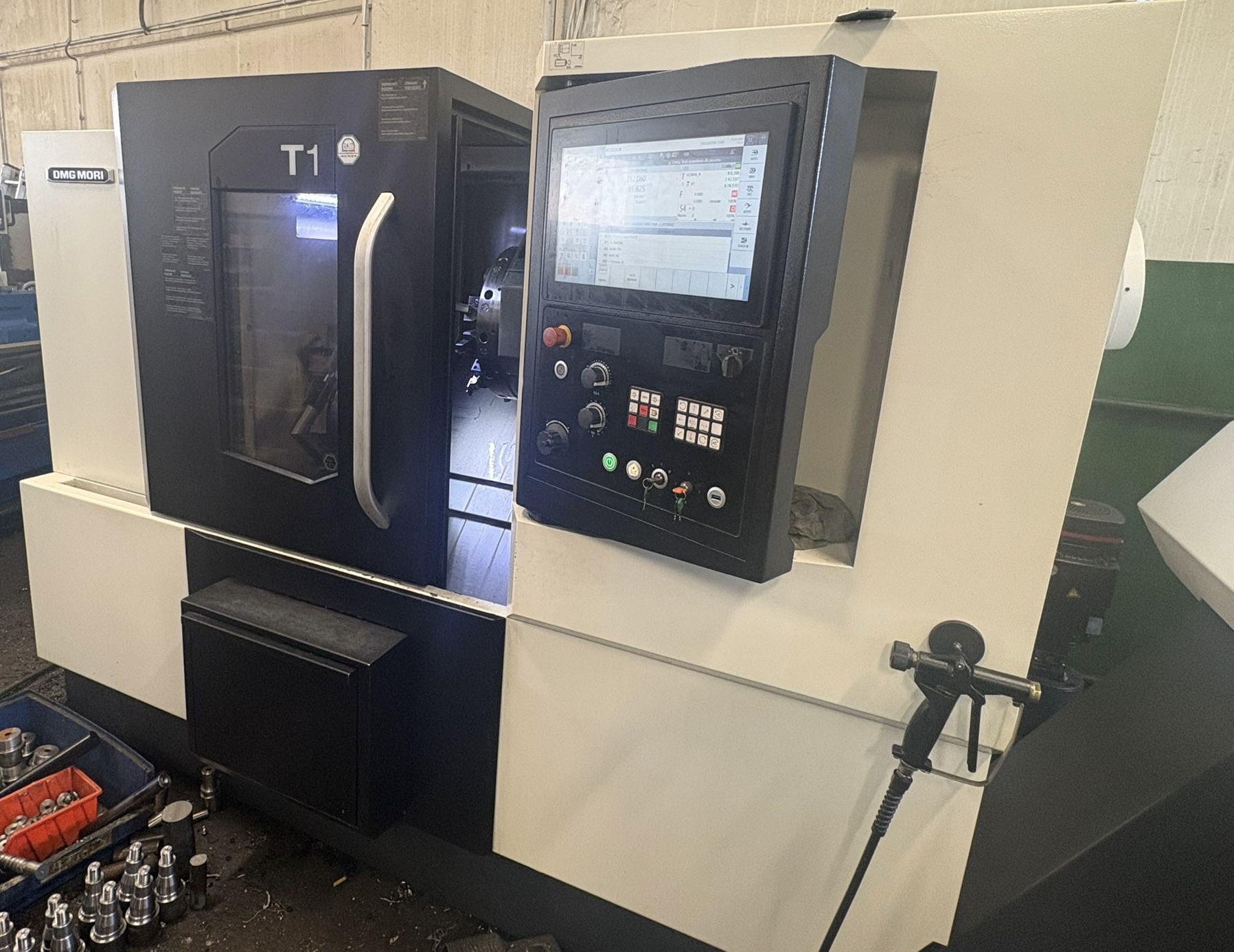

CNC旋盤 タイプ:T1 製造元:DMG MORI 年:2023年 制御:Siemens Sinumerik One + JobShop and ShopTurn ベッド上を横切るスイング:550 mm スイングオーバーサポート:320mm 最大旋盤径:300 mm クランプチャック径 – 主軸:210 mm X:232.5 mm Z:410 mm ラピッドトラバースX/Z軸:30/36 m/min スピンドルノーズ:A2-6 フロントベアリング内径:120 mm スピンドルボア:73 mm 加工棒の最大直径:65 mm 最大スピンドル回転数:4500rpm タレットVDI:12ポジション 駆動工具ステーションの数:12 最高回転数:5500rpm 油圧式テールストック 自動テールストックのトラベル範囲:410
X軸:500mmy、移動距離:450mmz、移動量:400mm。制御:SIEMENS 840Dテーブル - スイビブル +/-:+110 / -5 -C軸テーブル回転:360工具マガジン、機械のWerkzeugplät zen重量:16 Werkzeugplätzenの機械重量 約3.9 機械の寸法 約2.9 x 2.0 x 2.5 m本広告のデータは、LogoTech oHGのソフトウェアソリューションであるModulMWSで作 されました
x-travel: 1.135 mm y-travel: 1.050 mm z-travel: 750 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: max. 14.000 min/-1 power capacity - main spindel: 19 kW max. Torque: 100 Nm tool taper: HSK-A 63 table surface area: 1.400 x 1.050 mm max. table load: 2.500 kg max. workpiece sizes: 1.400 x 1.240 mm max. workpiece height: 750 mm tool magazin:: number of toolpositions: 30 pos. tool taper: HSK-A 63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool length: 365 / 395 mm max. tool weight: 8,0 kg change-time chip to chip: 6,1 sec feeds:: feed speeds: max. 40.000 mm/min rapid traverse: 40 m/min Accelaration: 6 m/s² Feed force ( X / Y / Z ): 14 / 20 / 14 kN total power requirement: 44 kVA weight of the machine ca.: 14,4 t dimensions of the machine ca.: 6,0 x 5,0 x 3,3 m Documents: Chip conveyor: Coolantsystem: high pressure coolan ...
製造元:DMG MORI モデル:CTV 250 DF 製造年:2019年 機械の種類:電動スキビングマシン/CNC旋盤センター 最大スピンドル回転数:6,000 rpm 二次軸回転数:7,000 rpm 機械重量:7,000 kg 電源:400 V、50 Hz、L1-L2-L3-N-PE位相 消費電力:65 kVA 最大電流:95 A ヒューズ:100A / 1.00 kA 最大電圧:440 V 制御電圧:230 V / 24 V 予備部品は別途販売されています 詳細はこちらをご覧ください - / お問い合わせはこちらまで -
Xトラベル:600mmy、トラベル:500mmz、トラベル:500mm、総 力要求:---kW、マシンの重量、約9.6t次元、約---m。こ の広告のデータは、LogoTech oHGのソフトウェアソリューションであるModulMWSで作 されました
turning diameter: 400 mm turning length: 1100 mm control: Siemens Sinumerik 840D SL greates pass round over bed: 500 mm Swing dia. over traverse guideway: 370 mm Main spindle:: Max. rpm: 5000 min/-1 power capacity - main spindel: 17 / 25.5 kW max. Torque: 345 Nm spindle diameter in front bearing: 130 mm spindle bore: 67 mm chucking diameter: 325 mm spindle nose: A8 axis stroke:: x-axis: 750 mm y-axis: +/- 100 mm z-axis: 1200 mm feeds:: rapid traverse: 40 / 40 / 40 m/min Tailstock:: tailstock: 1200 mm taper of center: Mk 5 tension force: max. 8 kN milling head: b-axis: +/- 120 ° tool taper: HSK A 63 tool piece magazine with: 60 spindle turning speed - stepless: 12000 U/min spindle motor: 10,5 kW max. torque on the spindle: 90 Nm total power requirement: - kVA weight of the machine ca.: 9 t dimensions of the machine ca.: 4,6 x 2,5 x 2,82 m Equipped with: - Siemens 840D SlimLine / Cel ...
マシンタイプ: 旋盤 モデル:スプリント50 2T メーカー:DMG森精機 製造年:2017 仕様： - スピンドル速度(最大): - 第1スピンドル:7000 rpm - 第2スピンドル:7000 rpm - 機械重量:9200 kg 電気的仕様: - パワー:54kVA - 電流(最大):135 A - ヒューズ定格:160A -電圧： - メイン:400V ±10% - 補助AC:230V - 補助DC:24V - 周波数:50 Hz 付属品/エクストラ:CT-20Dヒンジベルトチップ抽出器 2 pcs ザウター砲塔ヘッド Typ. グリップ主軸 SPANNTOP mini 65 グリップカウンタースピンドル SPANNTOP mini 52 アンローディングシステム マーポスTT30ツー
