DECKEL MAHO maquina usada para la venta

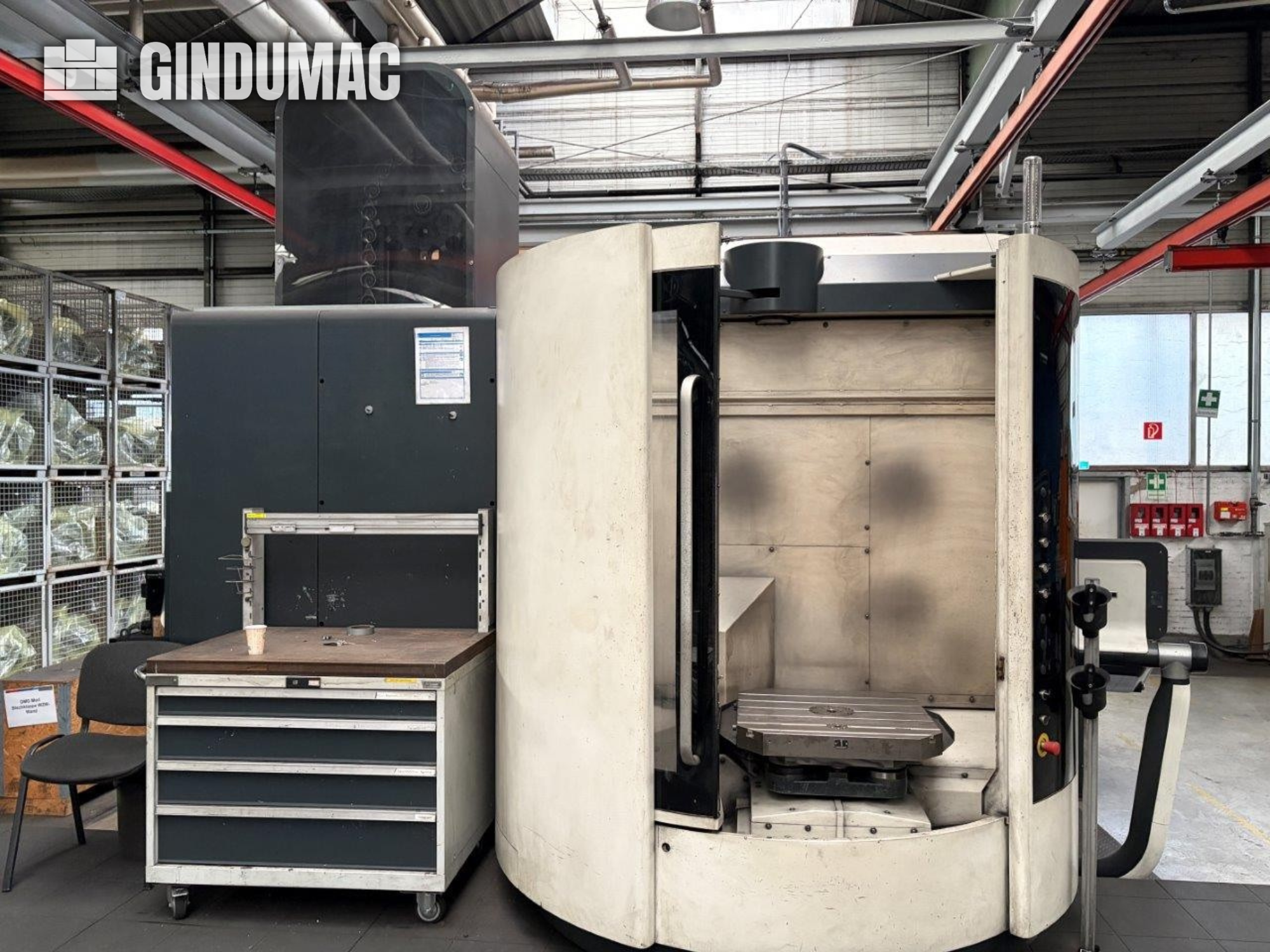

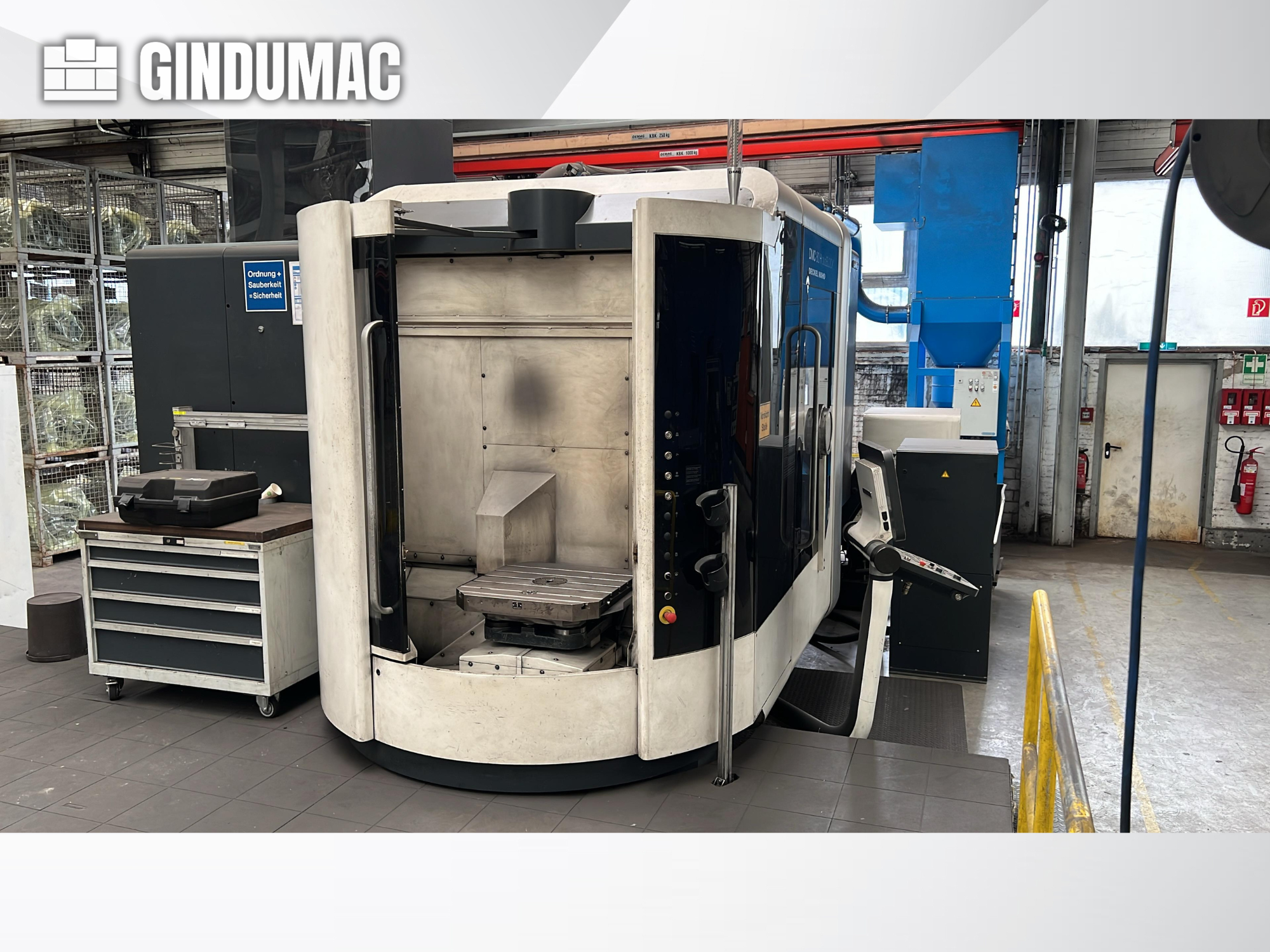

This 5-axis DECKEL MAHO DMC 60T was manufactured in 2004, featuring a Heidenhain iTNC 530 control unit and a spindle speed of up to 12,000 rpm. It includes a pallet changer with 2 pallets, a chip conveyor, and external workpiece cooling. Ideal for complex machining tasks, the DECKEL MAHO DMC 60T machine we have for sale is a robust addition to any workshop. Contact us for further details regarding this Machining Center.

Description: Serial number 2881 - 0447  , Max. Tool diameter: 80 / 140 mm Max. Tool length: 300 mm Max. Tool weight: 12 kg  , Attention: The machine vices on the table are not included in the scope of delivery Attention: the last inspection of the spindle took place in 2023. z-motion: 500 mm, max. workpiece weight between centers: 800 kg, x-motion: 700 mm, y-motion: 550 mm, control: HEIDENHAIN TNC 426, table surface area l x w : 900x550 mm, taper: Sk40, toolchanger positions: 30, turning speed range: 15,000 rpm, feed range: 1 - 10000 mm/min, rapid motion: 30 / 20 m/min, weight approx.: 9,000 kg, Approx. Onsite Dimension. (l x w x h): 4,500 x 2,500 x 2,900 mm

Description: Serial number 2881-0326 max. tool diameter 80/140 mm Tool length from spindle nose ,300 mm max. tool weight 12 kg Includes chip conveyor and mounted 4th axis  , Last service report from ,April 2021, where, among other things, the spindle was checked. z-motion: 500 mm, max. workpiece weight between centers: 800 kg, x-motion: 700 mm, y-motion: 550 mm, control: HEIDENHAIN TNC 426, table surface area l x w : 900x550 mm, taper: SK 40, toolchanger positions: 30, turning speed range: 8,000 rpm, feed range: 1 bis 10000 mm/min, rapid motion: 30/20 m/min, weight approx.: 10,000 kg, Approx. Onsite Dimension. (l x w x h): 3,700 x 2,500 x 2,900 mm

Description: Serial number 2880-0324 Tool diameter max. 200 mm, tool diameter in the magazine ,90 to 140 mm Tool length from spindle nose ,max. 300 mm max. tool weight 12 kg Last spindle inspection in 2023  , Attention: without machine vices on the table z-motion: 500 mm, max. workpiece weight between centers: 800 kg, x-motion: 500 mm, y-motion: 420 mm, control: HEIDENHAIN TNC 426, table surface area l x w : 700x400 mm, taper: SK 40, toolchanger positions: 30, turning speed range: 15,000 rpm, feed range: 1 bis 10000 mm/min, rapid motion: 30 / 20 m/min, weight approx.: 8,000 kg, Approx. Onsite Dimension. (l x w x h): 4,500 x 2,400 x 2,600 mm

Available in Belgium Deckel Maho Machining Center Model DMU60 T Year of construction 2000 Number of axes 3+1 divisors equals 4 Functional machine unplug stores For more information contact us

Description: Feed drive: Infinitely variable feed speed: 1 - 30000 mm/min rapid traverse: 30000 mm/min Set-up mode: 1 - 2000 mm/min Manual intervention: 1 - 5000 mm/min Displacement measuring system: Resolution: 0.001 mm Free input: 0.001 mm Table: Size: 800 x 500 mm Permissible load: 500 kg Assembly height with max. tool length: 240 mm Slots: T-slots Number x width: 4 x 4 H12 Distance: 100 mm Cross - alignment groove width: 14 H7 Distance spindle nose / table: 150 - 650 mm Working area: , Travel distance: X-axis: 630 mm Y-axis: 500 mm Z-axis: 500 mm Tool magazine: Number of tools: 24 Tool diameter max.: 80 mm Tool length from spindle nose max.: 300 mm Tool weight max.: 7 kg Magazine load max.: 72 kg Tool holder: SK 40 Spindle speed max.: 6500 rpm z-motion: 500 mm, max. workpiece weight between centers: 500 kg, x-motion: 630 mm, y-motion: 500 mm ...

Description: x-path 600 mm y-path 525 mm z-path 500 mm Millplus control Main spindle: Speed range - main spindle max. 12,000 min/-1 Drive power - main spindle 10 / 15 kW Tool holder SK 40 Work table: Table clamping surface 900 x 543 mm Max. table load approx. 350 kg Number of T-slots 8 T-slots - distance 63 mm Total power requirement 22 kW with vices and tool holder weight approx.: 5,000 kg, Approx. Onsite Dimension. (l x w x h): 4,500 x 3,500 x 2,500 mm

x-travel: 1.250 mm y-travel: 880 mm z-travel: 800 mm control: TNC 426 Heidenhain Main spindle:: turning speed range - main spindle: max. 12.000 min/-1 power capacity - main spindel: 15 / 10 kW max. Torque: 500 Nm tool taper: SK 40 work table:: table surface area: 1.500 x 1.050 mm max. table load: 2.500 kg number of T-slots: 10 T-slot - width: 18 H7 mm T-slot - distance: 100 mm Tool-Presetter:: number of toolpositions: 30 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool length: 315 mm max. tool weight: 8 kg max. total weight: 100 kg feeds:: rapid traverse ( X / Y / Z ): 15 m/min feed speeds: 10.000 mm/min total power requirement: 29 kW weight of the machine ca.: 16,0 t dimensions of the machine ca.: 7,0 x 5,0 x 3,3 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: through spindle coolant: Automatic Tool Changer: test probe: Heidenh ...

Description: SPECIFICATIONS Brand: Deckel Maho Type: DMC 80 U hi-dyn CNC Brand: Siemens CNC Type: 840D Year of construction: 2003 Table width: 800 mm Table width: 630 mm Number of pallets: 2 Displacement: X = 800 mm, Y = 700 mm, Z = 600 mm Spindle drive: HSK-A 100 Tool changer: 60 positions Maximum pallet load: 800 kg Clamping transport Machine dimensions: 4600 x 2400 x 2700 mm Machine weight: 10,500 kg Measuring probe: Heidenhain TS 642 Approx. Onsite Dimension. (l x w x h): 4,600 x 2,400 x 2,700 mm, weight approx.: 10,500 kg

x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm Control: TNC 426 / 430M Heidenhain Main spindle:: turning speed range - main spindle: 20 - 9.000 min/-1 power capacity - main spindel: 9 / 13 kW max. Torque: 57 / 82 Nm tool taper: SK 40 swiveling-rotary-table:: table diameter: 700 x 500 mm swivellable: B: 105° (-10°/+95) ° rotatable: C: 360 ° max. table load: 200 kg number of T-slots: 7 T-slot - distance: 63 mm T-slot - width: 14H7 mm center hole: 30H7 mm Tool-Presetter:: number of toolpositions: 16 pos. tool taper: SK 40 max. tool length: 290 mm max. tool weight: 6,0 kg max. total weight: 50 kg feeds:: feed speeds: max. 10.000 mm/min rapid traverse: 12 m/min input unit: 0,01 mm total power requirement: 17 kW weight of the machine ca.: 3,2 t dimensions of the machine ca.: 4,0 x 4,0 x 2,5 m Documents: Chip-Tray: Coolantsystem: B-axis: man. C-axis: man. Swivel-Rotary-Table: Au ...

Table length: 1100 mm Table width: 650 mm Longitudinal X: 800 mm Cross Y: 65 mm Vertical Z: 550 mm Positions ATC: 24   Positions APC: 0   CNC Brand: Heidenhain 3-axis CNC machine (VMC)DMU 80 E MACH-ID 8547 Type: DMU 80 E Control: Heidenhain MillPlus Year: 1999 X - Travel:              800mm Y - Travel:              650mm Z - Travel:              550mm Table Length:            1100mm Table Width:             650mm Table load:              800 Feed rate X-Axis:        20000mm/min. Feed rate Y-Axis:        20000mm/min. Feed rate Z-Axis:        20000mm/min. Spindle Taper:           4 ...

Table length: 500 mm Table width: 380 mm Longitudinal X: 500 mm Cross Y: 420 mm Vertical Z: 380 mm Positions ATC: 30   Positions APC: 0   CNC Brand: Heidenhain 5-axis CNC machine (VMC)DECKEL MAHO - DMU 50 eVolution MACH-ID 8549 Make: DECKEL MAHO Type: DMU 50 eVolution Control: HeidenHain iTNC530 Year: 2007 X - Travel:               500mm Y - Travel:               420mm Z - Travel:               380mm A - Axis:                 360.000 (360 with resolution 0,001)° B - Axis:                 360.000 (360 with resolution 0,001)° Table Length:             500mm Table Width:              380mm Table  ...

The machine is in good technical condition, can be tested under power. New DMG MORI Design X = 2,600 mm, Y = 1,100 mm, Z = 900 mm 40 m/min, 4 m / s ² Tipping spindle (B-axis) 20 - 8,000 rpm Spindle 23.5 / 13.5 kW (25/100% ED), SK40 DIN 69871 , 30 place tool magazine Fixed table 3,200 x 1,100 mm, chip conveyor Heidenhain iTNC530 HSCI , SmarT.NC DMG ERGOline® Control,19 internal cooling via spindle IKZ 40 Bar/980 l, paper filter unit, 2xRotocleaner, handwheel rinse gun, user mode BA4, Safety pack

Machine in good technical condition, after agreement possibility of testing. The machine has replaced spindle, ball screws on :X: and :Z: axis and linear guide on :X and Z axis. Spindle runout is 0.006mm. Control system: Heidenhain iTNC530 Power-on time: 6965 h Operating hours: 13099 h Work table length: 3200 mm Workbench width: 1100 mm Maximum table load (uniform): 4000 kg Spindle drive power: 14 kW X-axis stroke: 2600 mm Y-axis stroke: 1100 mm Z axis stroke: 900 mm Spindle speed: 8000 1/min Tool holder: SK40 Machine weight: 26850 kg

The machine is in good technical condition, can be tested under power. 5 axes simultaneously Heidenhain Mill Plus Tool holder: SK 40 Tool changer: 24 places X/Y/Z travel 500x380x380mm Quick feed: 0 B ? C axis: 0 - 360 Maximum speed: 15000 rpm Table size: 500x380mm Table load capacity: 200 kg Power: 15kW. 500X380X380 mm Table clamping area: 500X380 mm.

Table length: 800 mm Table width: 500 mm Longitudinal X: 630 mm Cross Y: 500 mm Vertical Z: 500 mm Positions ATC: 24   Positions APC: 0   CNC Brand: Siemens 3-axis CNC machine (VMC)DECKEL MAHO - DMC 63V MACH-ID 7754 Make: DECKEL MAHO Type: DMC 63V Control: Siemens Year: 2003  incl. 4e Axis Lehmann Around 9500 Spindle hours X - Travel:              630mm Y - Travel:              500mm Z - Travel:              500mm Table Length:            800mm Table Width:             500mm Table load:              500 Feed rate X-Axis:        20000mm/min. Feed rate Y-Axis:        20000mm/min. Feed rate Z-Axis:        ...

Table length: 900 mm Table width: 550 mm Longitudinal X: 700 mm Cross Y: 550 mm Vertical Z: 500 mm Positions ATC: 30   Positions APC: 1   CNC Brand: _Unknown / Other CNC Model: DIALOG 112 X - Travel:              700mm Y - Travel:              550mm Z - Travel:              500mm Table Length:            900mm Table Width:             550mm Table load:              800 Feed rate X-Axis:        30000mm/min. Feed rate Y-Axis:        30000mm/min. Feed rate Z-Axis:        30000mm/min. Spindle Taper:           40ISO/Bt/Mk Power on spindle:        13kW Speeds / ranges:&n ...

Pallet length: 400 mm Pallet width: 400 mm Longitudinal X: 650 mm Cross Y: 700 mm Vertical Z: 700 mm Number of pallets: 2   Positions ATC: 120   CNC Brand: Heidenhain 4 Axis Controlled simultenious New WEISS spindle in 2022 New Window SG Glass BLUM laser measuring Renishaw 3D Measuring taster Filtration and coolant system 600 Liter and 40 bar  X - Travel:               650mm Y - Travel:               700mm Z - Travel:               700mm B-Axis indexing:          360° Table Length:             450mm Table Width:              500mm Table load:               600 Number of pallets:        2  ...

Two units of the identical machine are available for sale. This 5-axis DECKEL MAHO DMU 50 Evolution milling machine, manufactured in 2000, has been refurbished to enhance its performance. It features a Heidenhain TNC430 for 3D contouring control and a new spindle that reaches up to 18,000 rpm. The machine offers X, Y, Z travels of 500, 420, and 380 mm respectively, and includes a 32-tool changer HSK63A for efficient tool management. IKZ system with 20 bar pressure and a chip conveyor are also integrated. Consider the opportunity this DECKEL MAHO DMU 50 Evolution machine represents. Contact us for further details.

Description: Control: MillPlus IT Switch-on hours: 43000 Spindle hours: 9600 Travels : X-axis: 880 Y-axis: 630 Z-axis: 630  , Universal milling head manual H/V tool changer: 32 times spindle speed up to 18.000 rpm tool holder: SK 40 elctr. handwheel Laser tool measurement IKZ system 40 bar table size 1250 x 700 mm max. table load 1.000 Kg rapid traverse 30 m/min feeds up to 15 m/min Filter unit IFS Approx. Onsite Dimension. (l x w x h): 4,000 x 4,000 x 2,800 mm, weight approx.: 8,000 kg

Available in Russia (St. Petersburg), Year of issue 2005 CNC SIEMENS 840D Working range of axes stroke 635 x 510 x 460 table 790 x 560 Max.load on the table 500 kg spindle - 8.000 revolutions feed rate 30 meters per minute revolver magazine 20 tools gun, handwheel, chip ejector Machine dimensions 3160 x 2530 x 2600 mm Machine weight 4 tons Machine in good technical condition Maintenance was carried out in 2023

Description: Table length: 2600 mm Table width: 2200 mm Table height: 820 mm Table load approx.: 10.00 t Number of T-slots 11 weight approx.: 12,000 kg, Approx. Onsite Dimension. (l x w x h): 2,600 x 2,600 x 1,000 mm

x-travel: 1.000 mm y-travel: 1.000 mm z-travel: 1.000 mm Control: 840 D Siemens Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 Nm tool taper: HSK-A63 NC-Swivle milling head:: swivellable: B: -30 / +180 ° swivle time: 1,2 s pallet changer:: numbers of pallets: 2 size of pallet: 1.000 x 800 mm max. workpiece weight: 1.500 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 180 pos. tool taper: HSK-A63 total power requirement: 78 kVA weight of the machine ca.: 20,5 t dimensions of the machine ca.: 8,0 x 7,0 x 3,4 m Documents: Chip conveyor: Coolantsystem: through spindle coolant: pallet changer: Automatic Tool Changer: full splash guard: Rotary screen: elektr. hand wheel: 5 Axis - CNC Machining Center Universal DECKEL MAHO - DMC 100 U duoBLOCK - Swivel-Milling-Head (B-Achse) - NC-Rota ...

Deckel Maho MH1600 Vertical Machining Center X : 1600 mm Y : 800 mm Z : 800 mm 4000 rpm Maintenance has been done. Machine is in good working condition

x-travel: 350 mm y-travel: 240 mm z-travel: 340 mm Control: Siemens Type 810 D total power requirement: 15 kW weight of the machine ca.: 1,6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 885 mm y-travel: 600 mm z-travel: 600 mm control: iTNC 530 Heidenhain Main spindle:: Max. rpm: 1 - 28.000 min/-1 power capacity - main spindel: 35 / 25 kW max. Torque: 119 / 85 Nm tool taper: HSK A63 Swivel range milling spindle: B: -10° / +110° ° spindle bearing diameter: 80 mm rotary table:: table diameter: 750 mm rotation range: C: 360 ° rotary speed: max. 100 min/-1 max. table load: 600 kg feeds:: feed speeds: 1 - 90.000 mm/min rapid traverse: 90 m/min Feed force: X/Y: 13,8 kN Feed force: Z: 10,35 kN tool magazin:: number of toolpositions: 30 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 140 mm max. tool length: 300 mm max. tool weight: 10 kg Workpiece dimension: max. workpiece height: 460 mm Max. Workpiece Area: ca. 750 x 600 mm passage: max. 600 mm total power requirement: 60 kVA weight of the machine ca.: 12 t dimensions of the machine ca.: 4,5 ...

x-travel 600 mm y-way 525 mm z-way 500 mm Table surface area 1000 x 543 mm Spindle mount SK 40 Spindle mount DIN 69871 Spindle speeds - continuously 20 - 12,000 rpm Feeds X / Y / Z axis 20 - 10,000 mm / min Rapid traverse X / Y / Z axis 18/18/15 m / min Table load max. 350 kg Control HEIDENHAIN MillPlus Head can be swiveled +/- 90 ° Total power requirement 26 kVA Machine weight approx. 4.2 t Dimensions of the machine L x W x H 2.95 x 2.1 x 2.26 m equipment div. tool holders, coolant device

Category Machining Center - Universal Make DECKEL-MAHO Type DMU 80 T Year of construction 2002 CNC control x-way 880 mm y-way 630 mm z-way 630 mm Table clamping surface 1250 x 700 mm NC rotary table integrated, 700 mmø Spindle mount SK 40 Spindle mount DIN 69871 Spindle speeds - stepless 20 - 12,000 rpm Control HEIDENHAIN Control TNC 430 Feed rates x / y / z - stepless 20 - 15,000 mm / min Rapid traverse 30 m / min Tool changer 32 (2 x 16) Pos Tool diameter 80/130 mm Tool length max. 315 mm Tool weight max. 8 kg NC rotary table - speed - max. 15 rpm Table load 600/500 kg internal coolant supply yes / yes Total power requirement 60 kW Machine weight approx. 9.6 t = 5-axis machining center, table clamping surface 1250 x 700 mm with  integrated NC rotary table (= 4th axis), programmable milling head  (= 5th axis) Accessories electron. Manual control panel, ch ...

Description: The machine intended for precise processing of details has a high-quality steel construction, equipped with the best components. The metalworking process takes place on the 500 mm long and 380 mm wide work table of the milling center using a powerful 15 kW spindle, which guarantees excellent precision and significantly reduces milling time. The CNC milling machine has 5 axes (X,Y,Z,C,B) with displacements of 500 mm (X axis), 420 mm (Y axis), 380 mm (Z axis), 180° (C axis) and 360 ° (axis B). Along with the vertical machining center, a wide range of equipment is offered, consisting of, for example: a control panel with an installed HEIDENHAIN TNC 430 CNC control system, a spacious tool magazine and a detail probe. The total weight of the machine is 6000 kg. Technical data of the CNC milling center DECKEL MAHO DMU 50 EVOLUTION number of axles: 5 displacements in X/Y/Z ax ...
