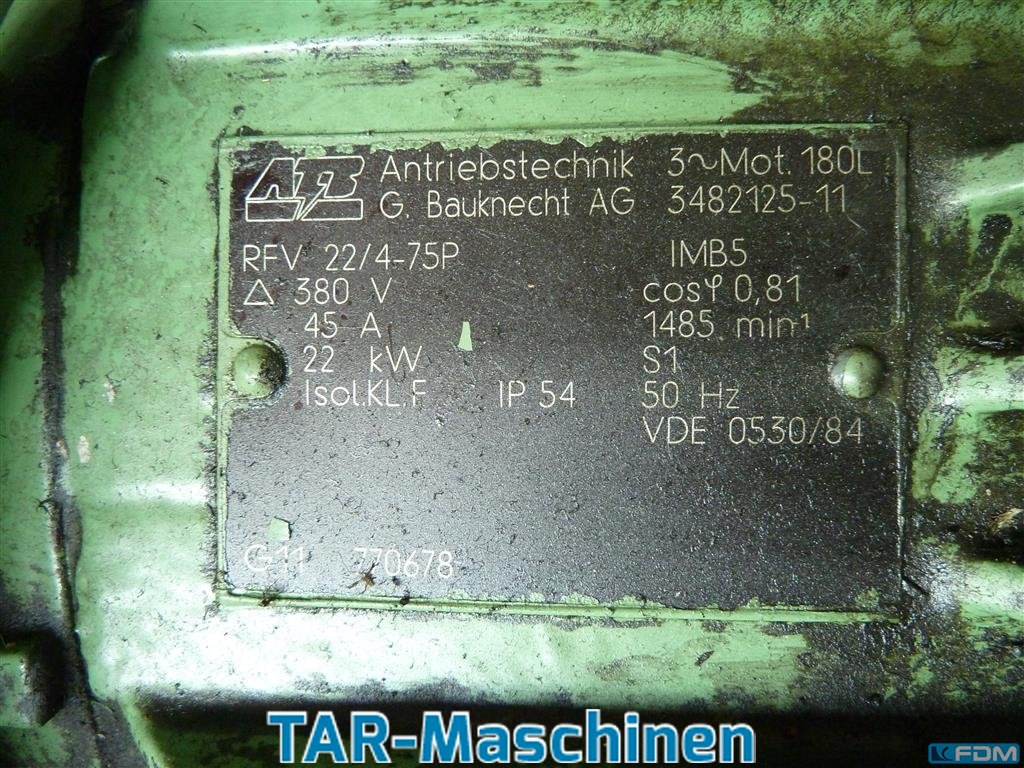

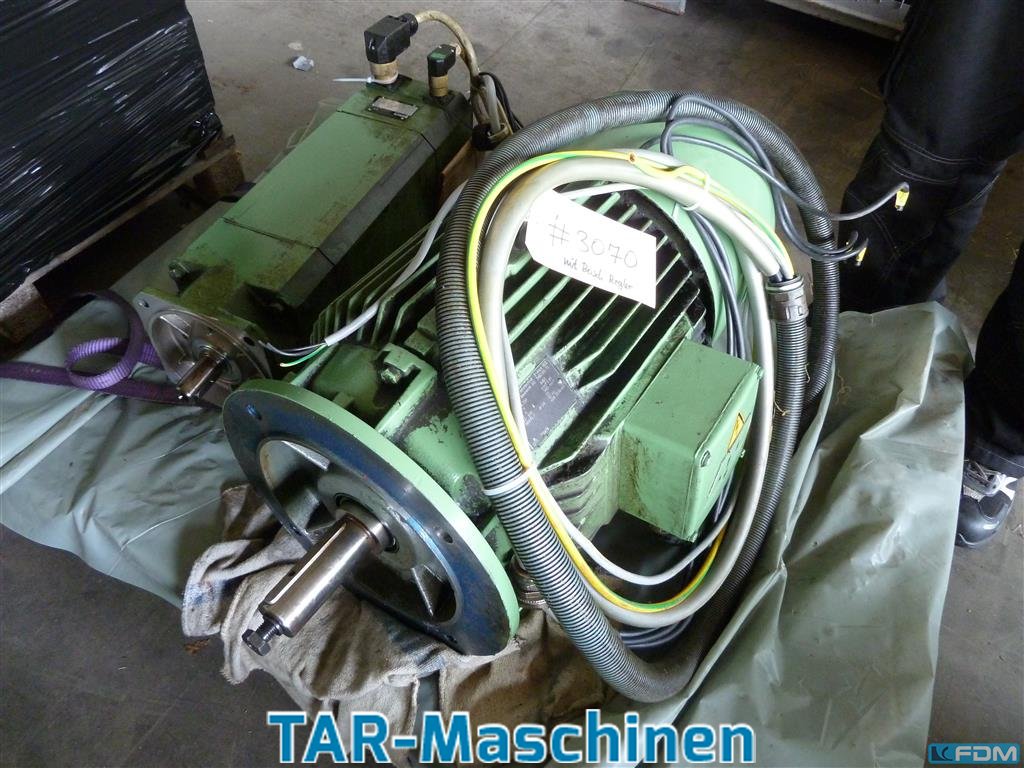

Article: three-phase current motor Manufacturer: Antriebstechnik Bauknecht Type: RFV 22/4-75P e.g. to use as spindle motor for Schutte multispindle automatic lathe SF51Dnt Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Hydraulic pump, high pressure pump -Max. Pressure: 500 bar -Hydraulic connections: 7 -Pressure clock up to: 600 bar -Pressure: can be switched on/off via foot switch -Print: mechanically adjustable -Motor power: 0.15 kW 1370 rpm
Electric motor, three-phase motor -Power: 5/7 kW -Speed: 735/1470 rpm -Shaft: Ø 42 mm -Construction: B3 -Protection class: IP 54 EX -Brake: with temperature sensor -Dimensions: 920/400/H330 mm -Weight: 175 kg
Electric motor, three-phase motor -Manufacturer: Bauknecht, electric motor type R 0.55 / 8-7 -Power: 0.18 kW -Speed: 690 rpm -Shaft: Ø 19 x 40 mm -Construction: B3 -Number: 1 available -Price per piece -Dimensions: 270/200 / H165 mm -Weight: 8.4 kg
Three-phase motor, electric motor -Power: 37 kW -Speed: 2945 rpm -Shaft: Ø 55 mm -Construction: B3 -Protection class: IP 23 -Dimensions: 710/450/H430 mm -Weight: 185 kg
Three-phase motor, electric motor -Power: 7.5 kW -Speed: 2890 rpm -Shaft: Ø 38 mm -Construction: B3 -Protection class: IP 33 -Price: per piece -Number: 1x available -Dimensions: 440/330/H270 mm -Weight: 60 kg
Electric motor, three-phase motor -Manufacturer: Bauknecht, electric motor type RF 15 / 4-75 from press brake EHT type EHP 11-40 -Power: 15 kW -Speed: 1460 rpm -Shaft: Ø 42 x 110 mm -Construction: B5 -Protection class: IP 44 -Dimensions: 630/368 / H348 mm -Weight: 137 kg
Gear motor, electric motor, three-phase motor, electric gear motor -Output: Even speed 1420 rpm -Diameter shaft: Ø 18 mm -Output: Angle speed 32 rpm -Diameter shaft: Ø 32 mm -Power: 1.5 kW -Construction: B5 -Protection class: IP 44 -Dimensions: 620/260/H350 mm -Weight: 51 kg
Electric motor, three-phase motor -Foot defective, see photo -Power: 4 kW -Speed: 2860 rpm -Shaft: Ø 28 x 60 mm -Construction: B35 -Protection class: IP 54 -Dimensions: 380/250/H270 mm -Weight: 30 kg
Electric motor, three-phase motor -Power: 4 kW -Speed: 2860 rpm -Shaft: Ø 28 x 60 mm -Construction: B35 -Protection class: IP 54 -Dimensions: 380/250/H270 mm -Weight: 30 kg
Gear motor, electric motor, electric gear motor -Speed: 19.5 rpm -Power: 0.25 kW -Diameter shaft: Ø 25 mm -Construction: B5 -Price: per piece -Number: 2x available -Protection class: IP 44 -Dimensions: 390/170/H190 mm -Weight: 16 kg
Three-phase motor, electric motor -Power: 2.2 kW -Speed: 955 rpm -Shaft: Ø 28 x 60 mm -Construction: B3 -Protection class: IP 33 -Dimensions: 380/265/H230 mm -Weight: 43 kg
Three-phase motor, electric motor -Power: 4 kW -Speed: 2900 rpm - Shaft: O 28 x 60 mm -Rezess: O180 mm -Pitch circle: O215 mm -Longitudinal hole spacing: 140 mm -Hole distance across: 190 mm -Construction: B5 -Protection class: IP 44 -Dimensions: 380/300 / H250 mm -Weight: 33 kg
Gear motor, electric motor -Speed: 11.5 rpm -Power: 0.18 kW -Construction: B3 -Diameter shaft: Ø 32 mm -Protection class: IP 44 -Weight: 24 kg
Gear motor, electric motor -Speed: 20 rpm -Power: 0.25 kW -Construction: B5 -Diameter shaft: Ø 25 mm -Protection class: IP 55 -Number: 1x motors available -Price: per piece -Dimensions: 400/170/H185 mm -Weight: 17 kg
High Pressure Centrifugal Fan, Pressure Blower, Ventilation Fan, Centrifugal Blower, Blower -Manufacturer: Bauknecht, ventilation fan -Type: P900 02 90S NF 1.1/2-5m -Power: 1.5kw -Speed: 2850 rpm -further data: not available -Dimensions: 360/355/H240 mm -Weight: 29kg
Three-phase motor, electric motor -Power: 4 kW -Speed: 2800 rpm -Shaft: Ø 28 mm -Construction: B3/B5 -Protection class: IP 54 -Dimensions: 380/300/H250 mm -Weight: 33 kg
Three-phase motor, electric motor -Power: 1.5 kW -Speed: 685 rpm -Shaft: Ø 28 mm -Construction: B5 -Protection class: IP 33 -Dimensions: 375/270/H250 mm -Weight: 41 kg
Three-phase motor, electric motor -the foot of the engine: was welded once -Power: 52/143 kW -Speed: 1485/2970 rpm -Shaft conical: Ø 70 to 60 mm 125 mm long -Construction: B3 -Protection class: IP 54 -Dimensions: 1130/920/H630 mm -Weight: 876 kg
Gear motor, electric motor -Speed: 15/31 rpm -Power: 0.2/0.3 kW -Construction: B3 -Diameter shaft: Ø 28 mm -Protection class: IP 54 -Dimensions: 450/210/H200 mm -Weight: 24 kg
Electric motor, three-phase motor -Spare part: a CNC lathe -Power: 11/15 kW -Speed: 1460/2900 rpm -with electric clutch: 24 V and V-belt pulley -Construction: B5 -Protection class: IP 44 -Dimensions: 820/440/H320 mm -Weight: 180 kg
Gear motor, electric motor -Manufacturer gear Lenze type: 52307 04 111 -Manufacturer Motor Bauknecht Type: RF0,37/4-7 -Speed: 94 rpm -Power: 0.37 kW -Construction: B3 angle -Diameter shaft: Ø 19 mm -Protection class: IP 54 -Number: 1x motors available -Price: per piece -Dimensions: 390/220/H180 mm -Weight: 15 kg
Vendedor: Bödeker Holzbearbeitungsmaschinen GmbH
Fabricante: Bauknecht, Tipo: 0W8/220, Número de série: 904417, Número de série: 738255, mH/Hz: 100, Entrada de potência: 220 V, Imax= Ampere: 8 A,
