schuler 板金加工 中古 販売のため

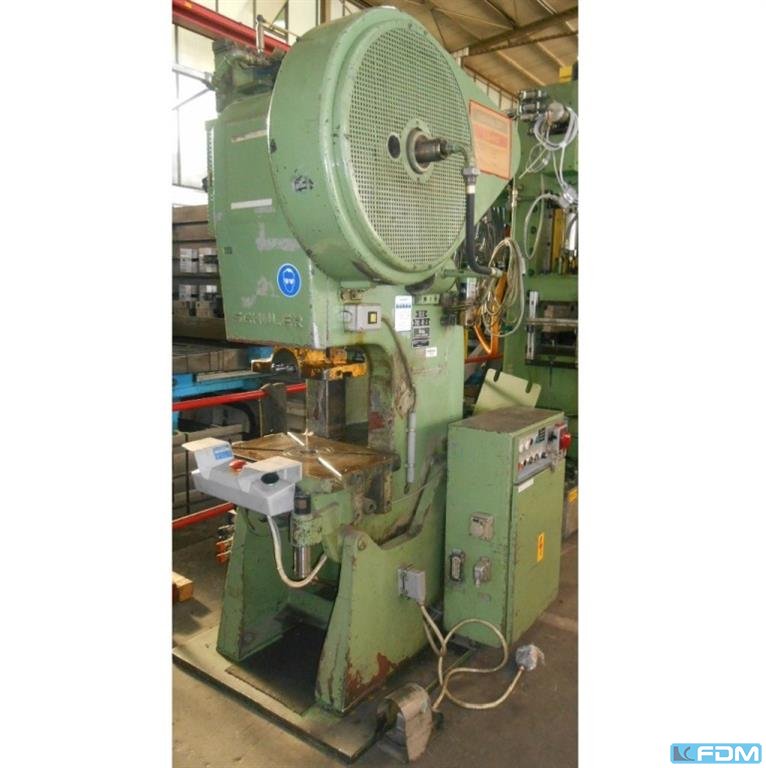

Capacity: 50 ton Projection: 225 mm Stroke: 320 p/min Large table: 500 x 800 mm

Schuler PE4s 50/800 High Speed Press Manufacturer: Schuler Type: PE4s 50/800 High-speed press 61/21 600/3 Pressing force: 50 t Projection: 800 mm Stroke rate /min: 125-300 Plunger stroke: 40 mm Kohler unwinding reel 500.1 M We sell a large number of paternosters. The devices are in operation until 30.06.2021. After the purchase, there are also the documents for it From 01.07.21 the devices are ready for collection. Dismantling and transport by the buyer. Location is Hildesheim The dismantling, loading, as well as transport can alternatively be offered by us. In addition to about 50 paternosters, countless other machines are available. After purchase, the amount is due within 7 working days. Please also note our other offers. Have fun browsing and buying.

Fully Automated Forging Hammer Line (2023) SCHULER KG H 6.3 B (63 KJ) Line Description The complete line consists of the following machines: ‍ Tilting Device, Stahlmann Step Conveyor, Stahlmann Cold conveyor belt Conductive Heating System, Stahlmann, E89, 2023 Transfer Gripper Hot Conveyor Belt with Lifting Device 2 Forging robot, Kuka, KR 30-3F, 2010 Safety Fence with Safety Doors Short-Stroke Die Forging Hammer, Schuler, KG H 6.3 B, 2023 Discharge / Extraction Robot, Kuka, KR 150/2, 2010 Output Station, Stahlmann, 2010 ‍ ‍ Technical Details ‍ (2023) Short-Stroke Die Forging Hammer SCHULER KGH 6.3B ‍Machine identification data Name: Short-Stroke Die Forging Hammer Model: KGH 6.3B Machine number: 119820 Year of manufacture: 2023‍ Operational parameters Working capacity max. 63 kJ Max. impact frequency 98/min Max. usable impact rate  ...

End mill, shank mill, milling cutter -Four-cutter -Roughing end mill -Diameter: 16 mm -Usable length: 20 mm -Type: HSSE -Quantity: 17 pieces -Sale: only complete set -Weight: 4 kg

Specifications: Capacity 63 tons Stroke rate 140 h/min Projection 250 mm Plunger stroke 8-100 mm Table , WxD approx. 700 x 480 mm Installation height approx. 400 mm

Radius cutter, finger cutter, end mill, milling cutter -Six-cutter -Finish cutter -Shaft: Ø 25 mm -Diameter: 32 mm -Usable length: 70 mm -Angle: 60° -Type: HSS -Quantity: 4 pieces -Sale/Price: complete -Weight: 4 kg

material width:320 mm coil weight:2,6 t material thickness:0,5 - 2,0 mm coil internal diameter:400 - 510 mm coil external diameter:1200 mm no. of straightening rolls:7 straightening roll diameter:50 mm number of draw-in rolls:2 band speed:0 - 30 m/min power capacity:1,5 kW weight:1,5 t

nominal force:100 t stroke:320 mm no. of strokes:35 /min distance between columns:360 / 250 mm Distance table/ram, max. stroke up, adjustment up:500 mm table surface area:320 x 450 mm table height over floor:660 mm ram surface:250 x 280 mm spindle diameter:125 mm power capacity:3,0 kW weight:4,5 t Dimensions (WxDxH):2,0 x 1,6 x 3,1 m

Specifications: Capacity 63 tons 2 strokes 105 rpm and 140 rpm large projection 450 mm ! Plunger stroke 8-100 mm Plunger adjustment approx. 70 mm Table , WxD approx. 700 x 780 mm Plunger, W x D approx. 450 x 280 mm

pressure: 63 t throat: 315 mm stroke: 8-100 mm no. of strokes: 140 Hub/min ram - range of adjustment: 63 mm table surface area: 1200x630 mm ram surface: 800x315 mm hole in the table: Ø 110 mm table height: 820 mm tool hole in ram: Ø 50 mm dayligth: 335 mm total power requirement: 7,5 kW weight of the machine ca.: 5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 63 t throat: 440 mm stroke: 8-100 mm no. of strokes: 65 Hub/min ram - range of adjustment: 63 mm table surface area: 720x750 mm ram surface: 440x280 mm hole in the table: Ø 240 mm table height: 830 mm tool hole in ram: Ø 40 mm weight of the machine ca.: ca. 5,0 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pressure total: 600 ton Ram stroke: 762 mm Slide adjustment: 406 mm Shut height (stroke down, adjustment up): 1322 mm Free frontal opening L-R: 3700 mm Table surface area : 3350 x 2134 mm Slide area: 3350 x 2134 mm Die cushion capacity in table: 180 ton Die cushion stroke: 305 mm Ejector in ram: 60 ton Ejector stroke in ram: 230 mm Number of strokes: 16 s.p.m. Required power: 90 kW Weight of machine approx.: 185 ton

SCHULER HYDRAP SH 630 - 1.6 x 1.3 (2005) Total weight 74,000 kg Rated force 6,300 kN Max. stroke length 600 mm Mounting height 900 mm Closes quickly 500 mm/s Max. working speed 23 mm/s Min. working speed 51 mm/s Base and tool max. (xH) 2,280 x 1,200 mm Base and tool min. (xH) 1,250 x 600 mm Tool height min. 300 mm Total tool weight max. 2,500 kg Total tool weight max. 5,000 kg Permissible eccentric hydraulic press load left right Permissible eccentric load front rear 490 kNm 250 kNm Installed power 295 kW Rated current 565 A Voltage 400 V Frequency 50 Hz Operating hydraulic pressure 278 bar Total oil volume 5.185 l Oil type HLP 68 in accordance with DIN 51524

sheet width: 5 mm plate thickness: 1000 mm distance between columns: mm total power requirement: 4 kW weight of the machine ca.: 2,8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 25 t throat: 200 mm stroke: 8 - 80 mm no. of strokes: 180 Hub/min distance table/ram: 330 mm table surface area: 550 x 400 mm hole in the table: 60 mm table height over floor: 800 mm table height over floor: 800 mm passage to the back: 200 mm ram surface: 355 x 220 mm ram adjustment: 50 mm power capacity: 2,5 kW total power requirement: kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 1,2 x 1,8 x 2,4 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 200 t nominal power: 2000 kN stroke length max.: 1700 mm working feed: 50 mm/sec weight of tools max.: 50000 kg voltage: 400 V table-size: 4.800 x 2.400 mm total power requirement: 99 kW weight of the machine ca.: 113 t dimensions of the machine ca.: m passage width: mm stroke: mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Sheet thickness iron: 0.75mm, sheet thickness steel: 0.5mm, working width: 780mm, stroke rate: 135/min. An on-site inspection is possible.

CONTROLS   PLC SIEMENS S7 PRESS DESIGN   drive system: knuckle-joint   frame design: H-frame, monoblock   openings in uprights: yes   number of suspensions: 2   feedstock transport direction: left to right PRESS FORCES   total force (nominal): 315 to   nominal work capacity: 38 kNm PRESS TABLE   table surface (left-right): 2000 mm   table surface (front-back): 1200 mm   thickness of bolster plate: 200 mm SLIDE   slide force: 315 to   table surface (left-right): 1995 mm   table surface (front-back): 1100 mm   stroke: 160 mm   stroke rate (max.): 80 /min SLIDE (MECHAN. PRESS)   slide adjustment: 140 mm   stroke rate (min.): 20 /min   stroke rate (max.): 80 /min   main drive power: 90 kW TOO ...

An electric guillotine shear L. Schuler (Göppingen) is available. Working width: 1000mm, max. sheet thickness iron/steel: 2.5mm/2mm, flywheel speed: 100rpm, power requirement: 4HP. An on-site inspection is possible.

1 press system (400 t), manufacturer Schuler, type GMO 2-400-3200-66/203, built in 2002, pressing force 4,000 kN, stroke = 66 - 203 mm, stroke rate 20 - 100/min, table size 1,200 x 3,200 mm, tool weight max. 6,000 kg, machine weight 72,500 kg, control system, manufacturer Siemens, control cabinet, manufacturer Rittal, upstream coil unwinding reel, manufacturer Schuler, changeover device, downstream feed unit, electric drive, buffer section, alignment unit, separate control cabinet system, manufacturer Rittal, cooling unit, material discharge belt, two-hand operation Find more here - / Contact us at -

Press force: 250kN, ram stroke: 8mm-80mm, stroke rate: 180/min, installation height: 310mm, table dimensions X/Y: 550mm/400mm, ram dimensions X/Y: 355mm/220mm, machine dimensions X/Y/Z: approx. 1100mm/1400mm/2300mm, weight: approx. 2500kg. An on-site inspection is possible.

bushing cut-off diameter range 8-18 mm number of dies 5 number of stations (incl. cut off) 6 shaft length under head 120 mm cutting length 140 mm output - pieces/min 60-170 press power 100 to

Pressure total: 800 ton Ram stroke: 700 mm Slide adjustment: 600 mm Shut height (stroke down, adjustment up): 1475 mm Free frontal opening L-R: 3700 mm Free lateral opening F-B: 2300 mm Table surface area : 3600 x 2200 mm Slide area: 3500 x 2070 mm Die cushion capacity in table: 150 ton Die cushion stroke: 250 mm Die cushion pad area: 2780 x 1570 mm Ejector in ram: 60 ton Ejector stroke in ram: 150 mm Number of strokes: 7 - 21 s.p.m. Required power: kW Height over floor approx.: 9510 mm Weight of machine approx.: 260 ton

Pressure total: 1200 ton Ram stroke: 600 mm Slide adjustment: 600 mm Shut height (stroke down, adjustment up): 1600 mm Free frontal opening L-R: 4550 mm Table surface area : 4500 x 2700 mm Slide area: 4500 x 2700 mm Die cushion capacity in table: 225 ton Die cushion stroke: 200 mm Number of strokes: 9 s.p.m. Height over floor approx.: 9000 mm Weight of machine approx.: 344 ton

material width: 650 mm coil weight: 15 t material thickness: 16 mm The year of construction is estimated, the system is as good as new The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 200 t nominal power: 2000 kN stroke length max.: 1700 mm working feed: 50 mm/sec weight of tools max.: 50000 kg voltage: 400 V table-size: 4.800 x 2.400 mm total power requirement: 99 kW weight of the machine ca.: 113 t dimensions of the machine ca.: m passage width: mm stroke: mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

band width:1050 mm plate thickness:8 mm number of rolls:8 DECOILER:. - design : single coil :. - sheet width max:1050 mm - sheet width (min):150 mm - max. weight of coil:22 to - max. diameter of coil:2000 mm - min. internal diameter of coil:570 mm FEEDERS:. - feeder: type : roll feeder :. - sheet width max:1050 mm - sheet thickness max:150 mm LEVELER UNIT:. - sheet width max:1050 mm - sheet width (min):150 mm - sheet thickness max:8 mm - sheet thickness (min):2.5 mm - number of leveler rolls:8 - diameter of leveler rolls:96 mm - distance between leveler rolls:104 mm - diameter of feed rolls:160 mm - feed velocity min.:2 m/min - feed velocity max.:43.5 m/min ELECTRICAL SPECIFICATIONS:. - mains voltage:400 V - mains frequency:50 Hz Technical description : Sheet metal unrolling and straightening system for thick sheet metal up to 8 mm, consisting of: - LAWECO COIL LOA ...

Pressure total: 1200 ton Ram stroke: 600 mm Slide adjustment: 500 mm Shut height (stroke down, adjustment up): 1250 mm Free frontal opening L-R: 3550 mm Table surface area : 3500 x 2700 mm Slide area: 3500 x 2700 mm Die cushion capacity in table: 240 ton Die cushion stroke: 250 mm Ejector in ram: 95 ton Ejector stroke in ram: 150 Number of strokes: 10 - 16 s.p.m. Height over floor approx.: 9000 mm Weight of machine approx.: 280 ton

pressure:40 t throat:220 mm stroke:8 / 88 mm table pass:ø- abgesetzt 225/200 mm ram head dimension:400 x 250 mm distance table/ram:228 mm stroke adjustable from - to:30 - 140 mm ram adjustment:63 mm thickness of bolster:80 mm no. of strokes:70 Hub/min total power requirement:5,5 kW weight of the machine ca.:2600 kg dimensions of the machine ca.:1100 x 1300 x 2300 mm Documents:vorhanden

Pressure total: 1500 ton Ram stroke: 1100 mm Slide adjustment: 500 mm Shut height (stroke down, adjustment up): 1500 mm Free frontal opening L-R: 4600 mm Table surface area : 4500 x 2500 mm Slide area: 4500 x 2500 mm Die cushion capacity in table: 250 ton Die cushion stroke: 250 mm Ejector in ram: 150 ton Ejector stroke in ram: 150 mm Number of strokes: 6 - 18 s.p.m. Required power: 200 kW Height over floor approx.: 9000 mm Weight of machine approx.: 400 ton

Pressure total: 800 ton Ram stroke: 700 mm Slide adjustment: 600 mm Shut height (stroke down, adjustment up): 1500 mm Free frontal opening L-R: 3800 mm Free lateral opening F-B: 1450 x 1100 mm Table surface area : 3500 x 1900 mm Slide area: 3500 x 1900 mm Die cushion capacity in table: 150 ton Die cushion stroke: 250 mm Die cushion pad area: 2780 x 1570 mm Number of strokes: 7 - 18 s.p.m. Required power: 120 kW Height over floor approx.: 9510 mm Weight of machine approx.: 260 ton

pressure:125 t stroke:25 fix mm no. of strokes:70 - 700 /min distance between columns:1150 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:1150 x 1000 mm hole in the table:900 x 220 mm side window:650 mm ram surface:990 x 850 mm ram adjustment:60 mm material width:250 mm material thickness:2,5 mm power requirement:46,5 kW weight:29,5 t roll feed:mechanical, Schuler, WK 8-250

pressure:063 t throat:450 mm stroke:8 - 100 mm no. of strokes:65 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:720 x 800 mm hole in the table:280/250 mm table height over floor:800 mm passage to the back:290 mm ram surface:450 x 280 mm ram adjustment:63 mm power requirement:7,5 kW weight:4,7 t dimensions (WxDxH):1,3 x 2,0 x 2,65 m clutch:pneumatisch overload protection in ram:mechanisch

pressure:100 t throat:315 mm stroke:30 - 160 mm no. of strokes:40 /min distance table/ram, max. stroke up, adjustment up:460 mm table surface area:910 x 680 mm Hole in the table:400 mm table height over floor:800 mm passage to the back:400 mm ram surface:630 x 400 mm ram adjustment:80 mm power requirement:7,5 kW weight:7,5 t dimensions (WxDxH):1,7 x 2,0 x 3,0 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical ram counterbalance:pneumatic

pressure:3500 t stroke:900 mm Distance table / ram, stroke down:1000 mm distance table / ram, stroke up:1900 mm table surface area:3150 x 2150 mm ram surface:3150 x 2150 mm Total Weight of Tool max.:30,0 t Weight of Tool Top Part max.:20,0 t speed down:400 mm/s working speed:0,9 - 9,2 mm/s Hydraulic Operating Pressure:280 bar oil volume:5500 l rated current:760 A voltage:400 V frequency:50 Hz power requirement:425 kW weight:231,0 t

Pressure:080 t throat:280 mm stroke:20 - 120 mm no. of strokes:42 - 125 /min distance table/ram, max. stroke up, adjustment up:510 mm table surface area:700 x 560 mm hole in the table:280 mm table height over floor:800 mm passage to the back:320 mm ram surface:560 x 350 mm ram adjustment:72 mm Weight:5,2 t Dimensions (WxDxH):1,6 x 1,6 x 2,6 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical

pressure:025 t throat:200 mm stroke:8 - 80 mm no. of strokes:60 - 180 /min distance table/ram, max. stroke up, adjustment up:330 mm table surface area:560 x 400 mm hole in the table:150 mm table height over floor:800 mm passage to the back:240 mm ram surface:355 x 220 mm ram adjustment:50 mm weight:3,0 t dimensions (WxDxH):1,0 x 1,4 x 2,2 m infinitely variable drive:Stöber overload protection in ram:mechanical NEW electrical controls:Pilz

pressure:025 t throat:200 mm stroke:8 - 80 mm no. of strokes:180 /min distance table/ram, max. stroke up, adjustment up:330 mm table surface area:550 x 400 mm hole in the table:60 mm table height over floor:800 mm passage to the back:200 mm ram surface:355 x 220 mm ram adjustment:50 mm power requirement:2,7 kW weight:2,5 t dimensions (WxDxH):1,2 x 1,8 x 2,4 m overload protection in ram:mechanical

Pressure:250 t stroke:30 mm no. of strokes:60 - 500 /min Distance between columns:1500 mm distance table/ram, max. stroke up, adjustment up:390 mm table surface area:1580 x 1100 mm hole in the table:1270 x 300 mm table height over floor:1470 mm side window:600 mm ram surface:1500 x 900 mm ram adjustment:100 mm material width:500 mm material thickness:0,5 - 1,5 mm coil weight:6,5 t coil internal diameter:420 - 560 mm coil external diameter:1500 mm power capacity:45,0 kW Weight:44,0 t Dimensions (WxDxH):3,3 x 1,8 x 4,5 m clutch:pneumatisch ram adjustment:motorisch double decoiler:LH 2-1,5-500 straightening machine:R 500 roll feed:mechanisch; Schuler, WK 8-500

pressure:160 t throat:400 mm stroke:30 - 200 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:600 mm table surface area:1000 x 770 mm table height over floor:810 mm hole in the table:360 mm Passage to the back:450 mm ram surface:710 x 450 mm ram adjustment:110 mm power requirement:15,0 kW weight:10,5 t Dimensions (WxDxH):1,7 x 2,0 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical ram counterbalance:pneumatic

pressure:063 t throat:250 mm stroke:8 - 100 mm Stroke rate:60 - 160 / min Distance table/ram, max. stroke up, adjustment up:415 mm Table surface area:710 x 500 mm Hole in the table:250 / 280 mm Table height above floor:800 mm Passage to the back:290 mm Ram surface:450 x 280 mm Ram adjustment:63 mm Weight:4,3 t Dimensions (WxDxH):1,5 x 1,7 x 2,7 m infinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical

pressure:063 t throat:250 mm stroke:8 - 100 mm Stroke rate:47 - 140 / min Distance table/ram, max. stroke up, adjustment up:415 mm Table surface area:710 x 480 mm Hole in the table:280 / 250 mm Table height above floor:800 mm Passage to the back:290 mm Ram surface:450 x 280 mm Ram adjustment:63 mm Weight:4,0 t Dimensions (WxDxH):1,5 x 1,6 x 2,7 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 infinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical

pressure:600 t distance between columns:3640 mm stroke:350 mm no. of strokes:11 - 44 /min Distance table/ram, max. stroke up, adjustment up:1550 mm table surface area:3600 x 2500 mm sliding table:3600 x 2500 mm ram surface:3600 x 2500 mm Side window:2200 mm ram adjustment:400 mm material width coil line:500 - 1950 mm Material thickness at 1200 mm material width:0,6 - 2,5 mm Material thickness at 1850 mm material width:0,6 - 2,0 mm Material thickness at 1950 mm material width:0,6 - 1,75 mm Coil weight:35,0 t coil internal diameter:610 mm coil external diameter:900 - 1900 mm no. of straightening rolls:13 straightening roll diameter:50 mm Stack height:400 mm stacking dimensions - station 1+2 (L x W):150-2000 x 250-2000 mm stations:2 power requirement:112,0 + 35,0 kW Weight:390,0 t Dimensions (WxDxH):7,3 x 5,1 x 15,0 m Height above floor:9,1 m Height below floor:5,9 m clutch-/ brake combinat ...

Pressure total: 250 ton Ram stroke: 70 / 250 mm Slide adjustment: 160 mm Ejector in ram: 20 ton Ejector stroke in ram: 10 mm Shut height (stroke down, adjustment up): 520 mm Free lateral opening F-B: 1.300 mm Table surface area : 1.600 x 1.600 mm Slide area: 1.600 x 1.600 mm Number of strokes: 0 - 50 s.p.m. Required power: 33 kW Height over floor approx.: 5.500 mm Weight of machine approx.: 58 ton Roll feeder Material width: 1250 mm Material thickness: 0,3 - 1,6 mm Control: Siemens S7

material width: 300 mm material thickness: 2,0 mm : max. 90° Grad weight: 12 Kg dimensions: 400 x 250 x 100 m Combined sheet metal working machine with: - Bending, tool widths 25 - 50 - 75 - 75 - 105 mm. - Rolls, roll diameter 38 mm - scissors, max. 1015 x 1mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

guillotine shears AG TS 2 Working thickness 2mm Adjustable stop Hold Length 1.80 m Width 1 m Height 1.40 m Weight 300 kg

Line Salvagnini S4 P4 Year 2001/2003 S4 30 + P4 2220 + MD with unloading robot. Working line, regular assistance performed by the manufacturer

Hydraulic Shear HACO HS 3010 Capacity: 3000 x 10 mm Back gear gauge travel: 1000 mm Year of construction: 1983 Manual adjustment of the clearance between blades Cutting angle: 1° to 3° Voltage: 380 V Dimensions (L x W x H): 4000 x 2100 x 2200 mm Weight: approx 8 T

Inv. Num. : 1607 Type: CB90VZB SL 6600 Producer: DYNOBEND B.V. Created: 2011 Parameters: 3 CNC-controlled axes Programmable speed Network Connection Windows Novell and Linux Software for work preparation Standard Specifications: Bending angle max: 200° Adjustment accuracy: 1/10° Tube torsion: 360° Booster power: 70kN Software IGES Centerline without marking Pipe length max. 6.3m Tube pre- and post-carriage 300mm Max. tube diameter 90mm Crushed tubes twisted 100 x 12 x 1 5 Min. radius over rolling process with or without mandrel > 1000mm Smallest radius with fixed tool not running and not torsional > 1 5D Repeat accuracy of machine 0.1mm 3-D bends

Mechanical Shear BOMBLED type 9G Capacity: 2500 mm x 4 mm Manual Back gear gauge travel: 500 mm Supplied with 2 front length stops Voltage: 380 V Dimensions (L x W x H): 4000 x 1500 x 1500 mm Weight: approx 4,5 T

Max plate size 1600x3000 mm Drilling heads 1 Drilling tools per head 6 Max drilling diameter 40 mm Max drilling thickness 130 mm Spindle speed 3000 rpm Plasma torches 1

Sheet metal splitting and cut-to-length line for processing sheet metal coil material Max. width: 1,250 mm Min. width: 250 mm Sheet thickness steel up to 400 N/mm²: 0.4 – 1.25 mm Sheet thickness stainless metals up to 550 N/mm²: 0.4 – 0.9 mm Sheet thickness aluminium and copper: 0.5 – 1.5 mm Min. sheet cutting width: 60 mm /15 mm from coil outer edge Max. cutting speed: 30 m/min adjustable Cutting accuracy: Class "m" DIN/ISO 2768 (± 0.8 mm/m) Current: 3PH 400-488V AC/n/PE-11kW/16A (300mA fuse) Compressed air: 25 l/min (short-term)-6 bar dry and filtered Dimensions: 1.6x2.5x1.3 m Weight: 1.5 t

Sheet metal processing system P 315 / 1991 105327 Ai P4-1812+HPT 2015 + R51 272/ 1991 S4.30 / 1998 Find more here - / Contact us at -

Qty. 1 Second-hand sheet metal processing machine Mfc.: Vernet Behringer Type: FG2005 CNC Built: 2012 Limits of sheet metal dimensions to be machined Min. section: 100 x 100 x 5 mm Max. section: 2000 x 1000 x 40 mm Max. section: 1340 x 1000 x 60 mm Electrical Cabinet Power supply: 3 x 380 V, 50 Hz, Control voltage: 24 V DC Installed power: 90 kVA Hydraulic unit: 15 l/min Central motor power: 4 kW Medium pressure: 130 bar

material width: 1015 mm material thickness: 1 mm speed: von Hand weight: 240 Kg dimensions: 1420 x 600 x 750 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

material width: 305 mm material thickness: 1,0 mm speed: von Hand weight: 45 Kg dimensions: 500 x 340 x 420 m Combined sheet metal working machine with: - Bending, tool widths 25 - 50 - 75 - 75 - 105 mm. - Rolls, roll diameter 38 mm - scissors, max. 1015 x 1mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Bystronic Model: BLT 4000 Year of Manufacture: 2001 Type of Machine : C02 Laser Find more here - / Contact us at -

electric shears for metal sheets

Manufacturer: Morn Laser Condition : New Model: GH-S3015 GH-Series Type of Machine : High Speed Full Cover Fiber Laser Cutting Machine Condition : New Advantages: - High speed cutting efficiency - Safe and clean production - Zoned smoke exhaust system - High speed double platform exchanging Parameters: - Laser Power: 3000W / 6000W - Cutting Area: 3100 × 1600 mm Find more here - / Contact us at -

Manufacturer: Morn Laser Condition : New Model: MT-6000 N-6 Series Type of Machine : High Speed Tube Fiber Laser Cutting Machine Advantages: - Fast loading - High precision - Saves labor costs Parameters: - Laser Power: 3000W / 6000W - Tube Length: 6m / 9m Find more here - / Contact us at -

Inv. Num. : 8739 Type: TS 3006 Producer: HACO Created: 2004 Parameters: Maximum cutting length: 3000 mm Maximum cutting thickness: 6 mm

Manufacturer: Morn Laser Type of Machine : PROFILE STEEL LASER CUTTING MACHINE Condition : New Model : MT-H4510 / MT-H50120 HD Series Advantages: - Stable cutting of large-size profile steel - High-precision bevel cutting Parameters: - Profile Steel Processing Range (Customizable): 450×1000mm / 500×1200mm - Laser Power: 12000W–20000W Find more here - / Contact us at -

Inv. Num. : 8740 Type: VR 13-31 Producer: EHT Generated: Parameters: Maximum cutting length: 3100 mm Maximum cutting thickness: 13 mm

Manufacturer: Morn Laser Type of Machine : HEAVY DUTY TUBE LASER CUTTING MACHINE Conditon : New Models: MT-6000 / MT-9000 / MT-12000 X Series & L Series Advantages: - Intelligent 4-chuck technology - Truly zero tailing - Auto loading and unloading system Parameters: - Laser Power: 1500W – 20000W - Tube Diameter: Ø20mm–160mm / 200mm / 350mm / 500mm - Tube Length: Standard 6m / 9m / 12m Find more here - / Contact us at -

Manufacturer: SATO Model: DHDS 3100 Year of Manufacture: 2017 Estimated operating hours: 16,000 hours - Plasma cutting system with table and extraction system. - Cutting area: 2 x 6 meters. - Equipped with plasma unit and 2 oxy-fuel torches. Find more here - / Contact us at -

Manufacturer: Amada Model: LST 3015-M2 Year of Manufacture: 2011 Power Required: 4 kVA Noise Level: 70 dB(A) Weight: 1950 kg Operating Hours: 30,000 hours Pallet Capacity: - Maximum sheet size: 3050 x 1525 x 25 mm - Maximum load: 920 kg Amada 4 kW laser cutting system including shuttle table and extraction system. Operated in single-shift production, no maintenance backlog. Find more here - / Contact us at -

Finn-Power C5-25 - Sheet metal processing center / nibbler Siemens Sinumerik 840 D CNC control Extensive accessory package with approx. 400 tools Various spare parts included in the scope of delivery incl. enclosure of the system the machine is still in operation approx. 12000 operating hours Year of manufacture 2005 Technical data Capacity: - Max. sheet size (X x Y): 2530 x 1270 mm - Min. sheet size (X x Y): 300 x 100 mm - Max. sheet thickness: 8 mm - Max. sheet weight: 200 kg - X-axis length: 2584 mm (X-42... X2542) - Max. travel speed X-axis: 90 m/min - Y-axis length: 1317 mm (Y-25... Y1292) - Max. travel speed Y-axis: 60 m/min Lifting speeds: - High Light: 3000 rpm - Max. stroke rate (1 mm inseam length): 1100 rpm - Hole to hole (25 mm inseam length): 420 rpm - Distance (250 mm stride length): 150 rpm Punching: - Punching force: 300 kN - Punching stroke ...

5 processing stations, Production width: 230 - 1250 mm, Production length: 500 - 2400 mm, Material thickness: 0.63 - 1.0 (1.5)mm, Material type: Steel 1203 bare, Mains voltage: 400 V 50 Hz, Power: 150 kW, hydraulic pressure: max. 150 bar, Air pressure: max. 10 bar. The control system was renewed by SIEMENS.

older Gebr. Lever shears on base frame Technical data Knife length 500 mm Cutting range approx. 3-4 mm Dimensions 800 x 170 x 1300 mm dto. incl. base frame 1300 x 600 x 1780 mm Remarks / Accessories: Underframe, small damage to the knife Maschinenladen Oeben GmbH Krahnendonk 116 D-41066 Mönchengladbach Phone: + 49 2161 662701 maschinenladen.de InfoMachine Shop
