ZEULENRODA machine à vendre

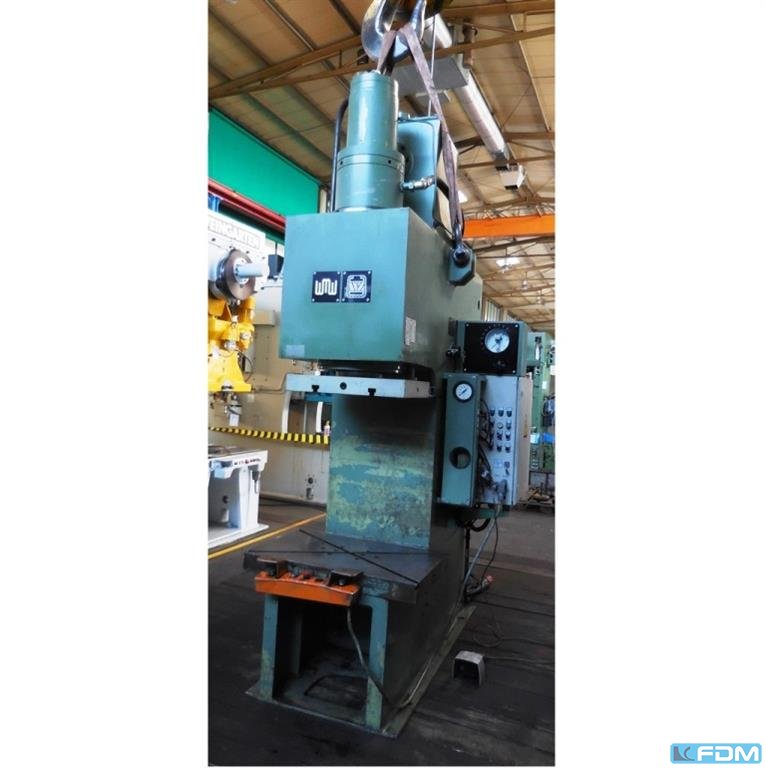

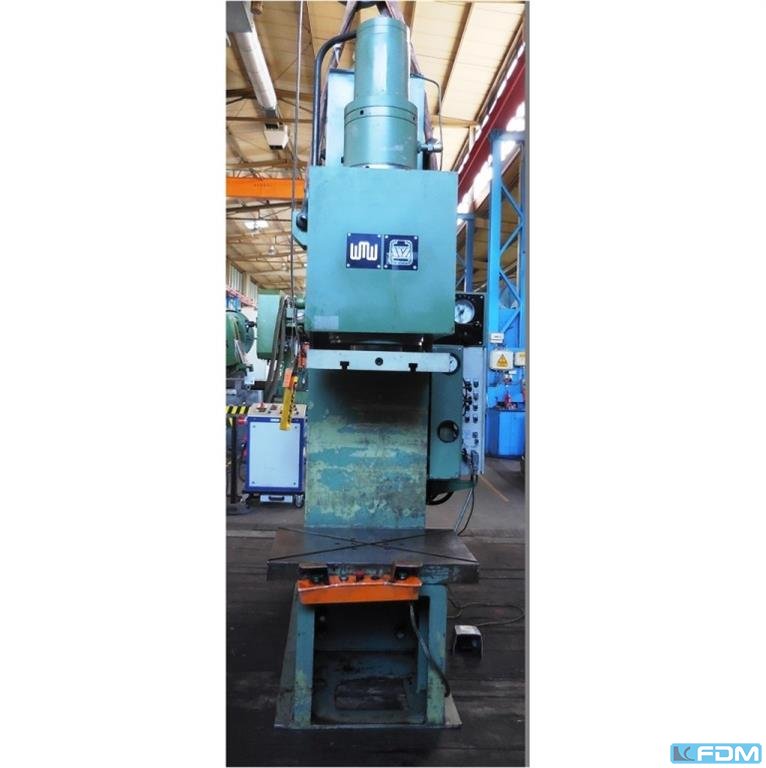

Données techniques : - max. force pressante 40 t - max. course 500 mm - Vitesse de levage 0 - 40 mm/s - Retour 0 - 200 m/min - Hauteur d’installation 750 mm - Extension au pilon moyen 360 mm - Portée de fonctionnement d’impact 440 x 360 mm - Épingles à pose d’impact 40 mm - Taille de la table 630 x 500 mm - Dépôt de table / percée 200 mm - Hauteur de table au-dessus du couloir 710 mm - Remplissage d’huile approxe. 300 ltr - Conduisez 400 V / 4 kW - Exigence d’espace approximative. W 1200 x H 2800 x D 1600 mm - Poids approx. 2500 kg

PRESS DESIGN   drive system: hydraulic   frame design: C-frame, single sided   table cushion: yes PRESS FORCES   total force (nominal): 160 to PRESS TABLE   table surface (left-right): 1250 mm   table surface (front-back): 600 mm   thickness of bolster plate: 100 mm SLIDE   table surface (left-right): 750 mm   table surface (front-back): 450 mm   stroke: 500 mm SLIDE (HYDR. PRESS)   approximation velocity max.: 200 mm/s   return velocity max.: 250 mm/s TOOL ASSEMBLY DIMENSIONS   distance table - slide max.: 800 mm   throat (C-frame): 360 mm ELECTRICAL SPECIFICATIONS   total power consumption: 20.5 kW   mains voltage: 380 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 1250 mm ...

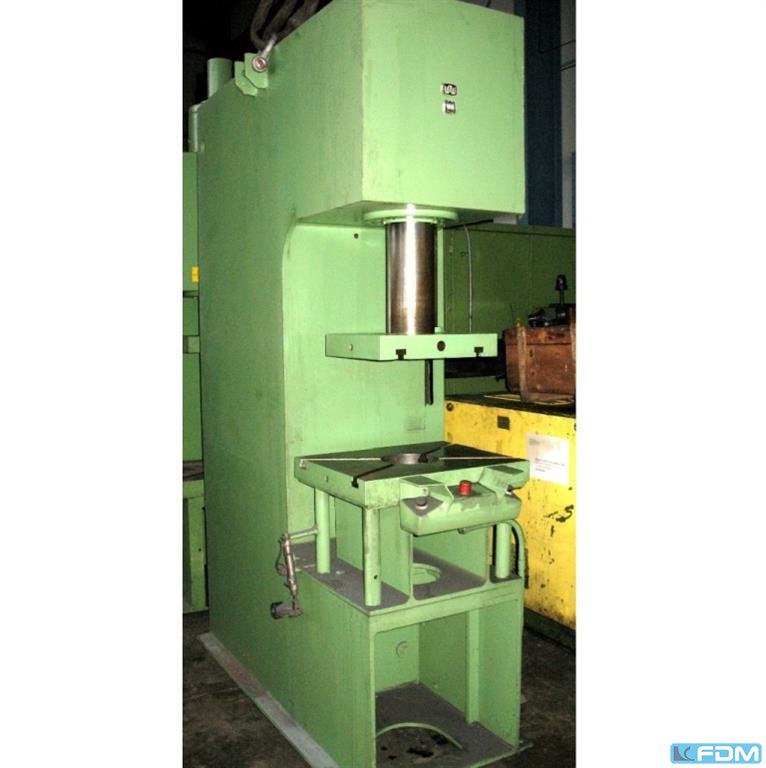

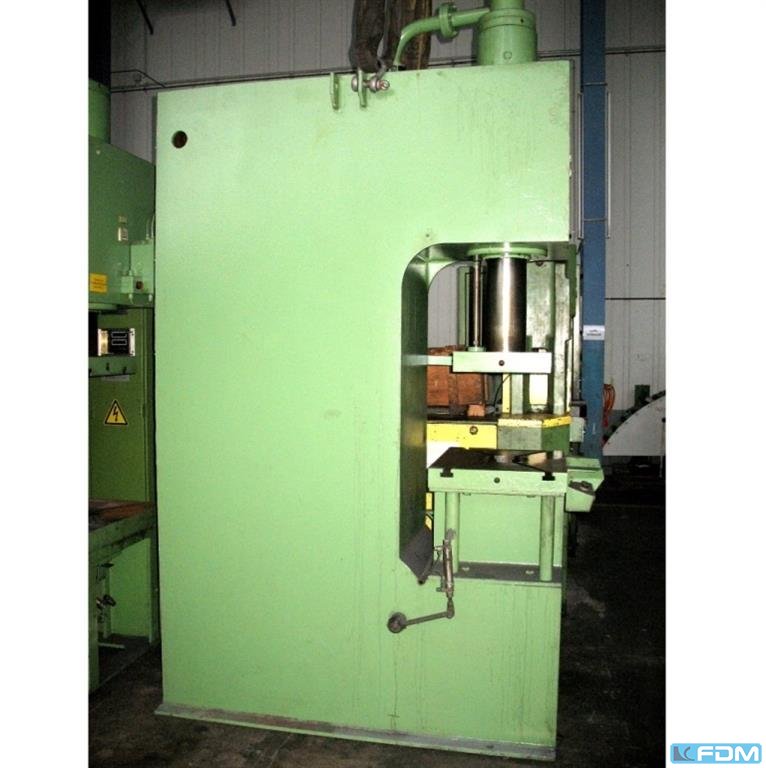

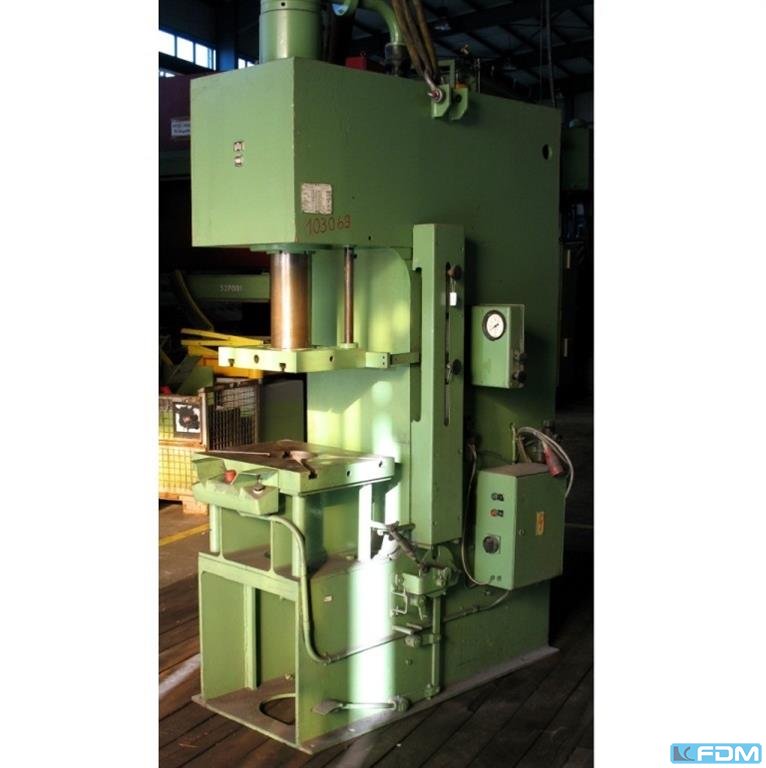

pressure:40 t throat:360 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:660 / 1000 mm table surface area:630 x 500 mm hole in the table:200 mm table height over floor:1060 / 720 mm ram surface:450 x 360 mm speed down:60 mm/s speed up:300 mm/s power requirement:7,5 kW weight:2,75 t dimensions (WxDxH):1,0 x 1,8 x 3,05 m additional plate in table:height approx. 340 mm

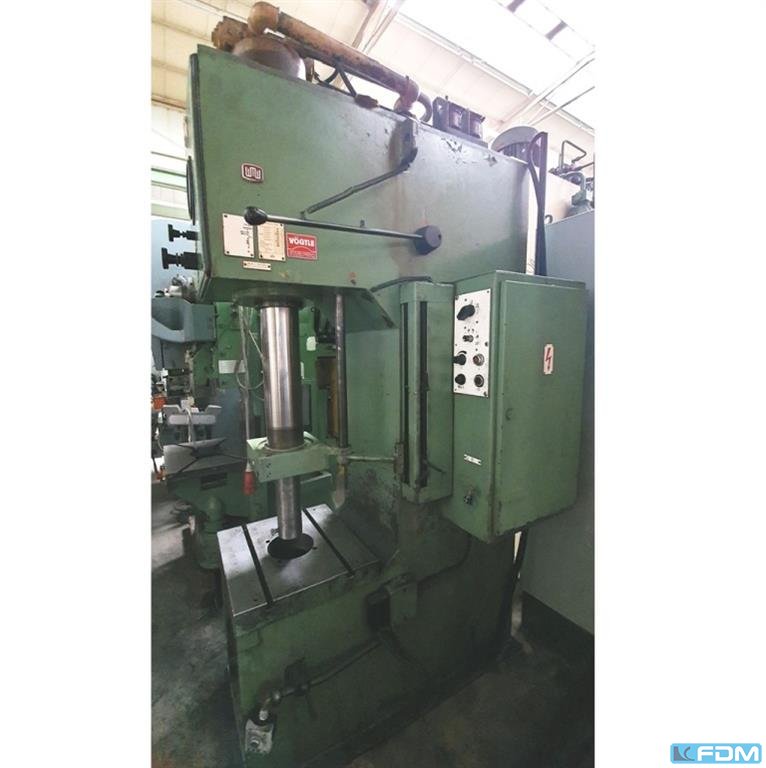

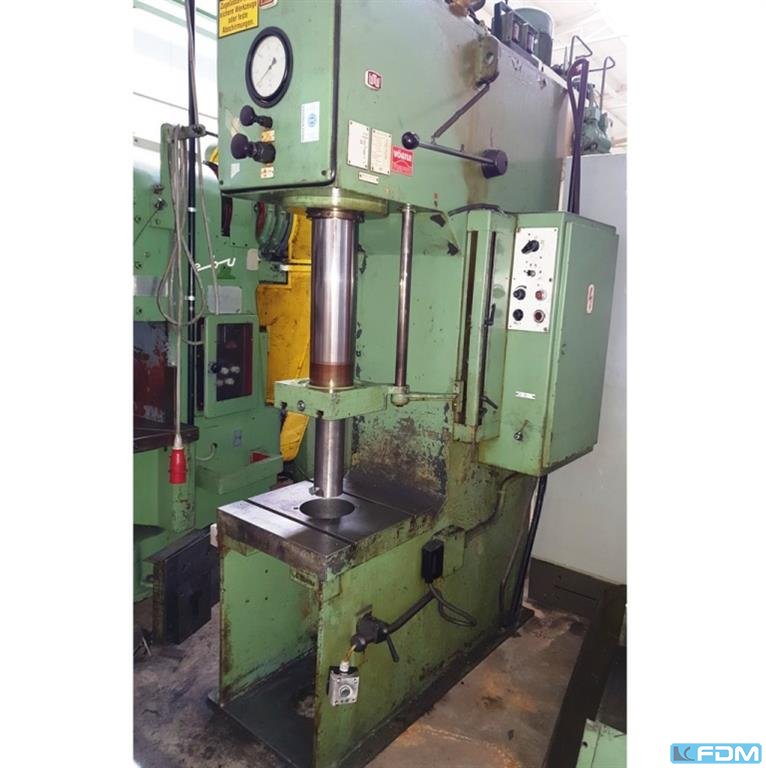

pressure:25 t throat:355 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:500 x 500 mm hole in the table:180 mm table height over floor:700 mm ram surface:250 x 250 mm power requirement:7,5 kW weight:2,1 t dimensions (WxDxH):1,45 x 0,9 x 2,55 m

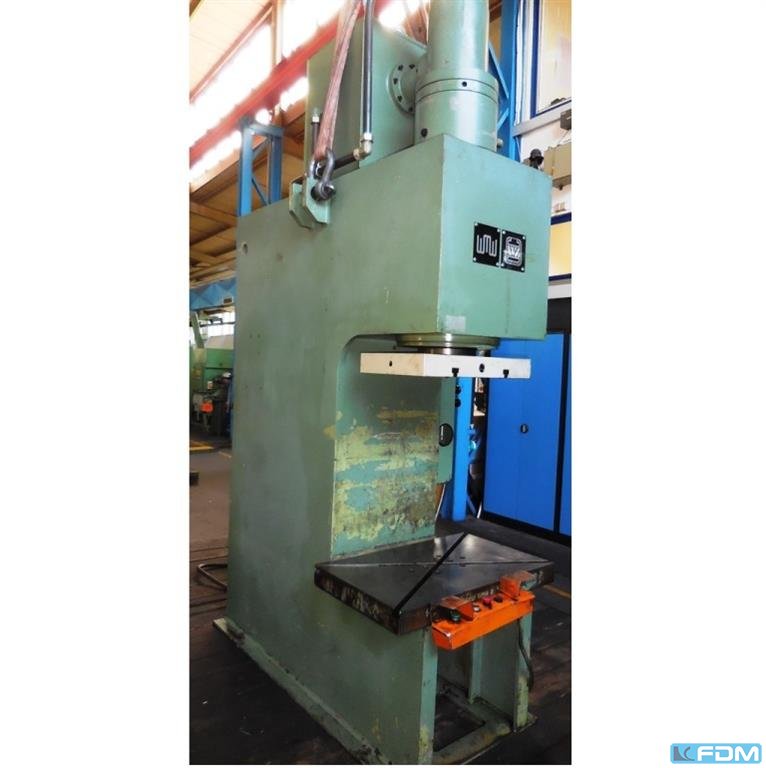

pressure:100 t throat:360 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:900 x 560 mm table height over floor:710 mm ram surface:630 x 400 mm speed down:200 mm/s speed up:200 mm/s power requirement:17,0 kW weight:5,0 t Dimensions (WxDxH):1,2 x 1,9 x 3,3 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

table length:2000 mm table width:600 mm table height:300 mm mounting surface:700 x 600 mm centre distance:1200 mm centre height:160 mm Dimensions (WxDxH):2,0 x 0,6 x 0,3 m

pression : 63 t gorge : 315 mm course : 16 - 125 mm table d’écartement max. - vérin : 417 mm réglage du vérin : 70 mm nombre de courses : 80 moyeu/min surface de la table : 800 x 630 mm surface du vérin : 500 x 400 mm puissance totale requise : 6 kW poids de la machine env. : 5 t dimensions de la machine env. : 1,5 x 2,2 x 2,75 m

pressure: 63 t throat: 315 mm stroke: 8 - 120 mm table surface area: 630 x 800 mm dayligth: 560 mm ram adjustment: 70 mm no. of strokes: 56/90 Hub/min ram surface: 400 x 500 mm total power requirement: 6 kW weight of the machine ca.: 5,5 t dimensions of the machine ca.: 1,5 x 2,2 x 2,75 m The following work is/was carried out on the machine. partial overhaul: - Machine is completely disassembled, checked - Machine is repainted - new press safety valve - New separate control cabinet with touch panel and ABB safety control - new shaft bearing - A current UVV test and braking time measurement is carried out before delivery The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pression : 400 t course : 600 mm lumière du jour : 900 mm surface de serrage (latérale) : 2500x1000 mm surface : 2000x1500 mm trou dans la table : 1500x200 mm puissance totale requise : 45 kW poids de la machine env. : 32 t surface d’amortissement de la matrice : 100 mm surface d’amortissement de la matrice : 150 mm

pressure: 63 t throat: mm stroke: 8 - 120 mm no. of strokes: 135 Hub/min max. distance table - ram: 560 mm ram adjustment: 70 mm table surface area: 800 x 600 mm ram surface: 500 x 400 mm total power requirement: 12 kW weight of the machine ca.: 5,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 63 t throat: - mm stroke: 16 - 125 mm max. distance table - ram: 417 mm ram adjustment: 70 mm no. of strokes: im Dauerlauf 80 Hub/min table surface area: 800 x 630 mm ram surface: 500 x 400 mm clamping plate thickness: 70 mm total power requirement: 6 kW weight of the machine ca.: 5,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pression: 160 t droat: 360 mm coupe: 500 mm surfacetable: 1250x630 mm surface de la rame: 1000x450 mm hauteur de table: 1000 mm dayligth: 800 mm poids de la machine ca.: 8 t

pression: 10 t cst: 400 mm alimentation: 200 mm/sec alimentation: 450 mm/sec max. table de distance - bélier: 630 mm désoute totale requise: 8,5 kW poids de la machine ca.: 1,3 t dimensions de la machine ca.: m

pression: 63 t reposée: - mm coupe: 16 - 125 mm peuppressiontable: 800 x 600 mm force: 250 coupe de coupe: 1600 mm² table plage de réglage: 220 mm reposée totale requise: 6 kW poids de la machine ca.: 5 t table de distance / bélier: 562 mm

pressure: 100 t throat: 355 mm stroke: 8 - 130 mm table surface area: 710 x 1200 mm T-slots at tabel: 3 clamping plate thickness: 75 mm no. of strokes: 50/80 Hub/min ram adjustment: 80 mm ram surface: 450 x 560 mm T-slots at ram: 2 tool shank hole (depth x diameter): 100 x 50 mm max. distance table - ram: 540 mm distance between columns: 400 mm connected load: 11,5 kW weight of the machine ca.: 9,0 t Overall size: 1,65 x 2,25 x 3,05 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
