Modèle
(Fabricant: WEINGARTEN)
Key data: 80 t, 400 mm, 112 mm

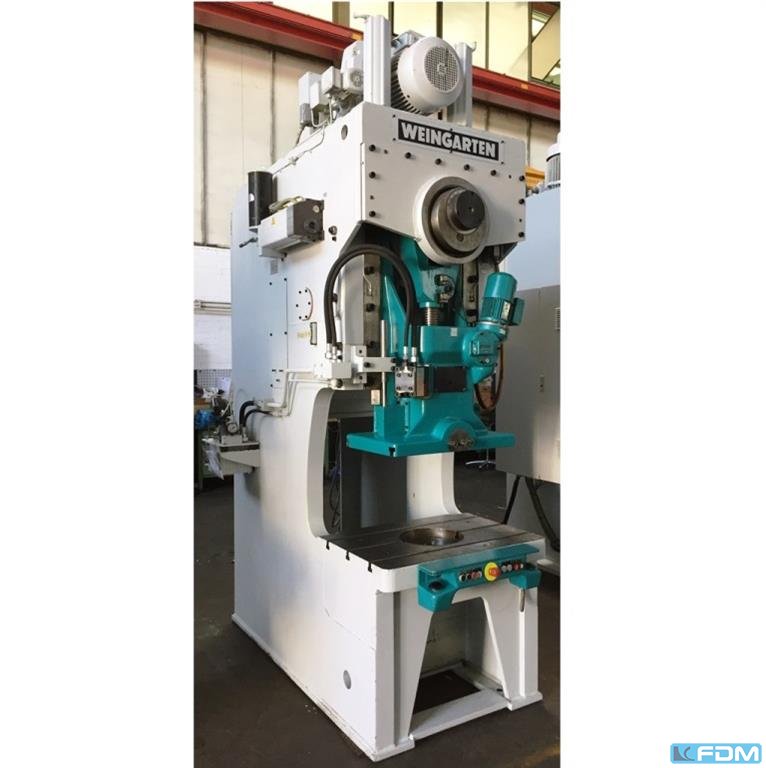

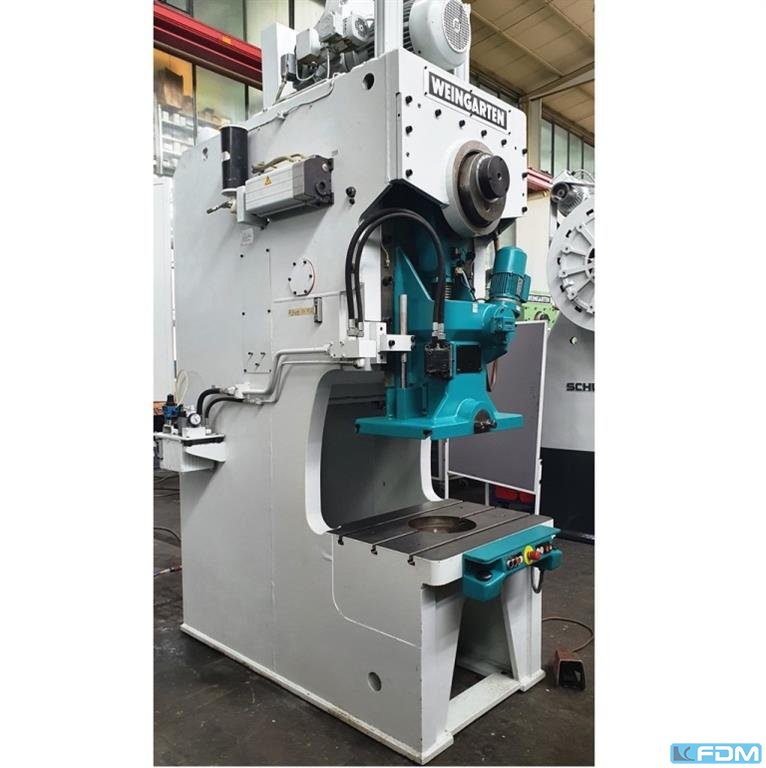

Capacité d’impression : 80 tonnes Surface de la table : 750 x 550 mm Réglage du piston : 80 mm Longueur de course : 8 - 112 mm Cadence de course : 78 p/min. Projection : 400 mm Équipé: - Couplage d’air - Écran de sécurité Pays d’origine : Allemagne Puissance du moteur : Machine LxlxH : 2000 x 1200 x 2900 mm Poids de la machine env. : 7000 kg

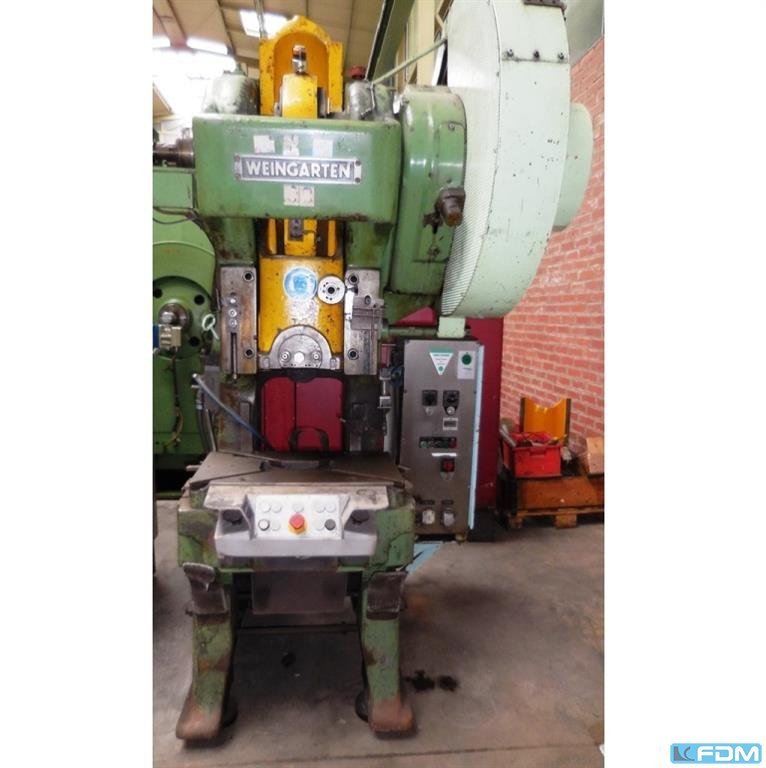

La presse WEINGARTEN DE 200-20 construite en 1975 en Allemagne est utilisée pour l’usinage de précision des pièces. La construction rigide combinée à une force de pression élevée de 200 tonnes font de la machine la solution parfaite pour la production en série de différents types de pièces. Le processus de pressage de tôle de précision peut être entièrement automatisé lorsque la presse WEINGARTEN est équipée d’un alimentateur de tôle. Caractéristiques techniques de la presse WEINGARTEN DE200-20 200 t - Force de pression : 200 t - Course maximale du curseur : 200 mm - Course minimale du curseur : 15 mm - Nombre maximum de coups de curseur : 60/min - Nombre minimum de coups de curseur : 20/min - Réglage du curseur : 110 mm
pressure:075 t throat:230 mm stroke:6 - 100 mm no. of strokes:105 /min distance table/ram, max. stroke up, adjustment up:354 mm table surface area:700 x 420 mm hole in the table:250 mm table height over floor:800 mm passage to the back:310 mm ram surface:264 x 270 mm ram adjustment:60 mm power requirement:5,5 kW weight:3,6 t dimensions (WxDxH):1,2 x 1,6 x 2,3 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1
pressure:150 t throat:350 mm stroke:6 - 122 mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:440 mm table surface area:820 x 600 mm hole in the table:330 mm table height over floor:820 mm ram surface:500 x 350 mm ram adjustment:75 mm power requirement:10,0 kW weight:7,3 t dimensions (WxDxH):1,6 x 2,2 x 2,9 m
pressure:150 t throat:350 mm stroke:6 - 122 mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:440 mm table surface area:820 x 600 mm hole in the table:350 mm table height over floor:800 mm ram surface:500 x 350 mm ram adjustment:75 mm power requirement:10,0 kW weight:7,1 t dimensions (WxDxH):1,5 x 2,1 x 2,9 m
pressure:100 t throat:375 mm stroke:20 - 125 mm no. of strokes:30 - 80 /min distance table/ram, max. stroke up, adjustment up:515 mm table surface area:900 x 635 mm hole in the table:280 mm table height over floor:800 mm passage to the back:570 mm ram surface:700 x 450 mm ram adjustment:80 mm power requirement:15,0 kW weight:8,0 t dimensions (WxDxH):1,5 x 2,4 x 3,5 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic
pressure:160 t throat:480 mm stroke fix:fix 180 mm no. of strokes:25 - 70 /min distance table/ram, max. stroke up, adjustment up:650 mm table surface area:1100 x 900 mm Hole in the table:450 mm table height over floor:900 mm passage to the back:700 mm ram surface:900 x 600 mm ram adjustment:144 mm power requirement:30,75 kW weight:15,3 t dimensions (WxDxH):2,0 x 2,4 x 3,75 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:pneumatic, Desch overload protection in ram:hydraulic ram counterbalance:pneumatic
pressure:315 t throat:480 mm stroke:20 - 190 mm no. of strokes:36 + 45 /min distance table/ram, max. stroke up, adjustment up:615 mm table surface area:1400 x 880 mm hole in the table:250 mm table height over floor:800 mm passage to the back:950 mm ram surface:850 x 630 mm ram adjustment:125 mm power requirement:33,0 kW weight:30,0 t dimensions (WxDxH):2,0 x 3,0 x 4,4 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:pneumatic overload protection in ram:hydraulic stroke adjustment:semi-automatic ram adjustment:motoric ram counterbalance:pneumatic
pressure:200 t stroke:30 - 160 mm no. of strokes:40 - 120 /min distance between columns:1500 mm distance between oil collecting pans:1300 mm distance table/ram, max. stroke up, adjustment up:860 mm hole in the table:550 x 300 mm table surface area:1250 x 1250 mm table height over floor:1000 mm column travel -side:600 x 530 mm ram surface:1250 x 1000 mm ram adjustment:125 mm Material width of feeder:30 - 500 mm Material thickness feeder:0,5 - 3,0 mm feeding length:0 - 999,9 mm power requirement:50,0 kW weight:34,0 t dimensions (WxDxH):4,0 x 1,7 x 5,2 m clutch-/ brake combination:pneumatisch, Ortlinghaus overload protection in ram:hydraulisch ram adjustment:automatisch stroke adjustment:automatisch ram counterbalance:pneumatisch roll feed:Weingarten, WE 60 Option: NEW electrical controls:Siemens S7-1500 F
pressure:080 t throat:280 mm stroke:8 - 112 mm no. of strokes:30 - 120 /min distance table/ram, max. stroke up, adjustment up:500 mm table surface area:840 x 580 mm hole in the table:150 mm table height over floor:910 mm passage to the back:640 mm ram surface:560 x 300 mm ram adjustment:80 mm power requirement:7,5 kW weight:8,0 t dimensions (WxDxH):1,6 x 2,3 x 3,3 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:hydraulisch ram adjustment:motoric
pressure:500 t stroke:fix 300 mm no. of strokes:20 - 70 Hub/min distance between columns:3100 mm side window:1400 mm distance table/ram, max. stroke up, adjustment up:1000 mm Table area:2800 x 1600 mm ram surface:2800 x 1450 mm ram adjustment:100 mm power requirement:90,0 kW weight:100,0 t Dimensions (WxDxH):5,75 x 3,2 x 7,8 m height above floor:6,4 m height beneath floor:1,4 m clutch:pneumatic; Ortlinghaus ram adjustment:motoric overload protection in ram:hydraulic ram counterbalance:pneumatic
Pressure:080 t throat:345 mm stroke:20 - 160 mm no. of strokes:65 /min distance table/ram, max. stroke up, adjustment up:495 mm table surface area:920 x 610 mm table height over floor:800 mm Hole in the table:280 mm passage to the back:670 mm ram surface:650 x 400 mm ram adjustment:50 mm power capacity:10,0 kW weight:7,7 t Dimensions (WxDxH):1,5 x 2,2 x 3,15 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:hydraulic ram adjustment:motoric
pressure:063 t throat:250 mm stroke:8 - 100 mm no. of strokes:56 / 84 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:710 x 500 mm hole in the table:320 mm table height over floor:800 mm passage to the back:320 mm ram surface:450 x 280 mm ram adjustment:63 mm weight:4,1 t dimensions (W x D x H):1,35 x 2,0 x 2,6 m overload protection in ram:mechanical
Pressure:080 t throat:380 mm stroke:8 - 112 mm no. of strokes:60 /min distance table/ram, max. stroke up, adjustment up:472 mm table surface area:840 x 610 mm table height over floor:800 mm passage to the back:520 mm ram surface:650 x 400 mm ram adjustment:70 mm power capacity:7,5 kW weight:6,9 t Dimensions (WxDxH):1,1 x 2,15 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanical ram counterbalance:pneumatic clutch-/ brake combination:pneumatic
Pressure:063 t throat:250 mm stroke:8 - 100 mm no. of strokes:120 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:700 x 500 mm hole in the table:250 mm table height over floor:800 mm passage to the back:320 mm ram surface:450 x 280 mm ram adjustment:63 mm weight:4,5 t Dimensions (WxDxH):1,6 x 2,0 x 2,8 m overload protection in ram:mechanical
pressure:500 t distance between columns:2400 mm stroke:400 fix mm no. of strokes:13 - 23 /min Distance table/ram, max. stroke up, adjustment up:1600 mm table surface area:2300 x 1800 mm column travel -side:1600 mm ram surface:2170 x 1800 mm ram adjustment:300 mm total power requirement:110,0 kW Weight:135,0 t Dimensions (WxDxH):3,35 x 4,85 x 7,0 m clutch:pneumatic overload protection in ram:hydraulic ram adjustment:motoric
pressure:080 t throat:360 mm stroke:8 - 112 mm no. of strokes:78 /min distance table/ram, max. stroke up, adjustment up:467 mm table surface area:900 x 650 mm hole in the table:250 mm table height over floor:800 mm passage to the back:330 mm ram surface:650 x 400 mm ram adjustment:80 mm power requirement:11,0 kW dimensions (WxDxH):1,2 x 2,2 x 2,9 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanisch
pressure:080 t throat:300 mm stroke:8 - 112 mm no. of strokes:60 /min distance table/ram, max. stroke up, adjustment up:467 mm table surface area:710 x 560 mm hole in the table:240 x 115 mm table height over floor:800 mm ram surface:400 x 315 mm ram adjustment:80 mm power requirement:7,5 kW weight:5,1 t dimensions (WxDxH):1,4 x 1,9 x 2,7 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanical
pressure:060 t throat:220 mm stroke:6 - 94 mm no. of strokes:115 /min distance table/ram, max. stroke up, adjustment up:340 mm table surface area:680 x 400 mm hole in the table:120 x 70 mm table height over floor:750 mm passage to the back:290 mm ram surface:240 x 240 mm ram adjustment:57 mm power requirement:3,7 kW weight:2,8 t dimensions (WxDxH):1,5 x 1,5 x 2,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic
Pressure:630 t distance between columns:1600 mm stroke:fix 250 mm no. of strokes:20 /min distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1550 x 1200 mm table height over floor:800 mm side window:620 mm ram surface:1360 x 1200 mm ram adjustment:160 mm height over floor:5,9 m height beneath floor:0,6 m power requirement:32,0 kW weight:59,0 t dimensions (WxDxH):3,0 x 2,2 x 6,5 m clutch:pneumatisch overload protection in ram:hydraulisch ram adjustment:motorisch ram counterbalance:pneumatisch
pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive tool changing unit:2 x
pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive tool changing unit:2 x
pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive tool changing unit:2 x
pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive overload protection in ram:hydraulic ram adjustment:motoric tool changing unit:2 x
pressure:063 t throat:280 mm stroke:8 - 100 mm no. of strokes:65 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:620 x 500 mm hole in the table:230 mm table height over floor:800 mm ram surface:310 x 255 mm ram adjustment:63 mm power requirement:5,5 kW weight:3,95 t dimensions (WxDxH):1,2 x 1,8 x 2,4 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanical
pressure: 25 t throat: 220 mm stroke: 8 - 80 mm mm total power requirement: 2,2 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 0,9 x 1,5 x 2,0 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 16 t throat: 210 mm stroke: 8-68 mm table:: 480 x 380 mm strokes per minute: 150 ram adjustment: 50 mm total power requirement: 3 kW weight of the machine ca.: 2 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 25 t throat: 200 mm stroke: mm pressure: 25 t no. of strokes: 140 Hub/min window in frame: 240 mm adjustment of stroke: 8...80 mm ram - range of adjustment: 50 mm surface of ram: 355 x 220 mm table-size: 560 x 400 mm hole in table: 160 mm total power requirement: 3 kW weight of the machine ca.: 2,23 t dimensions of the machine ca.: m Press force: 25 t Throat depth: 200 mm Stroke: on request Press capacity: 25 t Strokes per minute: 140 spm Daylight opening: 240 mm Stroke adjustment: 8 – 80 mm Ram adjustment: 50 mm Ram face: 355 × 220 mm Table size: 560 × 400 mm Table opening: 160 mm Total power requirement: 3 kW Machine weight: approx. 2.23 t Distance between table and ram: 250 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 80 t throat: 280 mm stroke: 8 - 112 mm no. of strokes: 30 - 120 Hub/min distance table/ram, max. stroke up, adjustment up: 500 mm table surface area: 840 x 580 mm hole in the table: 150 mm table height over floor: 910 mm passage to the back: 640 mm ram surface: 560 x 300 mm ram adjustment: 80 mm power capacity: 7,5 kW total power requirement: kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 1,4 x 2,3 x 3,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 63 t throat: 280 mm stroke: 8 - 100 mm no. of strokes: 65 Hub/min ram adjustment: 63 mm table surface area: 620 x 500 mm distance table/ram, max. stroke up, adjustment up: 415 mm hole in the table: 230 mm table height over floor: 800 mm ram surface: 310 x 255 mm power capacity: 5,5 kW total power requirement: kW weight of the machine ca.: 3,95 t dimensions of the machine ca.: 1,20 x 1,80 x 2,40 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
