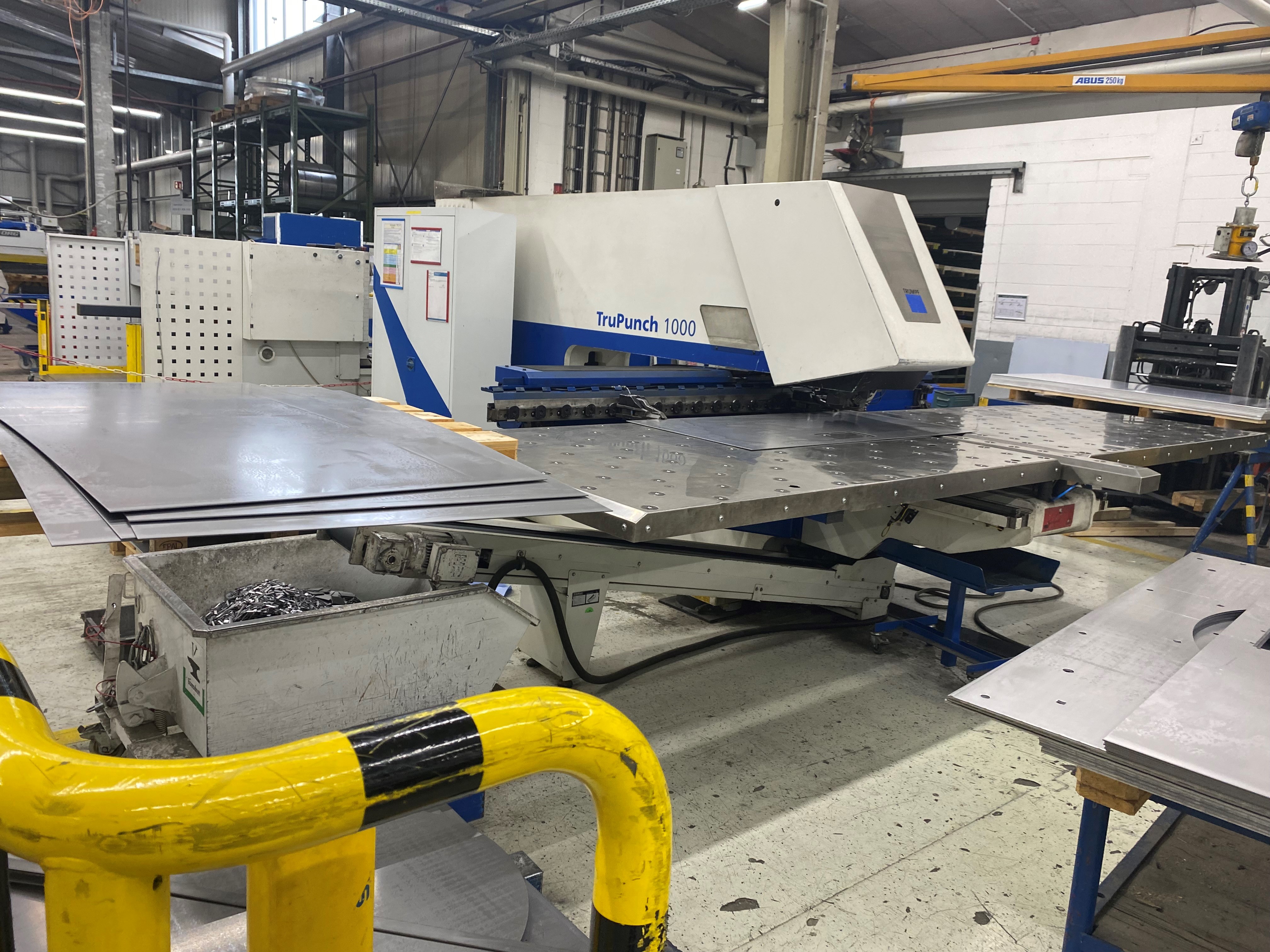

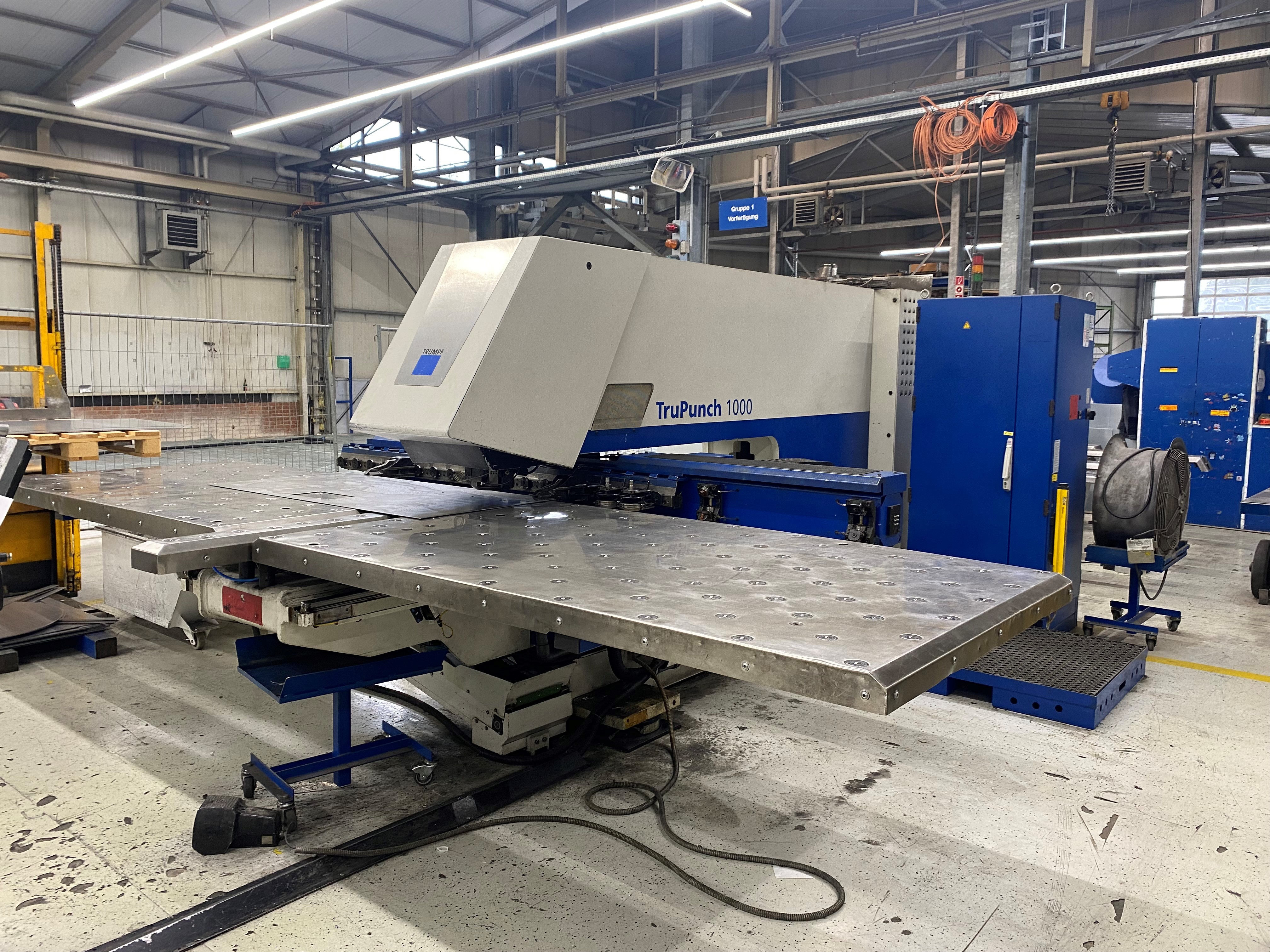

PUNCHING MACHINES TRUMPF TruPunch 1000

Standard configuration

Machine
⦁ Stable C-frame for easy access
⦁ Coordinate guide for high-precision machining
⦁ Linear magazine with 15 tool stations, 2 clamps
⦁ Drives with maintenance free 3-phase servo motors
⦁ Repositioning unit with programmable stripper
⦁ Ball tables
⦁ Parts chute 180 x 150 mm
⦁ Swarf bucket

Punching head
⦁ Hydraulic punching head
⦁ Rotatable single tool adapter
⦁ 360° rotation of all tools
⦁ Programmable presser foot
⦁ Tool length compensation
⦁ Spray lubrication for punches
⦁ Vacuum slug removal
⦁ Forming

Control
⦁ Controller based on Bosch PNC-P
⦁ Control panel with 15 TFT color touch screen
⦁ Easy to use
⦁ Online-help
⦁ Diagnostic functions

Data transmission
⦁ Integrated USB interface
⦁ RJ 45 network connection

Safety
⦁ CE marking
⦁ Light barriers
⦁ Rapid hydraulic shutdown

Additional equipment

Punching options
⦁ Function Multitool
⦁ Function MultiBend
⦁ Function Tapping
⦁ Function marking / rapid beading
⦁ Function deburring and roller technology
⦁ Function SoftPunch

Machine options
⦁ Programmable support table
⦁ Sensor for part chute
⦁ Installation on air cushions
⦁ Chip conveyor with tilt container
⦁ 2nd stop pin



seller offer No. resale SM-1355
