Overview This Krones Pressant Universal 1N is a container sweep-off
depalletizer that lifts each container layer off the pallet stack and
sweeps it onto the discharge table, while a separate handling module
removes the layer pads and the empty pallets. The machine is built in
Krones enviro design for reduced energy and media consumption.
Operation is from a Krones touch terminal with a production dashboard
and a separate control page for the pallet conveyor. Technical data
Manufacturer / model: Krones PRESSANT UNIVERSAL 1N Machine type:
container sweep-off depalletizer Year of manufacture: 2023
Application: depalletizing of glass bottles, several formats Container
throughput: 14,000 containers/h (machine setting) Pallet format: flat

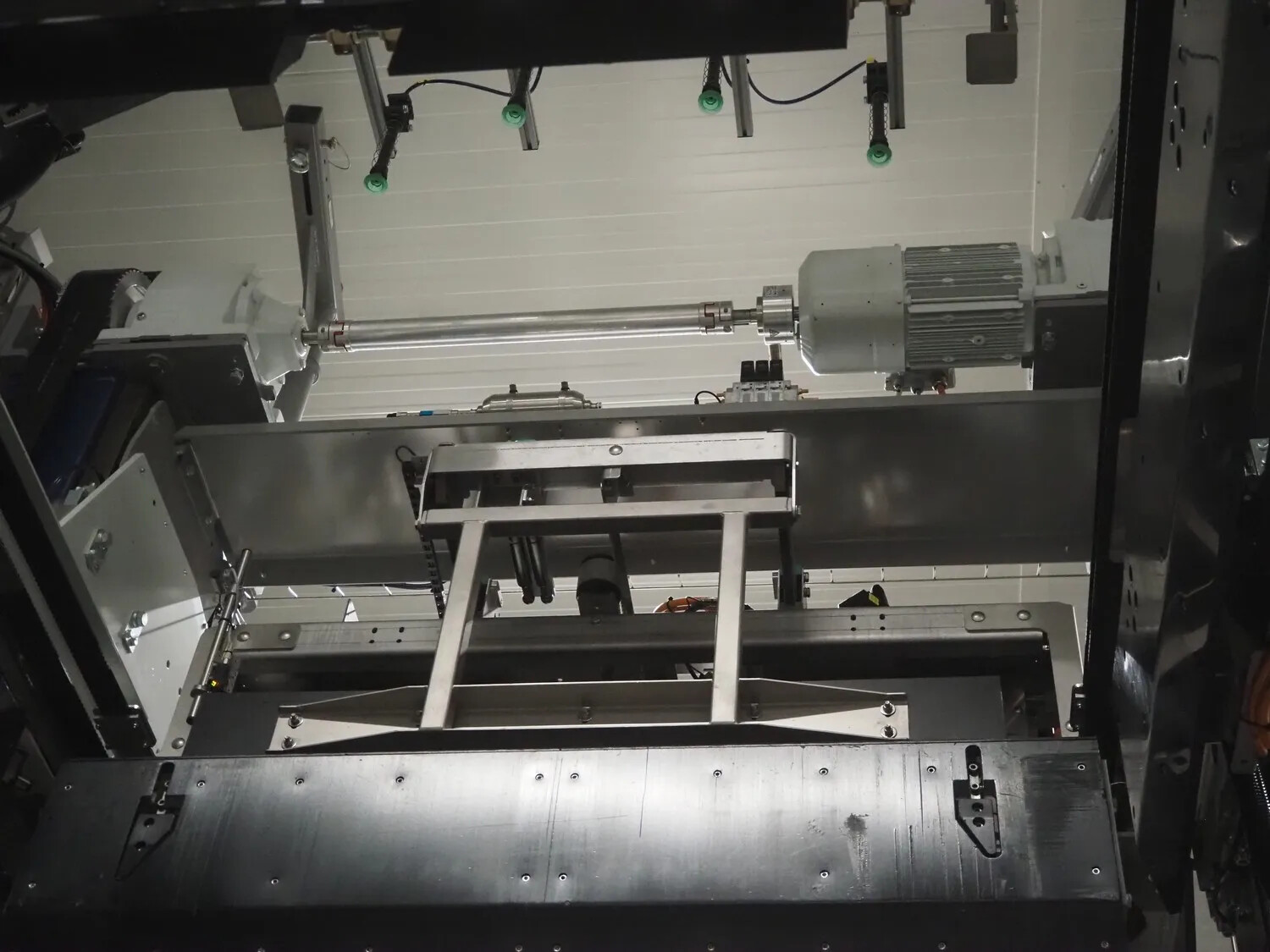

pallets 1,200 x 1,000 mm Container conveyor height: 1,300 mm Sweep-off
station: raised design for container heights above 320 mm, SEW servo
drive Discharge table: 90° connection, 3,600 mm table length, 15
steel conveyor chains, servo drive (SEW) Lifting unit: servo drive
(SEW), maintenance unit on the columns Layer scanning: pneumatic Layer
centring: lateral and centring beam servo-motorised (SEW), pneumatic
front flap Stack fixing: lateral, motor-driven; pneumatic transfer
plate Packing material handling: 1 module with pivoted arm, suction
gripper for layer pads and complete layers, vacuum ejector, pallet

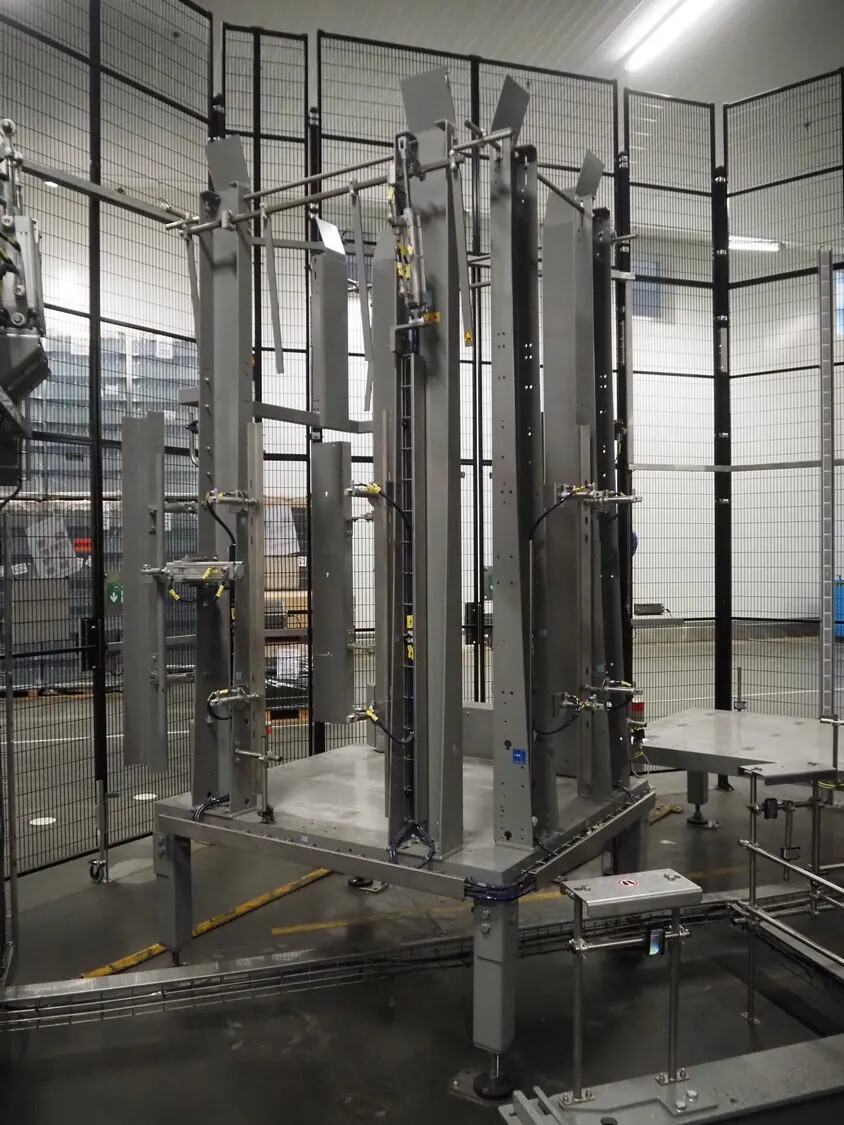

gripper (1 DIN size), motorised gripper frame rotation Magazines: two
magazine and stacking areas, free-standing chute for inverted trays
Central lubrication: Lincoln Quicklub, automatic pump Pneumatics:
Festo, minimum operating air pressure 5 bar, air connection G 1/2
Power supply: 400 / 230 V, 3 Ph, 50 Hz, 57 A Overall dimensions:
depalletizer approx. 6,000 x 3,500 x H 5,620 mm; complete installation
approx. 15,900 x 9,600 x H 5,620 mm Finish: RAL 5013 cobalt blue
columns, RAL 9018 papyrus white and RAL 7037 dusty grey machine parts

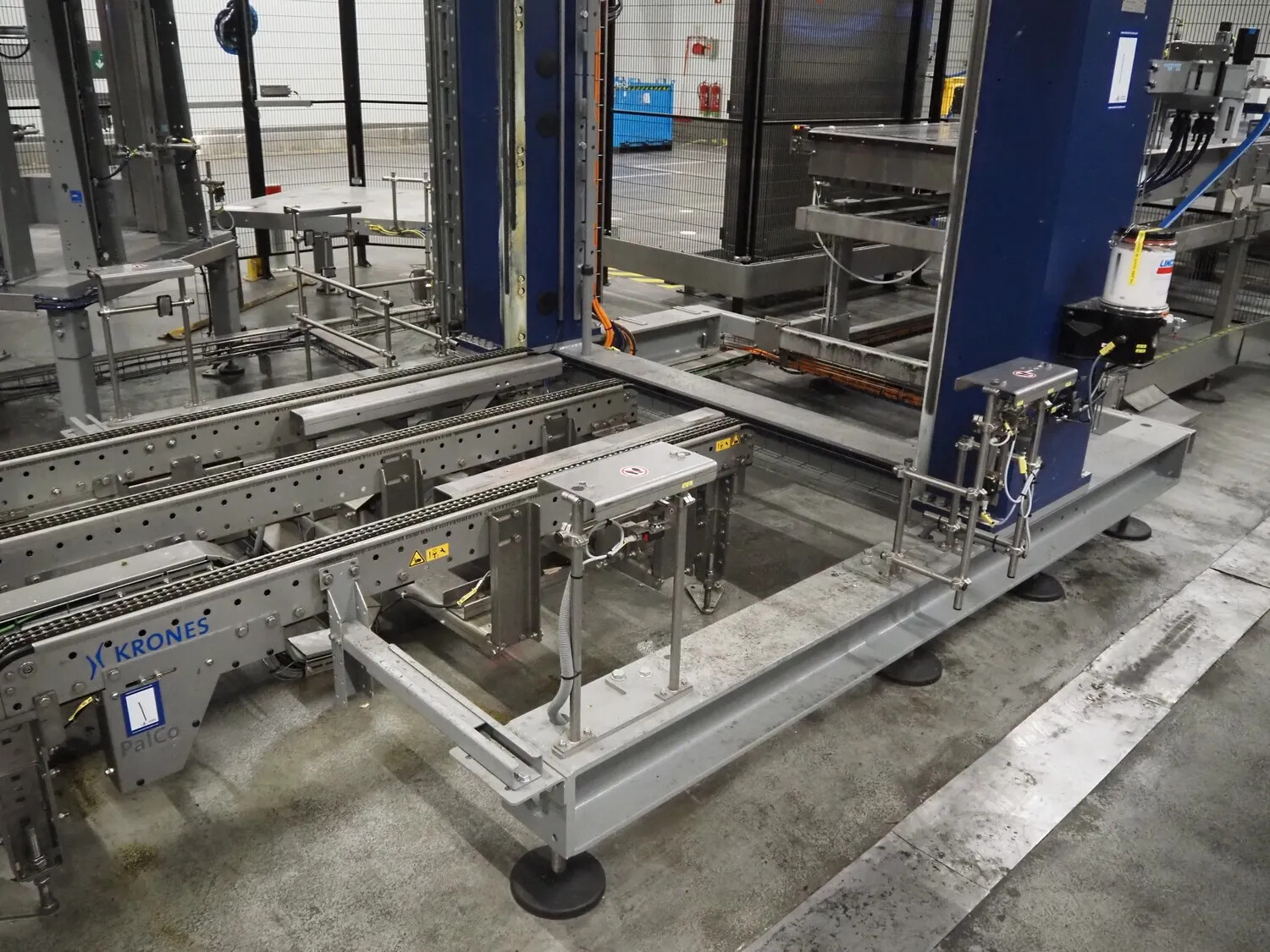

CE marked Scope of delivery Krones PRESSANT UNIVERSAL 1N sweep-off
depalletizer Infeed roller conveyor, stainless steel rollers, roller
width 1,350 mm, approx. 1,820 x 1,450 x 1,030 mm Stainless steel
platform with chain conveyor, approx. 5,000 x 2,500 x 1,680 mm Krones
PALCO pallet conveyor and Krones SYNCO container transport Outfeed
conveyors, stainless steel belts, belt widths 1,280 mm and 250 mm,
approx. 5,200 x 1,700 x 1,420 mm and 5,700 x 500 x 1,420 mm Krones
operator terminal with production dashboard Control cabinets with SEW
servo drives, safety technology and central lubrication Machine
guarding with safety gates and locking pawl on the sweep-off station
OEM machine data sheet and dimension drawing Condition Used,

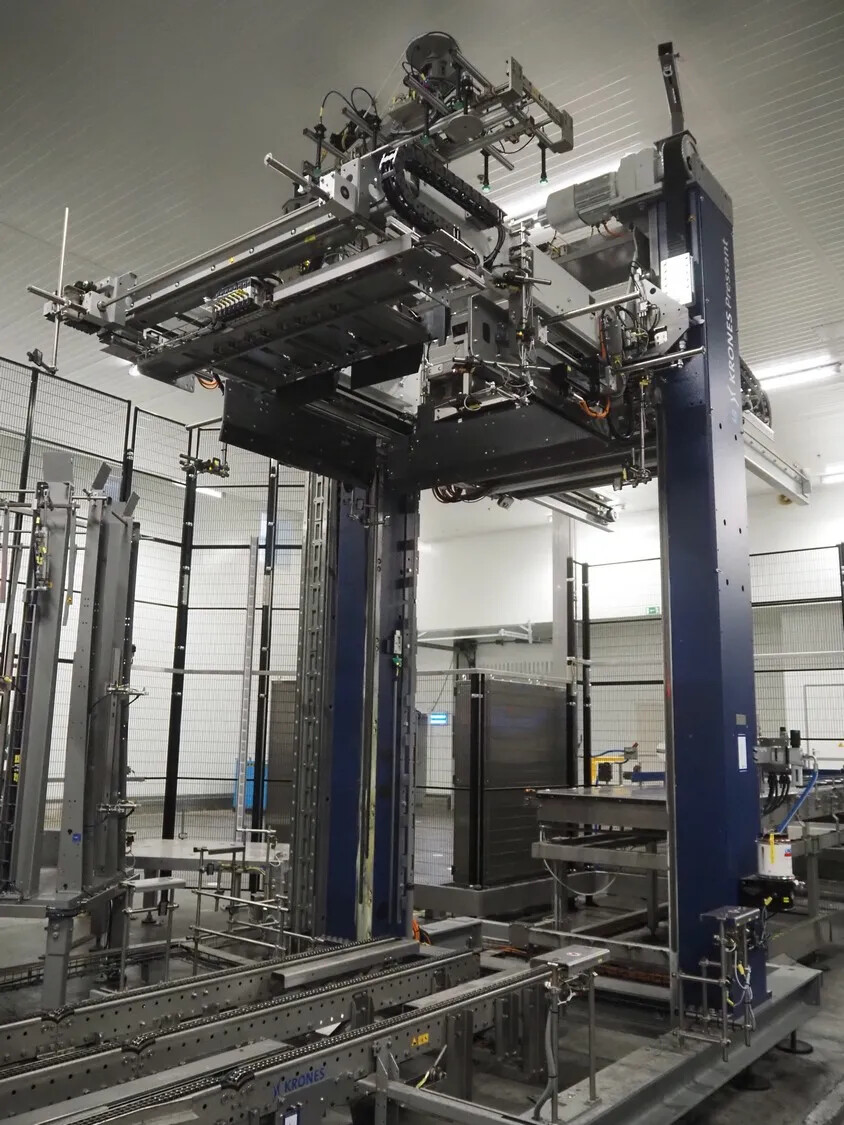

technically complete. The machine is still installed and under power
at its production site; the photographs show it in the installed
state. Availability Immediately. The machine will be dismantled and
relocated to Germany. Viewing by arrangement; dismantling, loading and
transport can be quoted on request.
