Overview Krones Ergomodul modular container labeller, built in 2020.

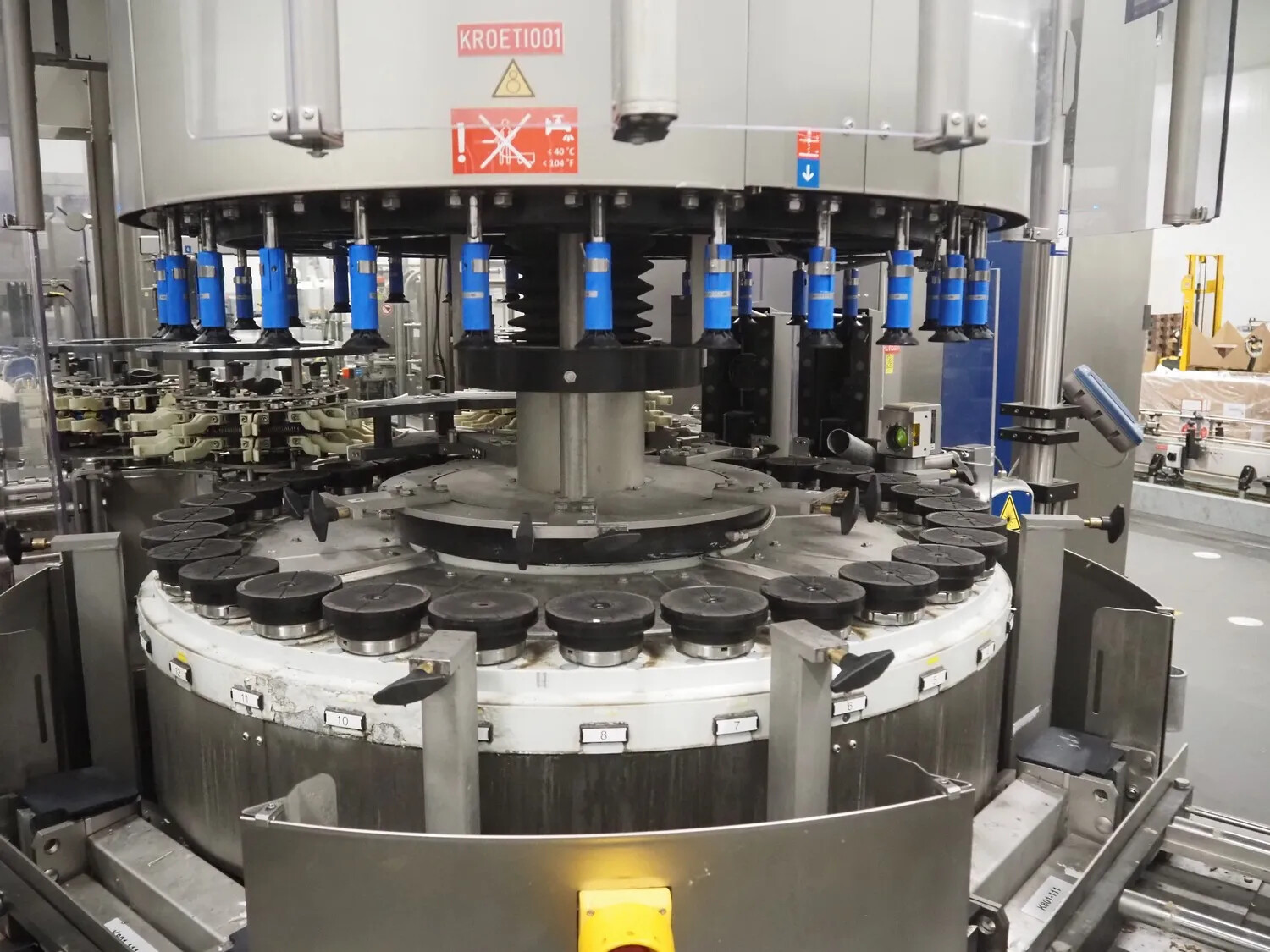

The carrousel table carries 30 rotary plates on a 1,200 mm pitch
diameter at a machine pitch of 125.6 mm; containers run anticlockwise
after the infeed, in a frontal arrangement with two discharge
starwheels. Finish RAL 9018 papyrus white in the wet-line section. Two
docking positions at the carrousel, both in operation, take any of the
four interchangeable labelling stations that belong to the machine:
two ERGOMATIC-CL cold-glue stations and two AUTOCOL-TS self-adhesive
stations. Stations are exchanged without tools, so cold-glue and
self-adhesive labelling run on the same carrousel; height adjustment
of the top part and of every station is motorised with container type
preselection. Technical data Manufacturer: Krones Model: Ergomodul
Year of manufacture: 2020 Container table pitch diameter: 1,200 mm
Rotary plates: 30 Machine pitch: 125.6 mm Main drive: controlled servo
motor; Danfoss servo motors at the container table Cold-glue stations

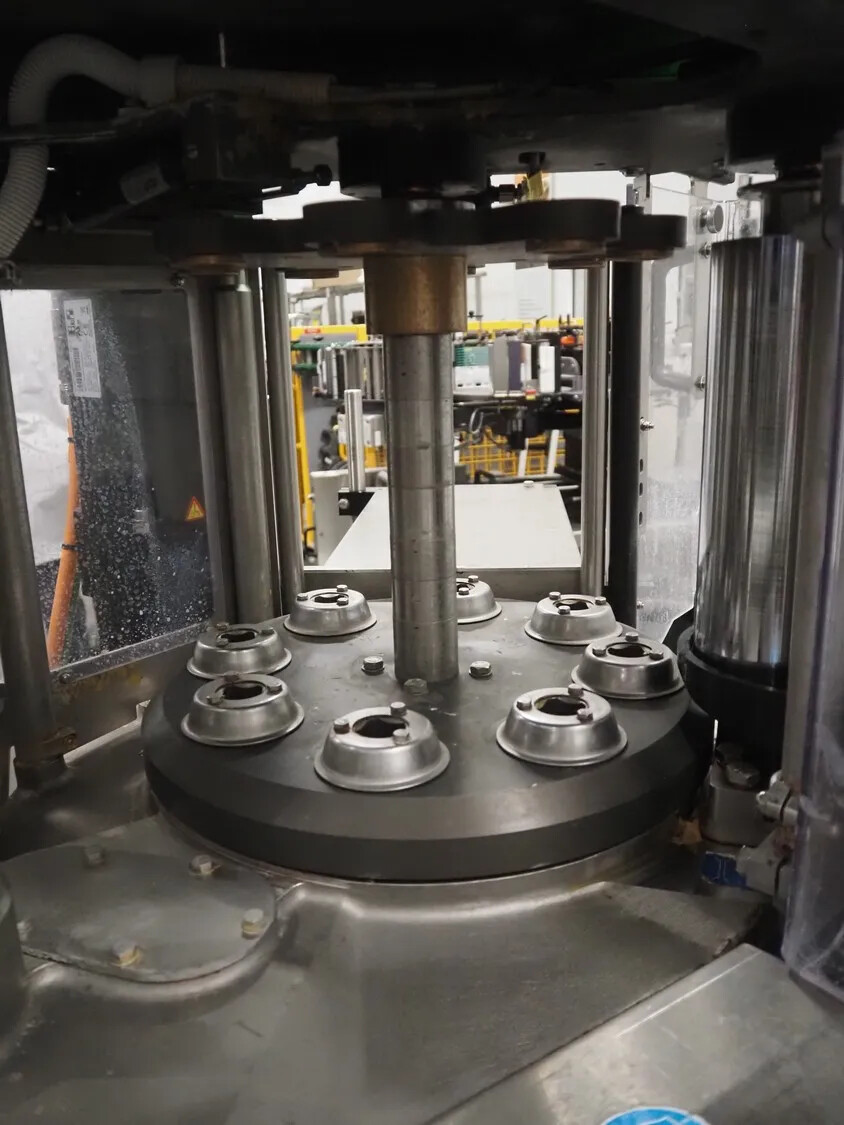

(2x): ERGOMATIC-CL, 8-shaft glue pallet carrousel, 8-section gripper
cylinder d = 350 mm, unwinding length 40-130 mm, steel glue roller,
integrated glue pump, gluing height 5-215 mm, housing in stainless
steel similar to AISI 304 Self-adhesive stations (2x): AUTOCOL-TS 120,
web speed 120 m/min, supply tolerance +/- 0.5 mm, four-axis stand
(application height, container diameter, conicity, sloping position),
reel holder for two reels with automatic splicing and end-of-reel
detection, driven carrier-film rewinder, ionisation unit, reels up to
390 mm outer diameter, carrier film up to 150 mm Container infeed:
infeed worm with servo drive, detection of damaged and fallen-over
containers Container orientation: prepared for camera orientation at
the carrousel (360-degree monitoring, one camera unit); electrical
interface prepared, mechanical adjustment unit not installed Coding:
prepared for a laser coder at the carrousel, with laser guarding and
safety switch, clock pulse and oil-free air supply Conveyors: flat-top
chain 83.8 mm wide in stainless steel similar to AISI 304;
servo-driven infeed, PM-motor discharge, centralised frequency

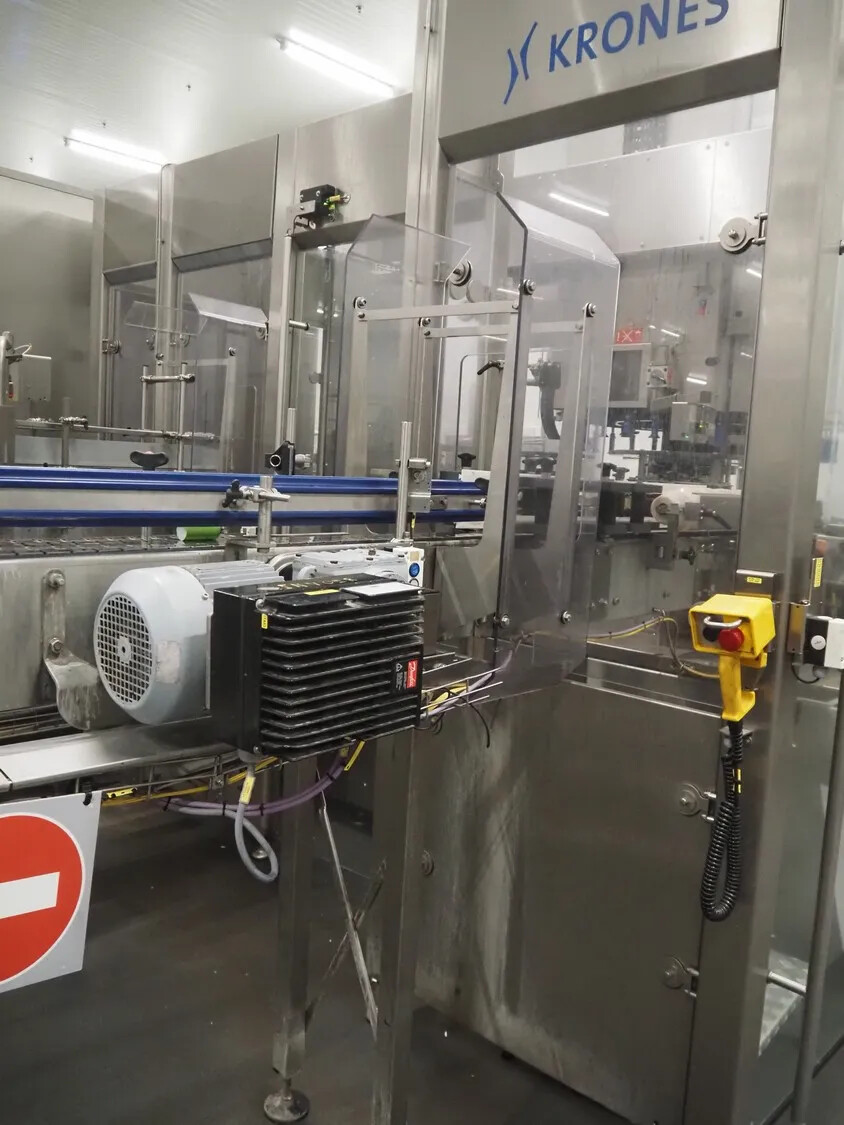

inverter control Machine guarding: lifting doors at the carrousel
(polycarbonate), hinged doors at the front table (tempered safety
glass) Pneumatics: Festo, with Bosch-Aventics, Norgren Herion, SMC and
Bürkert components Electrical connection: 400/230 V, AC 3/N/PE, 50
Hz, 28 A full load, 50 A back-up fuse; separate UPS connection 400/230
V, 17 A Media: 92.4 m³/h oil-free compressed air, 0.009 m³/h process
water Weight: approx. 10,600 kg in total (carrousel 3,200 kg, front
table 3,000 kg, 1,100 kg per cold-glue station, control cabinet 1,000
kg) Equipment 2x ERGOMATIC-CL cold-glue labelling stations,
interchangeable 2x AUTOCOL-TS self-adhesive labelling stations,

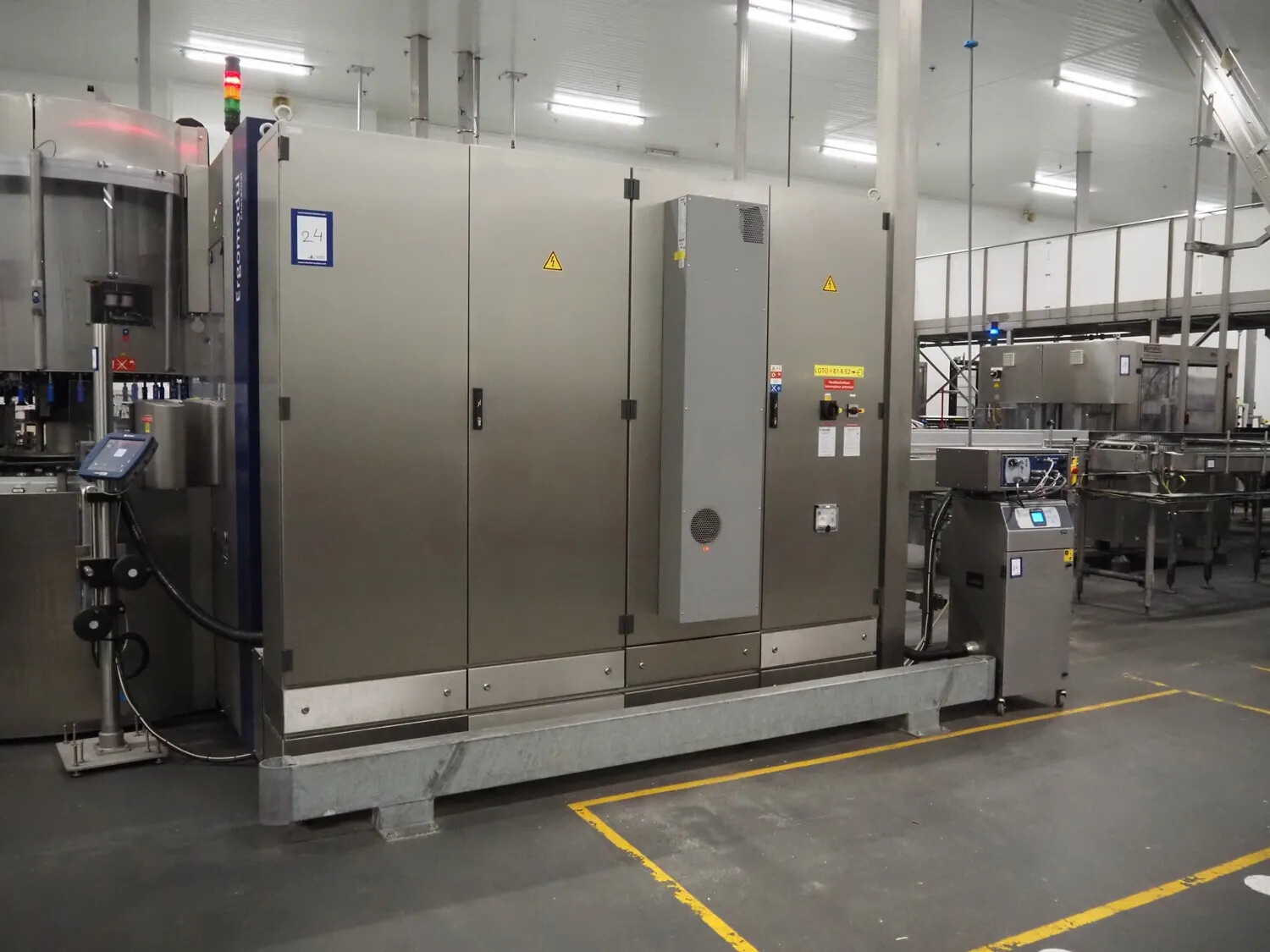

interchangeable Stand-alone control cabinet with Krones iPanel
operator terminal Central lubrication (Lincoln progressive distributor
with motor pump) Ecopush rejection module Handling parts set on
trolleys The inspection unit (Checkmat) and the container coding
device that ran with this labeller are separate items and not part of
this machine. Condition Used, still installed and under power in an
operating line. Inspection on site is possible before purchase.
Availability Available now. The machine stands in Belgium and will be
dismantled and moved to our location in Germany; dismantling, loading
and transport can be quoted on request.
