FISCHER UND KRECKE(BOBST) FP16-S10

Details

Reference ID: PP-60494
Category:Flexo Printer
Manufacturer: Fischer & Krecke (Bobst)
Model: FP16-S10
Year: 2011
Color: 10
Speed: 500 m/min
Max. Size: 1500 mm
Condition: Very Good
Location: Europe
Availability: Immediately


Machine Type: Central Impression (CI) Flexographic Printing Press
Gearless Drive: Yes
Number of Colors: 10
Ink Type: Solvent-Based
Machine Status: In Production
Available From: October 2026
Latest Removal Date: December 2026


Technical Specifications
Maximum Web Width: 1,500 mm
Maximum Printing Width: 1,450 mm
Printing Repeat: 390 – 1,050 mm
Maximum Mechanical Speed: 500 m/min


Suitable Materials
The machine is designed for printing on: PE, OPP, CPP, PA, PET and Paper

Material Thickness

Minimum: 12 micron
Maximum: 200 micron

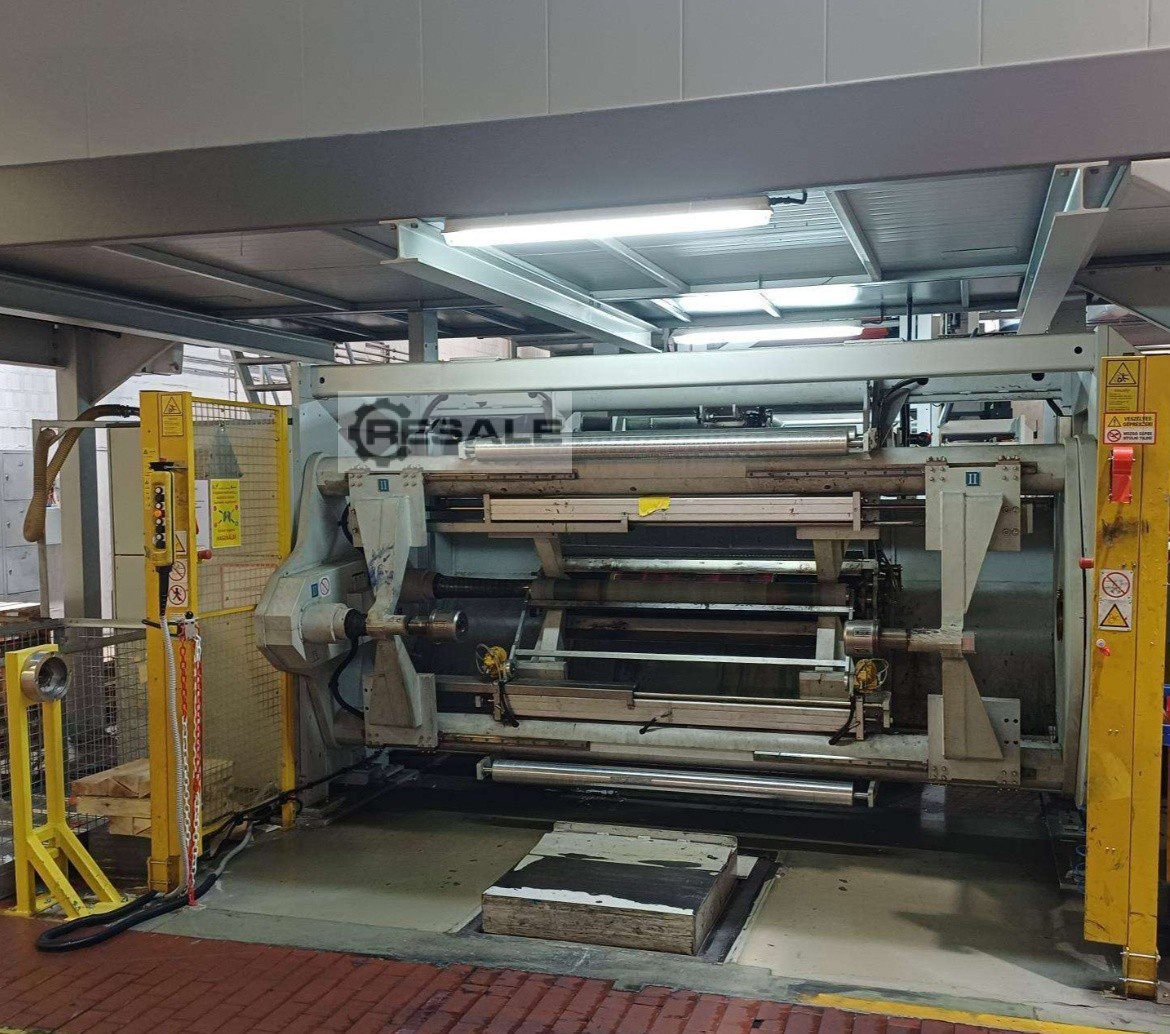

Unwinder
Automatic Turret Unwind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm


Rewinder
Automatic Turret Rewind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm
2 Air Shafts (Ø150 mm)

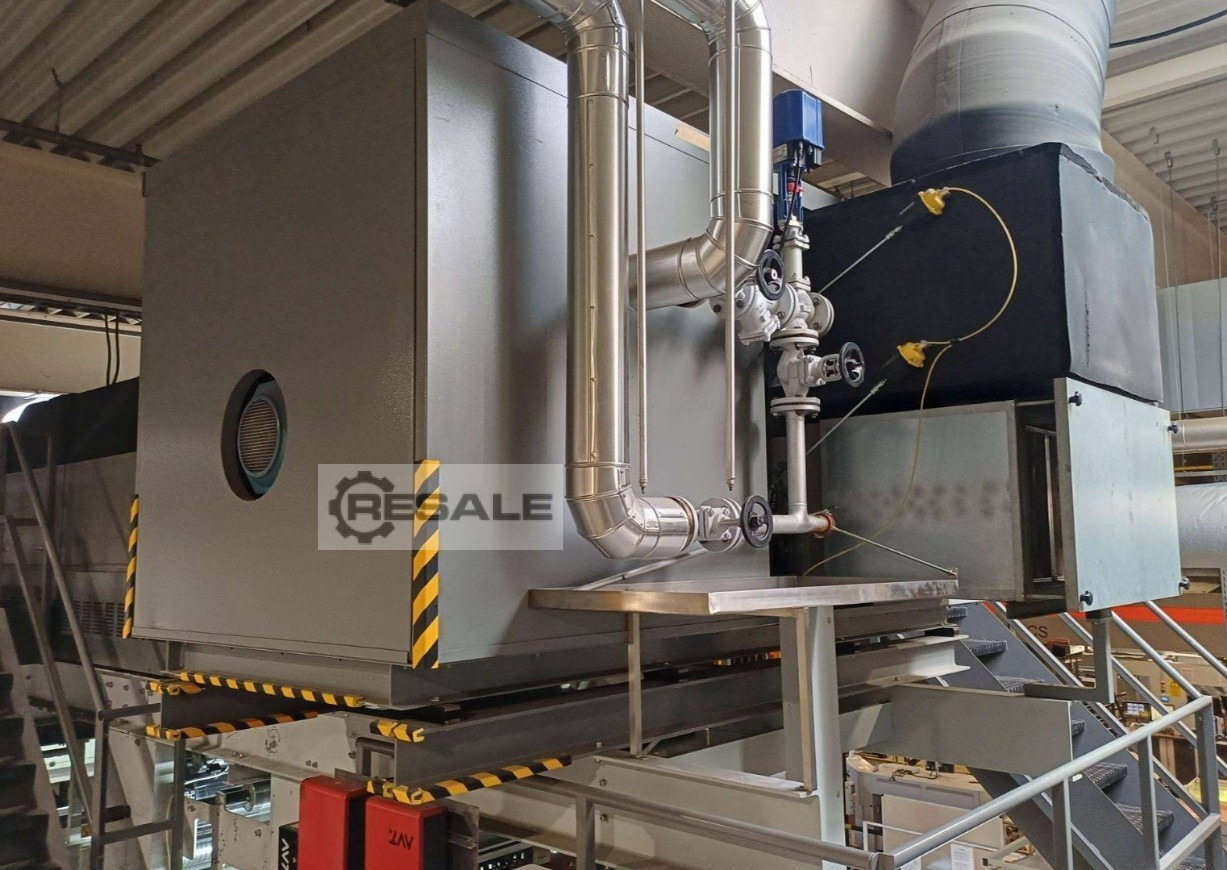

Drying System
Thermic Oil Drying System


Machine Equipment
Automatic Web Guide
Video Inspection Camera
AFS 6 kW Corona Treater
Automatic Cleaning System
New Celio Viscosity Control (3 Solvents)
Medium Cut Inline Slitting
Mounting Device Included


Included Accessories
40 Anilox Rollers
835 Printing Sleeves
76 Intermediate Sleeves (7 Different Sizes)
Complete Set of Sleeves & Anilox Rollers
Basic Trolleys
High-Pressure CO₂ System
Basic Spare Parts
Machine Manuals


Printing Tool Inventory
Printing Sleeves

Total Quantity: 835 pcs
Various Repeat Sizes Available


Anilox Rollers

Total Quantity: 40 pcs
Multiple Screen Counts & Cell Volumes


Adapters

380 mm, 440 mm, 490 mm, 530 mm, 590 mm, 660 mm, 720 mm, 790 mm


Doctor Blade Chambers

20 pcs


Machine Highlights
10-Color Gearless CI Flexographic Printing Press
Production Speed up to 500 m/min
Solvent-Based Printing
Automatic Turret Unwind & Rewind
Advanced Corona Treatment System
Automatic Cleaning System
Camera Inspection System
Web Slitting Before Rewinder for Separate Ups
Large Package of Sleeves & Anilox Rollers Included
Available for Inspection in Production
