металообробні станки / інші станки для обробки металів
Виробник: DMG MORI

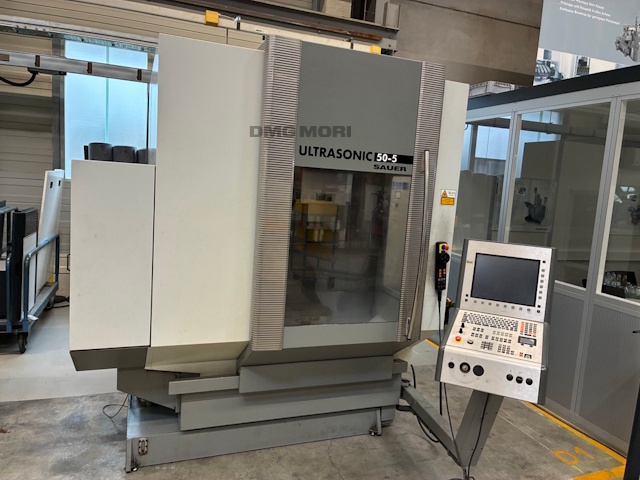

Модель:ULTRASONIC 50-5
Номер позиції: 170271058
Кількість: 1
Дата: 02.10.2026
Місцезнаходження:
Німеччина
Ціна:
Seller-item-No.:125012
| General | |

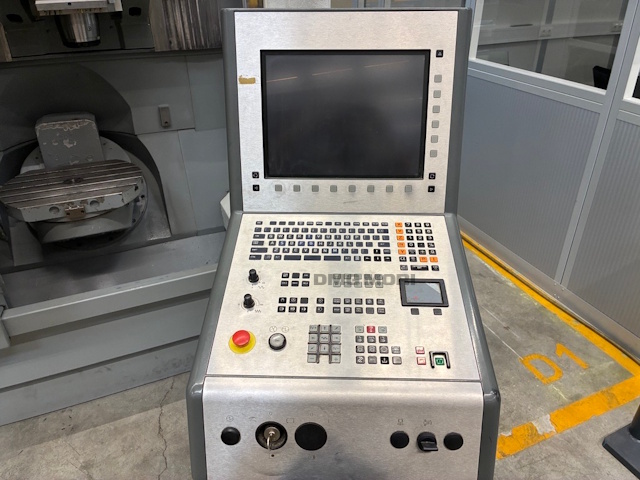

| Universal machining centre; Control: 3D control Heidenhain iTNC 530 | |
| Working area 1 | |
| Longitudinal | 500 mm |
| Cross | 420 mm |
| Vertical | 380 mm |
| Technical Data | |
| Drive power (100% DC) | 25 kW |
| Drive power (40% DC) | 35 kW |
| Speed range | 20 -18000 rpm |
| Spindle taper | HSK-A 63 |
| Pick-up toolchanger | Pick-up tool changer |
| Number of tools 32 | |

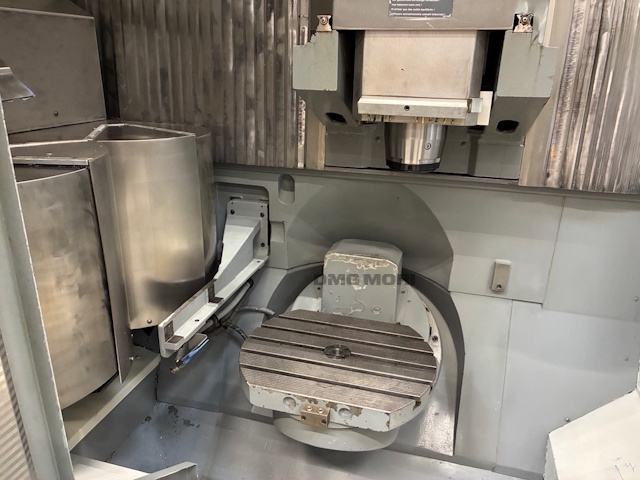

| NC rotary table w. swivel axis | NC rotary table with swivel axis |
| Type of Measuring system Direct measuring system | |
| Table surface 500 x 380 mm | |
| Centre bore 30H7 mm | |
| Maximum load (table centre) 200 Kg | |
| Slot width 14 mm | |
| Number of Slots 5 | |
| Distance between T-Slots 63 mm | |
| Rotation speed max.4. Axis 33 rpm | |
| 4. Axes (swivelling range) 360 x 0,001 degree | |
| 5. Axes (swivelling range) 0 - 180 x 0,001 degree | |
| Rotation Speed 5. Axis 26 rpm | |
| Rotary air leadthrough | Rotary air leadthrough for NC rotary table with swivel axis 2x G1/8 interface |
| Special equipment | Sealing air in swivel rotary table |
