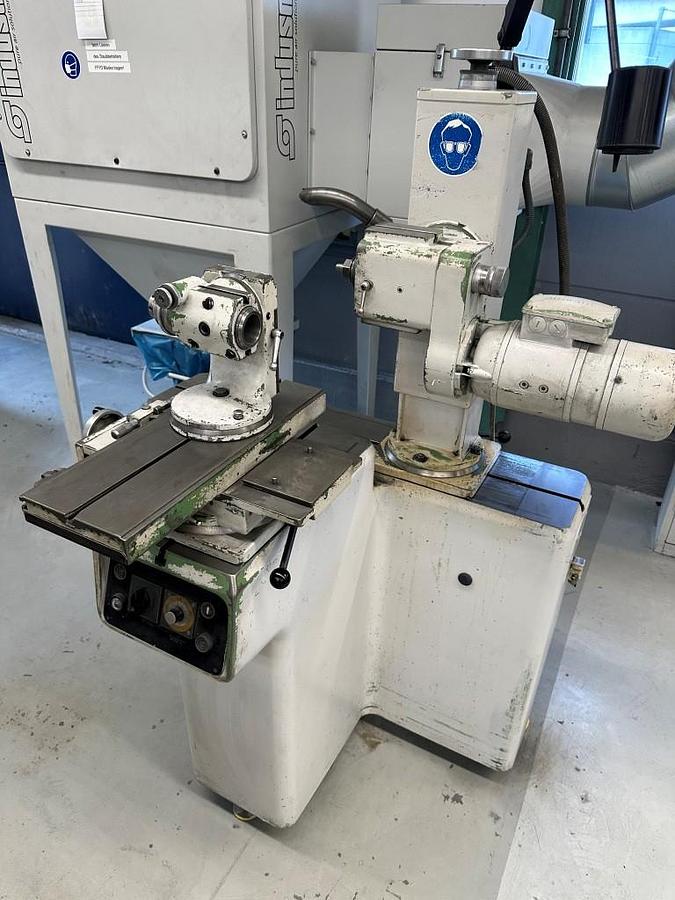

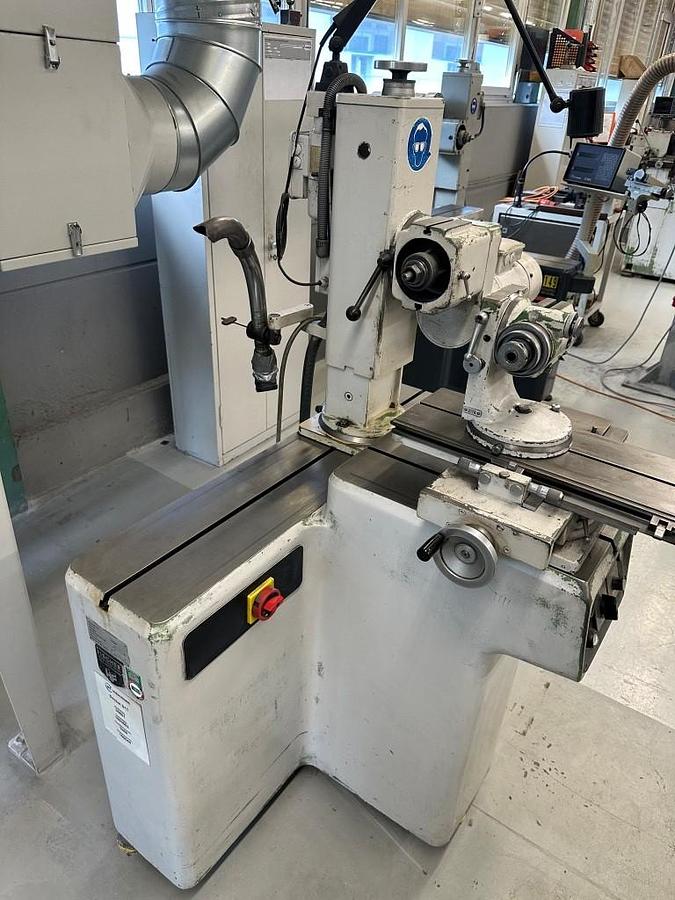

Suitable for manual grinding of cutting, milling, and drilling tools
of various kinds., Accessories:, Universal dividing head SK 40,
motorized height adjustment of the grinding head,, helical and back
grinding attachment,, radius grinding attachment,, swivel counter
support,, infinitely variable grinding spindle drive,, 1 grinding
wheel guard,, 1 dividing plate., Functional - but is expressly sold as
defective / in need of repair!, Grinding hub max.: 190 mm,
Cross-slotted tool slide: 100 mm, Vertical adjustment grinding head:
325 mm, Longitudinal adjustment grinding spindle: 5 mm, Swivel
grinding head holder: 360°, Swivel tool carrier: 360°, Grinding
spindle speeds infinitely adjustable from: 2,000 - 10,000 U/min., ,
Grinding wheel diameter: max. 200 x 20 mm, Connected load: 2.0 kW (400
V / 50 Hz), Dimensions L x W x H: 1100 x 800 x 1760 mm, , Weight
approx.: 554 kg, colour: White, Workpiece diameter between the tips:
238 mm
