utilisé
N° de machine 2037.04 Voir les photos !
nouveaux
Couvercles télescopiques pour axes X et Z pour de nombreuses rectifieuses CNC Studer S21, S31, S33, S40, etc. Et pour de nombreux autres fabricants de machines sur demande.
utilisé
Studer S31 Spw. : 1000mm / Sph. : 175mm Fanuc 16i - Contrôle de la tuberculose Mise en service 2004 Courses Axe X 285mm / Axe Z 1150mm Rectifieuse cylindrique universelle 2x rectification externe et 1x rectification intérieure
utilisé
Key data: 180 mm, 800 mm
Commande Fanuc 31 i - A Diamètre d’usinage max. 180 mm Longueur d’usinage max. 800 mm Broche principale avec mandrin motorisé 30 kN Contre-broche avec mandrin pneumatique Deux têtes de meulage Tourelle d’outils avec 12 stations d’outils entraînées
utilisé
DIAM MAX 450 . LONGUEUR MAX 1600
utilisé
Key data: 1000 mm, 285 mm, 1000 mm
Studer S33 Rectifieuse cylindrique universelle CNC Nouveau 2018 Contrôle CNC: oui Type de contrôle CNC: Fanuc Oi-TD Capacités et caractéristiques: 350mm x 1000mm Dimensions de la meule OD: 500 x 63 x 203,2 mm Course de l’axe X: 285 mm Course de l’axe Z: 1000 mm Résolution: 0,0001 mm Poids max. de la pièce entre les centres: 80 kg Table pivotante: -15 - +225 Indexation: Axe B Automatique 1 Hirth Couplage Taille de la meule: 500 x 63 x 203,2 mm Vitesse périphérique max. : 50 m/sec Capacité de puissance du moteur: 14.47HP / 11kW Tête de broche de pièce à usiner: Voir les spécifications ci-dessous: Voir les spécifications ci-dessous Nombre de tours: 1 - 1.500 tr/min Moteur de la tête de travail Capacité de puissance: 1,6 / 3 kW Passage de la broche: 30 mm Conicité de raccord: MK 5 Hauteur centrale: 175 mm Charge de travail : 80 k ...
utilisé
Studer de meulage S21 Lean CNC :::SPÉCIFICATIONS::: Modèle CNC: Fanuc Version CNC: 21i-T Course de l’axe X: 254mm Course de l’axe Z: 483mm Bande de meule: 40mm Diamètre de la meule: 400mm Autres données techniques: Tête de meulage pivotante (B) -15°/+195° 1° 2 meules extérieures 1 meule intérieure Meule externe 400 mm x 40 mm x 127 mm 4 kW Tête de pièce CM 4 :::D IMENSIONS ET POIDS::: Longueur: 2300mm Largeur: 2000mm Hauteur: 2100mm Poids: 4300Kg
utilisé
rectifieuse cylindrique externe CNC, marque Studer, type S40-4, Bi 1987, Des documents sont disponibles. Le prix est net
utilisé
Diamètre de meulage 250 mm Longueur de meulage 650 mm Largeur centrale 700 mm Hauteur de la pointe 125 mm Diamètre de la meule 400/450 mm Largeur de meule 50/80 mm Vitesse de broche de la pièce jusqu’à 675 1/min Tête de pièce pivotante +/- 45 ° Commode Appareil de mesure Système de refroidissement Meule
utilisé
Longueur de la boucle
utilisé
- Fuseau de broyage interne - Affichage numérique Heidenhain Hauteur maximale 100 mm Largeur de pointe 450 mm Roues de broyage de 300 mm Taille de la table 950x200 mm Chemin longitudinal 450 mm Cône de fuseau MK 5 Vitesse de fuseau en continu 40 - 650 tr/min Table pivotante /- 10 degrés Poids d’environ 1700 kg Dimensions 1570x100x1400 mm
utilisé
CONTROLS CNC controls FANUC WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 350 mm grinding length: 650 mm TAILSTOCK distance betw. centers (max): 650 mm sleeve stroke: 35 mm sleeve diameter: 80 mm taper: MK 3 SPINDLESTOCK GRINDING SPINDLE tilting range (B-direction) min: 0 ° rotating range B-axis up to: 8.5 ° - mode of operation: manual GRINDING TOOL type of grinding tool: wheel diameter (max): 500 mm width: 63 mm ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS space requirements -left/right-: 2670 mm space requirements -front/back-: 2100 mm total height: 1800 mm ATTACHMENTS (GRINDING) internal grin ...
utilisé
CONTROLS digital read out WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 200 mm workpiece weight between centers (max): 400 kg workpiece weight flying (max): 20 kg WORKPIECE SPINDLESTOCK spindle revolutions (min): 80 /min spindle revolutions (max): 800 /min tool fixture: MK 4 TAILSTOCK distance betw. centers (max): 400 mm sleeve stroke: 20 mm taper: MK 2 SPINDLESTOCK GRINDING SPINDLE spindle revolutions (min): 1600 /min spindle revolutions (max): 2200 /min drive power: 3 kW GRINDING TOOL diameter (max): 350 mm borehole: diameter: 127 mm width: 30 mm
utilisé
CONTROLS CNC controls FANUC 0I-TFP WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 350 mm workpiece weight between centers (max): 80 kg WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 350 mm grinding length: 500 mm WORKPIECE SPINDLESTOCK spindle revolutions (max): 1500 /min drive power: 3 kW spindle bore diameter: 30 mm tool fixture: MK 5 c-axis: yes - positioning/indexing: 0.5 ° TAILSTOCK distance betw. centers (max): 400 mm sleeve stroke: 60 mm taper: MK 4 SPINDLESTOCK GRINDING SPINDLE X-axis travel: 370 mm Z-axis travel: 500 mm tilting range (B-direction) min: 60 ° drive power: 9 kW GRINDING TOOL diameter (max): 500 mm ...
utilisé
CONTROLS CNC controls GE FANUC SERIES 16 GC WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 350 mm workpiece weight between centers (max): 130 kg WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 350 mm grinding length: 1000 mm WORKPIECE SPINDLESTOCK spindle revolutions (min): 30 /min spindle revolutions (max): 1000 /min continuous speed variation: yes c-axis: yes TAILSTOCK distance betw. centers (max): 1000 mm SPINDLESTOCK GRINDING SPINDLE Z-axis travel: 1000 mm tilting range (B-direction) min: 0 ° rotating range B-axis up to: 210 ° drive power: 7.5 kW GRINDING TOOL type of grinding tool: wheel diameter (max): 500 mm SPINDLESTOCK INTERNAL GRINDING tilting ran ...
utilisé
CONTROLS CNC controls FANUC 310I-A WORKING RANGE CYLINDRICAL GRINDING swing diameter (max): 180 mm workpiece weight between centers (max): 25 kg WORKING RANGE EXTERNAL GRINDING grinding diameter (max): 400 mm grinding length: 1000 mm TAILSTOCK distance betw. centers (max): 1000 mm taper: MK 4 Z-axis travel: 1600 mm SPINDLESTOCK GRINDING SPINDLE X-axis travel: 220 mm Z-axis travel: 1600 mm tilting range (B-direction) min: 0 ° rotating range B-axis up to: 25 ° drive power: 6.8 kW GRINDING TOOL type of grinding tool: wheel diameter (max): 400 mm borehole: diameter: 127 mm ELECTRICAL SPECIFICATIONS mains power supply: 45 kVA mains voltage: 400 V mains frequ ...
utilisé
grinding diameter: 0,2 - 190 mm grinding length:400 mm centre height:100 mm weight of the machine ca.:1,6 t dimensions of the machine ca.:2 x 1,5 x 1,8 m
utilisé
internal diameter: mm grinding depth: mm centre height:175 mm grinding length:120 mm longitudinal and cross slide:300 grinding wheel diameter:10 mm grinding wheel speeds:90.000 U/min Z-axis:300 mm Incl. automatic feeding B-Axis
utilisé
grinding diameter:300 mm grinding length:540 mm centre height:175 mm total power requirement:20 kVA centre distance:1000 mm
utilisé
grinding diameter:50 mm grinding length:100 mm centre height:100 mm centre distance:200 mm
utilisé
Description: Serial Number: 020.0658.90.079 grinding diameter: 300 mm, grinding length: 500 mm, table slide longitudinal travel max.: 267 mm, control: GE Fanuc Series 16-T, weight approx.: 3,800 kg, Approx. Onsite Dimension. (l x w x h): 2,000 x 2,500 x 2,000 mm
utilisé
grinding diameter:400 mm grinding length:650 mm centre height:125 mm total power requirement:5/8,25 kW weight of the machine ca.:3,4/3,5 t
utilisé
Description: FANUC control system Two external and one internal grinding spindle Machine must be collected in mid-June 2024 Machine no.: 022.0102.90.017, max. travel of longitudinal slide: 1050 mm, max. speed of longitudinal slide: 10,000 mm/min, max. inclination of table: 8.5 degrees, max. travel of cross slide: 275 mm, max. speed of cross slide: 10,000 mm/min, max. workpiece weight between centres: 130 kg, max. quill travel 35 mm Attention: Clamping device and measuring system are not included in the scope of delivery Approx. Onsite Dimension. (l x w x h): 2,500 x 4,000 x 2,000 mm, weight approx.: 4,000 kg
utilisé
Description: Serial number 046, control FANUC 16 I-T, ,Machine number: 202552, max. sanding length: 200 mm, max. Z-axis travel: 500 mm, max. speed: 10,000 mm/min, max. X-axis travel: 120 mm, max. speed: 5,000 mm/min, fixed sanding spindle bore 120 mm, speed range: 0-1500 min, spindle clearance: 50 mm, spindle torque: 30 Nm Attention: Clamping device and measuring system are not included in the scope of delivery Approx. Onsite Dimension. (l x w x h): 3,100 x 2,000 x 2,100 mm, weight approx.: 6,000 kg
utilisé
Machine in good technical condition, after agreement possibility of testing. Grinding diameter Ø 250 mm Grinding length 750 mm Size of grinding wheel 400 x 50 mm. Length 2400 mm Width 1300 mm Height 1500 mm.
utilisé

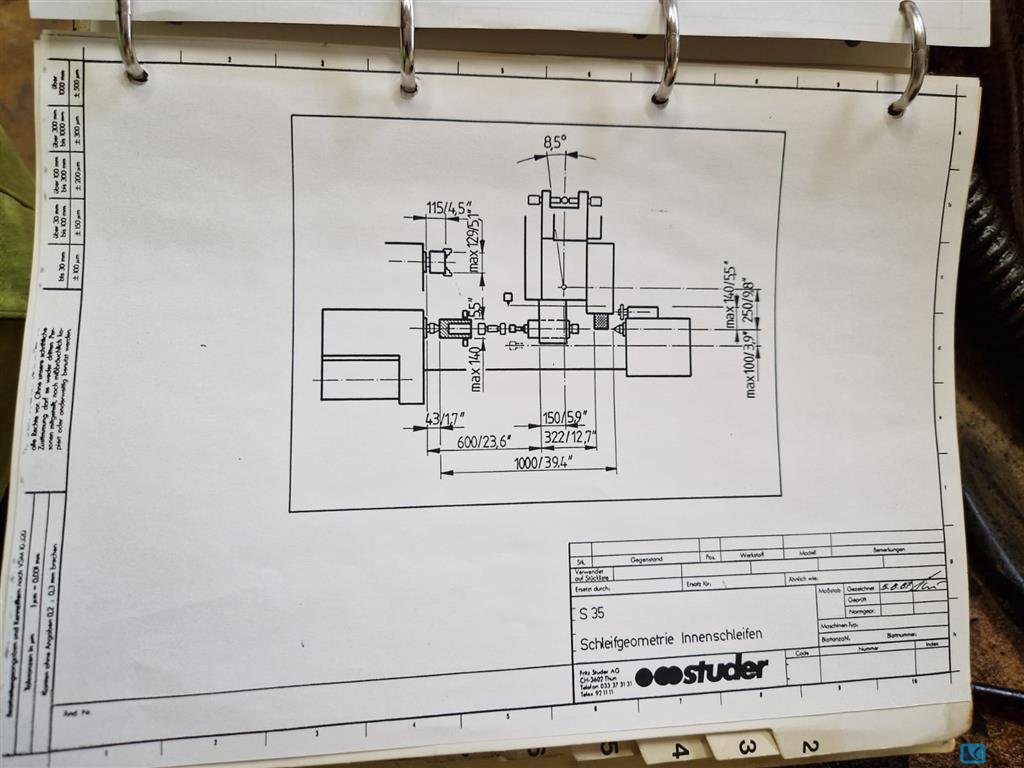

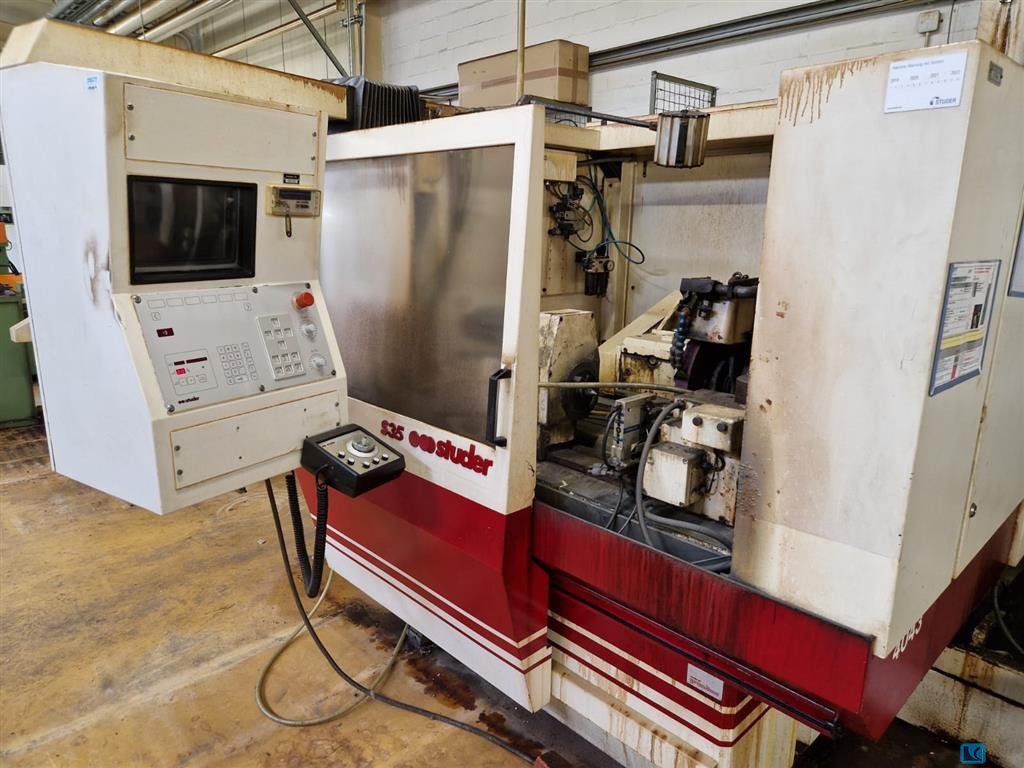

- - - : - - - - - - STUDER - S 35 La machine est en bon état et peut être inspectée à tout moment sous tension sur le site de l’usine suisse. Les données techniques de la machine suivront bientôt. - - - - - - #Tags- Le projet de loi S-35
utilisé
Description: Center height 175 mm, center width 1000 mm, maximum longitudinal slide travel 1050 mm, longitudinal slide speed 0.0001 to 10000 mm per minute, maximum table inclination 8.5 degrees, maximum cross slide travel 275 mm, maximum cross slide speed 0,0001 to 10000 mm per minute, quill travel of tailstock 35 mm, maximum workpiece weight between centers 130 kg, speed range of workpiece spindle 30 to 750 rpm, including manual operation and existing documentation, machine number 011.0126.60.021 control: GE FANUC SERIES 16-GC, weight approx.: 6,000 kg, Approx. Onsite Dimension. (l x w x h): 4,400 x 2,300 x 2,600 mm
utilisé
Hauteur de la meule : 100 mm Entraxe : 650 mm Diamètre x largeur de la meule : 350x32 mm Diamètre du trou de la meule : 127 mm Poids de la machine env. : 2,3 t Dimensions de la machine env. : 2 x 1,6 x 1,8 m
utilisé
Distance between centers : 1000 mm Centers height : 175 mm Grinding wheel holder headstock orientation : 0 - 180 ° Grinding wheel holder headstock indexing precision : 5 ° Grinding wheel dimensions : 500 x 63 x 203 mm Cutting speed : 35 m/sec Headstock power : 7.5 kW Maximum workpiece weight : 130 kg Table orientation : 10 ° headstock rotation speed : 35-520 rpm EQUIPMENT : Sensitron 6 : Internal grinding spindle : 1 Measuring head MOVOMATIC ES124 for the diameter : 1 Tailstock : 1 Diamond grinding device for external wheel : 1 Radius grinding devic : 1 Display 2 axes HEIDENHAIN : 1 Lubricating tank with paper filtration : 1 Set of grinding wheel holders and grinding wheels : 1
utilisé
Used Studer s 31 Cylindrical external / internal grinding machine Visible under power in Italy Year: 2003
