モデル
(生産者： SCM)
私はscMマルチフレックスウィンドウアングルシステ を販売しています。 フライスヘッドビバルディEU68ミリメートル。 切開+円錐スピンドル右/円錐形側。 2個プロファイルフライススピンドル+ガラスリスト 断鋸左/ロール成形側 同じものを利用できます

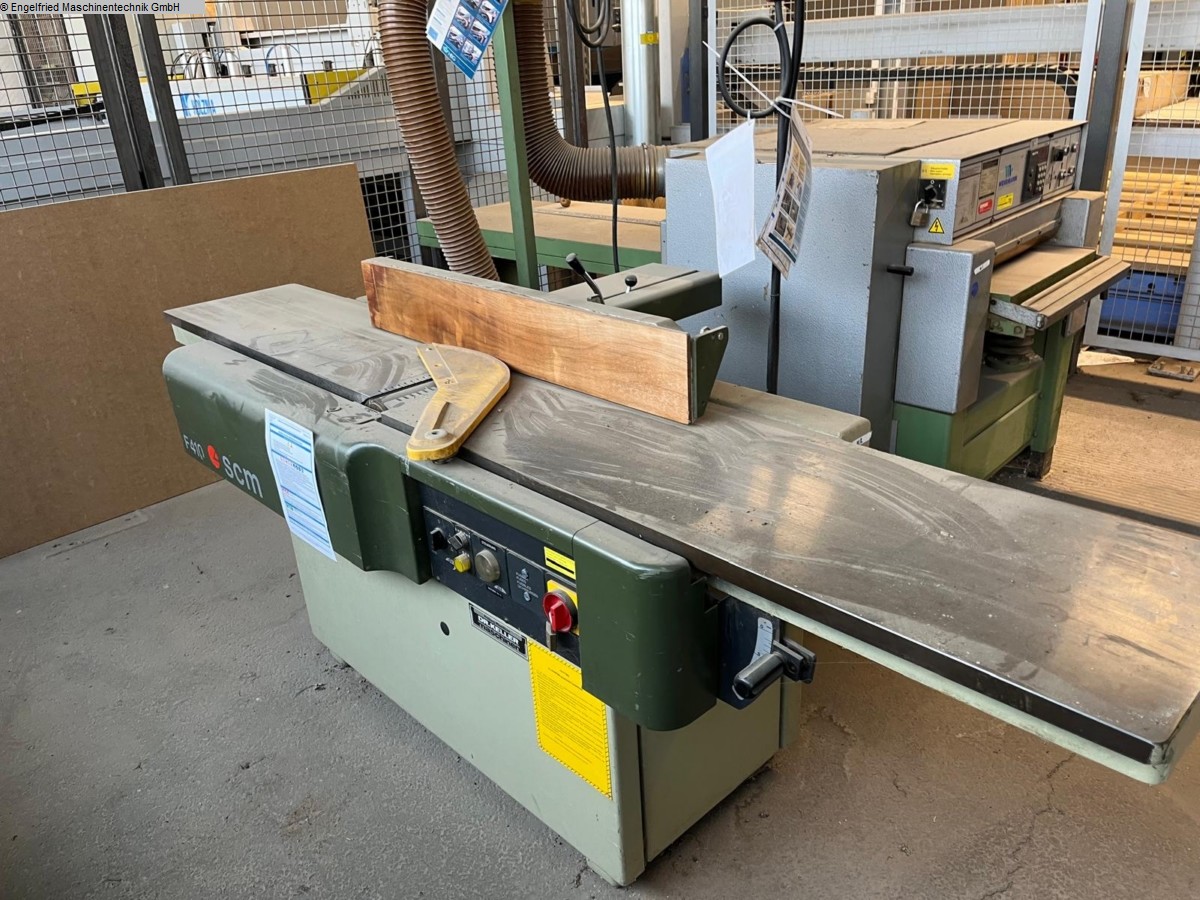

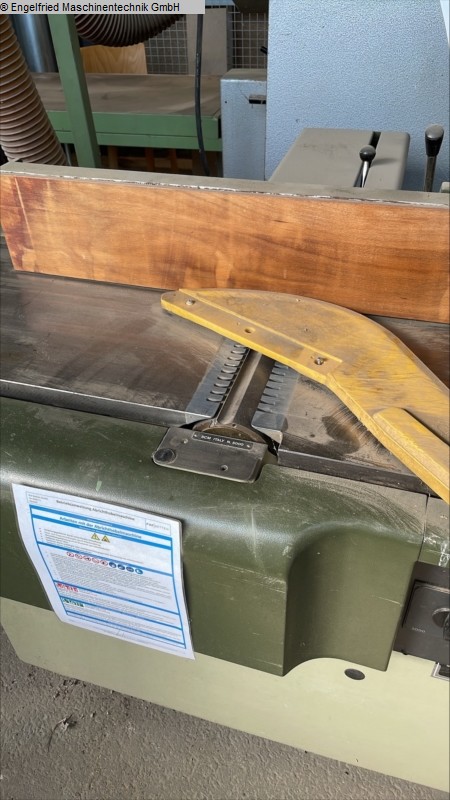

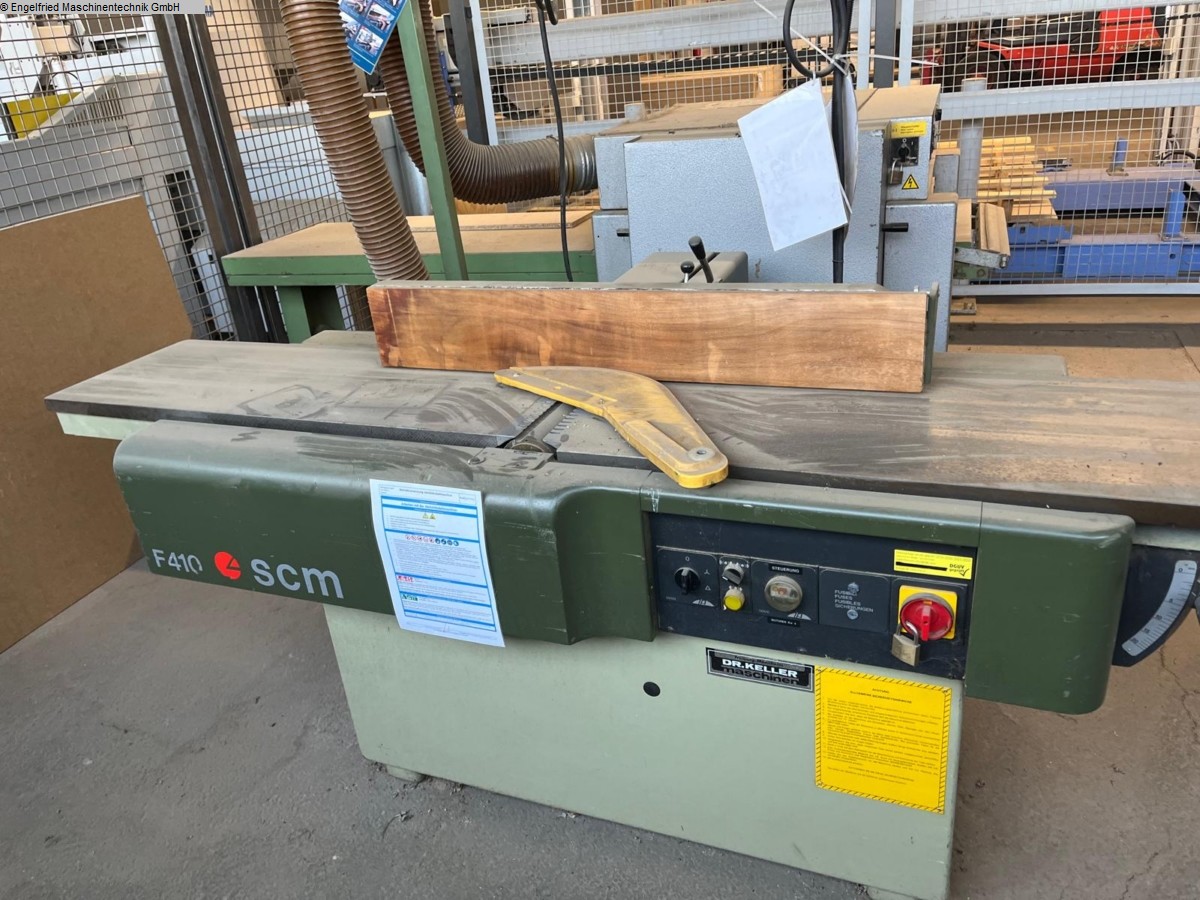

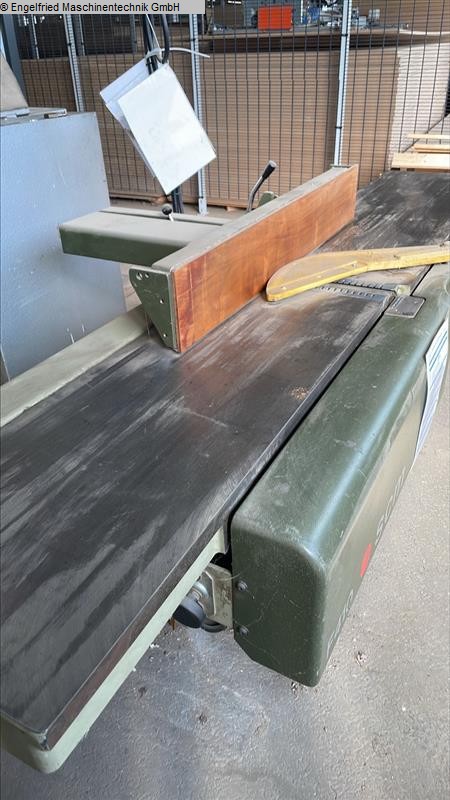

Working width: 410 mm Length of the planing table: 1450 mm Number of knives: 4 St. Motor output: 4 kW Dimensions (L/W/H): 2650x850x1100 mm weight of the machine ca.: 750 kg SCM Surface planer F 410 N ----------------------------- Technical manufacturers description: Planing width: 410 mm Total table length: 2600 mm Table height: 855 mm Feed table length: 1450 mm Aluminum planing fence swivels up to 45° Planing fence dimensions: 1100 x 170 mm 4-knife planing shaft diameter: 120 mm Knife shaft speed: 5000 rpm Motor power: 4 kW TERSA monobloc one-way reversible cutterhead SCM dressing protection device integrated in machine stand 120 mm diameter extraction nozzle Manual star-delta switch Motor protection switch, undervoltage release Lockable main switch Automatic motor brake Pivoting auxiliary fence ----------------------------- Price of the above machine on request! ---------------------- ...
Number of spindles: 6 St. Working width: 240 mm Working height: 200 mm Length of the planing table: 2500 mm Feed speed: 6-36 m/min. Dimensions (L/W/H): 4900x1700x2000 mm weight of the machine ca.: 3500 kg Control: SCM Mobile 10 SCM Superset NT PLUS Comp. 31 for window production ----------------------------------------------- The machine is in process of partial reconditionning at our facility at the moment. Highlights: - Machine with 6 spindles (2 with HSK mounting) - Spindle speed 8,300 rpm - Working width 240 mm, working height 200 mm - Electronic horizontal and vertical spindle positioning - PRL equipment for glazing bead separation - Air-cushion table - Touchscreen control Technical Data: Working width: max. 240 mm (kit for min. width 15 to 25 mm) Working height: max. 200 mm Feed speed: infinitely variable 6 to 36 m/min via inverter Infeed table: length 2,500 mm Machine weight: app ...
Number of spindles: 5 St. Working width: 240 mm Working height: 120 mm Length of the planing table: 2500 mm Feed motor: 4 kW Feed speed: 6-36 m/min. Weight: ca. 3500 kg control: SCM Control 10 SCM Superset NT with workpiece return ---------------------------------- The machine is in cleaning and completely checking process at the moment. Brief Summary: ---------------------------------- - 5 spindles - Powerful motors - Left and upper spindles controlled for width and height - With workpiece return to the operator 1st spindle ---------------------------------- First lower horizontal spindle Motor with brake 7.5 kW Diameter 40 mm Speed 6,000 rpm 2nd spindle ---------------------------------- First right vertical spindle Motor with brake 7.5 kW Diameter 40 mm Speed 6,000 rpm T-set quick-clamping system 3rd spindle ---------------------------------- First left vertical spindle Motor with bra ...
Number of spindles: 9 St. Working width: 240 mm Working height: 120 mm Length of the planing table: 2500 mm Feed motor: 7,5 kW Working speed: 6-36 m/min weight of the machine ca.: 6500 kg Control: CONTROL 100 PC PLUS SCM Topset XL, Year of Manufacture 2015, currently undergoing partial recondtionning in stock ------------------------------------------------------------ Summary: - 9 spindles (including 4 x HSK 85 S) - Electronic horizontal and vertical positioning - 8,300 rpm - SCM Set-up - SCM T-Set - Includes workpiece infeed magazine Working dimensions: - Maximum working width: 240 mm - Minimum working width: 25 mm (reducible to 15 mm via installed special kit) - Maximum working height: 120 mm - Minimum working height: 10 mm (reducible to 6 mm via installed special kit) Special working cross-section equipment: Equipped with a special kit for extremely small minimum cutting dimensions o ...
Manufacturer: SCM Model: Morbidelli M100 Type of Machine: CNC Machining Centre for Furniture and Panel Processing Year of Manufacture: 2019 Condition: Excellent, very little use Operating Hours: Approximately 2,000 hours Working Area and Panel Capacity: - Useful working field X axis: 3,110 mm - Useful working field Y axis: 1,620 mm - Panel passage on Y: 1,900 mm - Panel passage on Z: 180 mm - Length of piece in pendulum working mode: 1,400 mm - Machining Capability: Machining in 3, 4 and 5 axes; drilling, routing/milling, grooving and - panel processing - Main Software: Maestro CNC integrated CAD-CAM software - Operating System: Windows 7 - Main Display: 21.5 inch LCD, 16:9, Full HD Axis Speeds: - Maximum vector speed on X-Y (PRO-SPACE version): 56 m/min - Maximum vector speed on X-Y (PRO-SPEED version): 78 m/min Drilling and Grooving Group F23L: - Vertical independent spindle ...
Manufacturer: SCM Type of Machine: Sliding Table Saw / Circular Saw for Panel Sizing Model:Class SI 400 EP Year of Manufacture: 2019 Technical Specifications: - Maximum cutting height at 90 degrees: 140 mm (with 400 mm blade) - Maximum cutting height at 45 degrees: 97 mm (with 400 mm blade) - Main saw blade diameter: 400 mm - Scoring blade diameter: 120 mm - Saw blade tilt: 45 degrees - Main saw blade speed: 3,000 / 4,000 / 5,000 rpm - Scoring blade speed: 8,500 rpm - Main motor power: 7 kW / 9.5 HP - Scoring motor power: 1.3 kW / 1.7 HP - Sliding carriage dimensions: 3,200 x 320 mm - Parallel fence cutting width: 1,270 mm - Suction outlet diameter (blade guard): 120 mm - Suction outlet diameter (machine base): 100 mm Control System (EASY 3 UP PLUS CE Version): EASY2 electronic control with 7-inch 16:9 monitor; suspended, orientable control panel; programmed display and control of ...
Manufacturer: SCM Model: SCM Olimpic K560 — Composition T-ER2 (40) Year of Manufacture: 2019 Type of Machine: ABS Edgebanding Machine / Single-Sided Edgebander Technical Data: - Feed chain speed: 12–18 m/min - Panel thickness: 8–60 mm - Edge thickness in strips: 0.4–6 mm - Edge thickness in rolls: 0.4–3 mm - Maximum roll diameter: 800 mm - Spacing between panels: 600 mm - Minimum panel length (with minimum width 100 mm): 140 mm - Minimum panel width (with minimum length 210 mm): 95 mm - Working table height: 900 mm - Installed power: 23 + 28.5 kVA - Compressed air consumption: 450 NL/min - Dust extraction air consumption: 4,500 m3/h - Extraction outlet diameter: 250 mm Control System — Touch 7: - 7-inch colour touchscreen, 16:9 wide format; graphic representation of all operating groups; 60 modifiable work programmes; complete machine automation via PLC and encoder; gl ...
製造元:SCM モデル:ミニマックス E10 製造年:2019年 機械の種類:曲面用手動ABSエッジバンディング機械 バージョン:CE 技術データ: - 事前カットされたストリップエッジの厚さ:0.4〜3 mm - ギロチン付き縁の厚さ(エッジ高さ80mm):0.4–1.5mm - ギロチン付き縁取り厚(エッジ高さ50mm):0.4–2.5mm - ギロチン付き縁取りの厚さ(エッジ高さ45mm):0.4〜3mm - エッジ高さ:10–84 mm - パネル厚:8–80 mm - 最小パネル幅:50 mm - 適用する最小縁取り長:210 mm - 最小内部半径(0.4 mmの縁取り、凹面):25
表の寸法:1200 x 730 mm モーター出力:4 kW ピンドル径:30 mmreus:3000/4500/6000/7000/10000 U/min: ja この広告のデータはLogoTech oHGのソフトウェアソリューションであるModulMWSで作 されました
テーブルサイズ:2.540 x 850 mm モーター出力:7 kW ピンドル径:30 mmreus:3500/6000/8000/10000 U/min 重量:533 kg:Ja : Ja : Elektrisch : Elektrisch 回転可能: 45 この広告のデータはLogoTech oHGのソフトウェアソリューションであるModulMWSで作 されました
max. workpiece length: 3.800 mm profile spindle: 1 Stück main drive: 15 kW Control: Maestro active windoor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. workpiece length: 6360 mm profile spindle: 1 Stück main drive: 13 kW Control: CNC SCM CNC Machining Center ACCORD 40 FX for windows and doors --------------------------------------------------- INCLUDES extensive window and door tooling among others (window cutting available upon request!): Wooden windows IV 68, 78, 92 Wooden style windows Wood-aluminum windows Front doors Lift-and-slide doors Box windows Machine still in operation, available for viewing! Technical Summary (detailed description available upon request!): --------------------------------------------------- - Working area X-Y = 6360 x 1905 Z = 350 - Automatic table with 8 support rails MATIC - L1825 - 5-axis spindle MAXI - Prisma T, HSK 63 E, 13 kW - RTCP Setting - Self-calibration system for Prisma work unit - Adjustable chip removal device on the electric spindle - Preparation for Prisma T-S angle gearbox - BRC - W ...
作業幅:630 mm 作業高さ:240 mm モーター出力:5.5 kW ナイフ数:4 St 送り速度:6 - 18 m/min。寸法(L/W/H):1.250 x 1.050 x 805 mm 機械の重量 約825 kg:Tersa回転速度:4.500 U/mintableサイズ:630 x 1,000 mm:elektrisch - manuellこの広告のデータはLogoTech oHGのソフトウェアソリューションであるModulMWSで作 されました
Manufacturer: SCM, Type: RECORD 100 AL XL TVN, Year: 2010, Working range X: 3110, Working range Y-axis: 1240, Feeding speed max m/min: X=60, Y=45, Z=30, Number of tables: 1, Traverse table: yes, Vacuum pumps m³/h: 250, Saw unit: yes, Magazine Qty: 12, Year :2010
Manufacturer: SCM, Type: Record 130, Year: 2001, Control: Num, Working range X: 3080, Working range Y-axis: 1200, Working range Z: 280, Number of milling spindles: 1, Tool adaption system: HSK 63, Milling engine 1 hours power: ca.9, rpm 1): 9000-18000, Number of tool changers: 1, Number of tools per tool-magazine: 12, Mitfahrender Werkzeugwechsler: yes, Vacuum pumps m³/h: 120, Year :2001
Manufacturer: SCM, Type: Routomat 3 , Year: 1994, Control: scm, Work piece width min-max mm: 2500 X 1400, Working range X: 2500, Working range Y-axis: 1400, Working range Z: ca.350, C axis: yes, Work piece width min-max mm: 2500 X 1400, Number of milling spindles: 1, Tool adaption system: ISO 30, Milling engine 1 hours power: 7,5, pm: 1500-18000, pm: 1500-18000, Anzahl Werkzeugwechsler: 1, Number of tools per tool-magazine: 6, Alu-Glättisch: Alu Nuttisch, Tool clamping system: vakuum, FREE TEXT: C-Achse muss überholt werden Preis ca.3000 Euro, Year :1994
Manufacturer: SCM, Type: P64, Year: 1988, Planing widht mm: 180, Planing hight mm: 105, Number of spindles: 4, Rotations of spindles max. rpm: 6000, Separate engine per spindle: no, Main engine kW: 4, Fully suspended drive feeding: yes, Feeding - kW: 2,5, Feeding speed continous adjustable: yes, Tischlänge mm: 2000, Adjustment - electonically: no, Noise enclosure: yes, Compressed air bar: yes, Wight approx. kg: 2000, Year :1988
Manufacturer: SCM, Type: P64, Year: 1988, Planing widht mm: 180, Planing hight mm: 105, Number of spindles: 4, Rotations of spindles max. rpm: 6000, Separate engine per spindle: no, Main engine kW: 4, Fully suspended drive feeding: yes, Feeding - kW: 2,5, Feeding speed continous adjustable: yes, Tischlänge mm: 2000, Adjustment - electonically: no, Noise enclosure: yes, Compressed air bar: yes, Wight approx. kg: 2000, Year :1988
-)働く範囲X: 約3,300のmm -)働く範囲Y: 約1,300のmm -)働く範囲Z:約300のmm -)主電動機:約7.5kW -)工具交換ステーション:2 x 24ピース固定と1 x 10ピース移動 -)ロックボックスユニット:恒久的にインストール -)マシンテーブル:コンソールテーブル -)位置決め補助:はい -)ワークピース特殊クランプシステム:はい -) ソフトウェア: SCM XILOG 3 -)フライススピンドル数:1個 -)速度:18,000最大回転数。 -)トルクサポート:はい -)ツールクランプシステム:HSK-F63 -)設計: ブーム機械 -)真空ポンプ:はい -)DXFインターフェイス:はい -)チップコンベヤベルト:はい -)CEマーク:Jはい -)総接続数:約22キロワット -)重量: 9,600のkg
Sanding width 1350 mm. Workpiece thickness: 4 - 170 mm Equipped with 3 aggregates, 1st steelroller, motor 22kW 2nd roller 65? Shore, motor 15kW 3th Kombi unit, motor 12kW, combination roller with 45? Shore and pneumatic controlled sanding shoe cleaning brush at outfeed Electrical height adjustment of the transport table. Pneumatic sanding belt tension. Sanding belt oscillation. Pneumatic sanding belt cleaning Throughput speed with variator Workpiece thickness measurementm with manual setting at the machine feed Sanding belt dimensions: 1370 x 2620 mm 5 rollers on in- and outfeed table
Working area: X 5200 x Y 1260 mm Heading of main spindle: X 5709 mm, Y 1650 mm 8 workpiece consoles Equipment: Drilling unit with 18 spindles, 12 vertical sp?ndles, 6 horizontal spindles (4 in direction X , 2 in direction Y ) Grooving saw Milling motor 11 kW, 20000 rpm max, HSK-F 63 take-up, liquid-cooled, 5-axis controlled Tool changer with 16 positions Laterally positioned changer with 8 positions PC control
この3軸SCMモルビデリ製UNIFLEX HPは2014年に製造されました。X軸で3,000 mm、Y軸で1,300 mmの作業面積を持ち、最大速度は24,000 rpmです。機械は2基のミリングスピンドルとHSK-F63型 工具クランプシステムを装備しています。高品質な CNC木工加工技術をお求めなら、SCMモルビデリのUNIFLEX HP機械を検討してください。詳細についてはお問い わせください
Key data: 2500 mm, 1240 mm, 100 mm
CNC機械加工センター SCM タイプ TECH Z 25 プラス R4R4 製造年 2005年 2022年には新しい制御システムKVARA6 4A AN+6A MECH- ESA-GV(9,000ユーロ)が導入されました。 作業範囲X、ストップ間2500mm 垂直ボア Y 10¹⁁ mm ミリングY 1240mm プレートスループット最大180mm 最大パネル厚 Z = 100 mm ストローク Z軸 200 mm 上部と底部の中央潤滑 15本の垂直スピンドルを備えた掘削ユニット 水平スピンドルは6本、X方向に4本、Y方向に2本 スピンドル回転数4000rpm。 モーター動力スピンドル回転数 2.2 kW X軸-Y軸の移動速度は42.4 m/minです。 Z軸の移動速度は11.5 m/min。 主軸 約6.6 kW 主軸の最大回転数は24000rpmです。 4つの工具ホルダーを備えたフロントツールチェンジ ャー 4つの工具ホルダーを ...
