Key data: 400 mm
S375G SAMPUTENSILI "CNC" Horizontal Gear Profile Grinding Machine, suitable for the precision grinding of external spur and helical gears and shafts, as well as internal spur and helical gears and splines. The machine has the added capability of grinding worms, rotors, and other screw-type workpieces of similar profile up to 14.76” (375mm) which was factory OEM standard - but delivered at 15.74" (400mm) diameter, and 34.25” (870mm) in length. The machine is also equipped with the optional” on-board CNC” dressing feature, and the on-board CNC” gear inspection system-feature. Serial No. 2376 (New in 2007) This is a first-class, highly versatile gear grinding machine, in superlative” condition throughout, which may be inspected, in running service, at our customer’s plant facility, by appointment. -The machine would require acquisition & adaptation of an appropria ...
max. wheel diameter:50 mm gear width:20 mm max. module:4 mm min. module:0,1 mm total power requirement:12,5 kW weight of the machine ca.:4000 kg dimensions of the machine ca.:2,2 x 2,5 x 2,3 m workpiece length - max.:300 mm

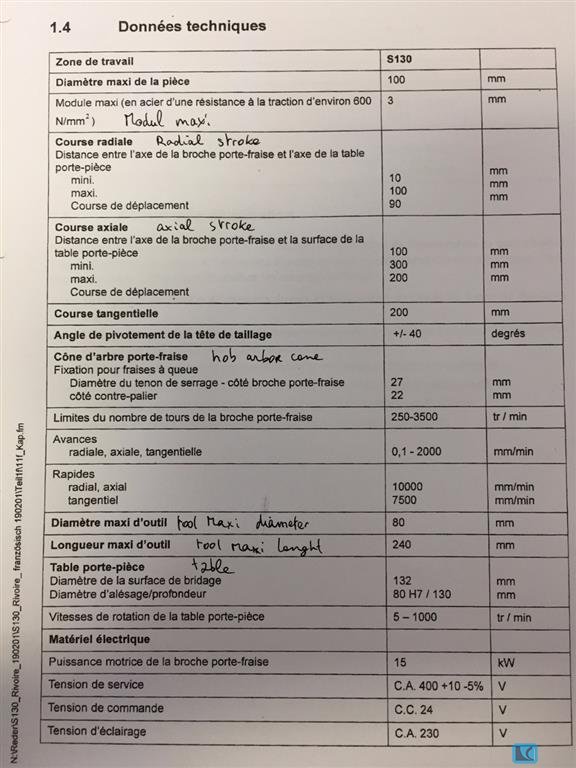

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...
grinding diameter:250 mm grinding length:2710 mm max. module: min. module: total power requirement:45 kW weight of the machine ca.:15 t space required L x W X H:7,1 x 4,7 x2,7 m max. wheel dia.:450 mm Spindle drives Arena Siemens For Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.
Control: Siemens 840 D weight of the machine ca.: 13,5 t dimensions of the machine ca.: 7m x 4m x 2,75m m Accessories: Coolant tank Grinding wheels Various spare parts Operating and maintenance instructions CE conformity Dimensions: 7x4x2.75 m ( LxWxH) TECHNICAL DATA: Workpiece data: max. outer diameter: 250 mm with max. grinding wheels Ø 450 mm max. diameter to be machined over table: 375 mm Profile depth for dressable grinding wheels: 40 mm max. workpiece length: 3,600 mm max. distance between centers (1): 2,800 mm max. bevel angle: +/- 90° Number of teeth of the workpiece: 1 - 999 max. weight of the workpiece: 250 kg Working area: Center distance between workpiece and tool spindle: 355-170 mm Radial travel: 185 mm Axial travel: 3,000 mm Swivel angle: +/- 90° The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
