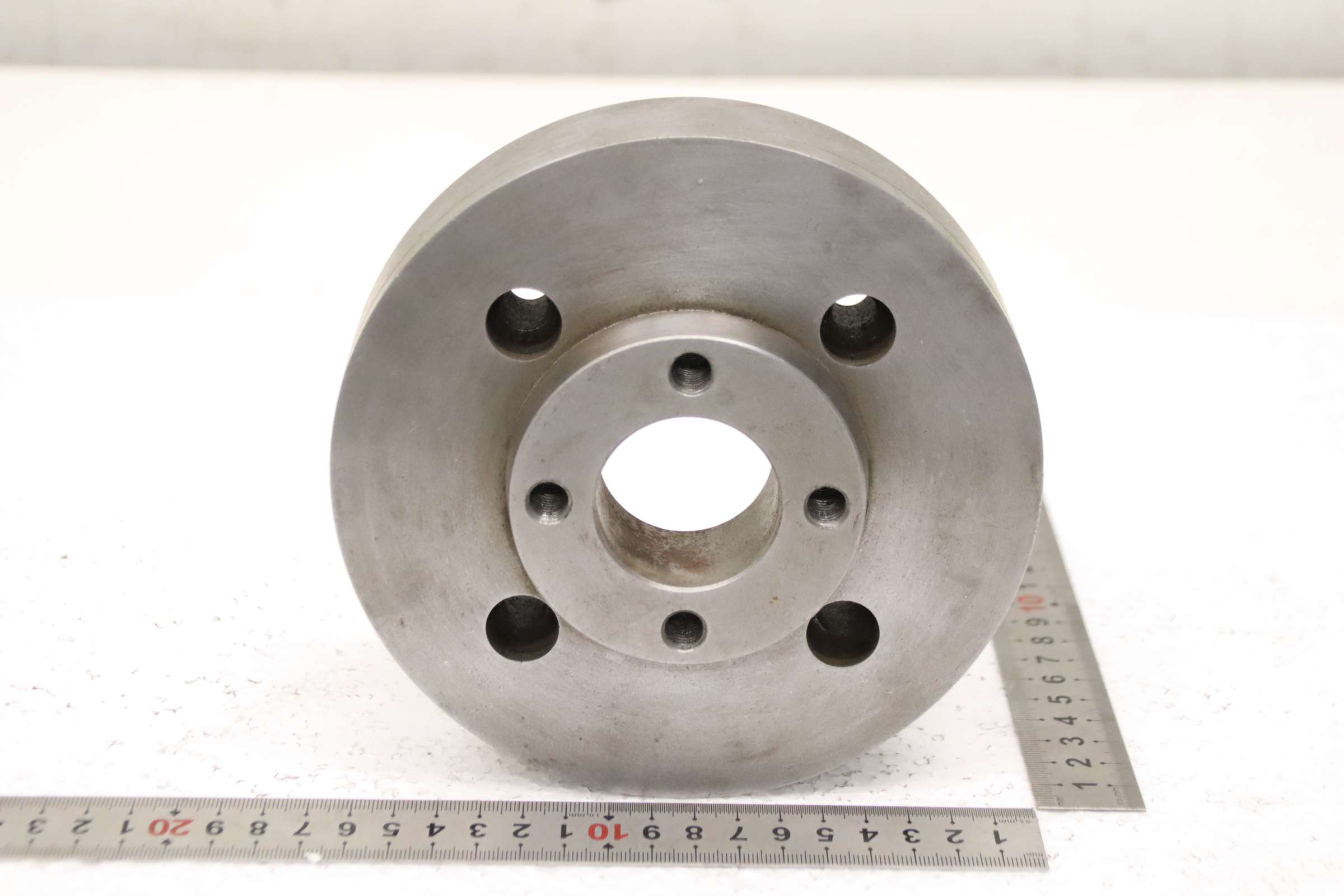

Chuck flange, flange mount, lathe chuck flange, driving flange-Chuck flange: for three-jaw chucks, four-jaw chucks, face plates-Outer: Ø 210 mm-Inside: Ø 76 mm-Take: short taper 6, cone Ø 105 mm-Dimension: Ø 210 x 65 mm-Weight: 3.5 kg

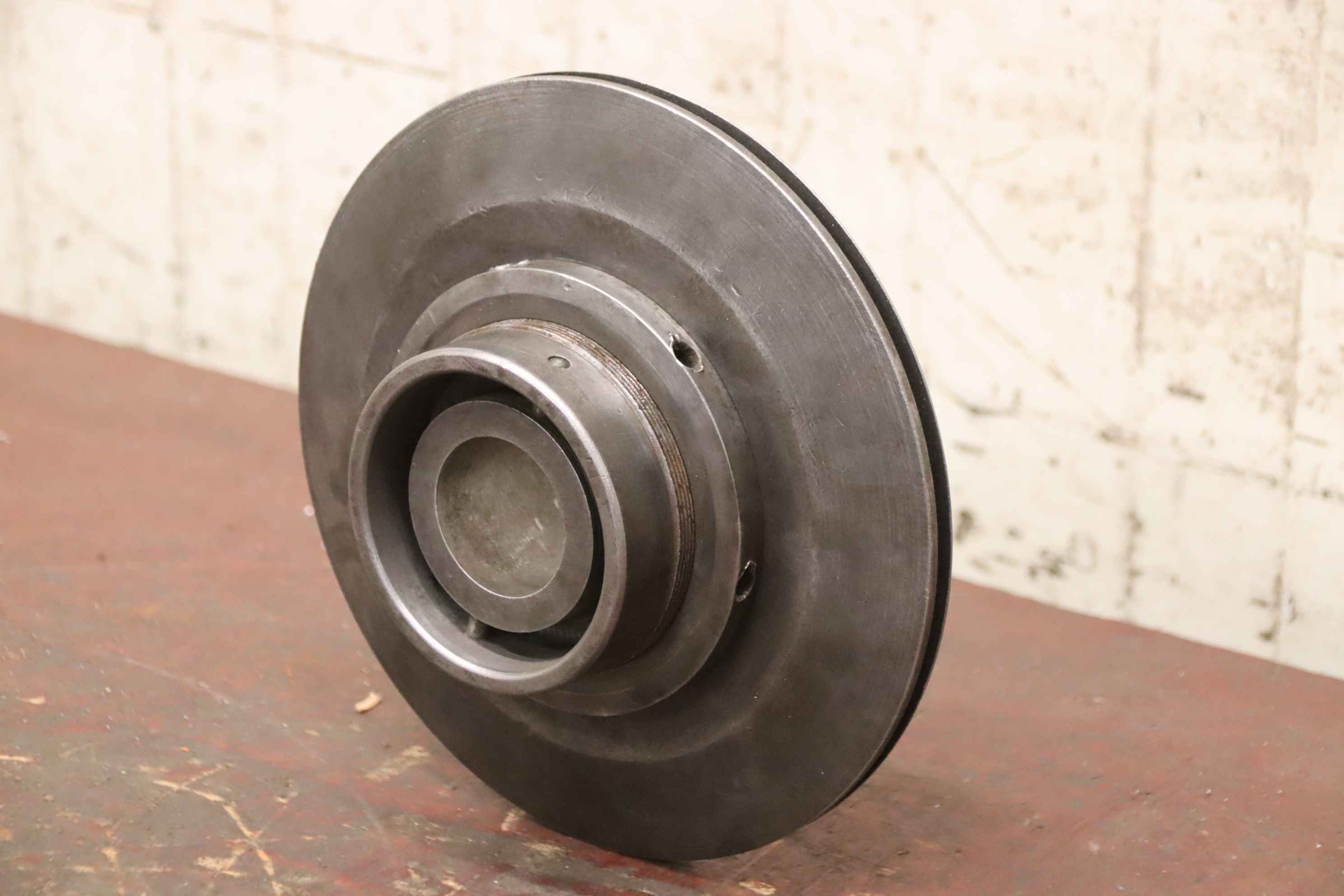

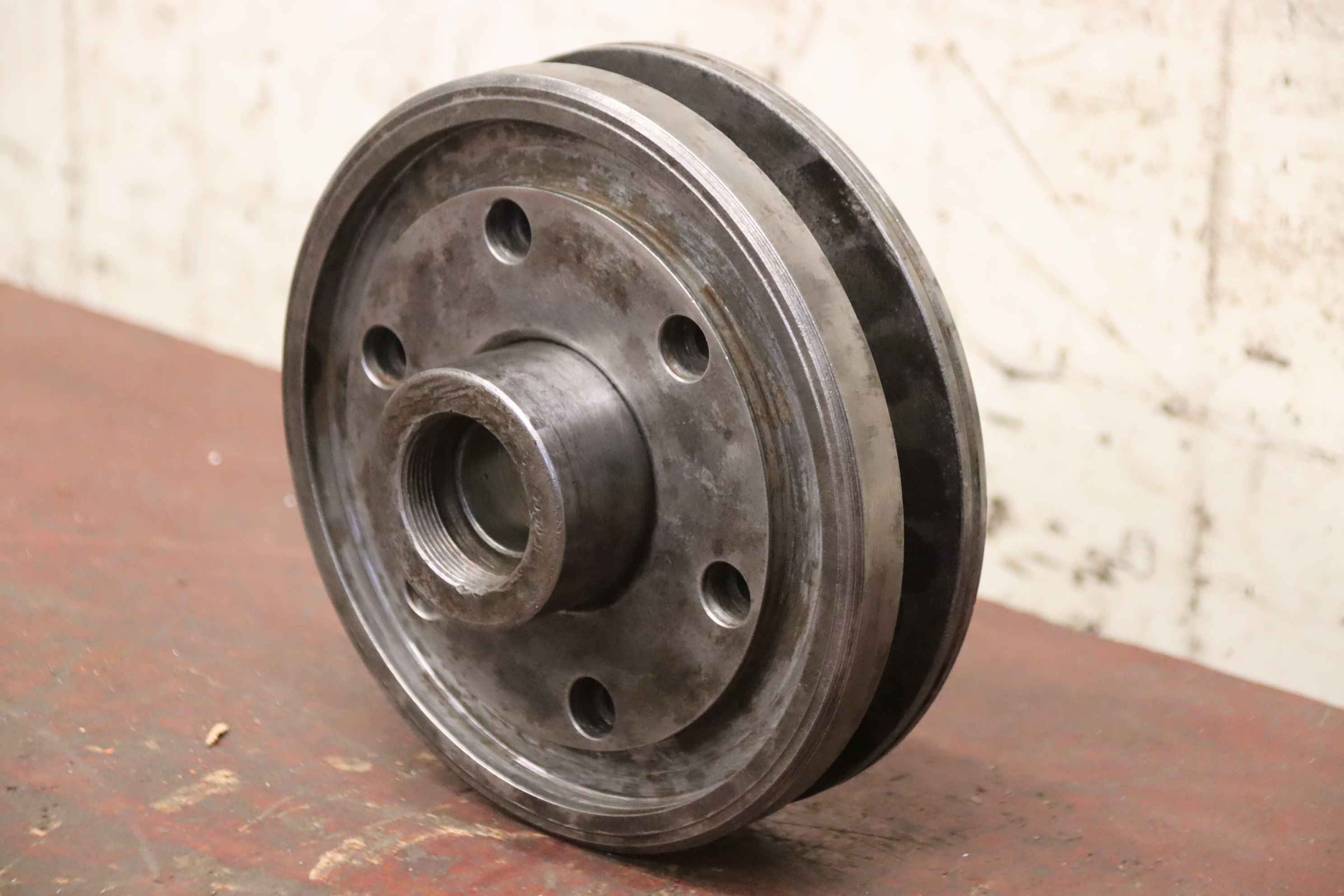

Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: Holder: Ø 127 mm-Mounting: Hole shaft cone Ø 30-39 mm-Type designation: not available-Dimensions total Ø 180 x 75 mm-Weight: 5.9 kg

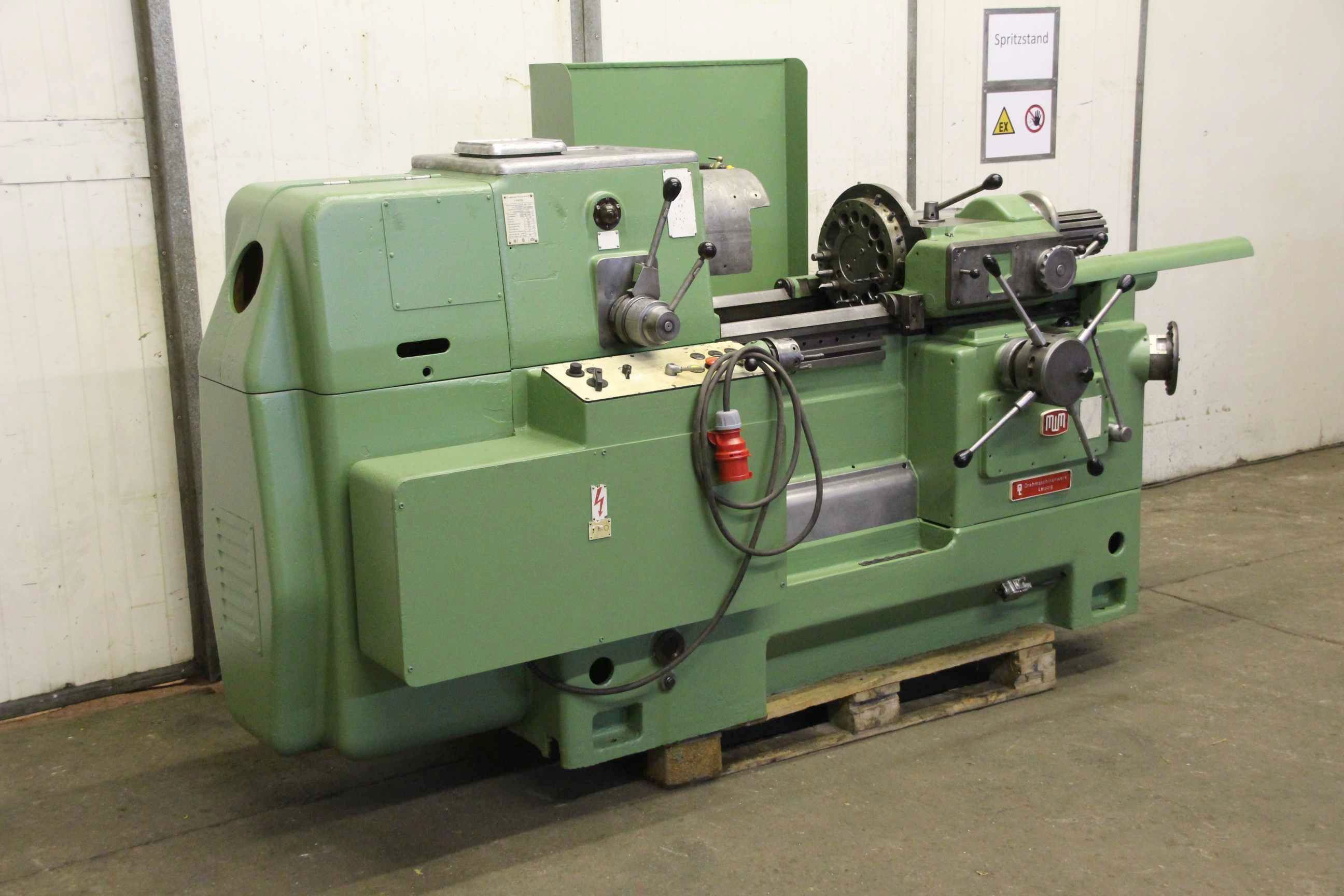

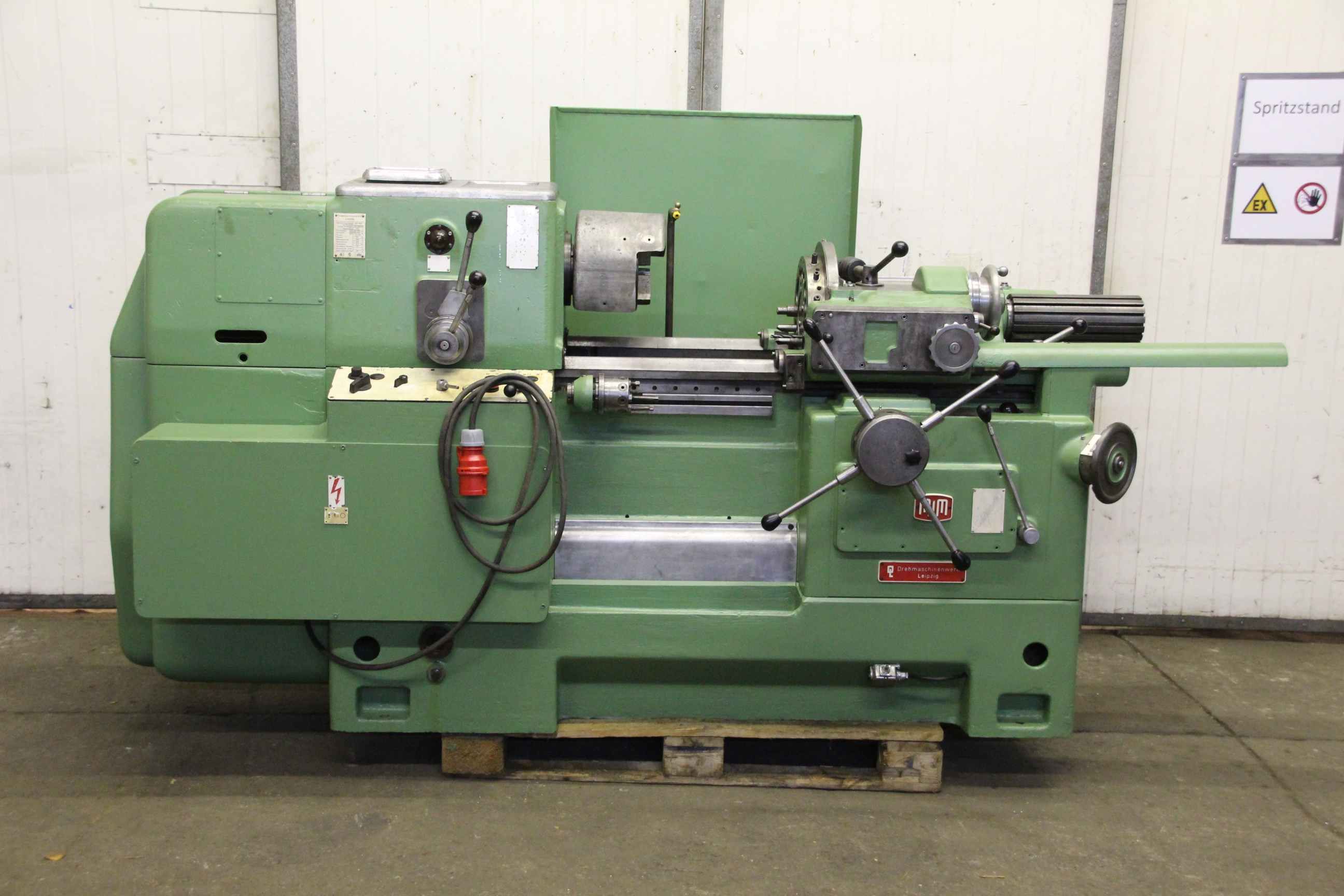

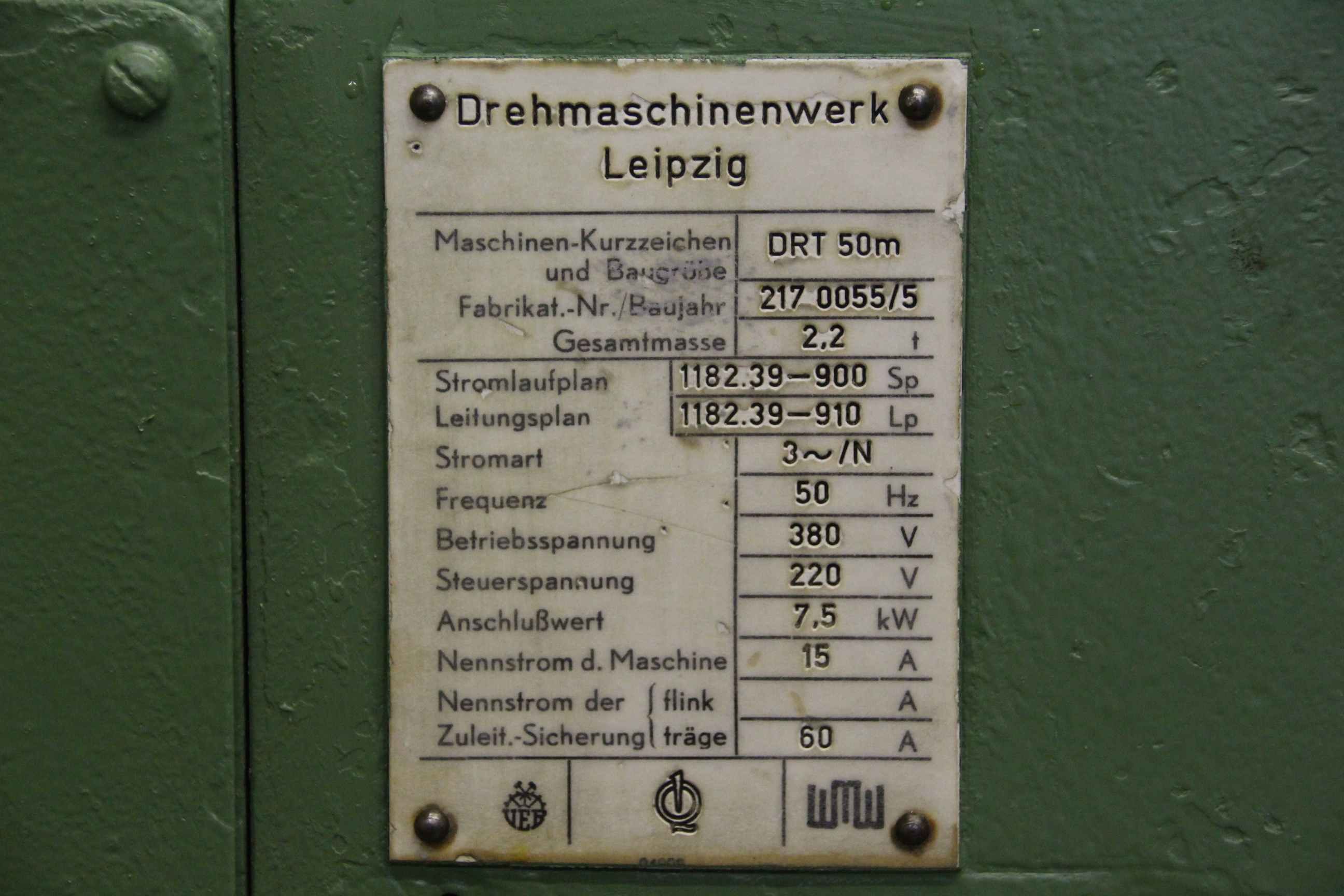

Heavy-duty lathe, lathe, lathe, lead and tension spindle lathe, lead and tension spindle lathe, automatic lathe-Manufacturer: WMW, automatic lathe type DRT 50m-Turning length: 550 mm-Turning Ø over bed: 530 mm-Spindle bore: Ø 63 mm-Spindle speeds: 9 - 450 rpm-Three jaw chuck: Ø 200 mm-Turret: with accessories, see photos-Drive motor: 5.3 / 6.8 kW-Dimensions: 2420/1040 / H1460 mm-Weight: 2200 kg
Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: Holder: Ø 127 mm-Mounting: Hole shaft cone Ø 50-60 mm-Type designation: not available-Dimensions total Ø 180 x 90 mm-Weight: 8 kg
Chuck flange, flange mount, lathe chuck flange, drive flange -Muck flange: for three-jaw chucks, four-jaw chucks, faceplates -Outer diameter: Ø 300 mm -Reference: Short cone 8 (139.8 mm) -Dimensions: Ø 300 x 100 mm -Weight: 14 kg
turning diameter:200 mmturning height:120 mmweight of the machine ca.:18 tAvailable from 01.08.2024
Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: holder Ø 213 mm-Mounting: Hole shaft cone Ø 56-59 mm-Type designation: not available-Dimensions total Ø 260 x 120 mm-Weight: 14.3 kg

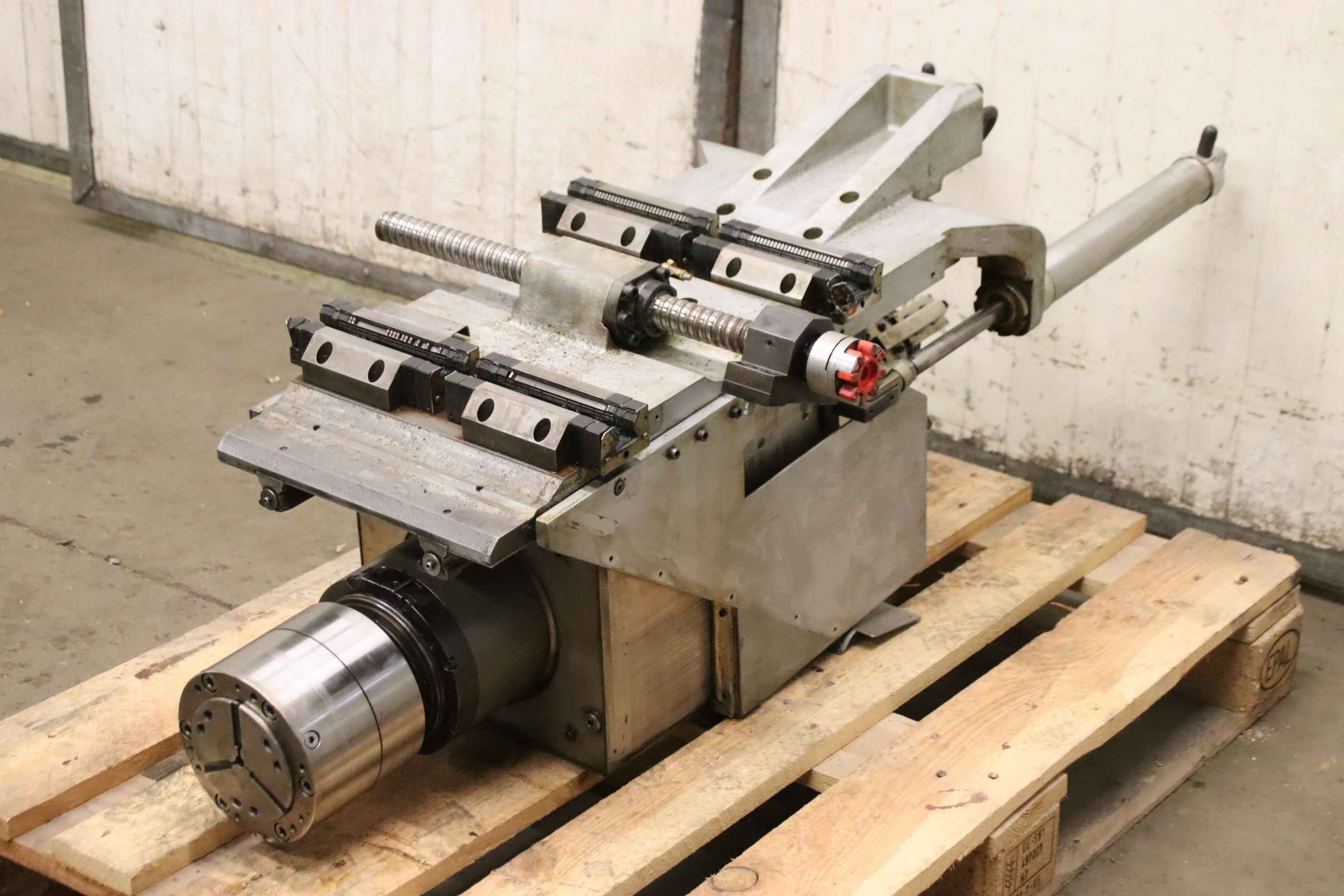

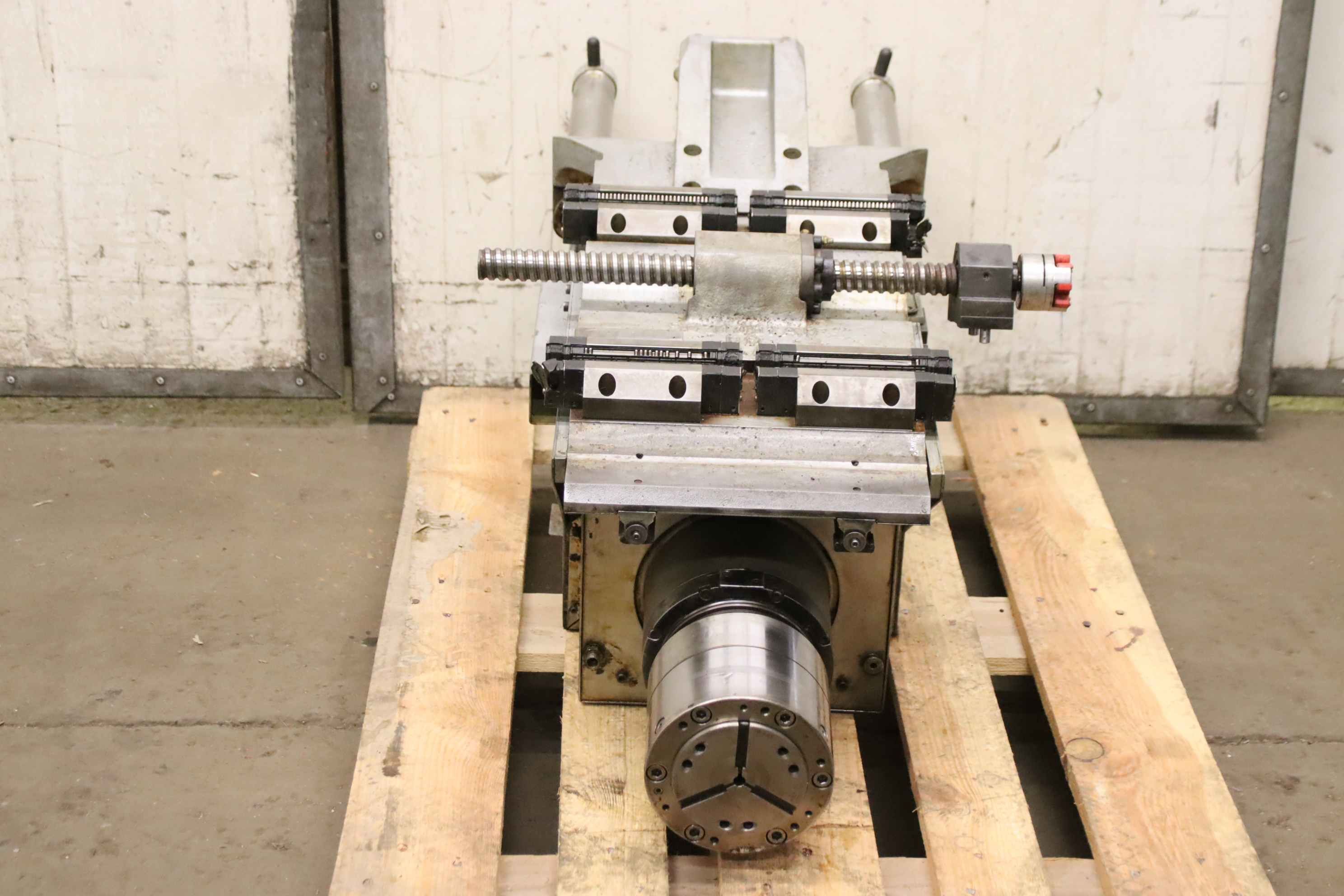

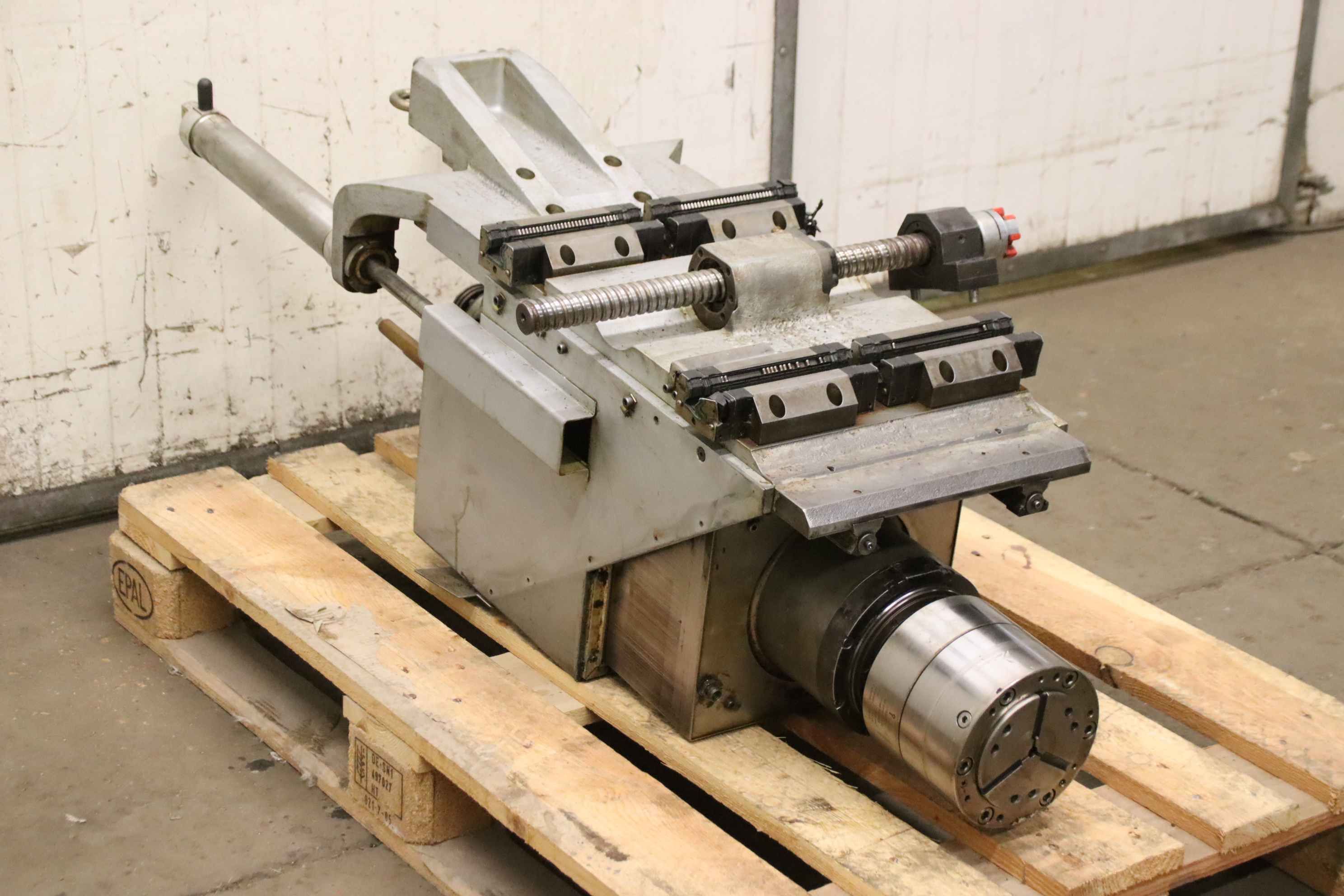

spindle head for lathe, lathe spindle head, lathe spindle head-Manufacturer: Scherer, spindle head from vertical lathe VDZ 80-Clamping head: Hainbuch SK80BZIG SP.0219.0034.00-Clamping device: SMW Autoblok Cil.85 SIN-S no-cc-Individual components: see photos-Price/Delivery: complete-Dimensions: 1350/560/H495 mm-Weight: 330 kg
Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: Holder: Ø 127 mm-Mounting: Hole shaft cone Ø 49-64 mm-Type designation: not available-Dimensions total Ø 210 x 125 mm-Weight: 10.9 kg
Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: holder Ø 163 mm-Mounting: Hole shaft cone Ø 44-54 mm-Type designation: not available-Dimensions total Ø 220 x 85 mm-Weight: 8 kg

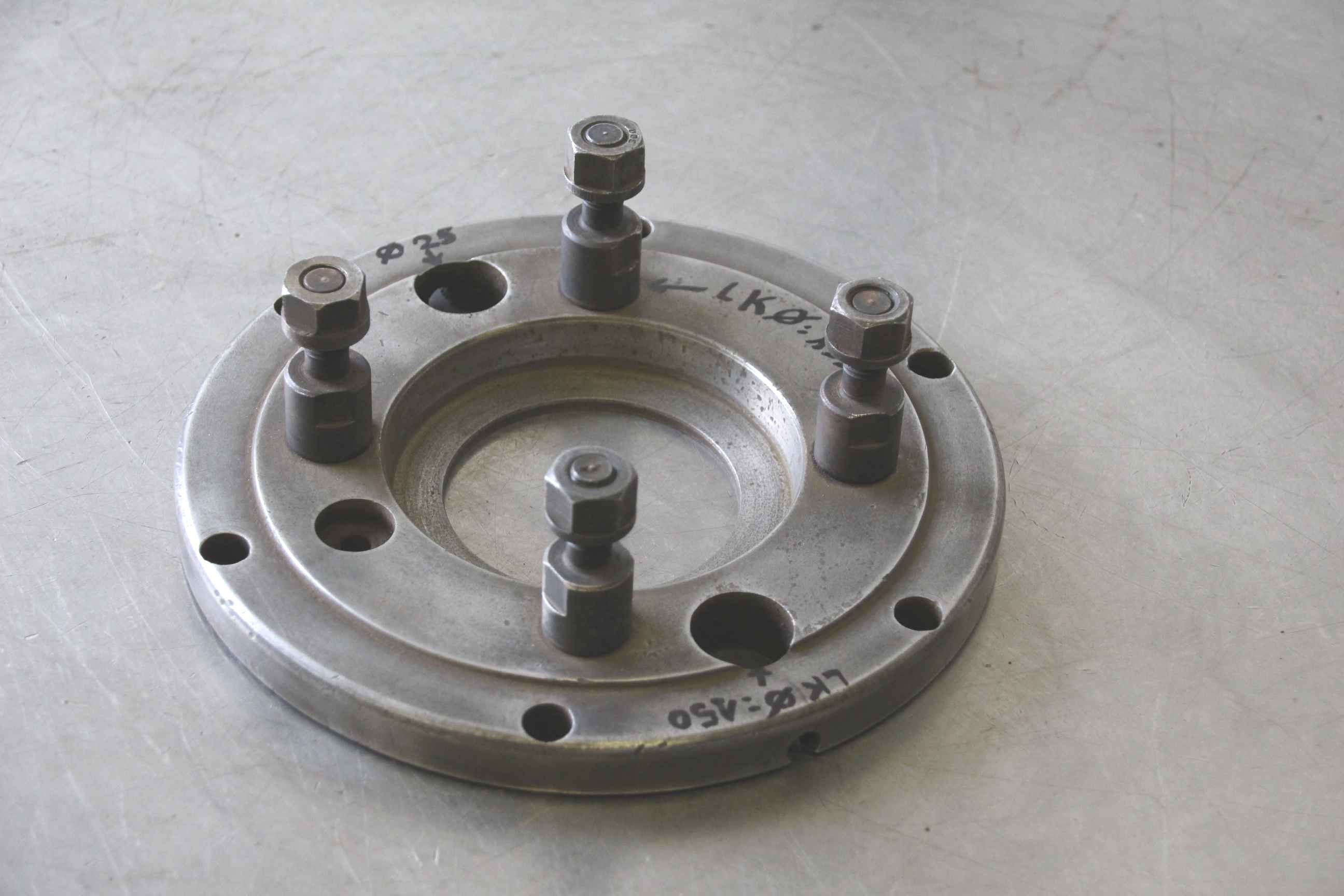

Chuck flange, flange mount, lathe chuck flange, driver flange, intermediate flange-Chuck flange: for three-jaw chucks, four-jaw chucks, face plates-Outer: Ø 210 mm-Inside: Ø 50 mm-Take: cone Ø 138 mm/short cone 8-Dimension: Ø 210 x 85 mm-Weight: 5 kg

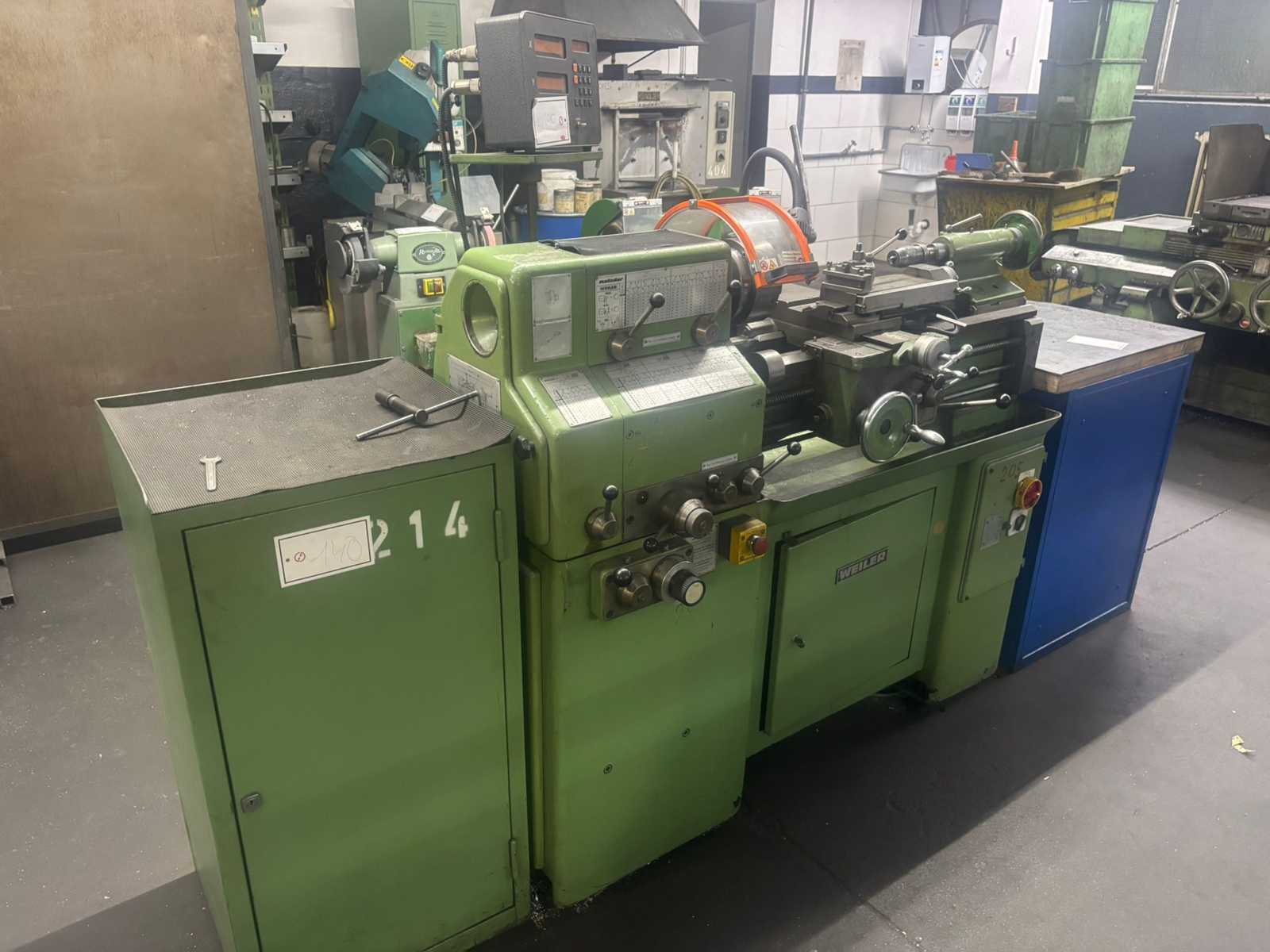

Weiler Matador with 2-axis digital display & accessories Multifix A Turning Length: 500 Rotation height: 200 Passage: 50
Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: holder Ø 213 mm-Mounting: Hole shaft cone Ø 44-54 mm-Type designation: not available-Dimensions total Ø 230 x 85 mm-Weight: 10.3 kg

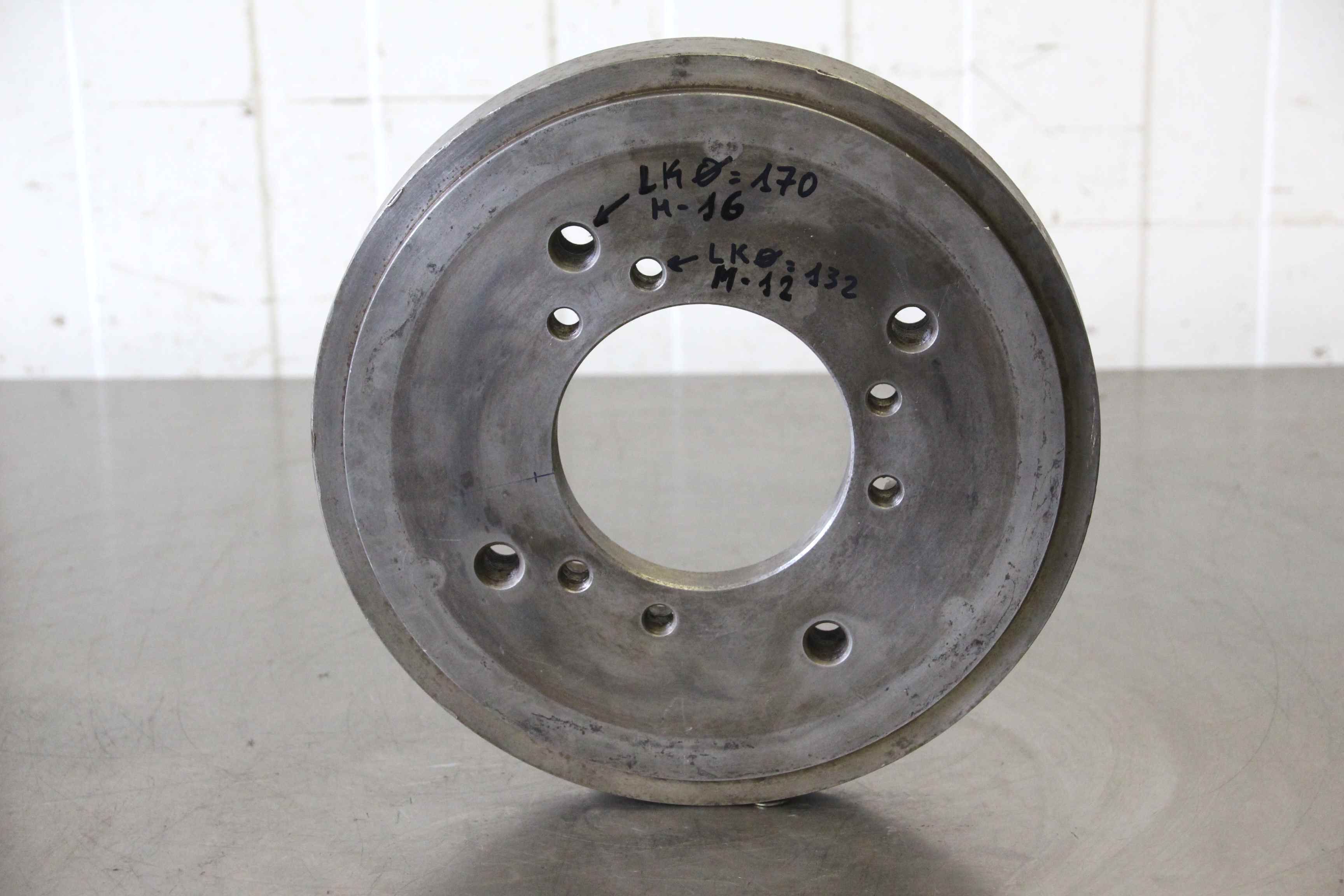

Chuck flange, flange mount, lathe chuck flange, driver flange, intermediate flange-Chuck flange: for three-jaw chucks, four-jaw chucks, face plates-Outer: Ø 280 mm-Inside: Ø 105 mm-Take: cone Ø 138 mm/short cone 8-Dimension: Ø 280 x 35 mm-Weight: 13 kg
turning diameter:1000 mmswing diameter:1000 mmMachine type: Vertical latheManufacturer: HessappType: DV 62Serial no.: 14.2308Working range of the spindleLargest diameter 1000 mmLargest swing diameter 1000 mmCross slide travelStroke of the vertical slide 900 mmStroke of the horizontal slide 1810 mmTotal travel 2315 mmTurning spindleSpindle head with centering cone according to DIN 55021 A15Spindle diameter in the front bearing 203 mmMain driveVia a controlled asynchronous motor and gear transmissionwith range switching.Spindle speedsSpeed range I: 5 - 350 rpm.Speed range II: 30 - 1000 rpm.Travel speedX/Z axis: 10 m/min.W1 axis: 8 rpmNo C-Axis

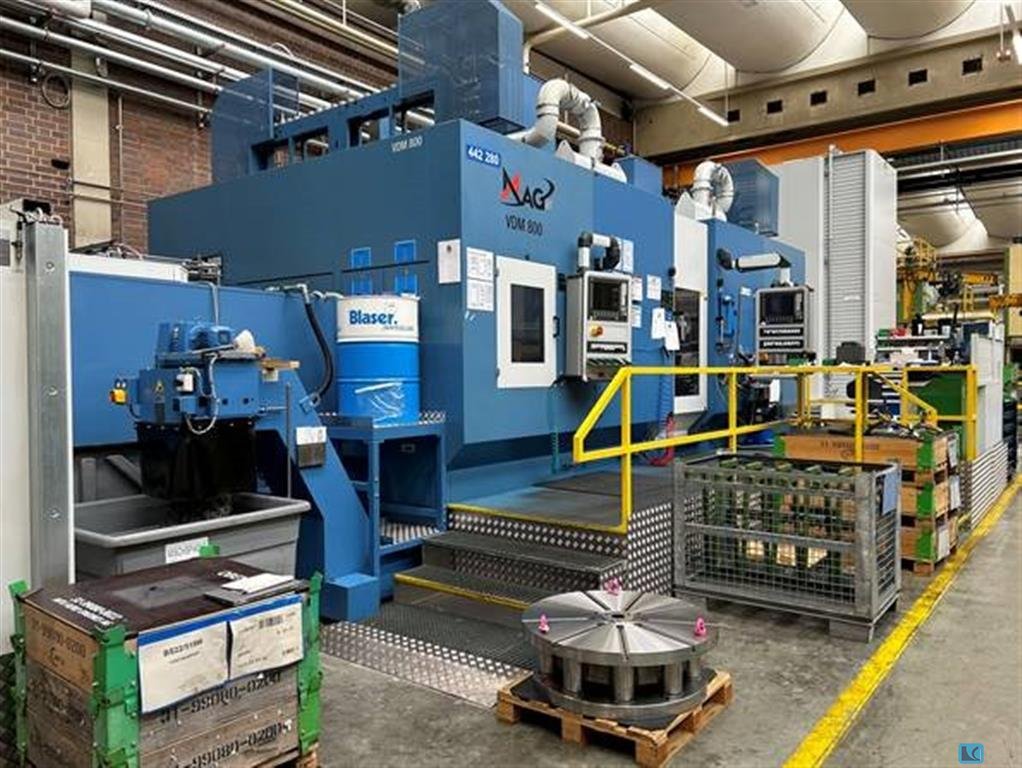

faceplate diameter:800 mmpower requirement:110 kWweight of the machine ca.:37.000 / total 52.000 ttransport measurements machine:5,07 x 2,98 x 3,90 mclamping diameter:800 mm:Ø 800 x 720 mmTool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis
faceplate diameter:1600 mmpower requirement:80 kWweight of the machine ca.:25 tdimensions of the machine ca.:4,4 x 4,62 mmax. workpiece diameter:2000 mmmax. diameter of face turning:1800 mmtool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis
Working space: Max. swing diameter: 525 mm Max. turning diameter: 300 mm Max. turning length: 497 mm Bar work up to a diameter of max. 65 mm Main spindle: Speed range: 35 – 4,000 rpm Main drive power: 18.5 KW Constant torque: 350 Nm Spindle nose: A2 – 8 inches Spindle bore: 76 mm Spindle positioning c – axis: 0° - 360°/0.001° Tool turret: Number of tool positions: 12 (can be equipped with fixed and driven tools as required) Turret switching time: - 1st station: approx. 0.2 s Powered tools: Drive power: 3.7 KW Max. torque: 35 Nm Speed range: 25 – 4,500 rpm Travels: Turret travel: x – Axle: 180 mm z – axis: 575 mm y – axis: 100 mm (+- 50 mm) Travel speed: Rapid traverse: x – axis: 30 m/min z – axis: 12 m/min c – axis: 400 rpm Feed range: x/y/z – axis: 0 – 5,000 mm/min c – axis: 1° - 2,000°/min Tailstock: Quill stroke: 150 mm Recording: MK 5 Tailstock trav ...
turning diameter:270 -300 mmturning length:710 mmtotal power requirement:43 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:3,16 x 2,15 x 2,15 mThe machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

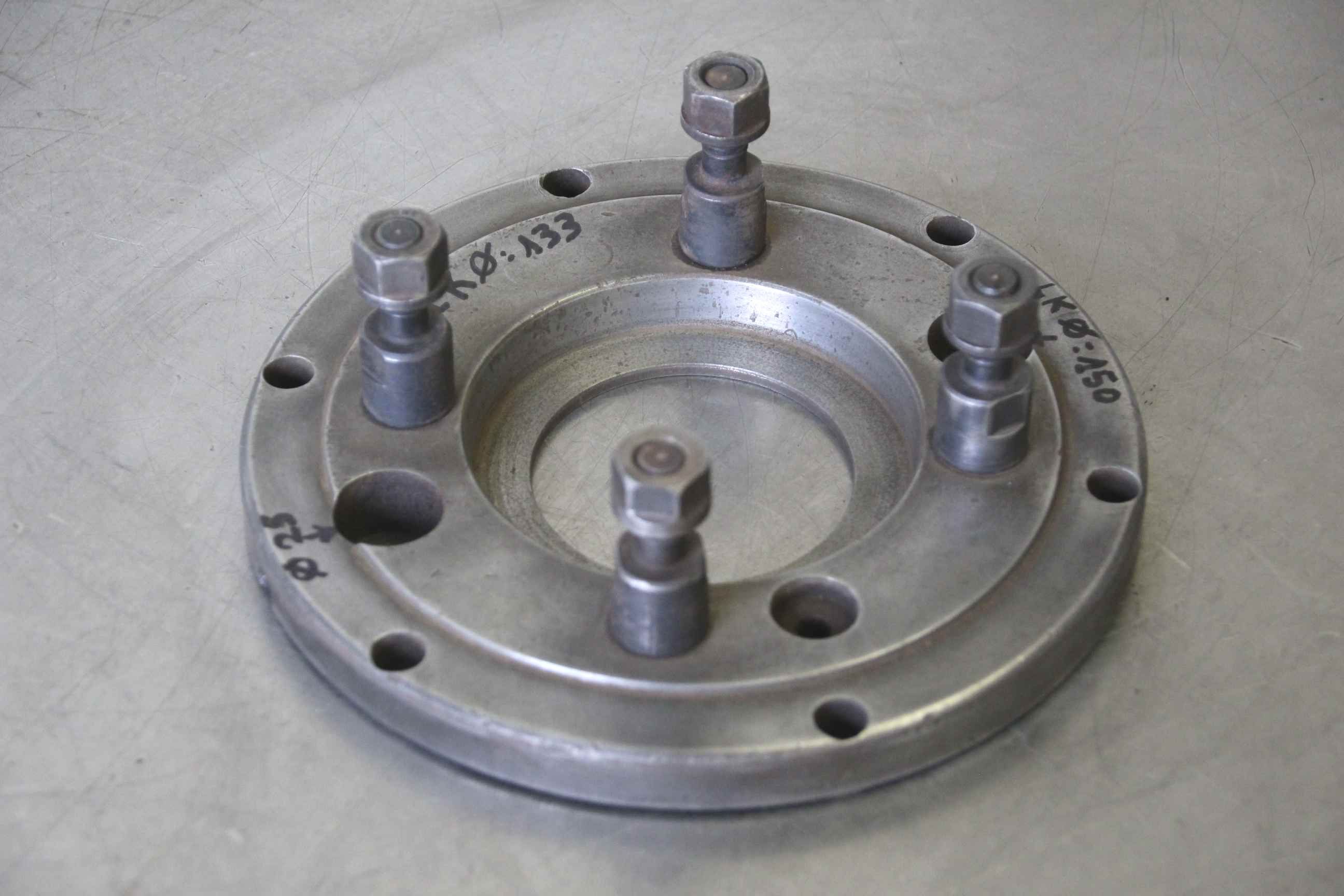

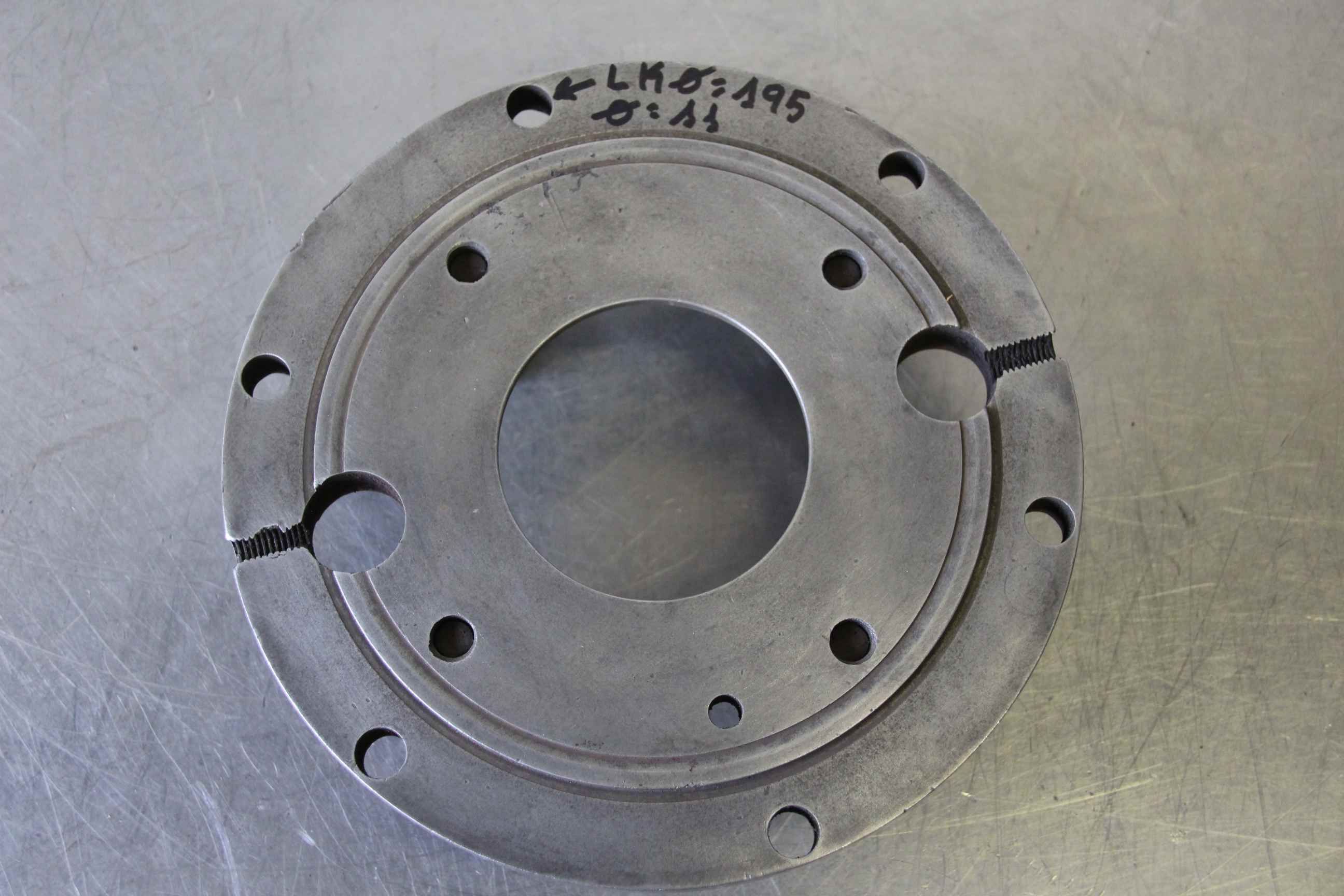

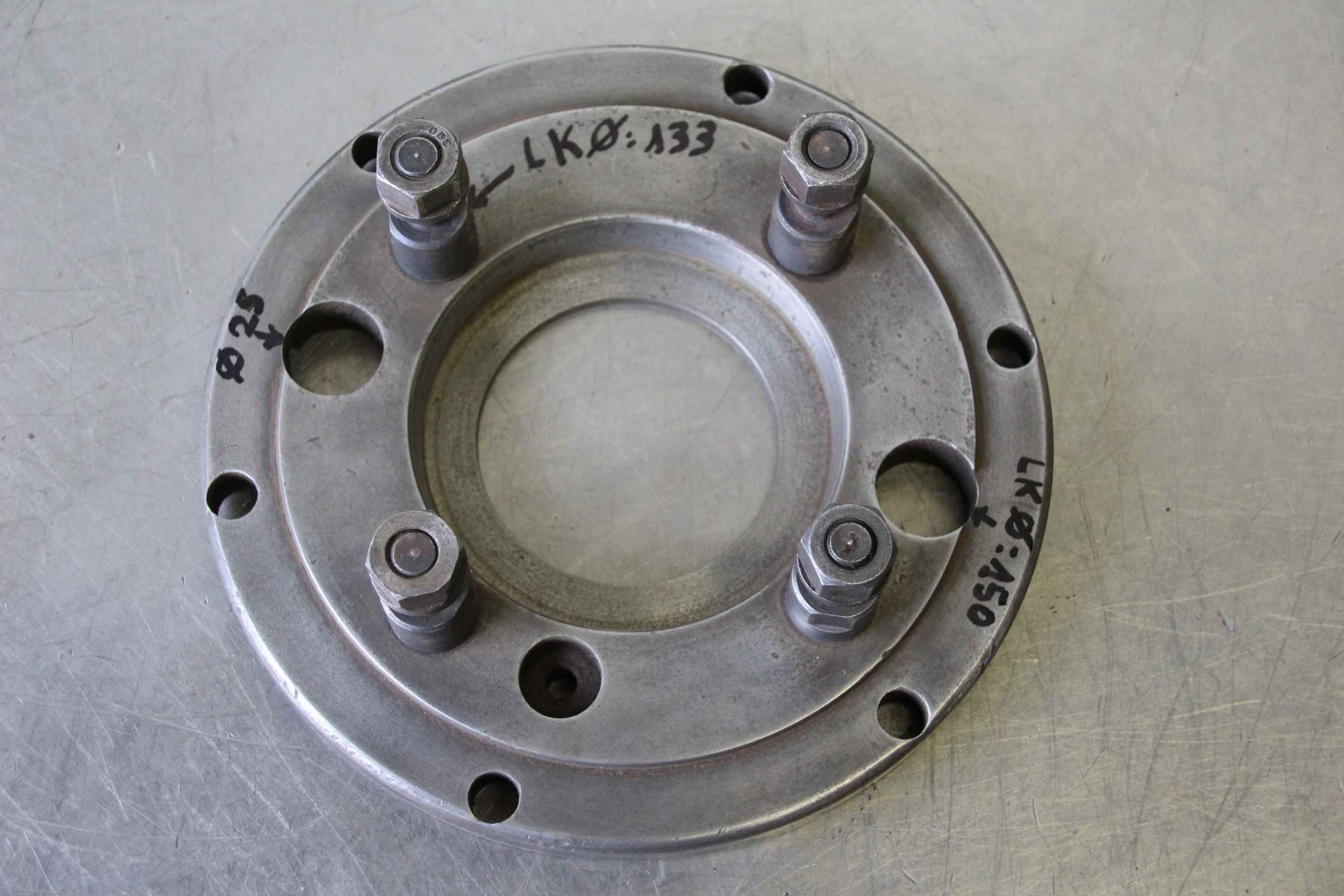

Chuck flange, flange holder, lathe chuck flange, driving flange, intermediate flange, lathe chuck face plate, mounting flange -Chuck flange for: driving heart, three-jaw chuck, four-jaw chuck, face plate -Outside: Ø 260 mm -Adapter: short cone size 6 (Ø103-105 mm) -Bolt circle: Ø 133 mm -Dimensions: Ø 260 x 140 mm -Weight: 11.2 kg
machine is already ready for transport and can be assessed on viewing day
turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!
turning diameter:220 mmturning length:310 mmtotal power requirement:17 kWweight of the machine ca.:3,3 tdimensions of the machine ca.:2,25 x 1,63 x 1940 mgreates pass round over bed:430 mmbore diameter:45 mmcentre distance:687 mmslide travel radial ( X-axis ):160 mmslide travel axial ( Z-axis ):310 mmspindle turning speed range:0-6.300 U/min
turning diameter:220 mmturning length:700 / 665 mmtotal power requirement:17 kWweight of the machine ca.:2,6 tdimensions of the machine ca.:2,63 x 1,98 x 1,94 mgreates pass round over bed:430 mmPart length max.:510 slide travel radial ( X-axis ):160 mmbore diameter:45 mm

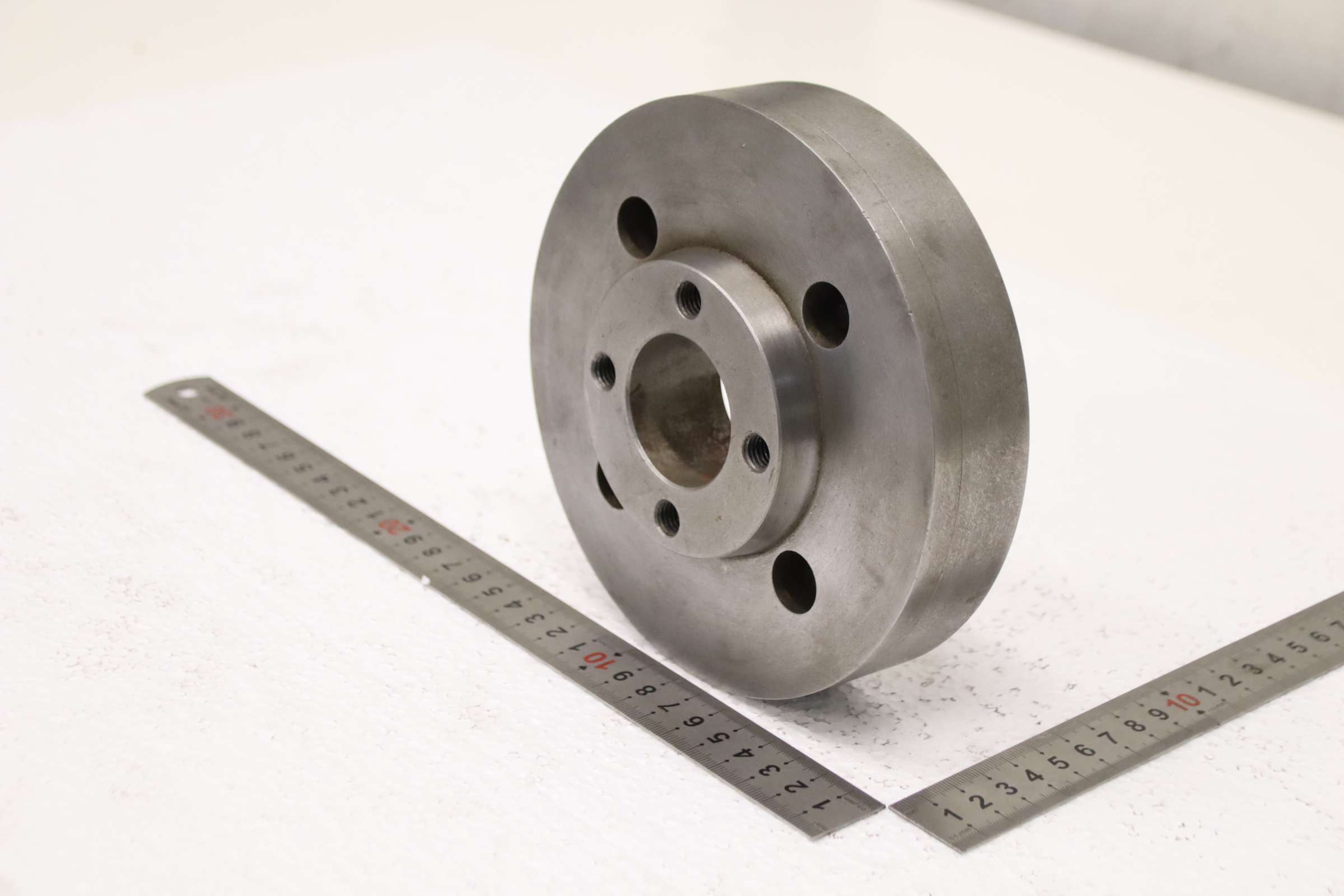

Chuck flange, flange mount, chuck flange, drive flange, intermediate flange, chuck faceplate, mounting flange -Muck flange: Mounting flange for three-jaw chucks, four-jaw chucks, faceplates -Outer diameter: 162 mm -Socket: Short cone 5, cone Ø 79 - 82 mm -Hole circle: Ø 105 x 10 mm / Ø 62 mm M10 -Passage: Ø 41 mm -Dimensions: Ø 162 x 48 mm -Weight: 4.7 kg
1.750 €
