Hand spindle press, mandrel press, spindle press, hand spindle press, printing press, balance printing press -Manufacturer: NEHER, manual spindle press type SPPG-40/100 -Pressure: max. 40,000 kg -Stroke: 600 mm -Intermediate dimension: 715 mm -Spindle mount: Ø 40 mm -Table size: 1100 x 600 mm, groove width mm -Table bore: Ø 120 mm -Dimensions: 1800/1800/H2400 mm -Weight: 1940 kg

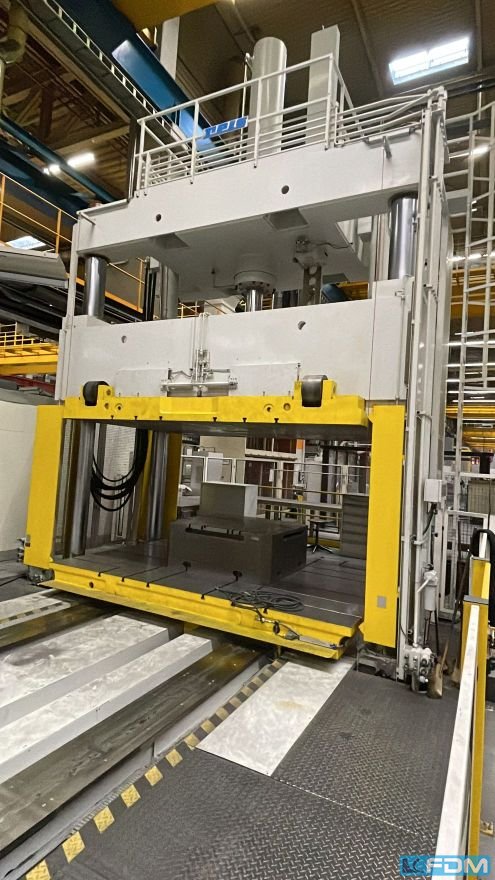

pressure:250 ttable length:4000 mmtable width:3000 mmControls:SIEMENS SIMATIC C7 PRESS DESIGN:. - frame design : 4 column :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):250 toPRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - tool weight max.:100000 kg - number of T-slots:12 - distance between T-slots:375 mm - height above floor level:390 mmRAM:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - number of T-slots:12 - distance between T-slots:375 mm - stroke:2900 mm - tool weight max.:50000 kgRAM (HYDR. PRESS):. - number of main-cylinders:1 - approximation velocity max.:180 mm/s - working velocity max.:50 mm/s - restoring force of ram:95 toTOOL ASSEMBLY DIMENSIONS:. - distance table - ram max.:2750 mm - distance between columns (H-frame):4100 mm - Free passage ...
no. of strokes:150 /minimpact energy:420 kJdistance lower die block / ram gudeway:435 mmThroat:425 mmsteel forging - rectangular up to:110 mmsteel forging - diameter up to:125 mmpower requirement:22,0 kWweight of hammer:3,9 tweight of anvil:3,0 tram hammer weight:200 kgweight:6,9 tdimensions (WxDxH):1,1 x 2,3 x 2,4 m

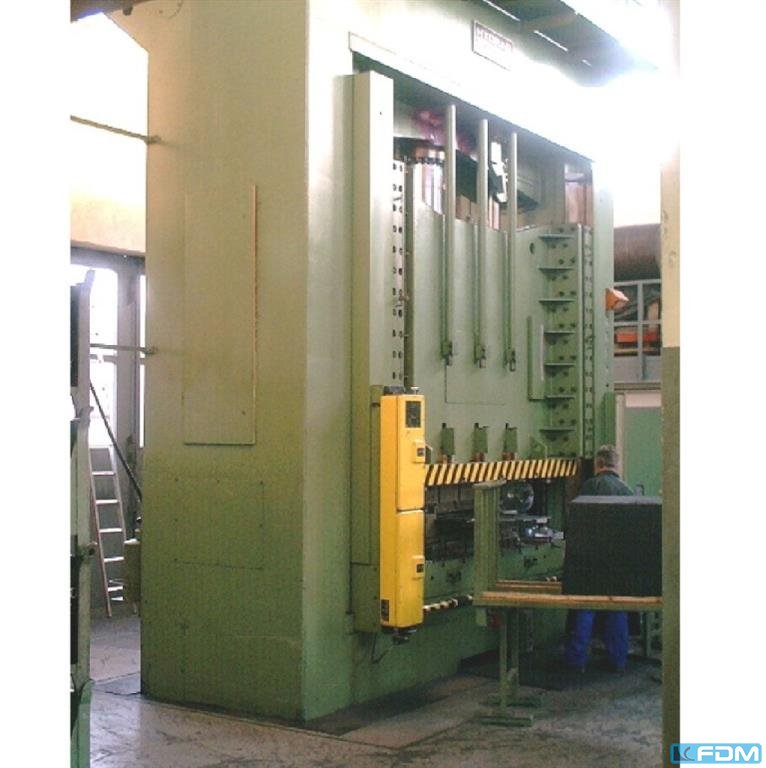

pressure:800 tdistance between columns:2900 mmstroke:350 mmControls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 toPRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mmRAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /minRAM (MECHAN. PRESS):. - ram adjustment:350 mmTOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):256 ...
Pressure:080 tthroat:345 mmstroke:20 - 160 mmno. of strokes:65 /mindistance table/ram, max. stroke up, adjustment up:495 mmtable surface area:920 x 610 mmtable height over floor:800 mmHole in the table:280 mmpassage to the back:670 mmram surface:650 x 400 mmram adjustment:50 mmpower capacity:10,0 kWweight:7,7 tDimensions (WxDxH):1,5 x 2,2 x 3,15 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:hydraulic ram adjustment:motoric

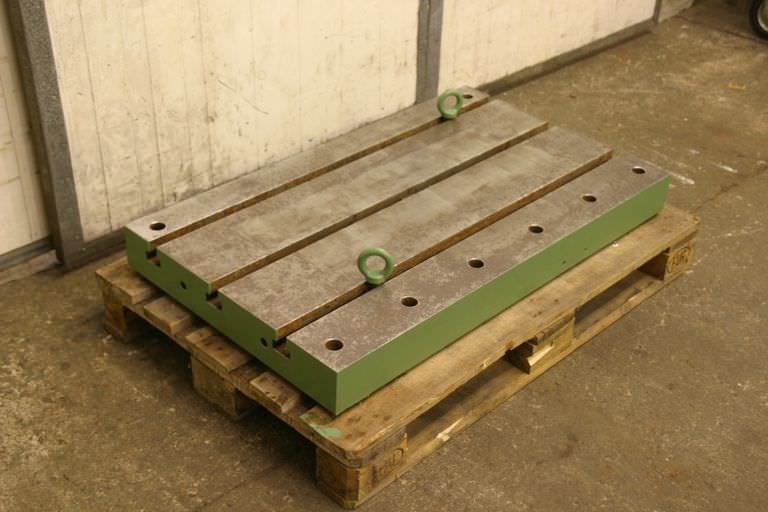

Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring mill, T-slot plate -T-slot plate: for milling machines -Width: 500 mm -Length: 500 mm -Height: 87 mm -Plate: is solid -Groove width: 12 mm -Dimensions: see photo technical drawing -Quantity: 21x mounting plates available Price: per piece -Dimensions: 500/500/H87 mm -Weight: 91 kg/piece
pressure:800 tdistance between columns:1050 mmstroke:200 mmno. of strokes:8 - 25 /mindistance table/ram, max. stroke up, adjustment up:1300 mmSide window:550 mmtable surface area:1030 x 900 mmCapacity of ejector in table:15 tStroke of ejector in table:85 mmram surface:1040 x 800 mmram adjustment:120 mmCapacity of ejector in ram:12 tejector stroke in ram :80 mmpower requirement:36,0 - 112,6 kWweight:65,0 tDimensions (WxDxH):3,0 x 3,1 x 6,07 mejector in table:hydraulic ejector in ram:hydraulic

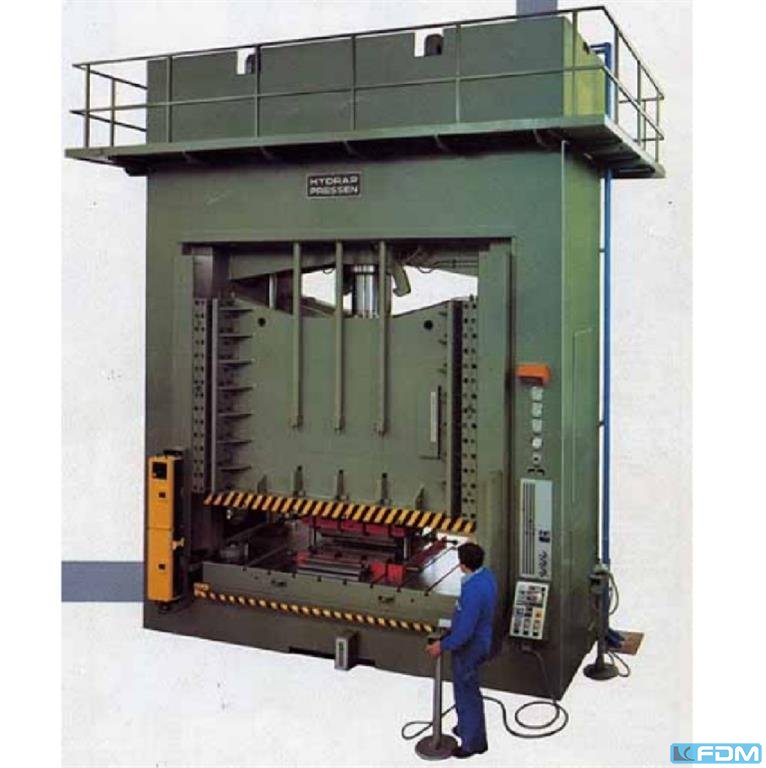

pressure:315 tdistance between columns:2350 mmdistance table/ram, max. stroke up, adjustment up:1200 mmdistance between cutting impact cushioning:1600 mmDistance table/ram, stroke up:1200 mmstroke:800 mmtable surface area:2060 x 1260 mmtable height over floor:750 mmDie cushion pressure in table:100 tDie cushion stroke in table:400 mmdie cushion area:1250 x 1000 mmside window:780 mmram surface:2200 x 1500 mmCapacity of ejector in ram:63 tspeed down:500 mm/sspeed up:310 / 410 mm/sworking speed:20 - 73 mm/squantity of oil:3900 lpower requirement:80,0 + 45,0 kWweight:55,0 tDimensions (WxDxH):4,6 x 2,7 x 7,2 mHeight above floor:6,0 mHeight below floor:1,2 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 die cushion in table:hydraulic ejector in ram:hydraulic ram interlocking:hydraulic cutting impact absorption:hydraulic
pressure:160 tthroat:450 mmstroke:300 mmdistance table/ram, max. stroke up, adjustment up:580 mmtable surface area:1000 x 1000 mmdie cushion capacity:20 tdie cushion stroke:300 mmram surface:700 x 750 mmfeed down:400 mm/sfeed up:400 mm/stable height over floor:1350 mmdie cushion area:Ø 350 mmpower capacity:55 + 11 kWweight:19,5 tDimensions (WxDxH):1,5 x 3,5 x 4,6 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulisch depth stop:mechanisch

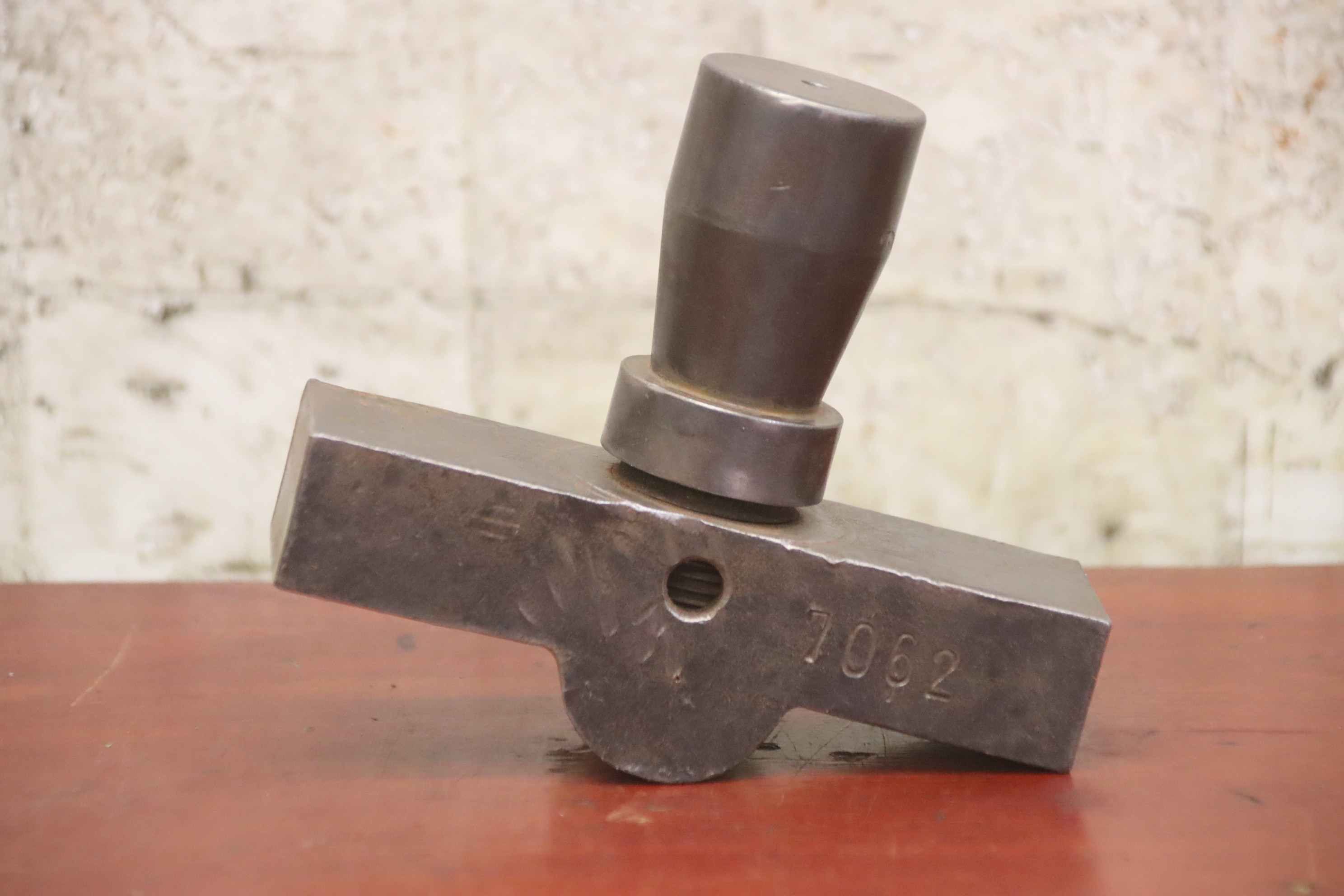

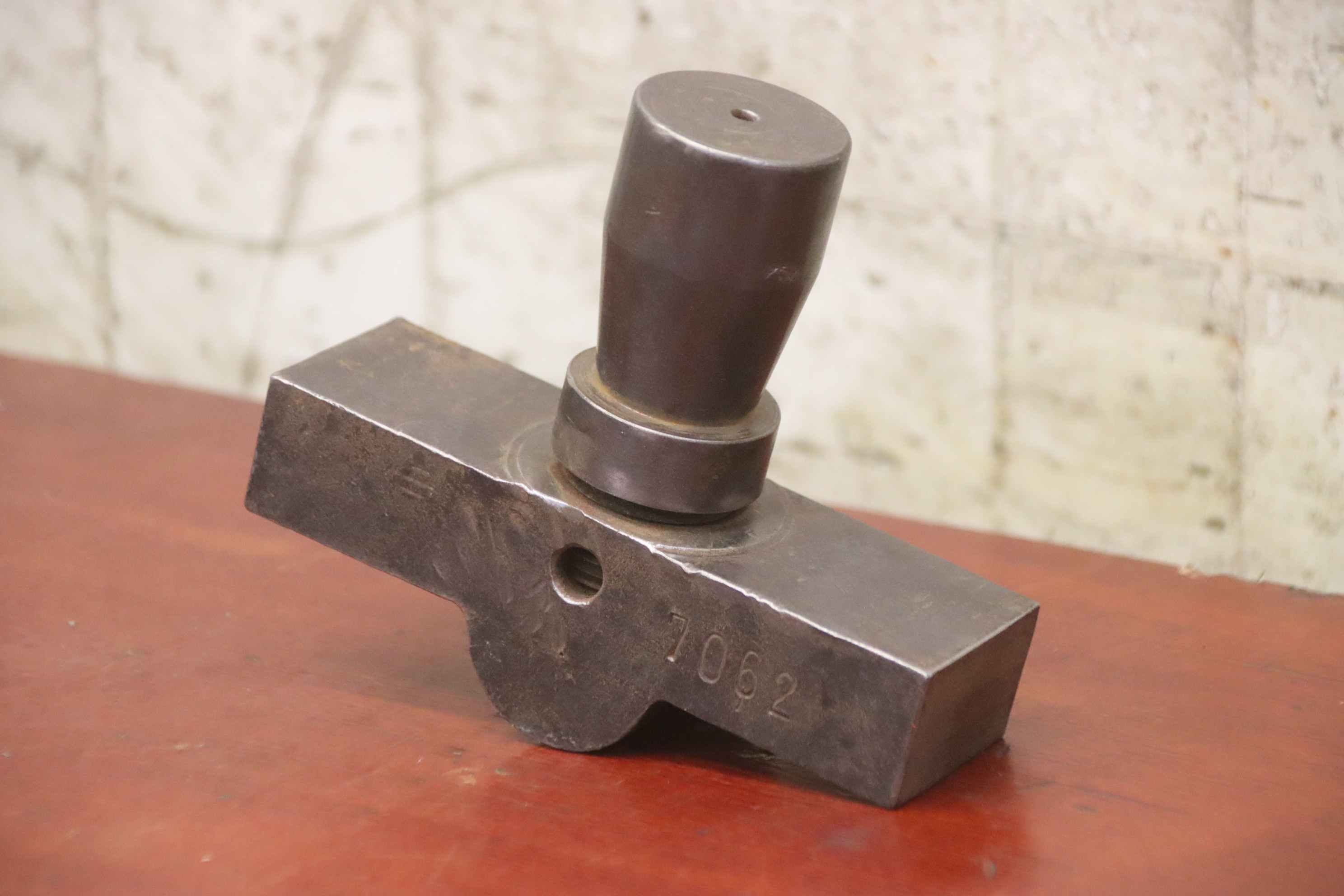

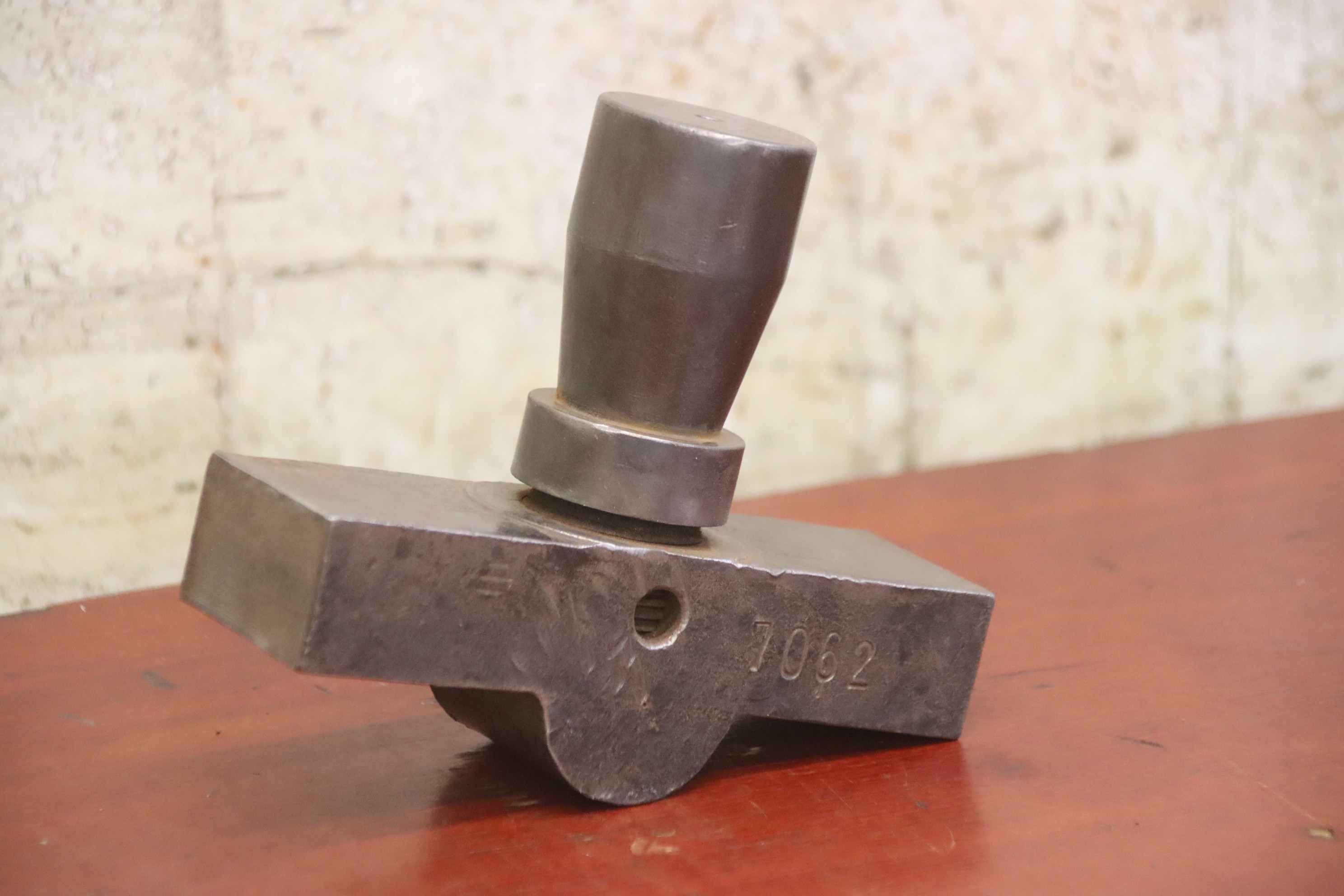

Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool-Die tool: forming tool / press tool clamp press tool-Receptacle: Ø 40 mm-Profile: Radius 20 mm-Dimensions: 140/46/H120 mm-Weight: 2.2 kg

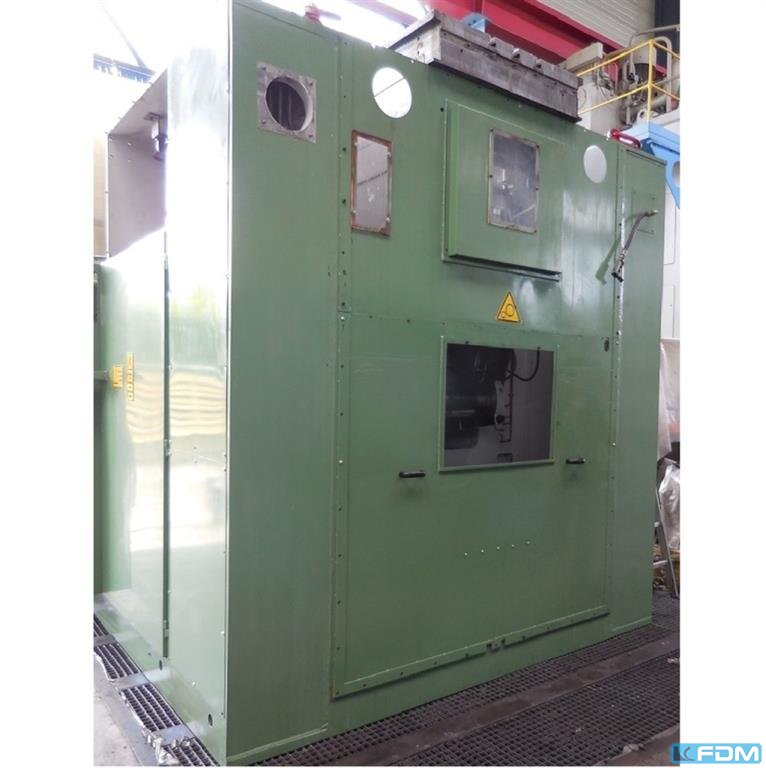

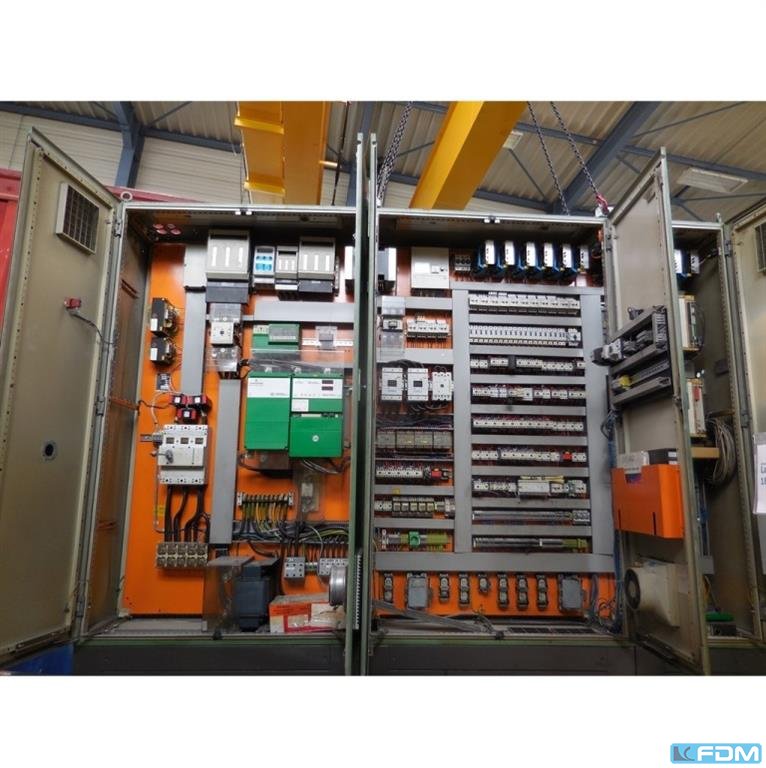

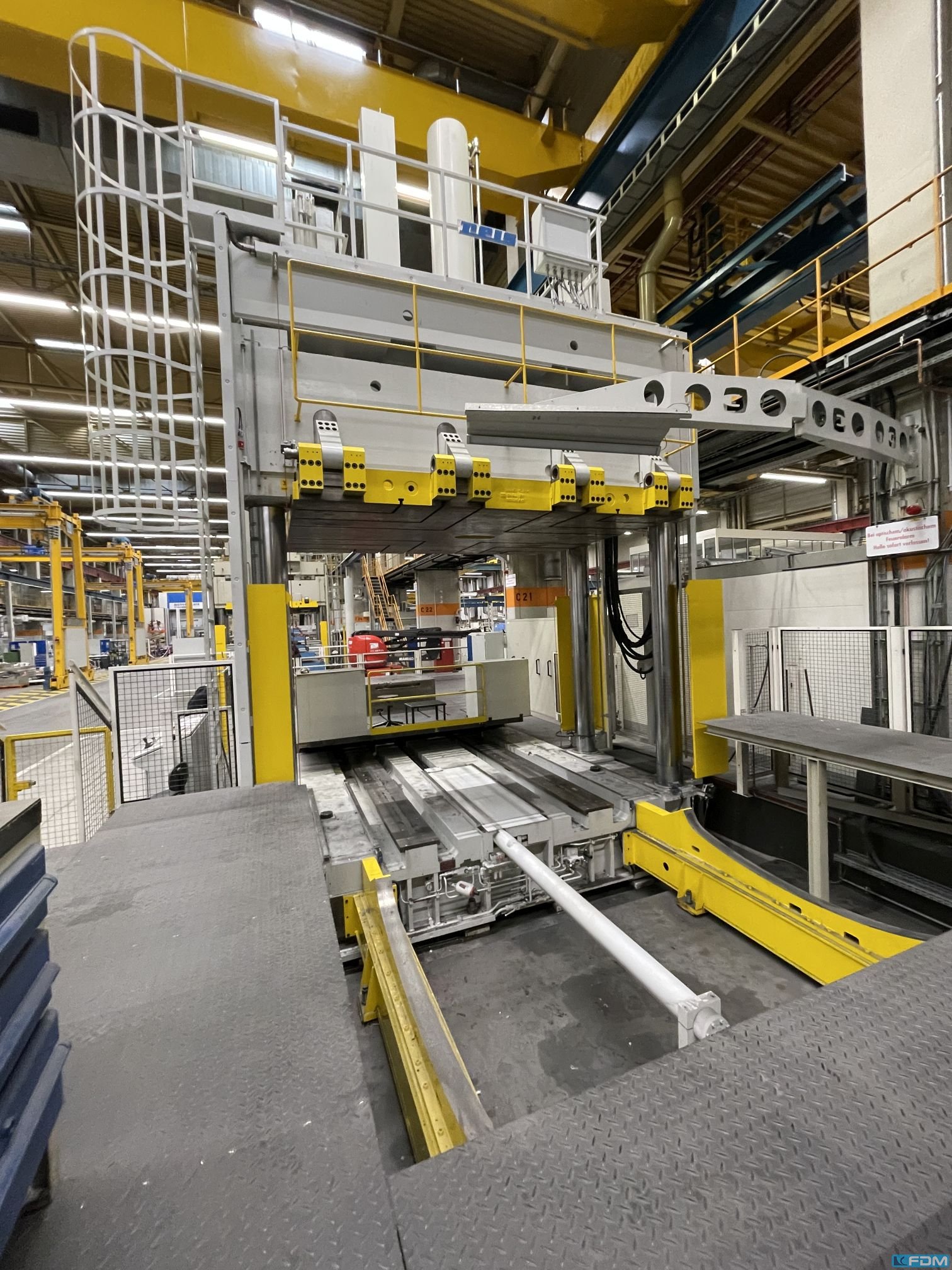

pressure:1000 ttable length:4000 mmtable width:1600 mmControls:SIEMENS S7-1500F PRESS DESIGN:. - frame design : Transfer press :. - Drive type : mechnical :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. - number of tables:2 PRESS FORCES:. - total force (nominal):1000 toPRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):1600 mm - height above floor level:600 mm - autom. tool clamping device : yes :. RAM:. - stroke:400 mmRAM (MECHAN. PRESS):. - ram adjustment:300 mm - ram adjustment:100 mm - number of strokes min:8 /min - number of strokes max:50 /min - hydraulic overload protection : yes :. TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):900 mm - shut height (stroke down, adjustment up):766 mm - distance between columns (H-frame):4250 mm - Free passage between ...

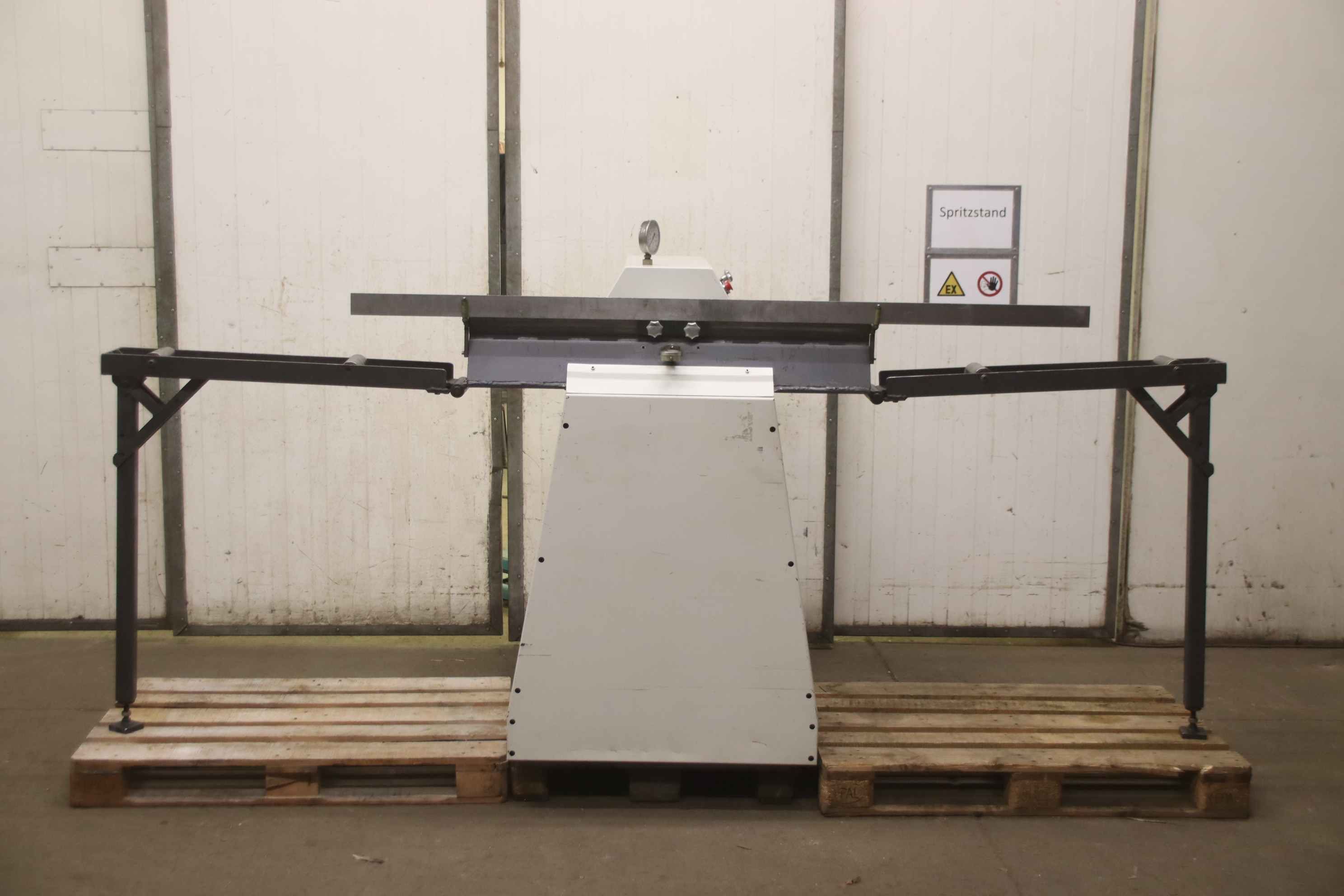

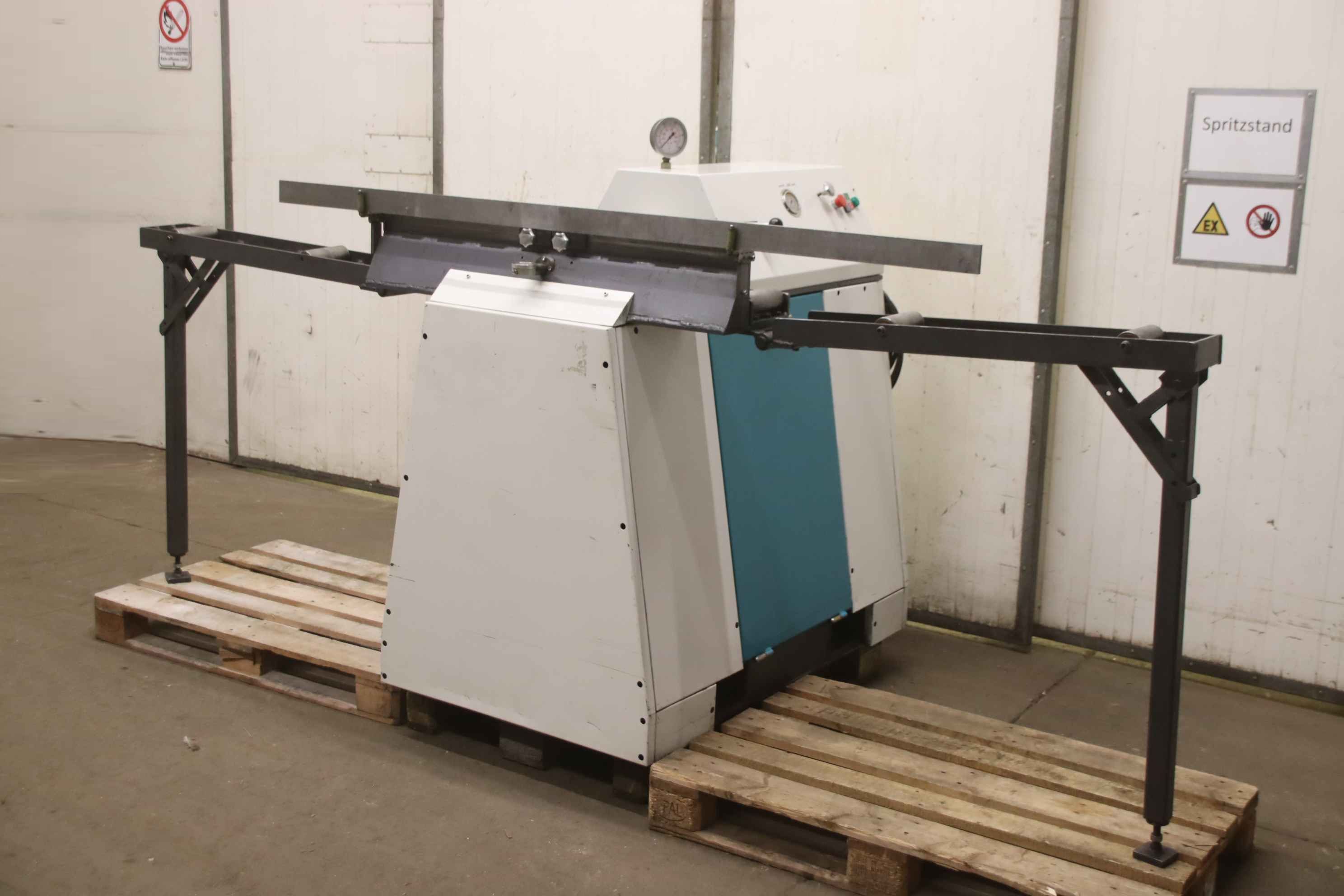

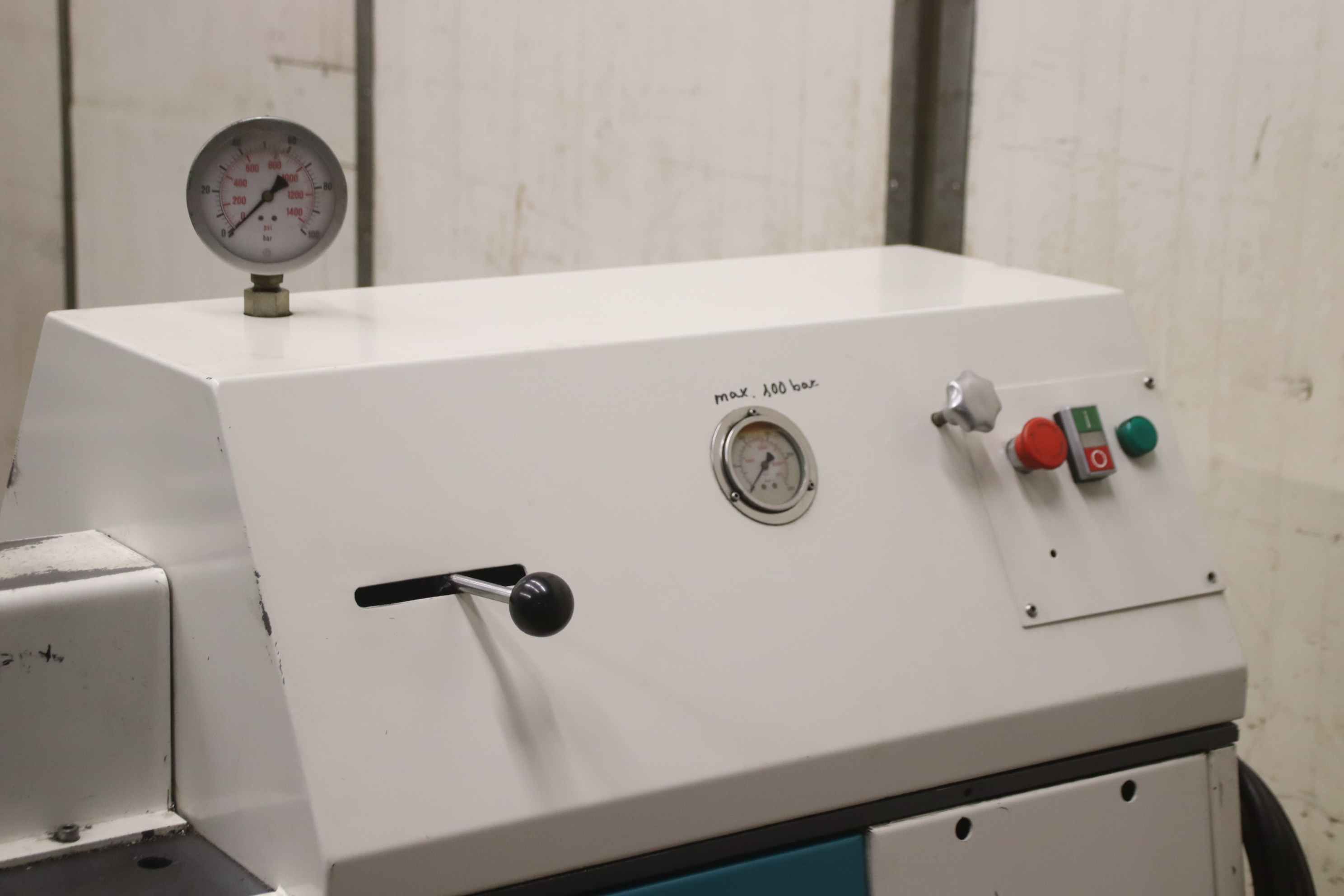

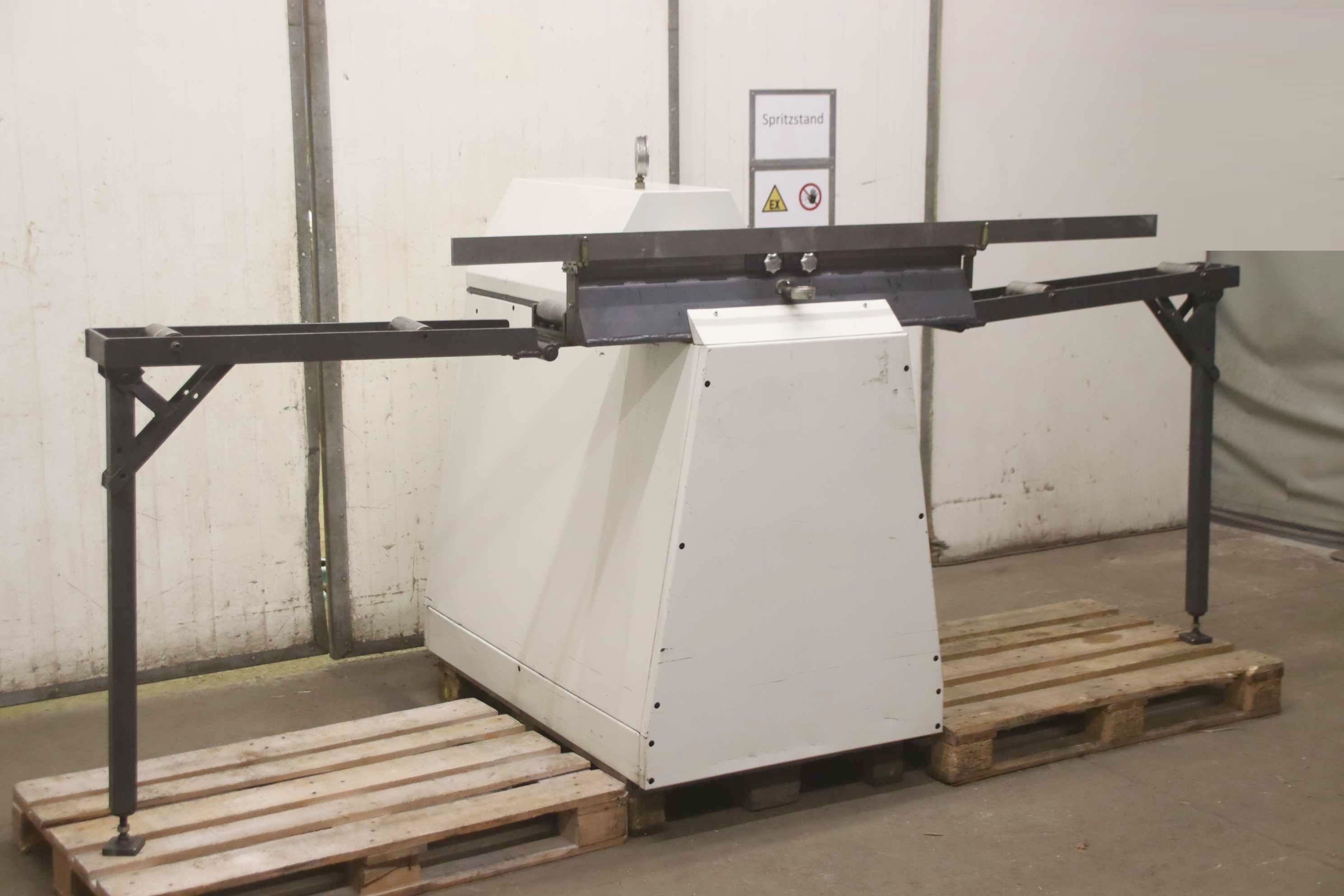

Hydraulic press, bending machine, straightening machine, profile straightening system, strip straightening machine, strip straightening device, shaft straightening system, combined bending machine-straightening press, profile bending machine, bending machine, flat iron bender, horizontal bending/straightening press, horizontal bending machine -Hydraulic press: Straightening system Straightening machine Profile straightening system with roller conveyor -Pressure force: 10 ton -Pressure: max 100 bar -Roller conveyors: 2x 1000/170/H1110 mm / rollers Ø 56 x 140 mm -Transport dimensions: 1335/1220//H1470 mm -Weight: 807 kg
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

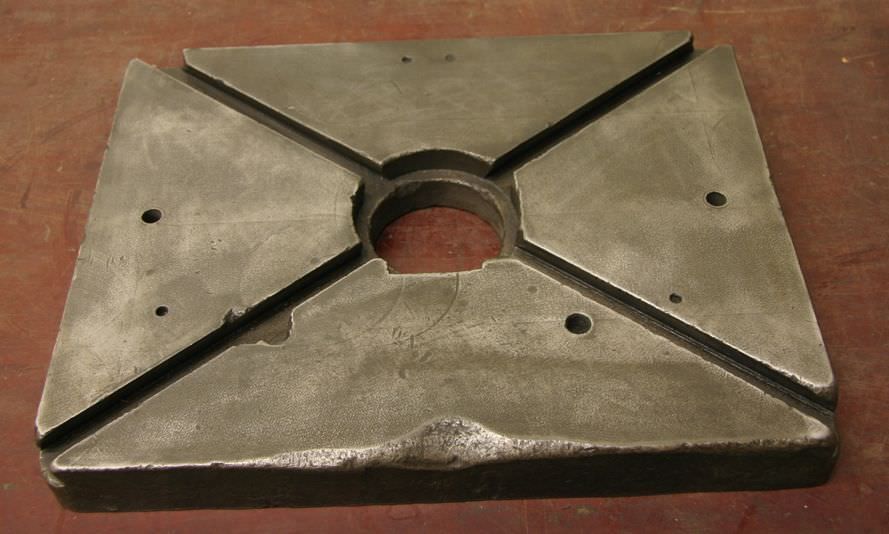

T-slot plate, clamping plate with dovetail grooves, plate field, welding table, welding table -Intermediate plate: for hydraulic press eccentric press -Dimensions: 455/365/H40 mm mm -Bore: Ø mm -Dovetail groove: 17 mm -Weight: 45 kg
Gripper feed for eccentric press, single column press, punching machine, single column eccentric press, eccentric press, single column press -Manufacturer: Raster, collet feed from punching machine type HR 60 NL-4S -Stroke: mm -Dimensions: see photos -Transport dimensions: 900/640/H620 mm -Weight: 200 kg

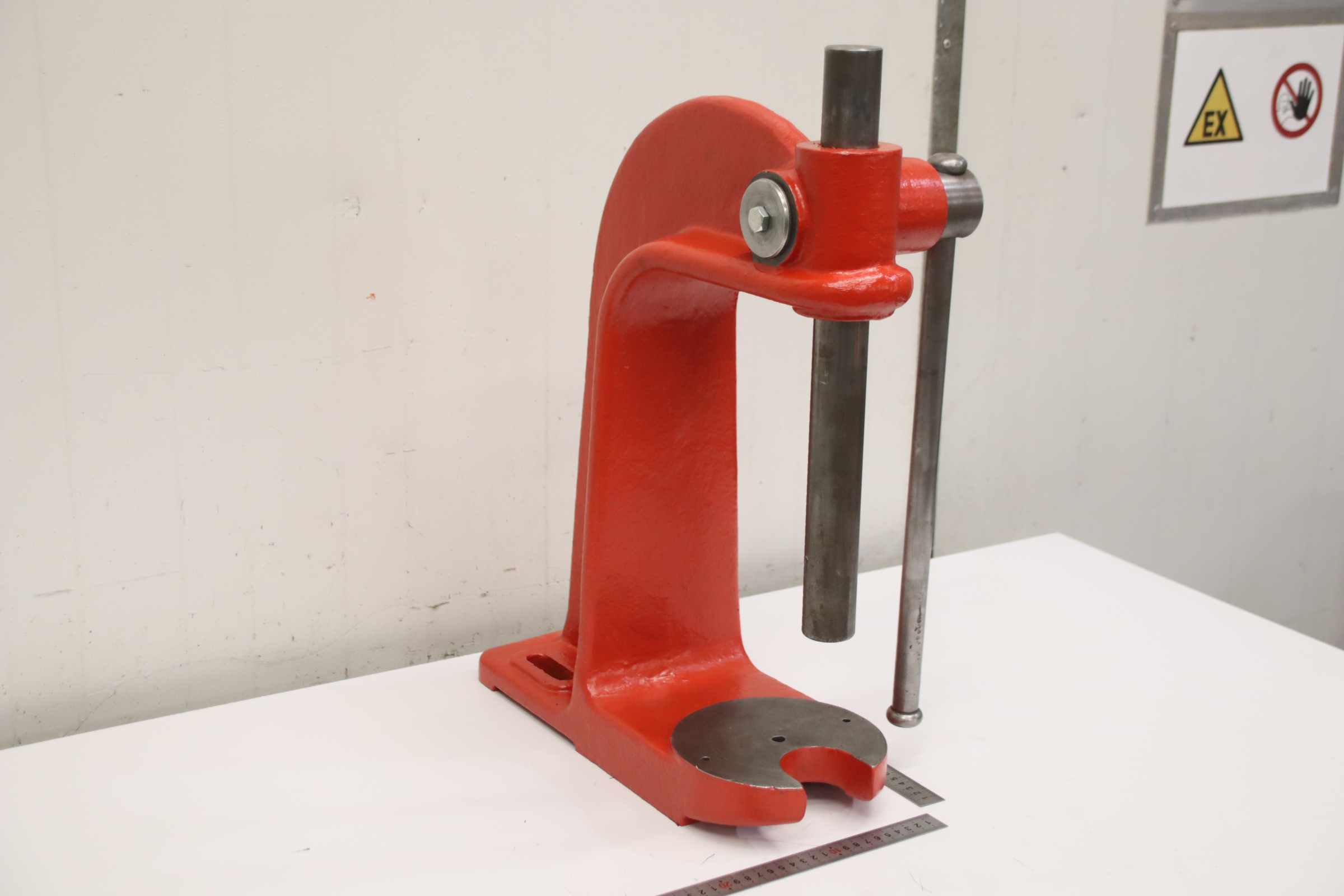

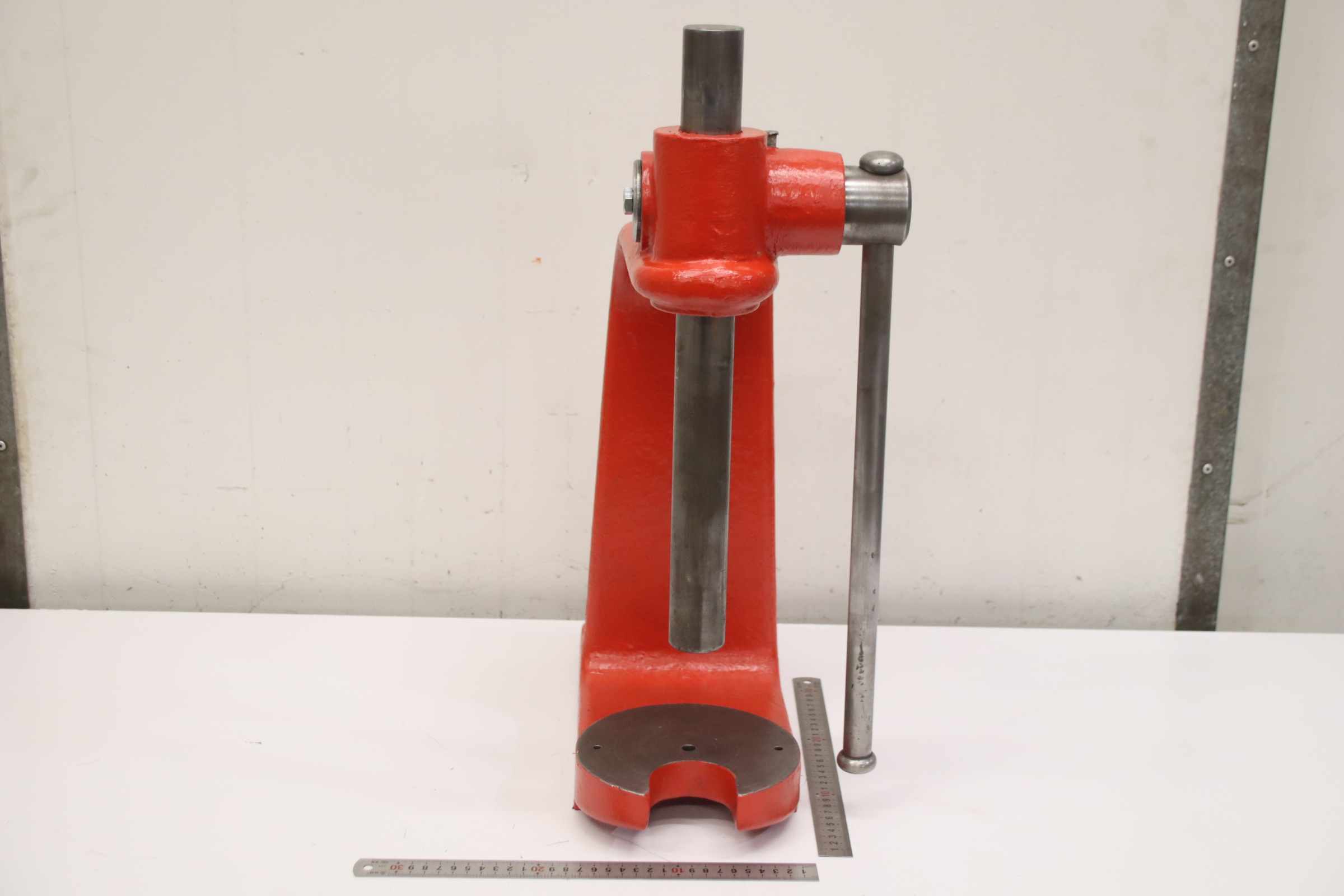

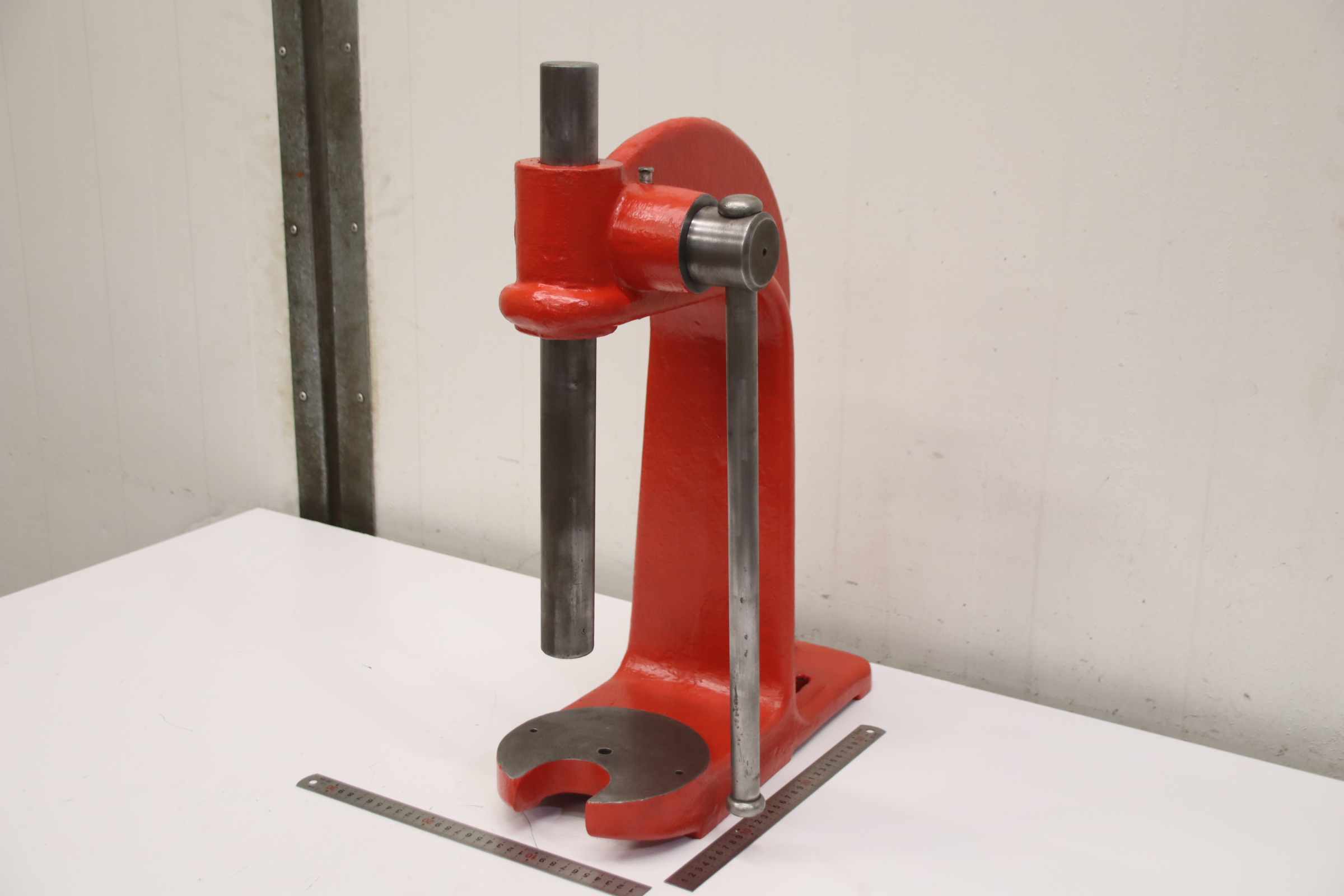

Hand spindle press, mandrel press, spindle press, hand spindle press, rotary mandrel press, rack and pinion press, workshop press -Ardent press. Rack and pinion press, heavy-duty design -Protrusion: 210 mm -Height: min. 35 mm / max. 350 mm -Dimensions: 435/230/H550 mm -Weight: 51 kg

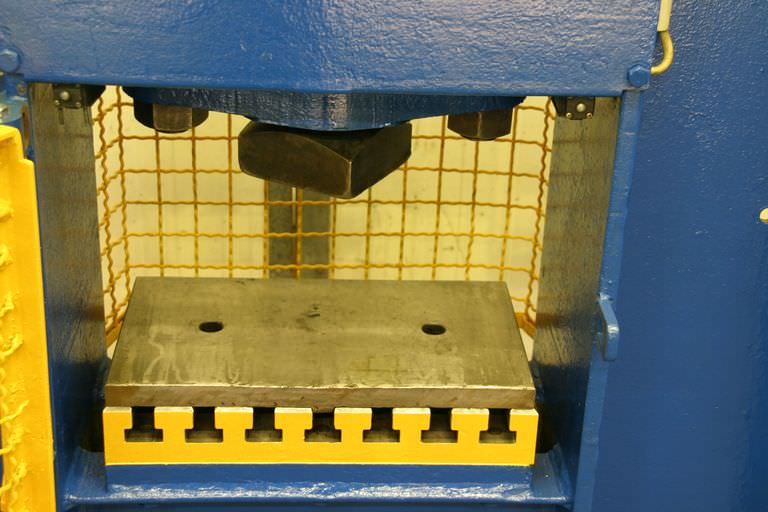

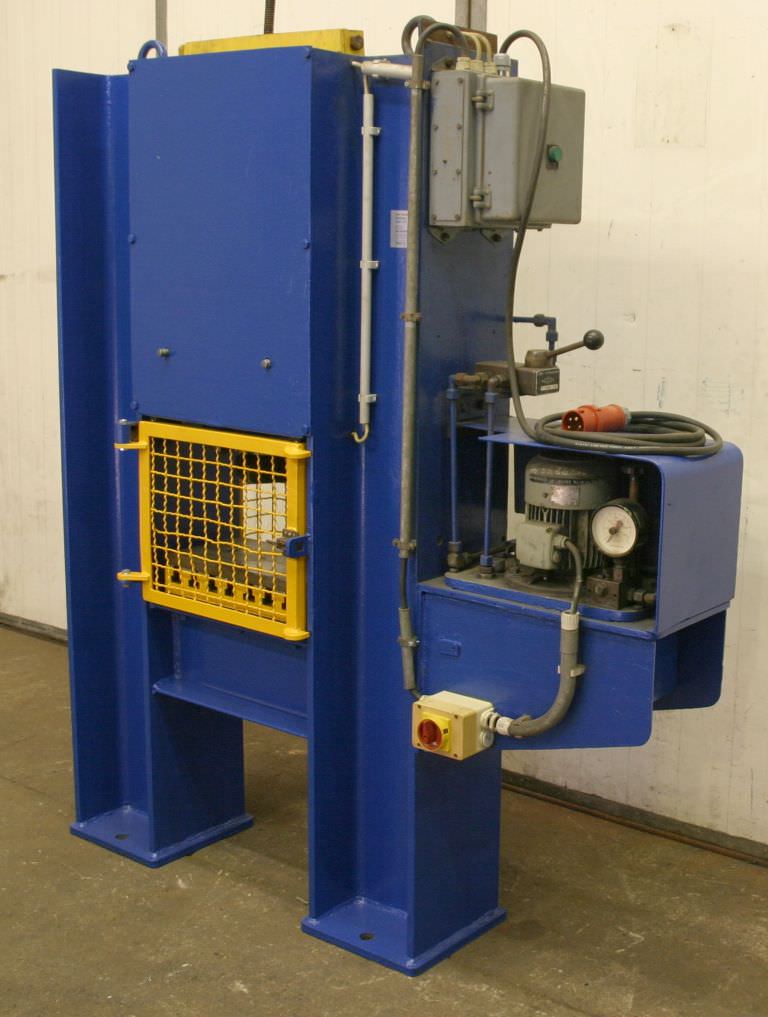

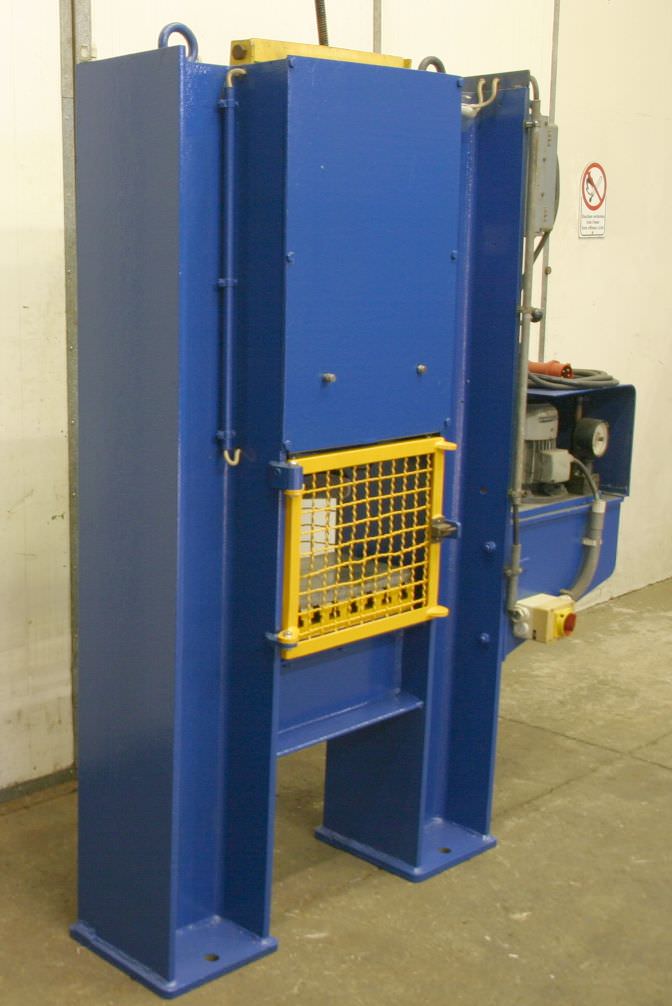

Hydraulic press, two-column press, oil hydraulic press -Pulley pressing force: 65 tons -Hydraulic unit: max. 330 bar -Clamping table: 440 x 250 mm -Max. insertion height: 295 mm -Max. width: 300 mm -Max. stroke: 220 mm -with safety cage -Max. feed rate: 3 mm/sec -Retraction speed: 6 mm/sec -Dimensions: 1680/500/H2300 mm -Weight: 980 kg

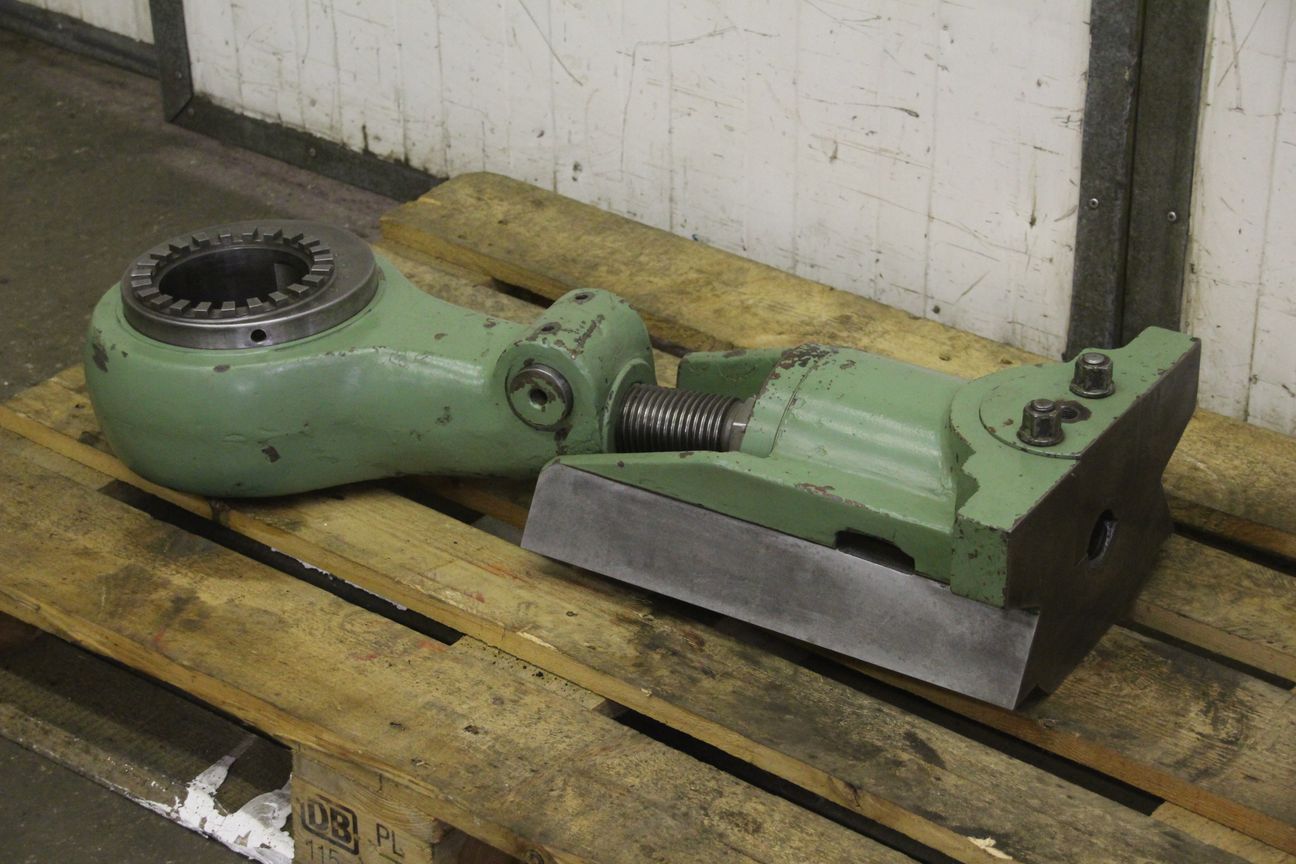

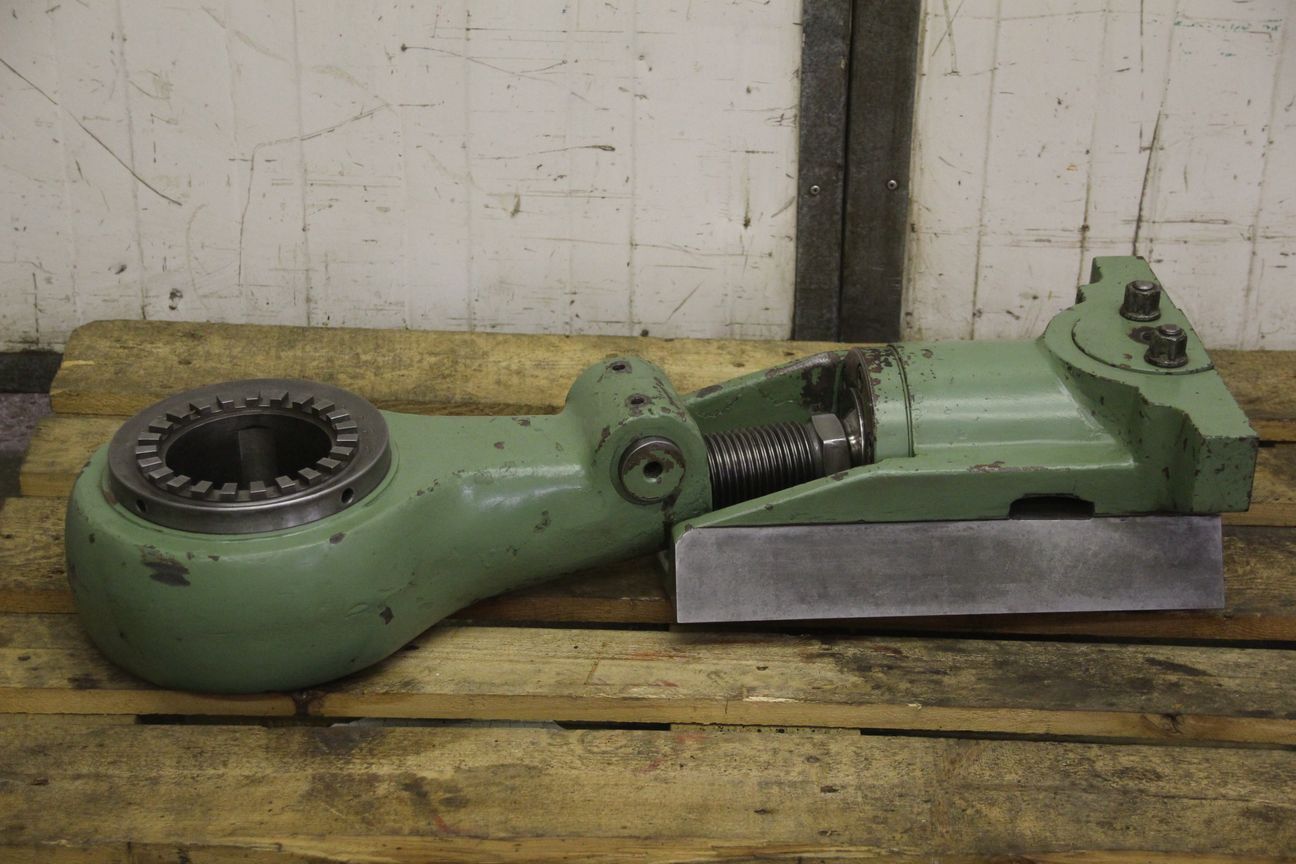

Ram, rams for an eccentric press, single column press, punching machine, single column eccentric press, eccentric press - single column, press -Spare part: comes from a Weingarten eccentric press -Stroke adjustment: 10-80mm -Plunger area: 320 x 65 mm -Plunger mount: O 40 mm -Plunger adjustment thread: M64 x 6 mm -Plunger adjustment ball head: approx. 92 mm -Dimensions: 875/320/H190 mm -Weight: 164 kg -Pressure unknown

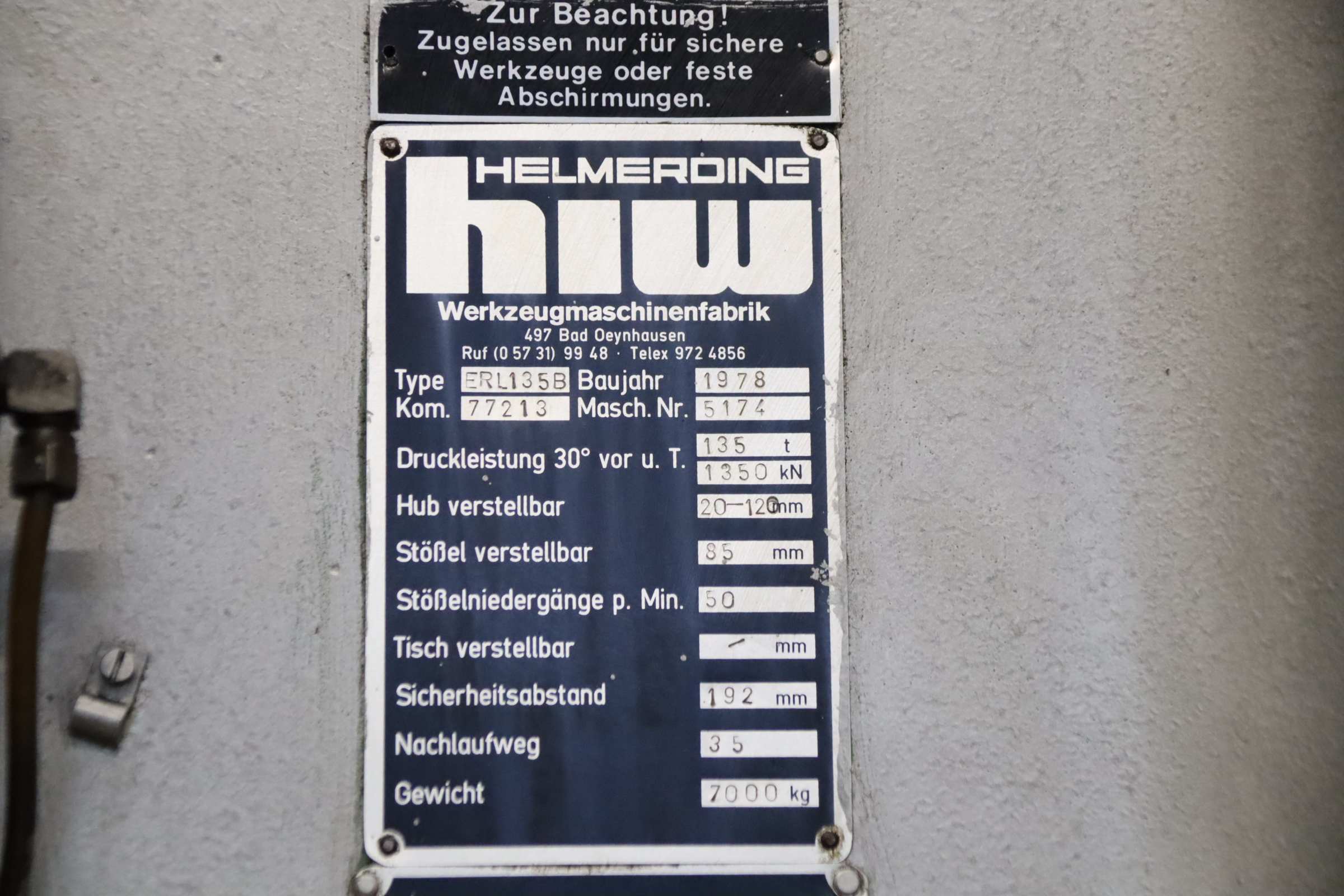

Eccentric press, single-column press, stamping press, single-column eccentric press, eccentric press, single-column press -Manufacturer: HELMERDING hiw, Single-column eccentric press type ERL135B -Pressure capacity: 135 tons -Coupling: pneumatic -Drive: 11 kW -Stroke: adjustable 20 - 120 mm -Table size: 670 x 1050 mm -Table cutout: 200 x 325 mm -Projection: 360 mm -Punch holder: Ø 50 mm -Insertion height 445 mm -Dimensions: 2530/1200/H2410 mm -Weight: 8008 kg

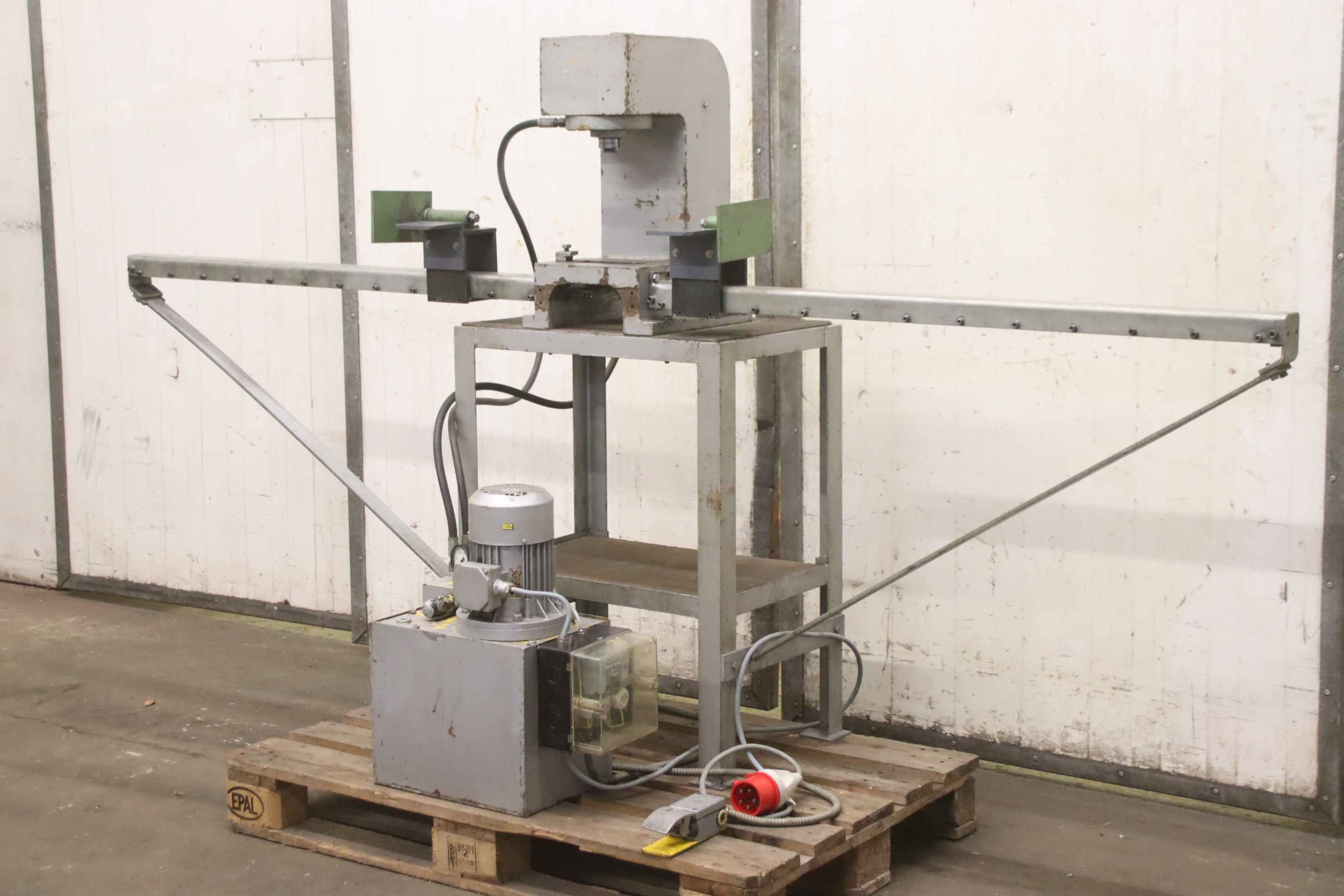

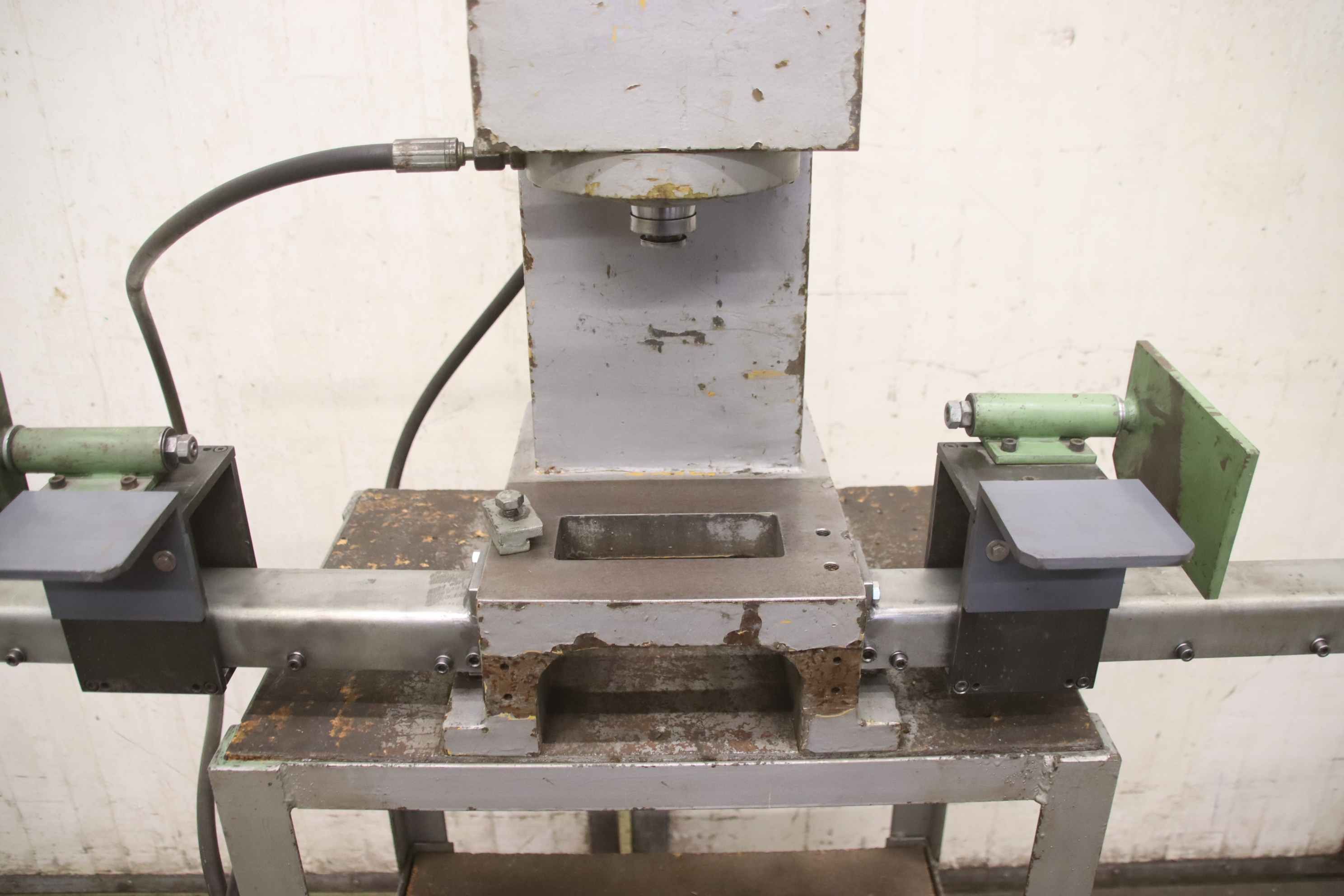

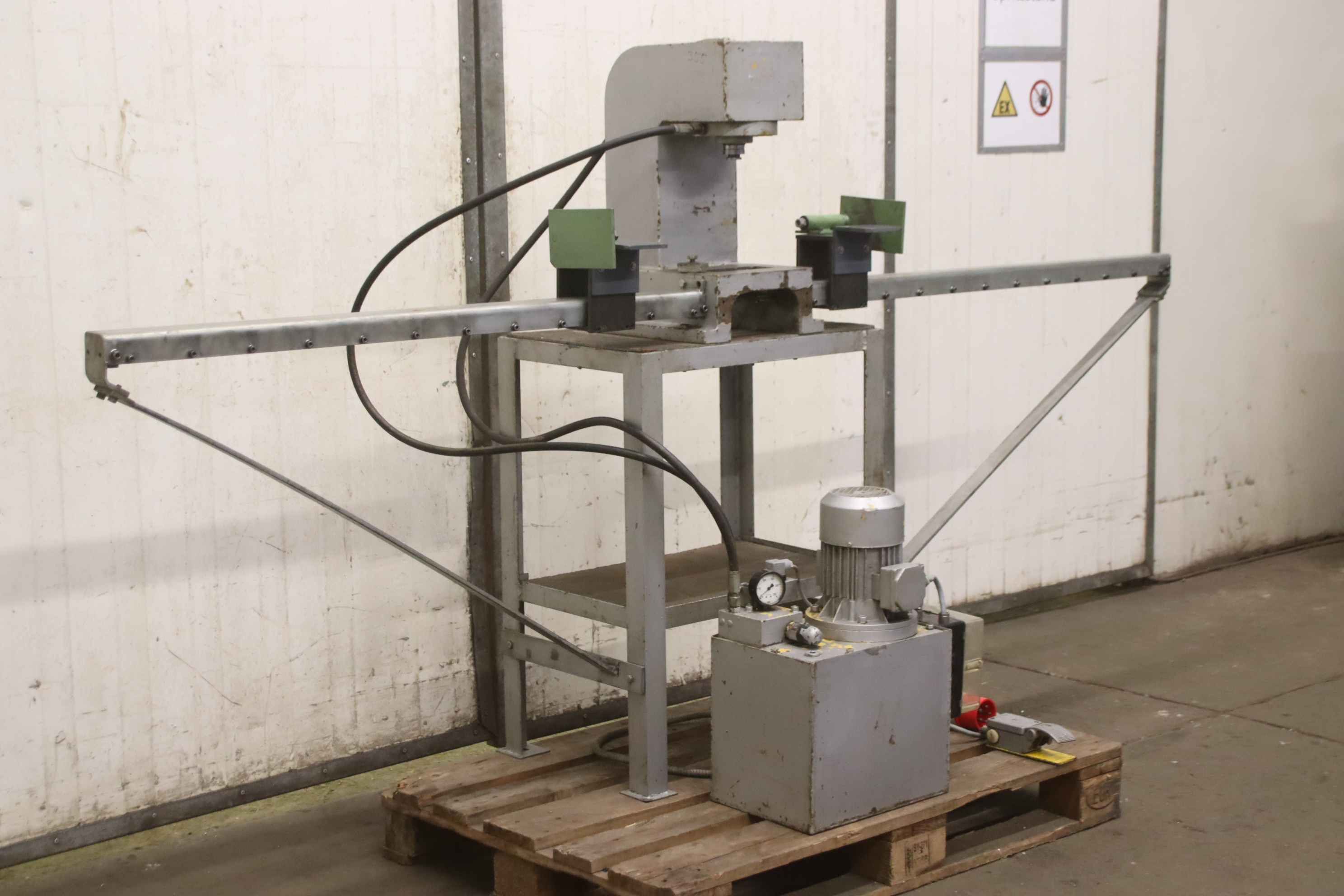

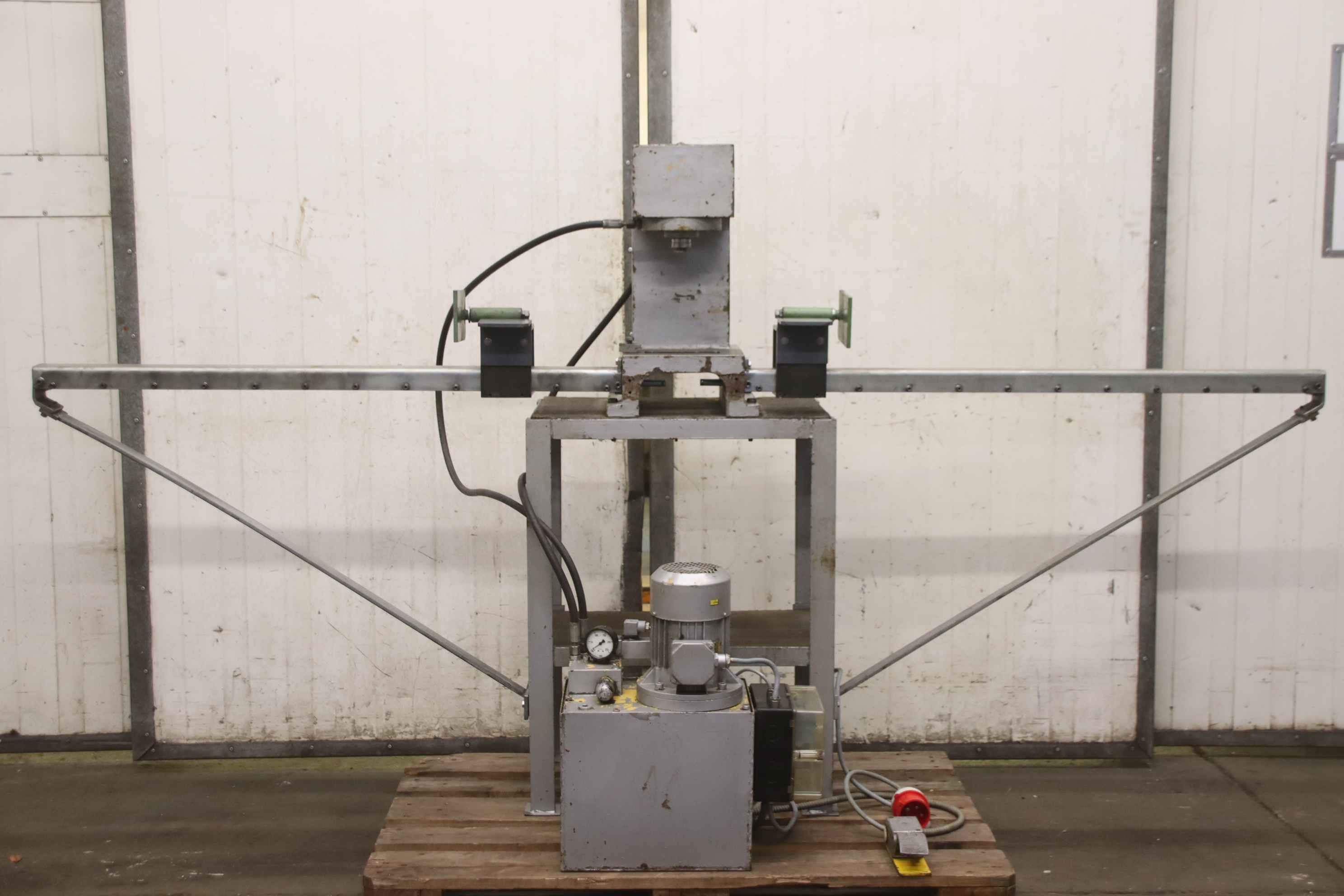

Hydraulic press, single column press, C-column press, oil hydraulic press, hydraulic single column press, press machine, hydraulic punch for Schüco tools hydraulic press, multifunctional punch, punch, universal punch, punching machine -Hydraulic press: Hydraulic single-column press with stops on both sides -Pressing force: 15 tons -Hydraulic unit: 220 bar stroke: 25 mm -Hole: Ø 28 mm -Projection: 100 mm -Operation: foot pedal -Installation dimensions: 2575/800/H1350 mm -Transport dimensions: 1260/800/H1350 mm -Weight: 223 kg
pressure:063 tthroat:250 mmstroke:8 - 100 mmno. of strokes:56 / 84 /mindistance table/ram, max. stroke up, adjustment up:415 mmtable surface area:710 x 500 mmhole in the table:320 mmtable height over floor:800 mmpassage to the back:320 mmram surface:450 x 280 mmram adjustment:63 mmweight:4,1 tdimensions (W x D x H):1,35 x 2,0 x 2,6 moverload protection in ram:mechanical
pressure:200 tdistance between columns:2100 mmstroke:550 mmDistance table/ram, stroke up:1800 mmtable surface area:2000 x 2800 mmtable height over floor:760 mmram surface:2000 x 2000 mmSide window:2000 mmfeed down:400 mm/spower requirement:51,0 kWweight:33,0 tdimensions (WxDxH):3,25 x 3,5 x 5,4 mHeight above floor:5,4 mfoundation pit:not necessary
pressure:200 tdistance between columns:2100 mmstroke:550 mmDistance table/ram, stroke up:1800 mmtable surface area:2000 x 2800 mmtable height over floor:760 mmram surface:2000 x 2000 mmSide window:2000 mmfeed down:400 mm/spower requirement:52,0 kWweight:33,0 tDimensions (WxDxH):3,25 x 3,5 x 5,4 mHeight above floor:5,4 mfoundation pit:not necessary
pressure:400 tdistance between columns:3250 mmdistance table/ram, max. stroke up, adjustment up:1000 mmstroke:800 mmtable surface area:3250 x 1400 mmtable height over floor:1250 mmdie cushion capacity:170 tdie cushion stroke:200 mmdie cushion area:1800 x 1000 mmdistance between cutting impact cushioning:2610 mmside window:800 mmram surface:3250 x 1400 mmreturn capacity:51 tspeed down:300 mm/sspeed up:300 mm/sworking speed:16 - 33 mm/squantity of oil:2900 lpower requirement:100,0 kWweight:70,0 tDimensions (WxDxH):4,9 x 3,1 x 7,6 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic
pressure:400 tdistance between columns:1250 mmstroke:250 fix mmno. of strokes:45 /mindistance table/ram, max. stroke up, adjustment up:825 mmtable surface area:1000 x 900 mmcolumn travel -side:400 x 700 mmram surface:1000 x 900 mmram adjustment:100 mmcapacity of ejector in table:40 tejector stroke:160 mmpower capacity:270,0 kWweight:44,0 tDimensions (WxDxH):2,4 x 3,6 x 7,2 mheight over floor:6,4 m
pressure:125 tstroke:25 fix mmno. of strokes:70 - 700 /mindistance between columns:1150 mmdistance table/ram, max. stroke up, adjustment up:400 mmtable surface area:1150 x 1000 mmhole in the table:900 x 220 mmside window:650 mmram surface:990 x 850 mmram adjustment:60 mmmaterial width:250 mmmaterial thickness:2,5 mmpower requirement:46,5 kWweight:29,5 troll feed:mechanical, Schuler, WK 8-250
Hand spindle press, mandrel press, spindle press, hand spindle press, printing press, balance printing press -Manufacturer: Allgaier, manual spindle press -Insertion height: 345 mm -Column clearance: 300 mm -Table width: 300 mm / Bore Ø 60 mm -Spindle mount: Ø 40 mm -Dimensions: Ø 1420 x 1780 mm -Weight: 277 kg
