Максимальный диаметр заготовки... 1000 мм Модуль ... 10- Мощность главного двигателя... 7,5 кВт L x W x H ... 3120 x 1870 x 2525 мм Вес машины ... 10000к
max. wheel diameter:5 - 260 mmgear width:400 mmmax. module:15 min. module:0,5 gear hobbing diameter - internal:30 mmmax. helix angle:> 85 ° Aussenverz.max. helix angle:> 45° Innenverz.Testing Range vertical:400 mmdist. between centers:5 - 600 mmtable diameter:260 mmmax. table load:100 kgspeeds:30 1/mintotal power requirement:1,6 kVAweight of the machine ca.:900 kgdimensions of the machine ca.:200 x 1300 x 2150 mmCNC Gear Tester in good condition, out of OEM Test Lab.For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)

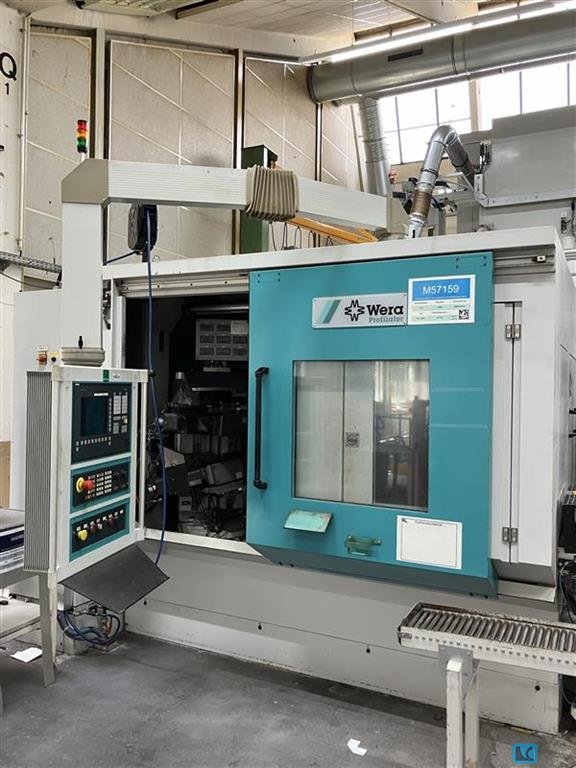

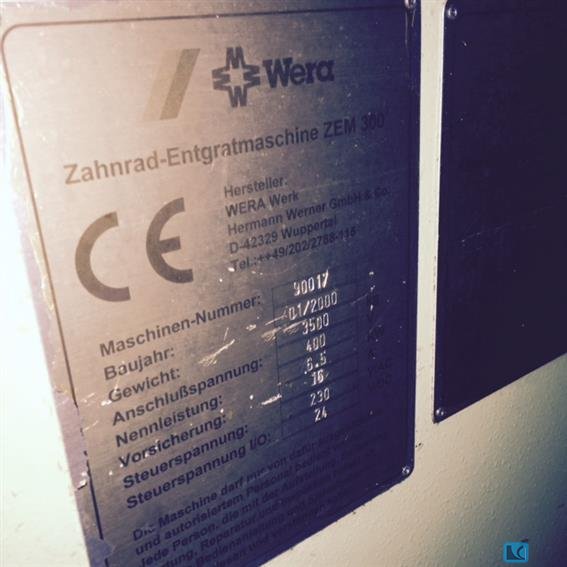

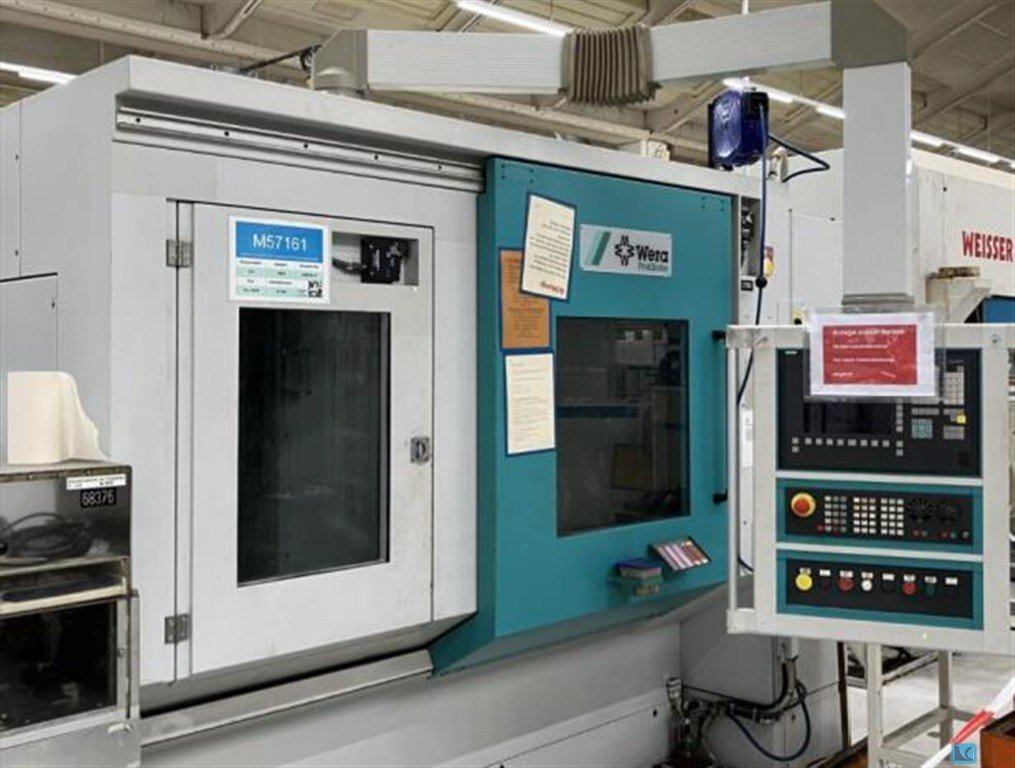

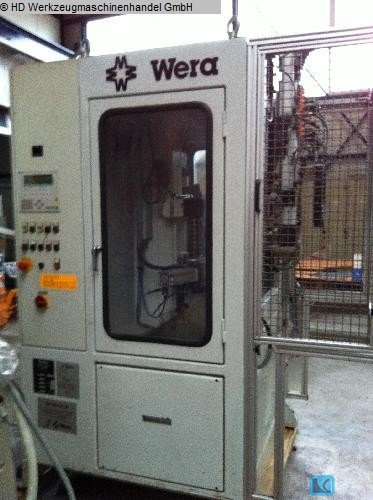

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.
max. wheel diameter:180 mmmax. module:5 min. module:1 weight of the machine ca.:14 tdimensions of the machine ca.:4,5 x 2,84 x 2,8 mmin. number of teeth:7 toolpiece turning speed range:4000-10000 U/mintool length:210 mmWith tail stockNo dressing deviceOnly CBN
max. wheel diameter:180 mmgear width: mmmax. module:4 total power requirement:14 kWweight of the machine ca.:8 tslide travel axial ( Z-axis ):300 mmwork piece - max.:490-640 mm
max. wheel diameter:275 mmgear width:58 mmmax. module:8 min. module:0,5 weight of the machine ca.:10 tmax. number of teeth:200 min. number of teeth:5
pulling force - max.:2,5 tmax. ram stroke:1000 mmmax. workpiece diameter:40 mmBroaching speed:60 m/min.return speed:20 m/min.total power requirement:24 kWweight of the machine ca.:6 tdimensions of the machine ca.:1,7 x 2,4 x 4,77 mclamping plate:320 mmIt is a hydraulic machine.
workpiece diameter:63,5 mmcentre distance:350 mmhoning length max.: mmtotal power requirement: kWweight of the machine ca.:6 tdimensions of the machine ca.:2,70x2,30x2,60 mTechnical data G0504working spaceLength of the clamping surface mm 1550Number of T-slots mm 2Width of the T-slots mm 18Distance between T-slots mm 180Center height (tailstocks) mm 350Swivel range of the fine wheel head (U-axis) degrees + 30 / -30Center distance - tailstock / fine wheel min./max. mm 120/225Input resolution (all NC axes) mm / degrees 0.001Delivery slideMovement range (= Z-axis travel) mm 105Input resolution mm 0.001toolOutside diameter min./max. mm 225/275Hole diameter mm 160Width mm 60workpieceOutside diameter min./max. mm 40-150Module min./max. mm 1.25-4.0Tooth width max. Mm 45weightWeight of the machine approx. Kg 5500Operating fluid requirements Cooling lubricant recommendation, see chap. 8thHydraul ...
1x piece Bonfiglioli Trasmital Gear RATIO 1/ 1146 - VN J38617101 - VMN JB00017191 - Weight approx. 740 kg - Made in Italy
1x piece Bonfiglioli Trasmital Gear RATIO 1/ 1146 - VN J38617101 - VMN JB00017191 - Weight approx. 740 kg - Made in Italy
max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

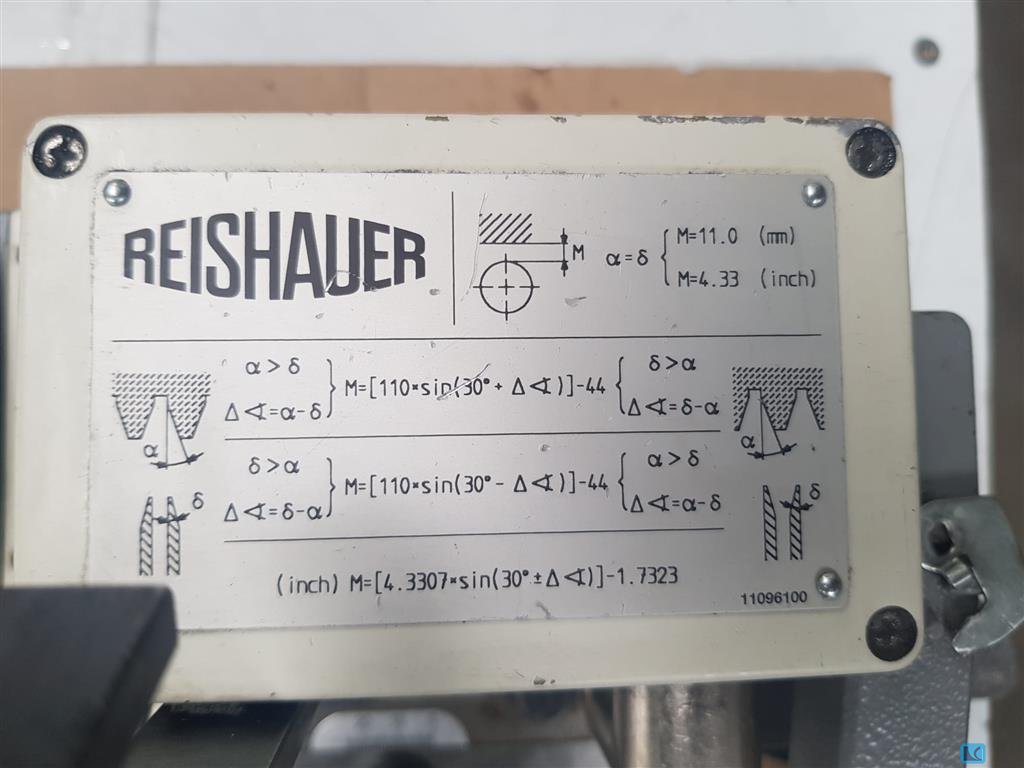

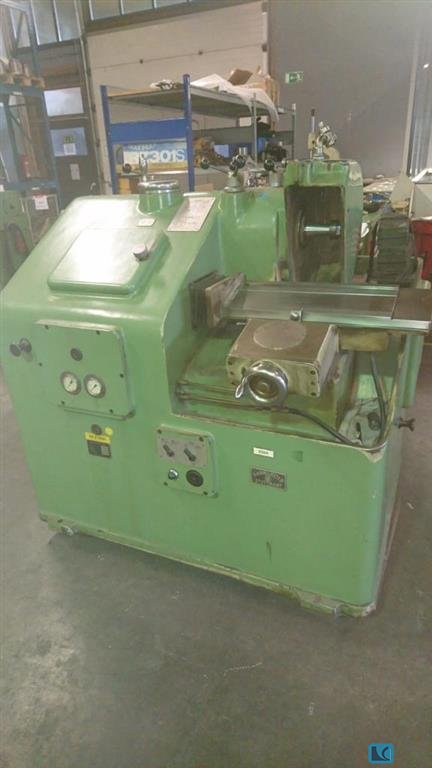

grinding wheel diameter:400 mmtotal power requirement:3 kWweight of the machine ca.:1,5 tdimensions of the machine ca.:1,5 x 1,4 x 1,3 mDressing Grinder for gears REISHAUER AMmax. width of grinding wheel 104 mmmax. dia. of grinding wheel 400 mmmax. module 7min. module 0,5pressure angle 10 - 30 °grinding worm dia. 270 - 400 mmwidth of grinding worm 62/84/104 mmgrinding worm turning speeds: at profiling 18/35/70 U/minelectrics - voltage/frequency 380 / 50 V/Hzlong. movement of crowning device 156 mm
weight of the machine ca.:8 tdimensions of the machine ca.:2,95 x 1,6 x 2,36 mchucking diameter:250 mmswing diameter:265 mmx-travel:170 mmz-travel:200 mmspindle turning speed range:1.500 U/minspindle bearing diameter:100 mmPick-up machine

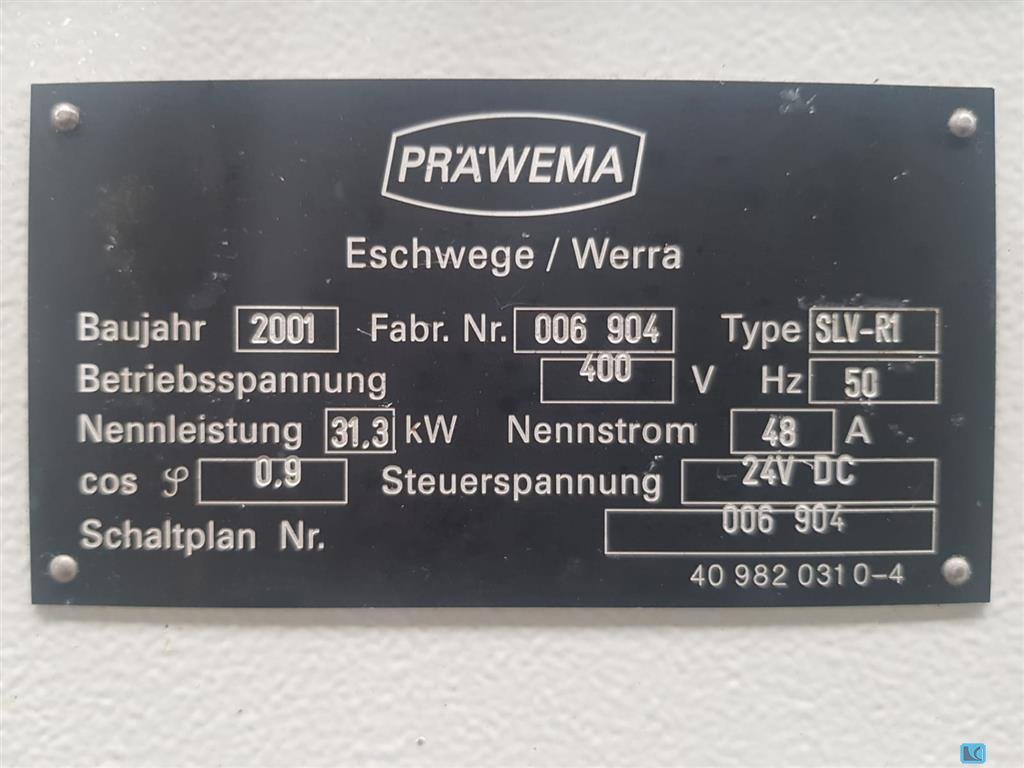

max. wheel diameter:40-200 mmtotal power requirement:31,3 kWweight of the machine ca.:4 tdimensions of the machine ca.:1,8 x 2,2 x 1,8 m
max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm
max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

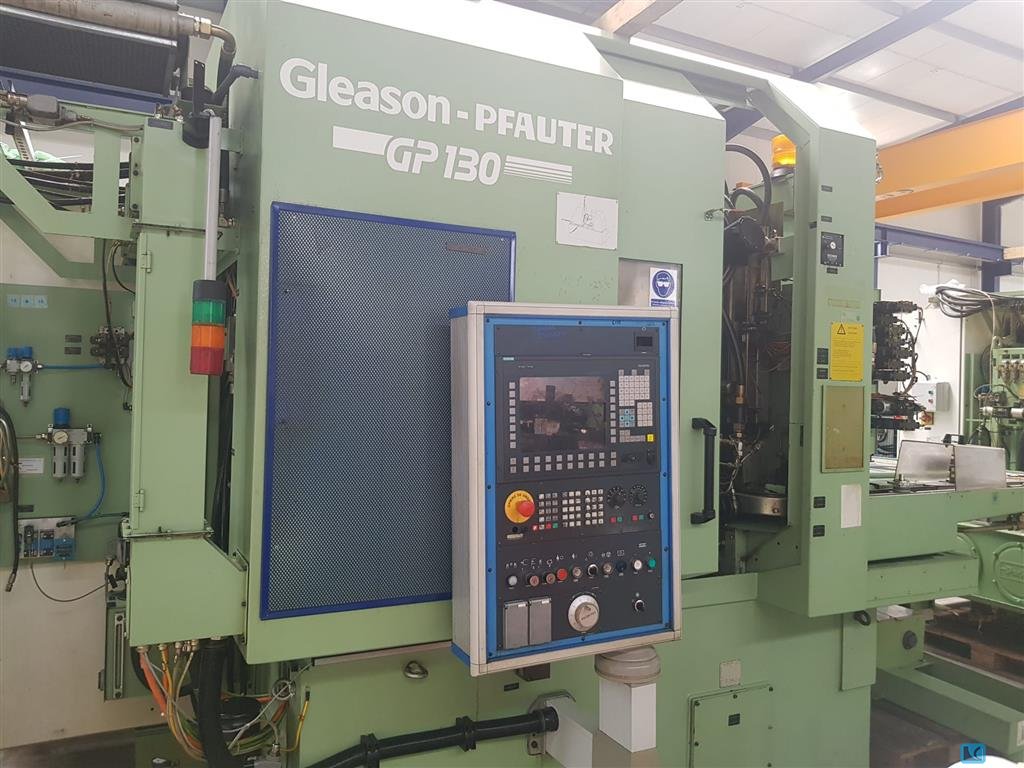

max. wheel diameter:130 mmgear width:170 mmmax. module:3 min. module:0,5 total power requirement:48 kVAweight of the machine ca.:9 tdimensions of the machine ca.:7,64 x 3,14 x 3,25 mFor technical data, see PDF-File enclosed

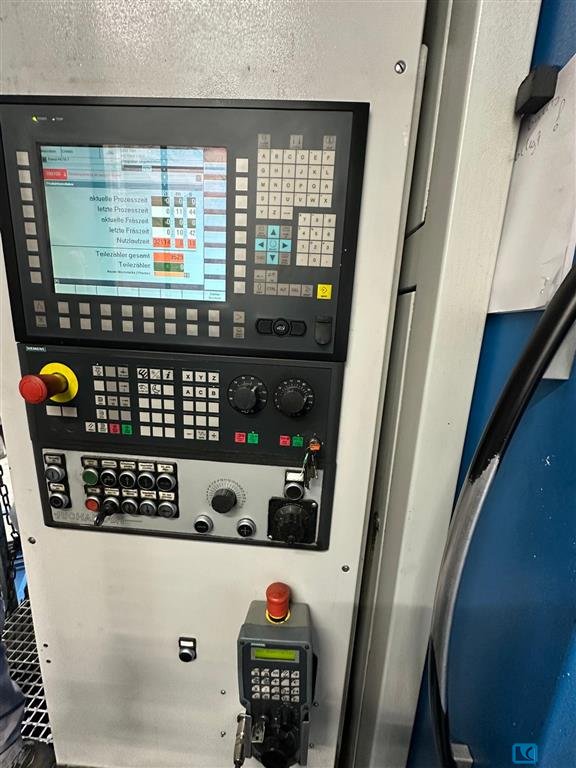

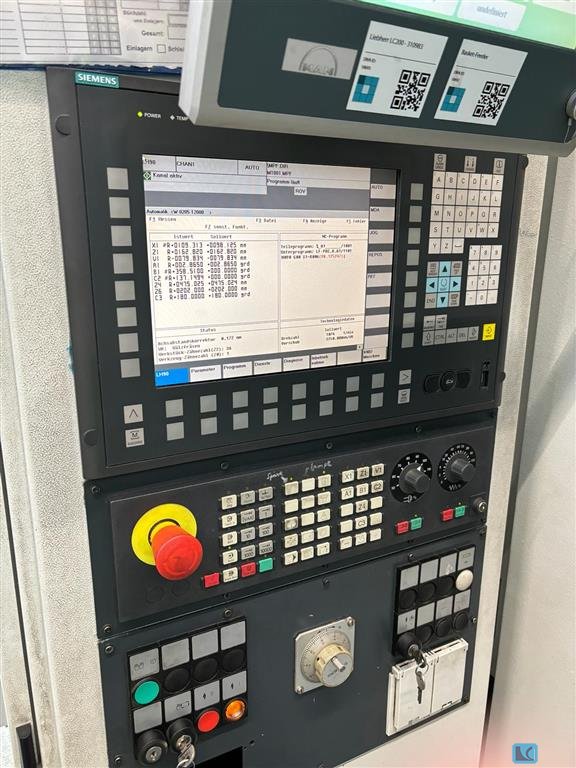

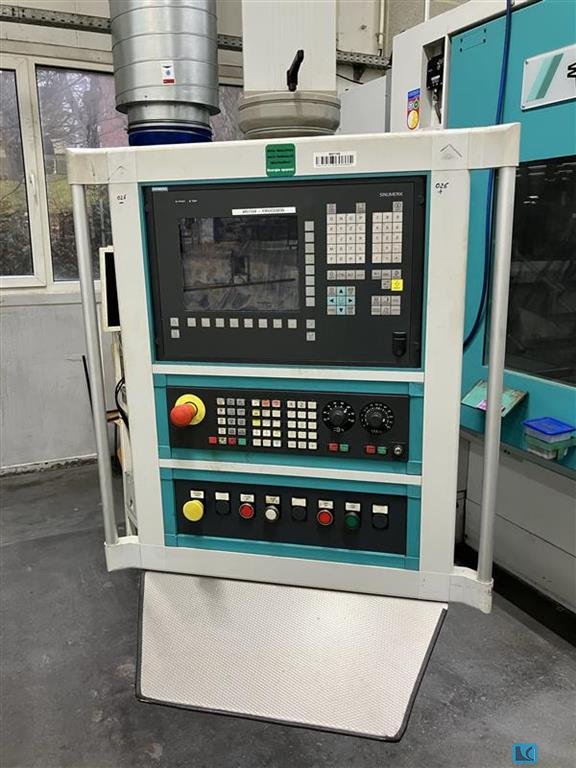

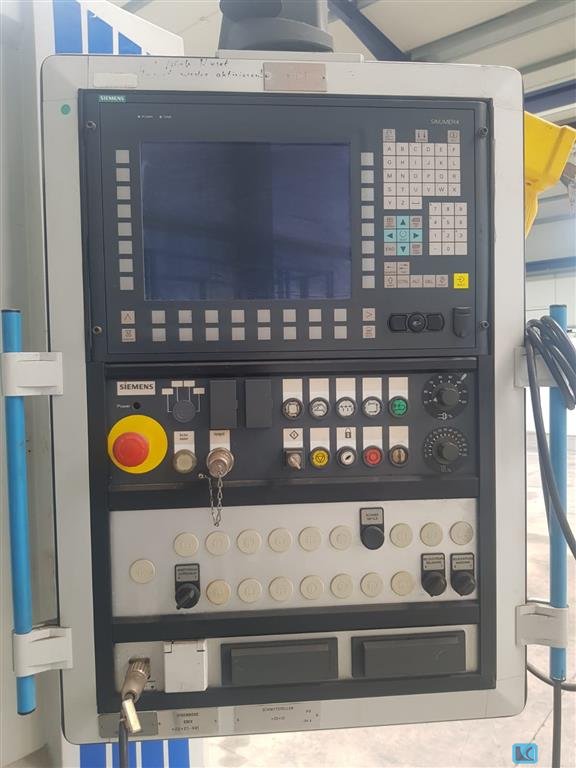

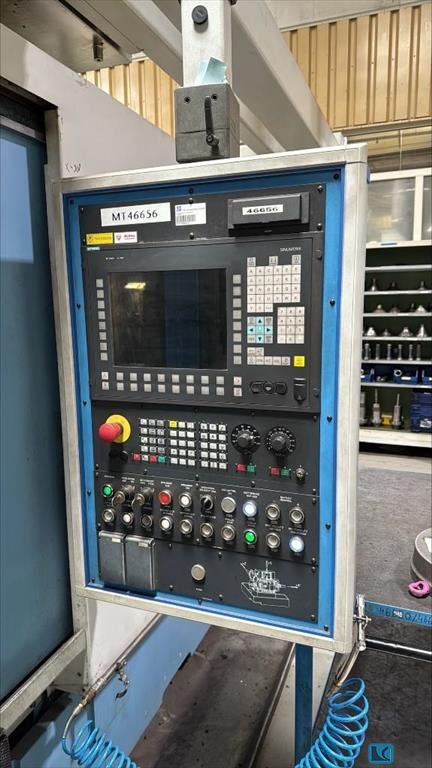

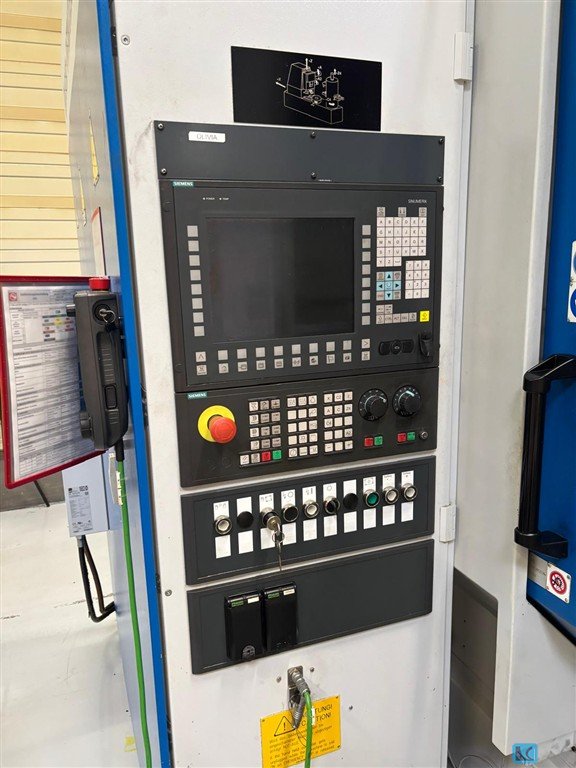

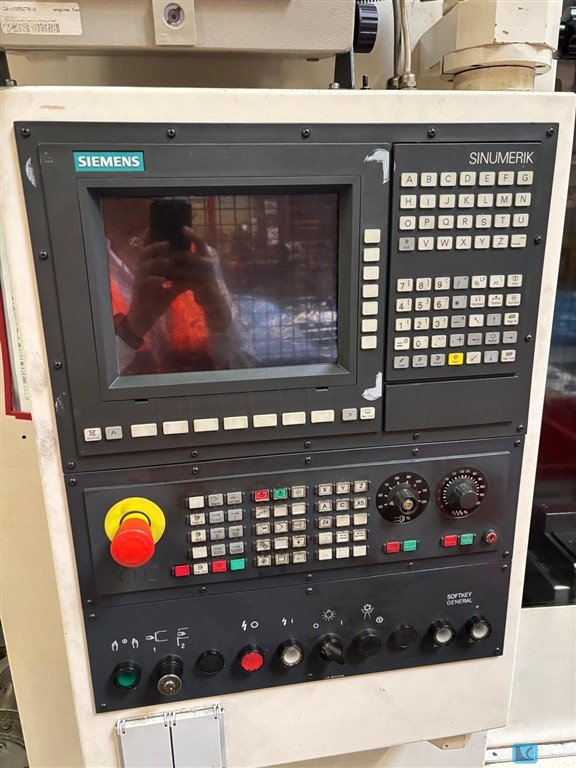

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

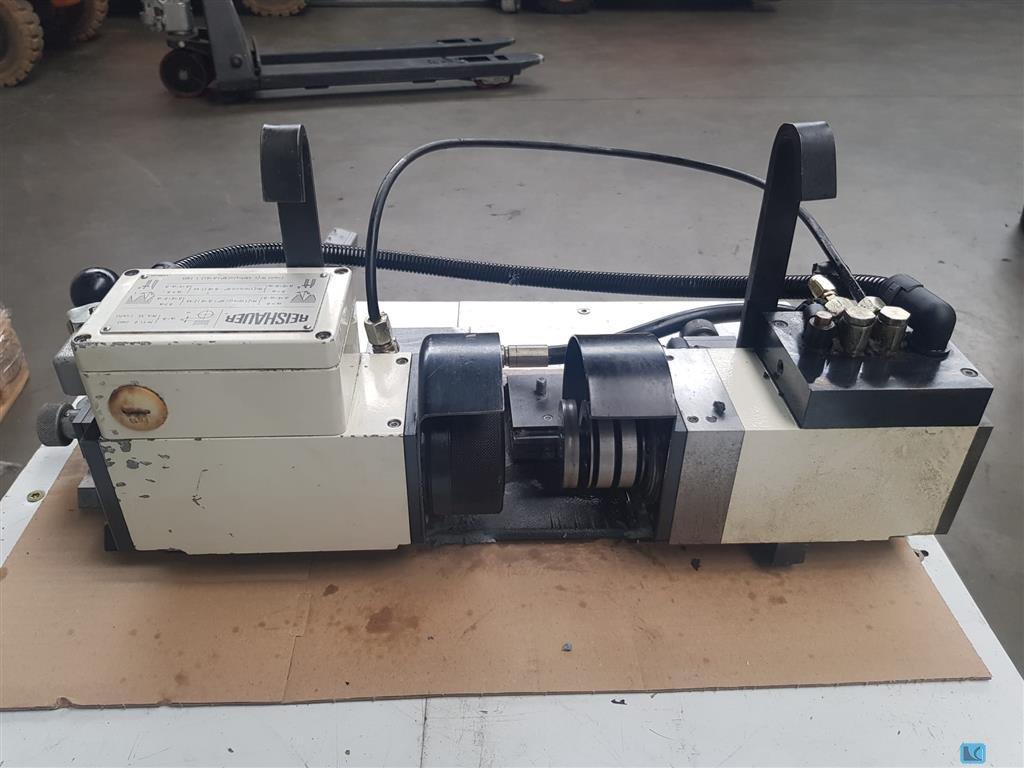

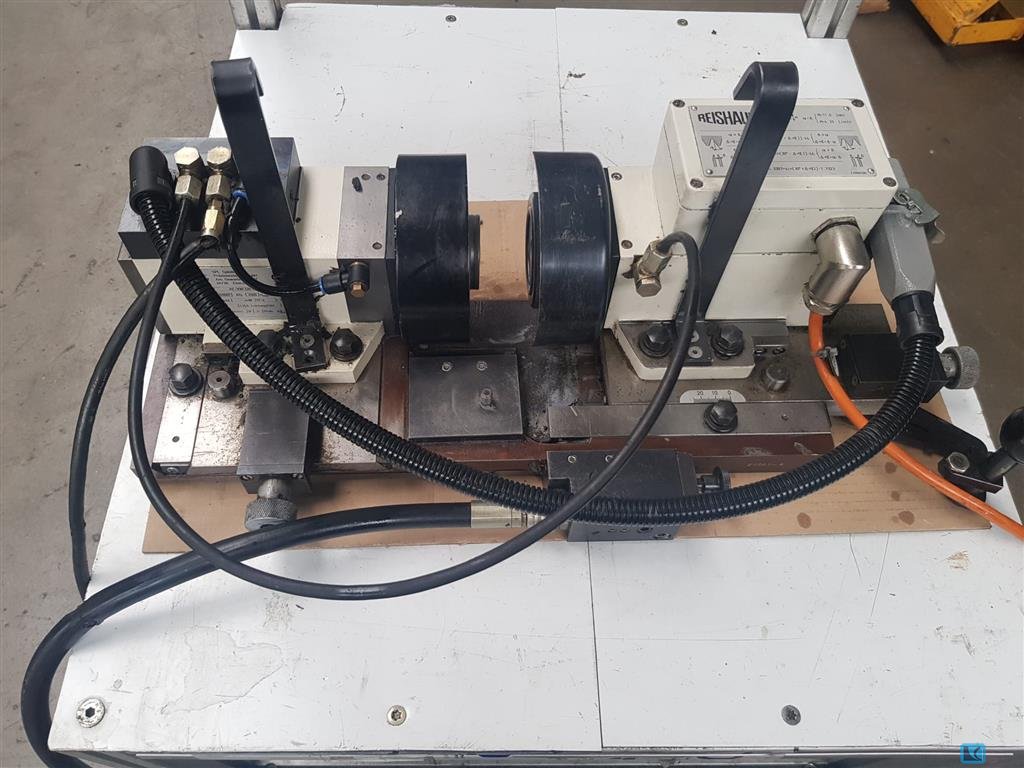

Dressing diameter: Planing width: min. module: for Reishauer RZ150

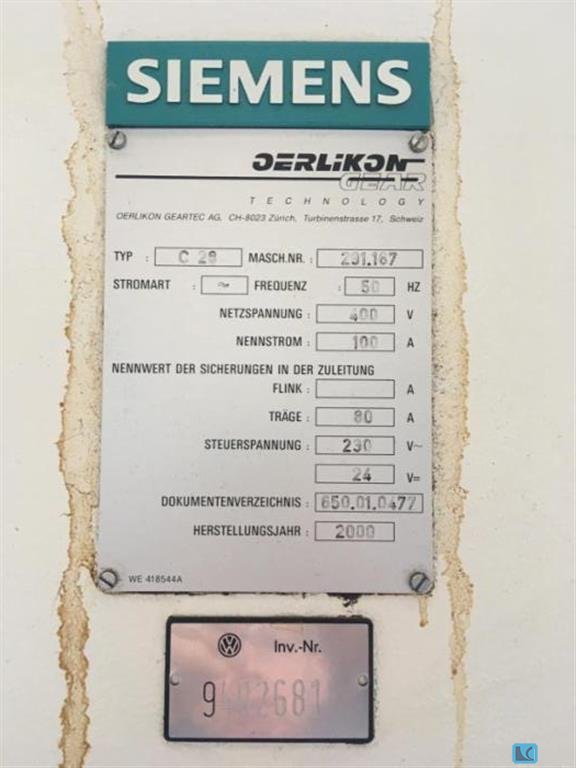

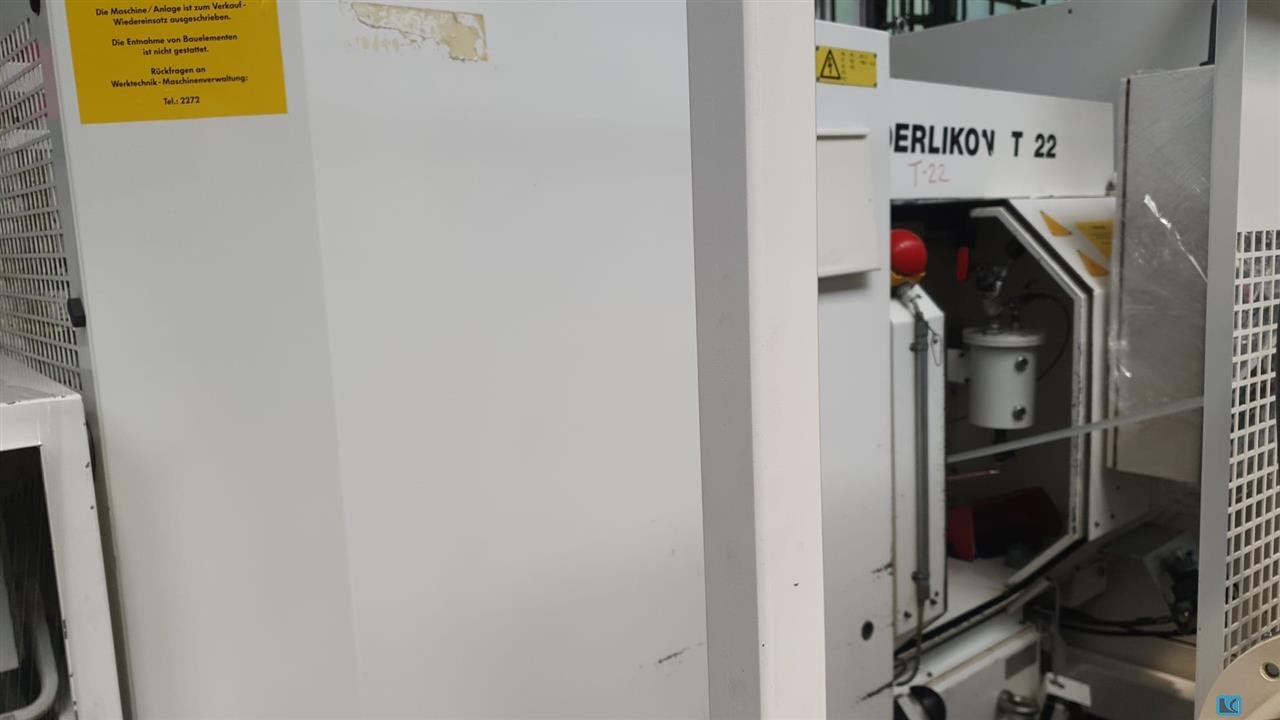

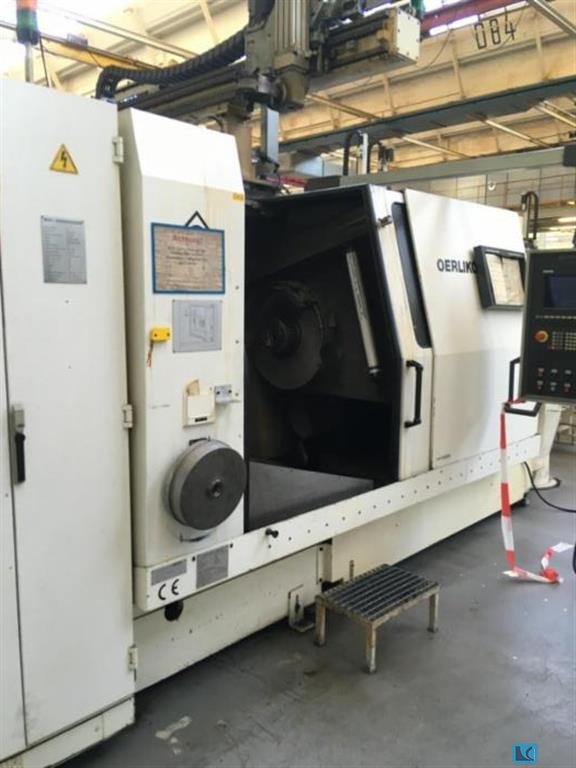

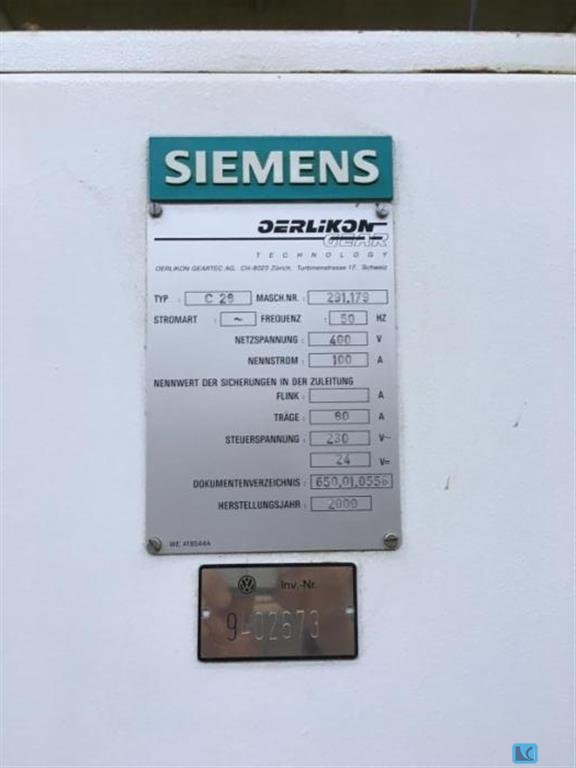

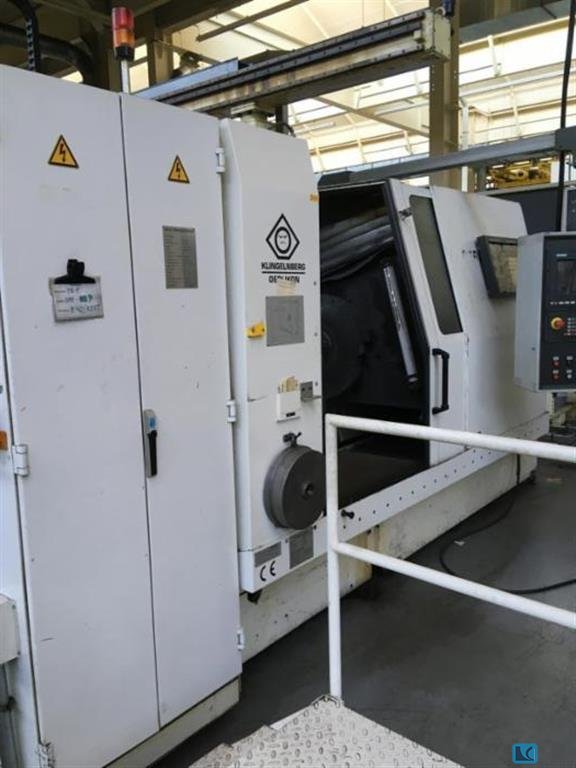

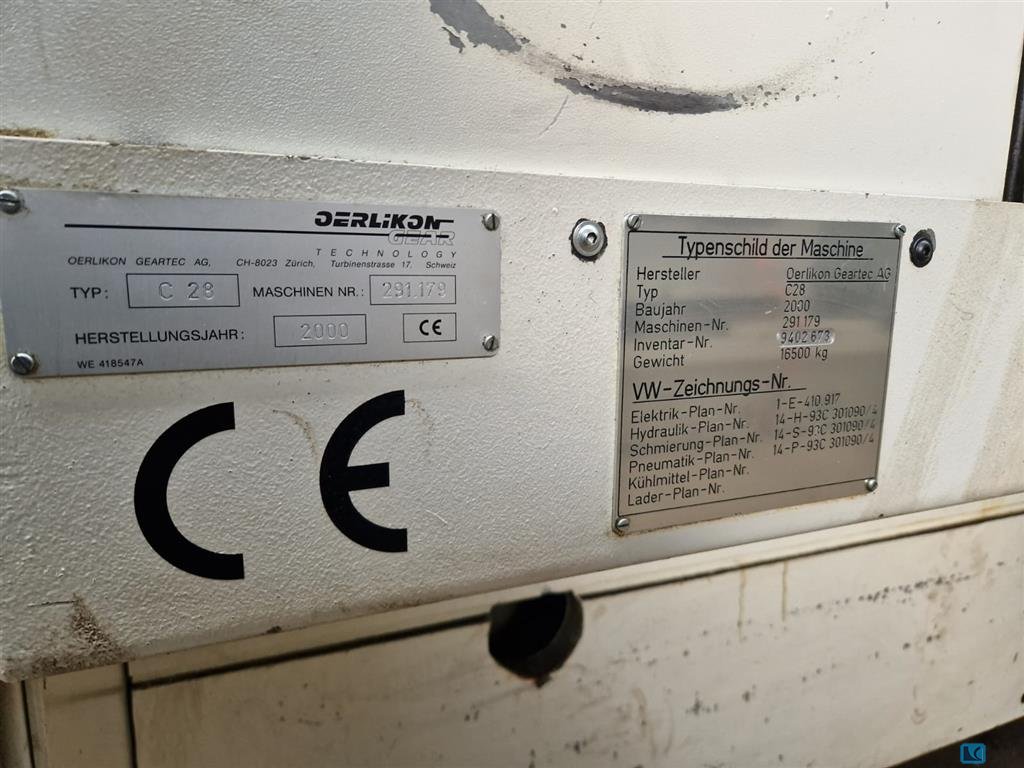

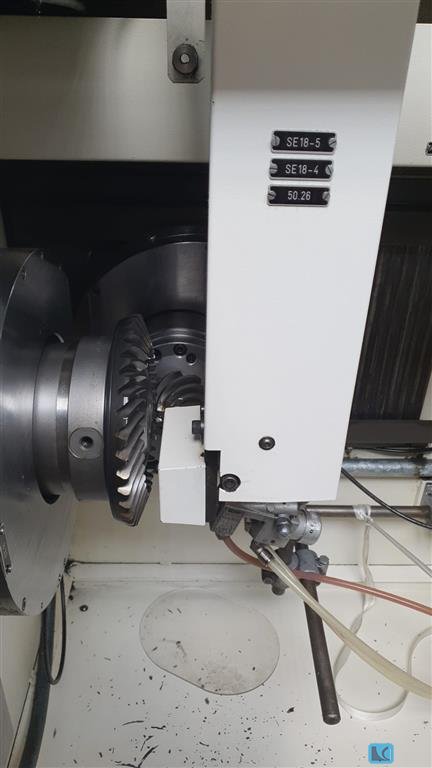

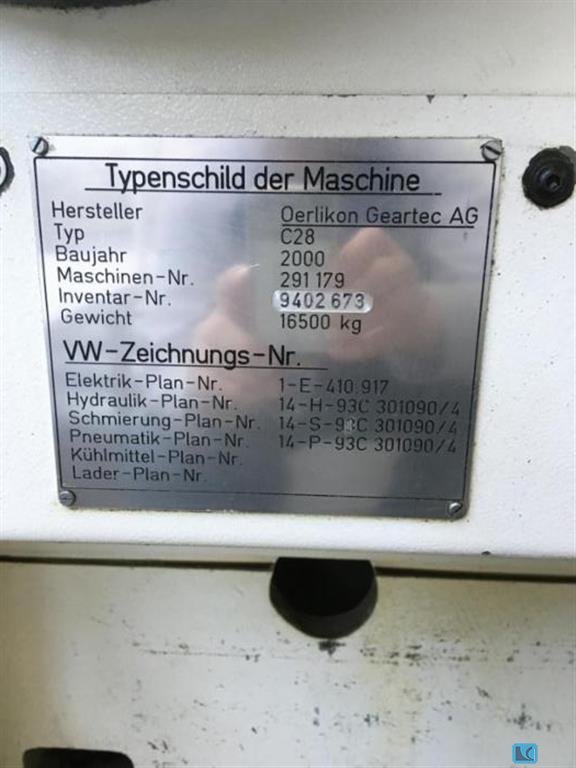

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...
max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

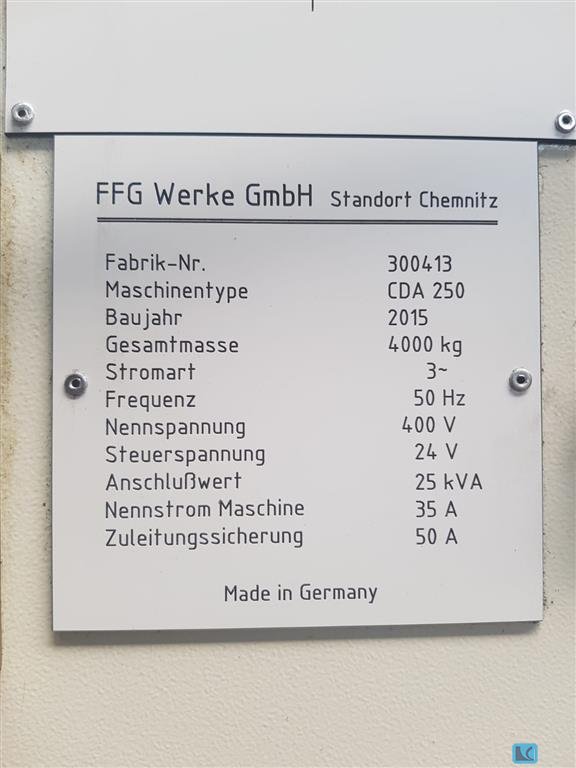

max. wheel diameter:50 mmgear width:20 mmmax. module:4 mmmin. module:0,1 mmtotal power requirement:12,5 kWweight of the machine ca.:4000 kgdimensions of the machine ca.:2,2 x 2,5 x 2,3 mworkpiece length - max.:300 mm
max. wheel diameter: mmgear width: mmweight of the machine ca.:7000 kgdimensions of the machine ca.:9130 x 3895 x 3450 mmmax. top circle diameter:80 mmmax. length of teeth cutting:170 mmTotal length:240 mmtaper diameter:32 mmslide travel radial ( X-axis ):100 mmslide travel tangential ( Y-axis ):160 mmaxial movement Z-axis:300 mm/minworkpiece spindle - bore:45 mmelectr. connected load:44 kVA
1x piece Bonfiglioli Trasmital Gear RATIO 1/ 1146 - VN J38617101 - VMN JB00017191 - Weight approx. 740 kg - Made in Italy

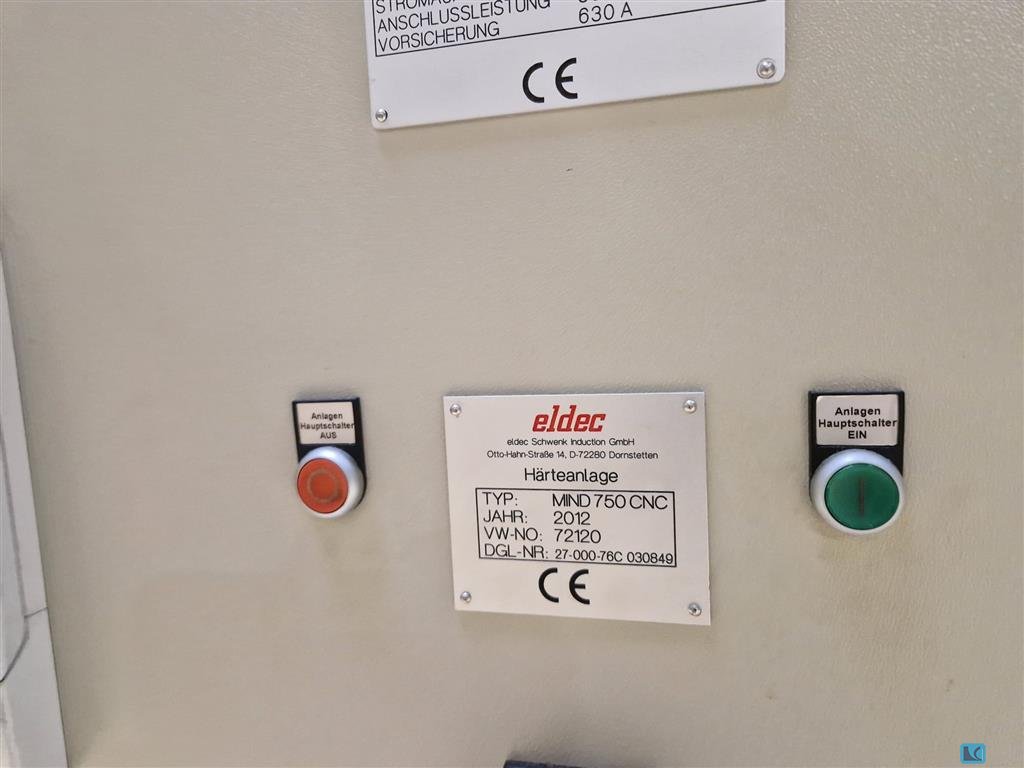

total power requirement:413 kWInduction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mmX (electromechanical) 200 mmMaximum part diameter 600 mmMaximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30
max. wheel diameter:260 mmgear width:320 mmmax. module:5 weight of the machine ca.:21 tdimensions of the machine ca.:8,71 x 5,97 x 3,49 mno. of teeth:1...999 max. helix angle:+45/-45 °pitch min.:0,1 mmpitch max.:1000 mmX-axis:345 mmy-axis:250 mmZ-axis:320 mmb-axis:360 °c-axis:360 °
max. wheel diameter:280 mmmax. module:7 weight of the machine ca.:13 ttable turning speeds:100 U/mintable diameter:250 mmmin. number of teeth:4 hob turning speeds:1500 U/minmax. hob diameter:160 cutter length max.:230 mmMachine in good condition.Available 01.08.2024
