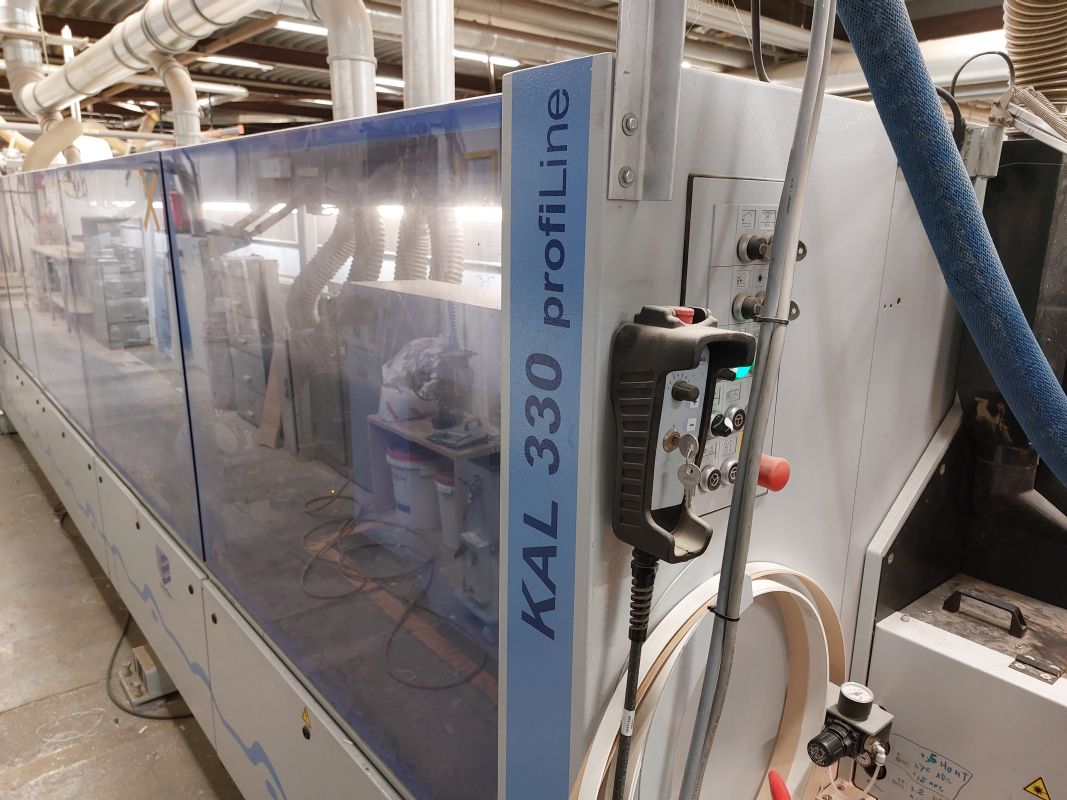

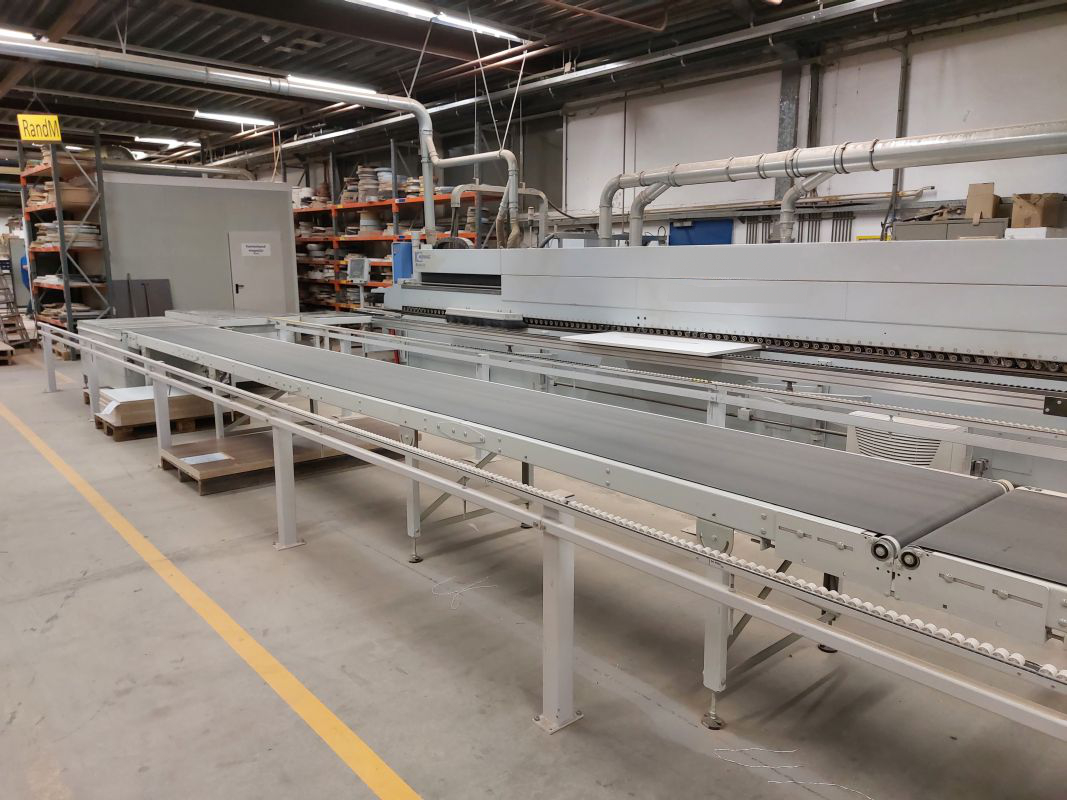

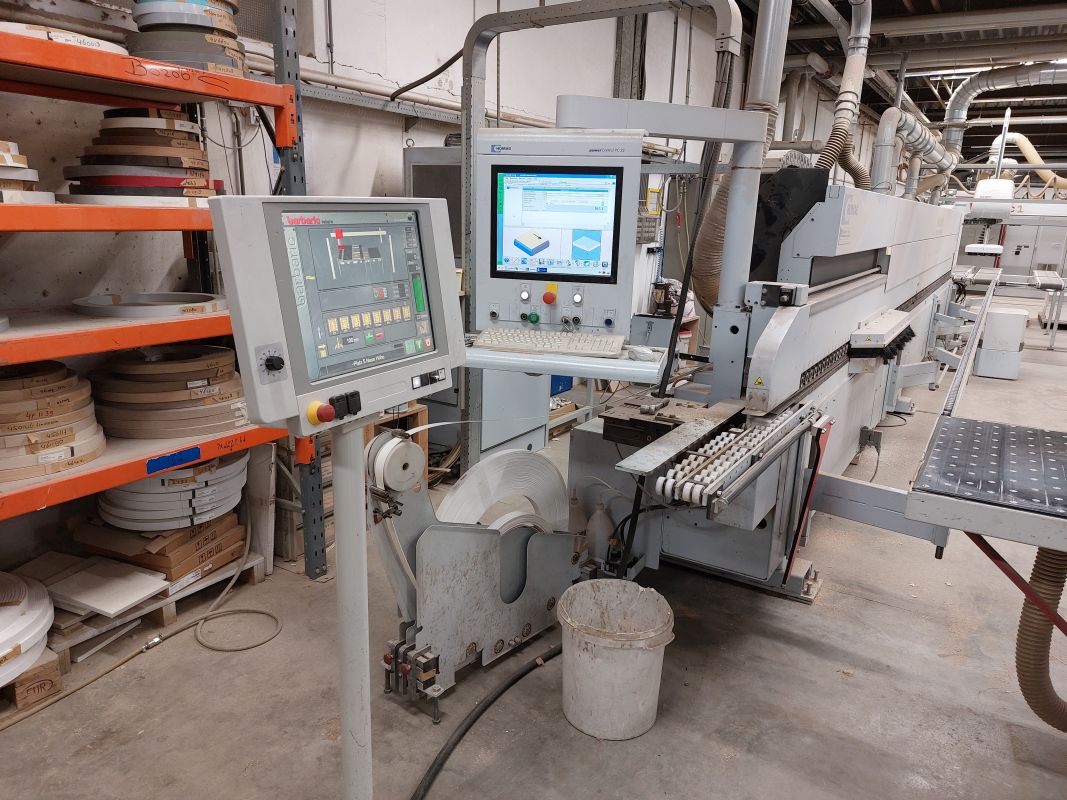

Used single-sided edge banding machine Brand: Homag Type: Profi KAL 330/ 9/A6/L Year of manufacture: 2011 Feed speed Infinitely adjustable 18-25 m/min Release agent spray unit top/bottom - To reduce surface contamination. Jointing unit KAL300/S2 - 2 motors, each 3 kW, Hz 9000 1/min - Motor shaft Ø 30x68 mm, KN - Electropneumatic control of both motors for joint milling. - Automatic adjustment of the joint milling cutter to the center of the workpiece. Melting unit with granulate container - Granulate container 12L - Level control of the melting quantity Lasertec activation unit standard - The gluing unit is designed so that it can be used with either EVA/PU adhesive or LaserTec. - Manual conversion from LaserTec to PU/EVA Magazine 1 roll - For solid edges, strip goods, and roll goods - Automatic strip separation via vacuum suction cup - 1 edge f ...

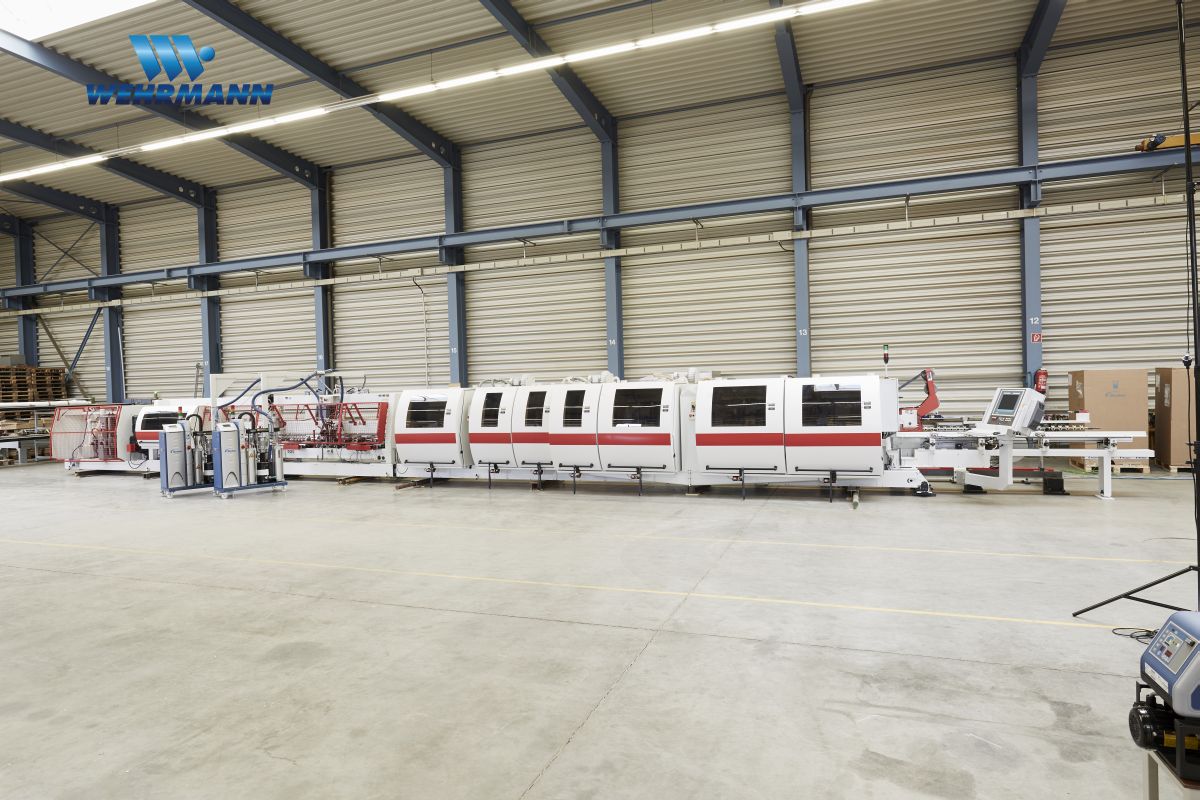

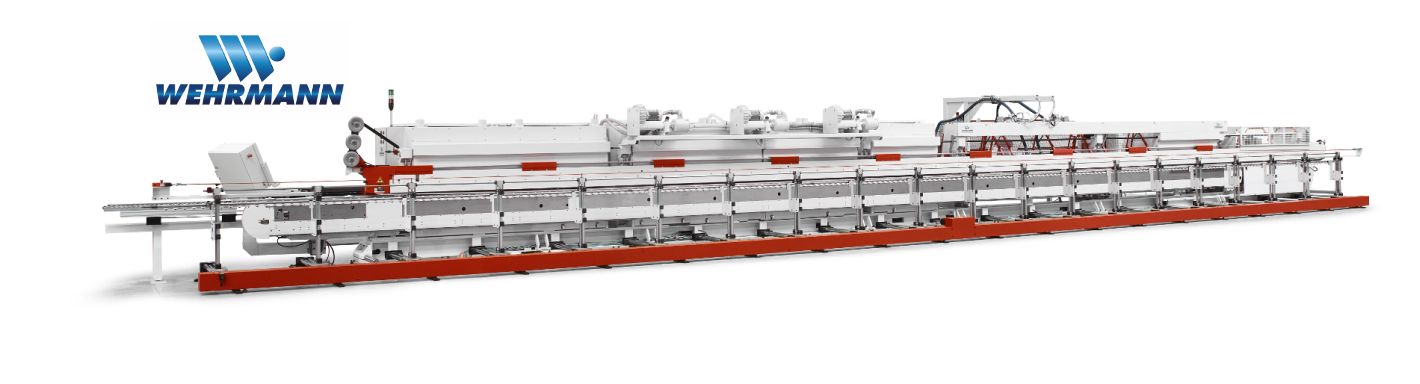

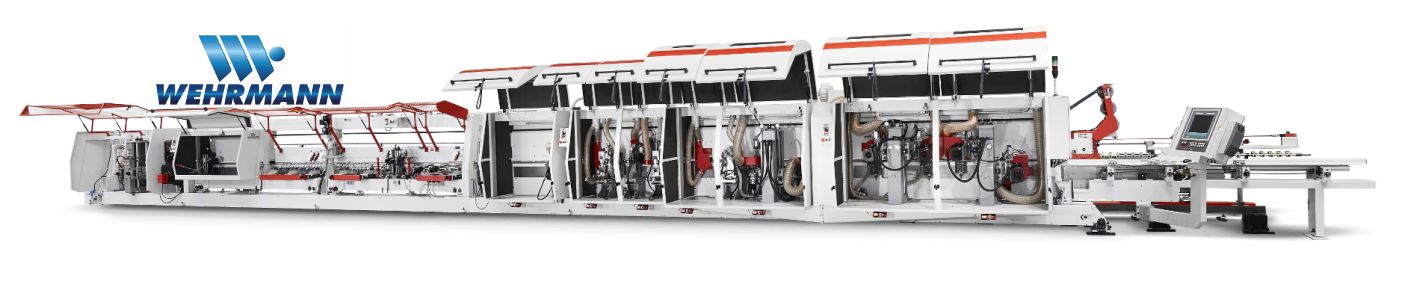

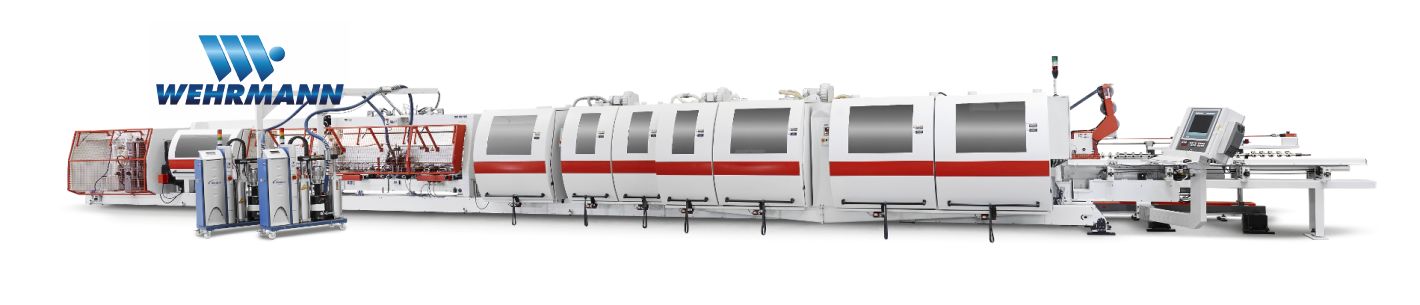

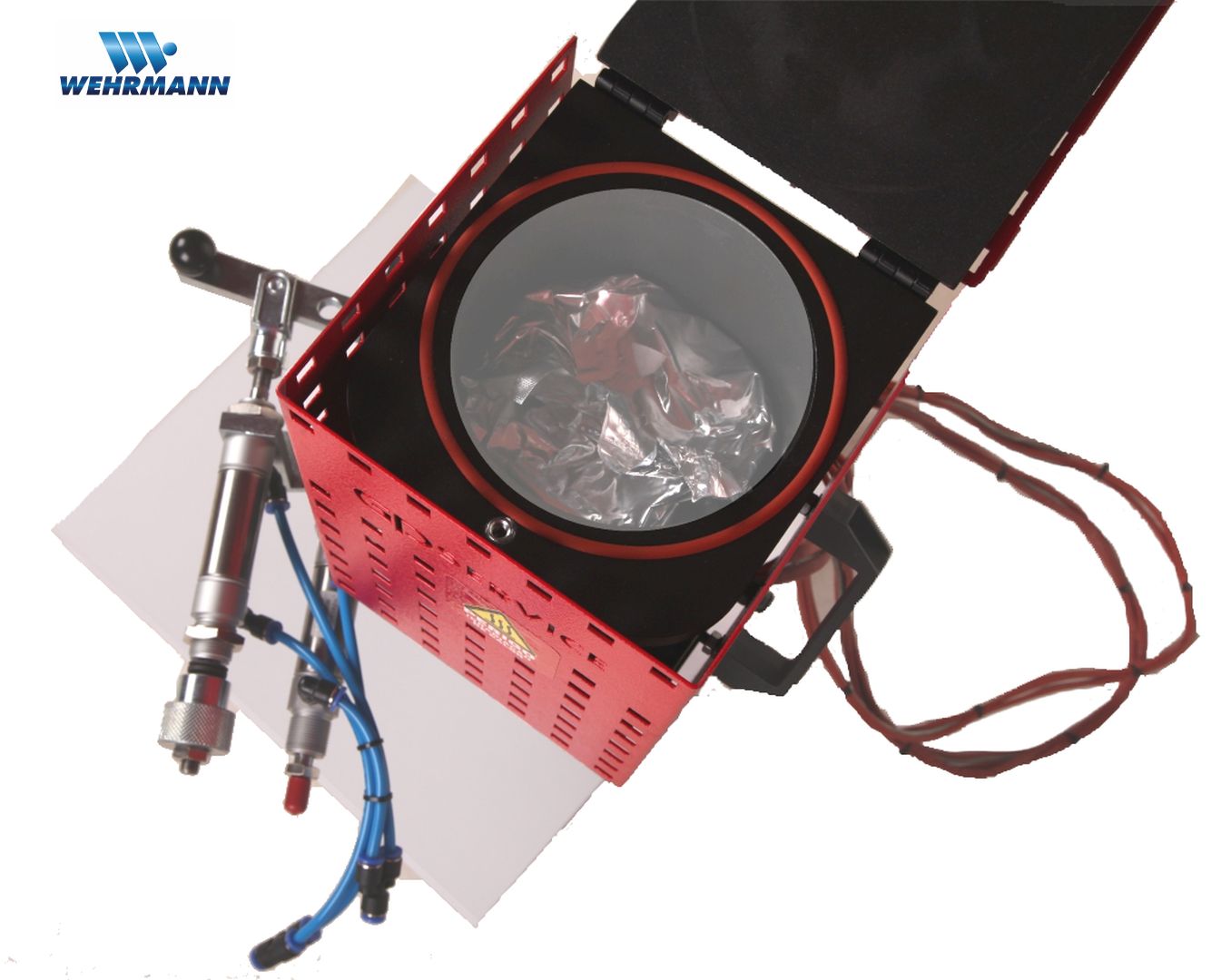

single-sided direct postforming machine Brand: Wehrmann Type: Combima /K/I/R80/1260/V Example offer direct postforming machine Varied using for doors, worktops, furniture parts, curved caravan fronts, etc. Technical data: A single-sided throughfeed postforming machine for the postforming and postfolding process, for processing curved workpieces in caravan construction. For workpieces to be profiled made of wood/wood materials with laminate (CPL,HPL) as surface material. The laminate protruding for the postforming process is located in the machine on the underside of the workpiece and is formed from the bottom to the top. Technical data Machine Constant workpiece projection from the chain conveyor: from approx. 35 mm Throughput width min.: 130 mm ( only for straight parts ) Workpiece length in feed direction min.: 1,000 mm Basic height: 940 mm (upper edge ...

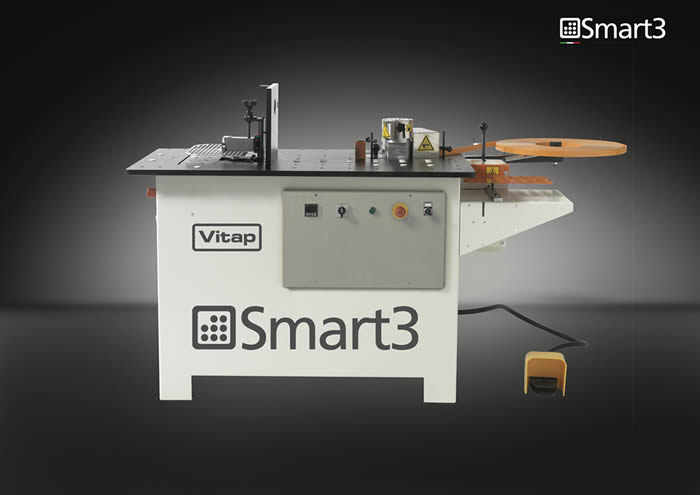

Contour edge banding & trimming machine Make: VITAP Type: SMART-3 New machine - With swivable trimming station - For straight and formed workpieces (convex and concave) - 1 glue spreading roller for 10-60 mm panel thickness - Guillotine to cut bands up to 3 mm thickness - edge 0,5-3mm 2 tape feeding speed (3 m/min or 7 m/min) -Glue pot 1kg capacity - Tape plate Ø=520mm Solid Phenolic table - Easy to clean - With no heat transmission - Electronic temperature control - Foot pedal command for the guillotine Tilting trimming unit - with 1 high frequency motor HP 0.75 (kw0,55) - 1 cutter Head with 2 knives r1mm/r2mm/r3mm - Support tape plate Ø 600 mm - Semi-automatic end-cutter with motor 0,5 kw and blade Ø=125 mm - Working table 400 x 300 mm. - CE standards. Optional available for an extra charge: - Cutter (without knives) - Set ...

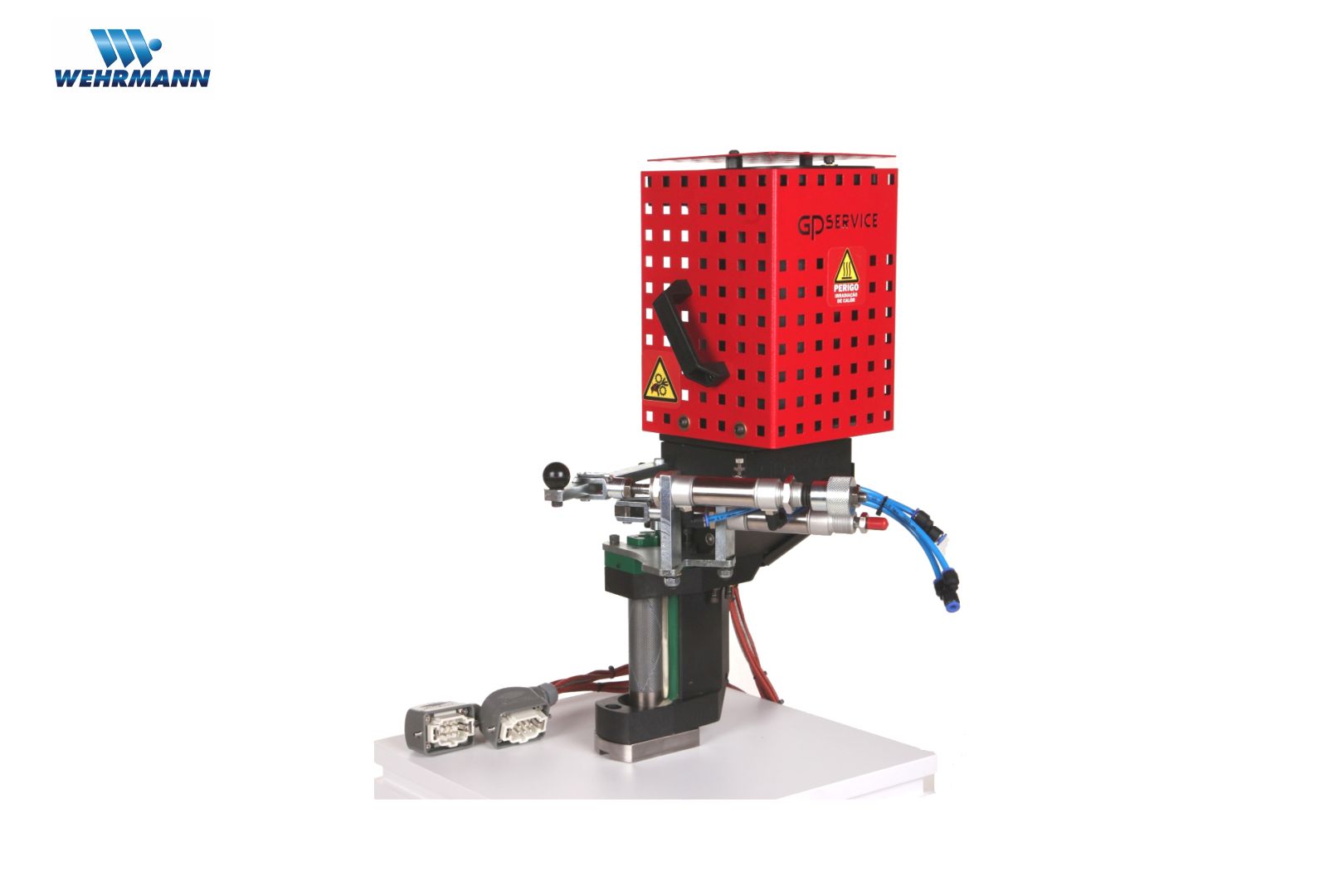

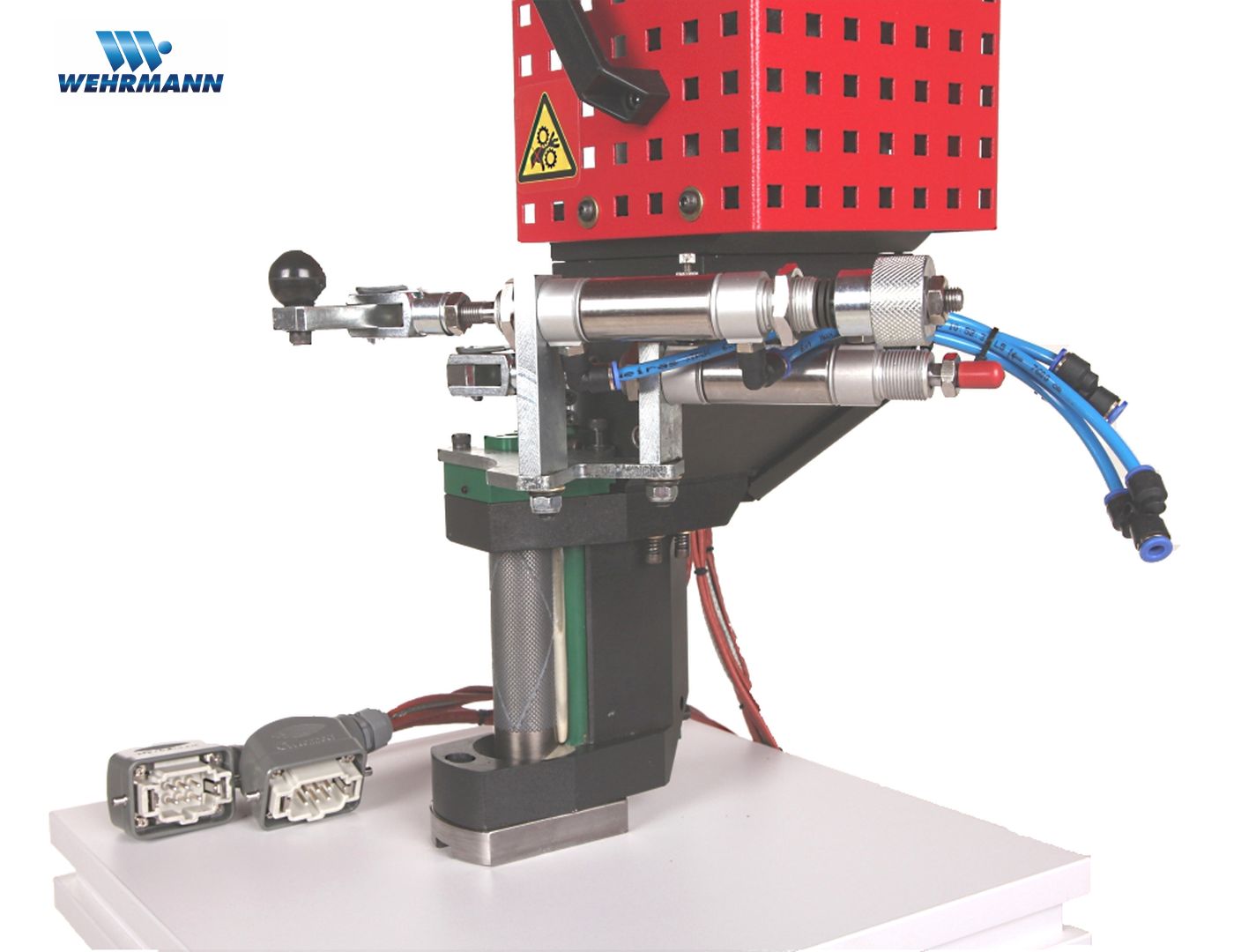

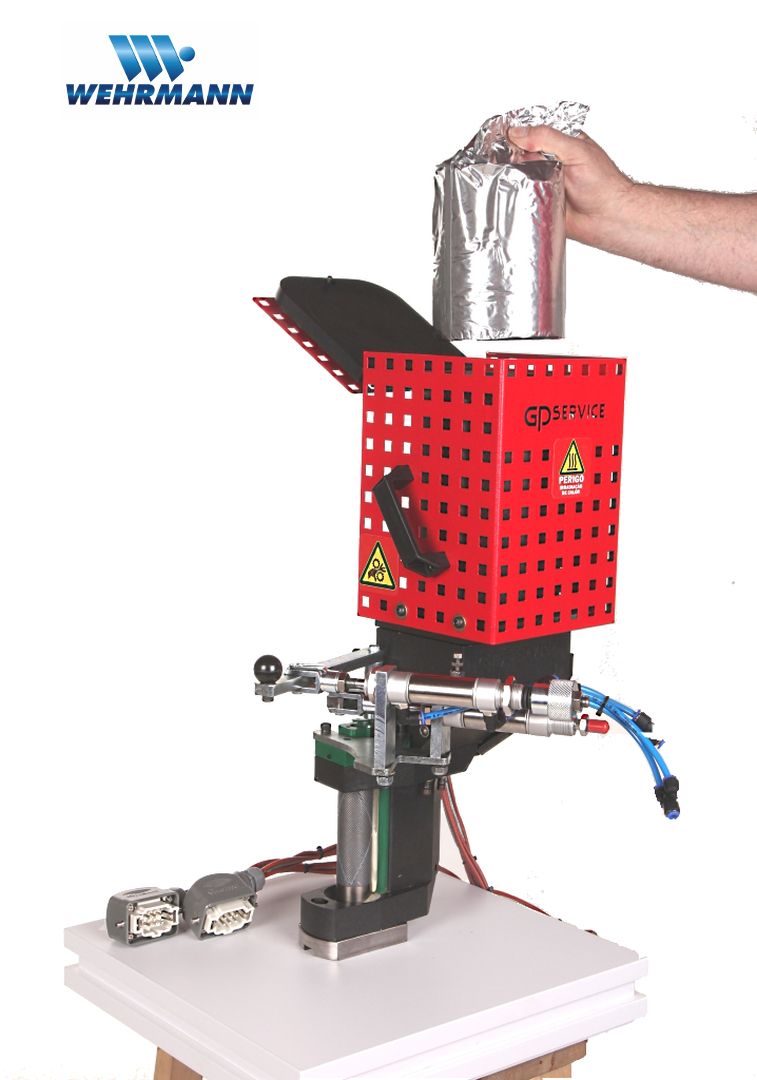

PUR gluing Brand: GP Service Type: EASY PUR general description - PUR adhesive unit with integrated pre-melt container for a permanent zero joint - greatly reduced maintenance and cleaning costs due to PTFE coating of all assemblies (except glue roller) - suitable for flexible production capacities - order in synchronism adaptable to all common machine manufacturers: - Can be mounted directly on HOMAG machines - also in alternation with original glueing unit! - Stefani with adapter - Biesse with tag - others on request Application height 60 mm, higher on request Feed up to 30 m / min, higher on request low order quantities (
Дерево Her Auriga 1308 FU + PU Компактная конструкция — толщина кромки 0,4–6 мм PLC Screen Control Edge-Control PPC 221 Color Screen Предфрезерная единица для крепления перед склеенной деталью Полностью автоматический магазин кромки для рулонных и стрип-изделий Glu-Jet EVA и PUR Glue Glue Cartridge или гранулы + PU Нанесение клея с помощью технологии сопла Высота заготовки 6-65 мм Автом. Регулировка высоты клея Печатное устройство 1912-3 пневматическое Пневматический блок с поперечным резом 1918 года для валков и полос толщиной края до ...
Kuper FW 1150 шпонный склеиватель Рабочая ширина 1150 мм Толщина шпона 0,4–3 мм Скорость подачи 10-30 м/мин Зигзагообразная строчка Год производства: 1997 Марка CE Вес 520 кг Чистая цена

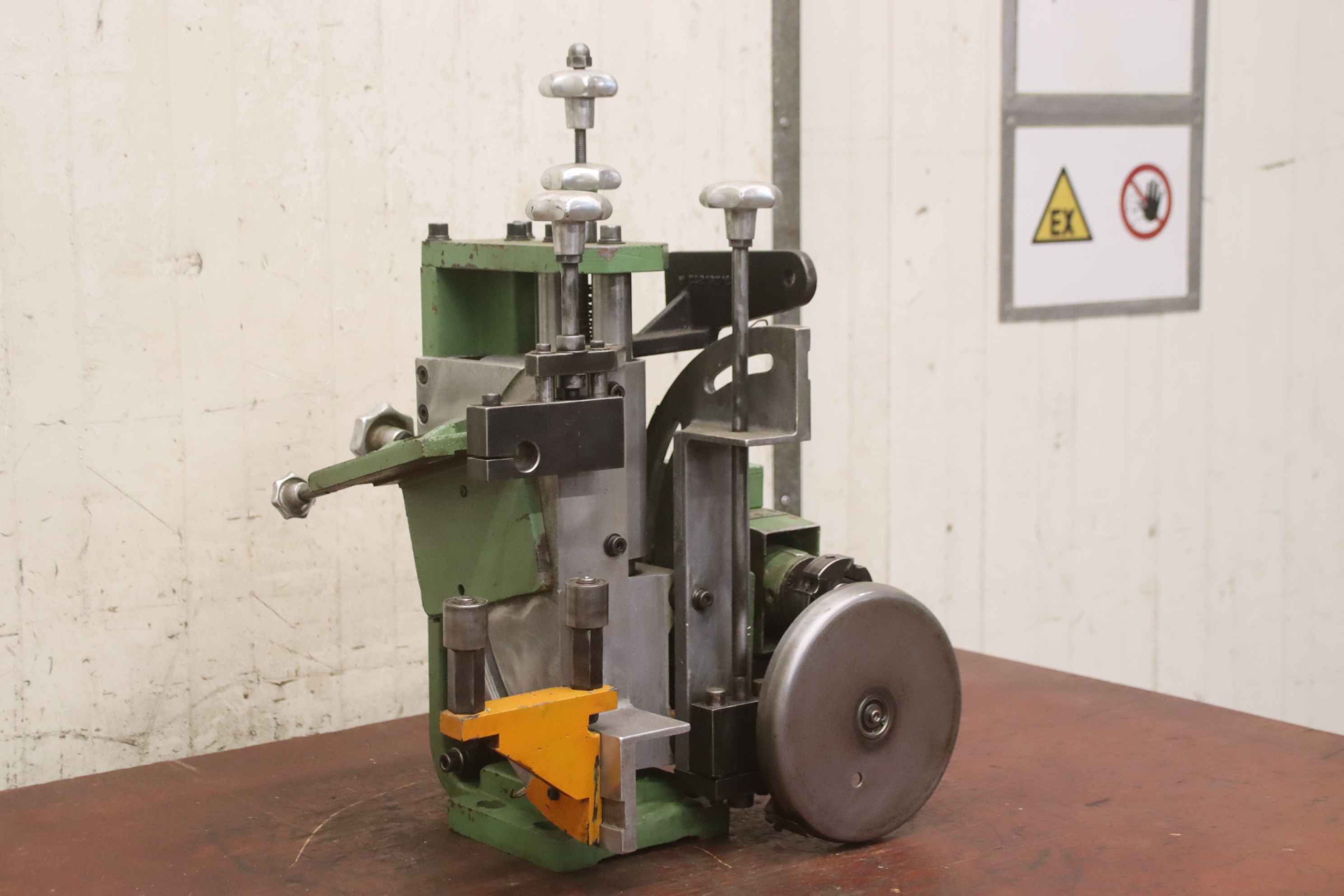

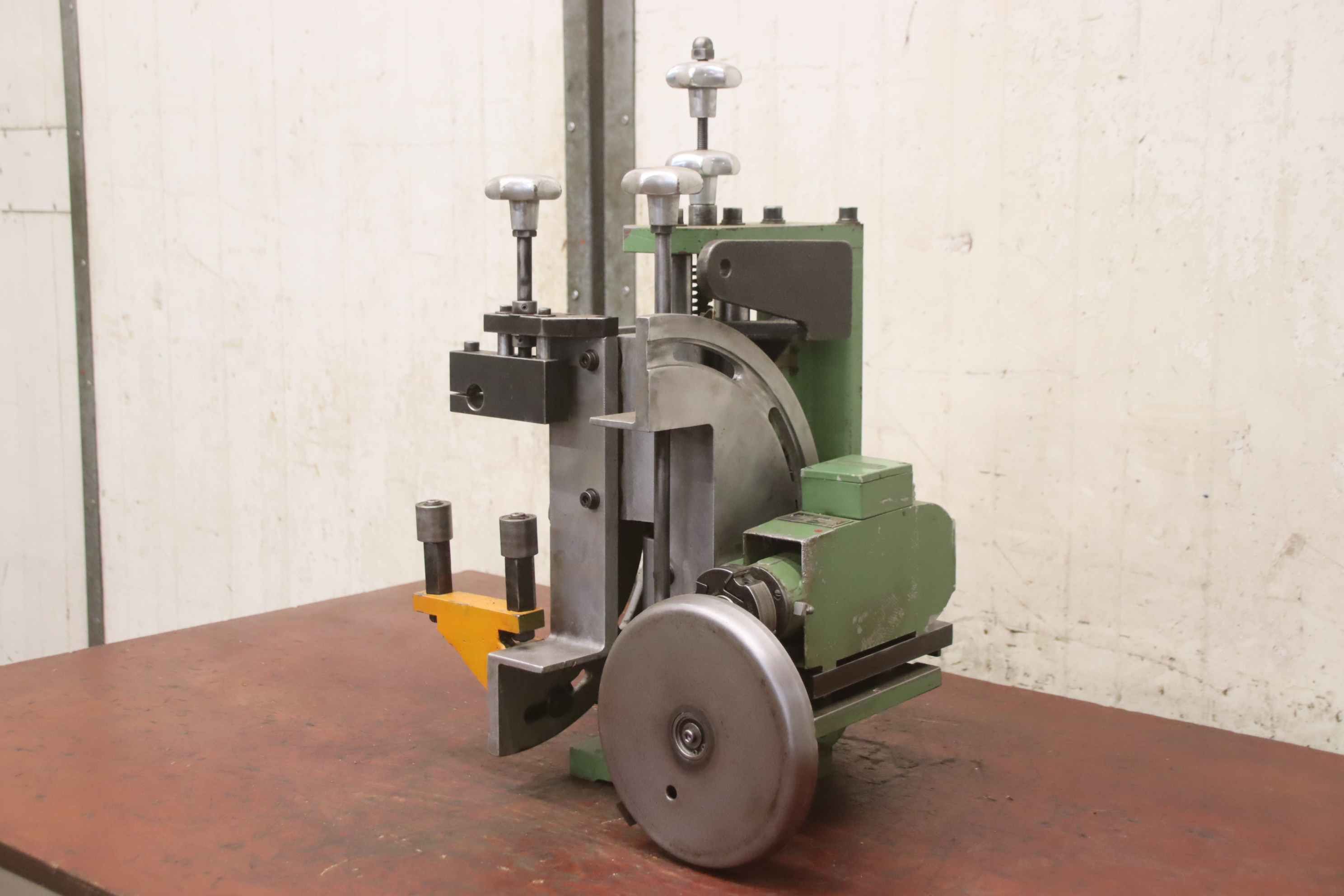

Unit construction kit, format processing unit, cutting unit, milling unit, profile milling unit, jointing milling unit, trimming unit, double end profiler, edge processing machine, scoring motor, chipper motor, milling motor for edge processing machine-HOMAG milling unit can be rebated, grooved and profiled-with keying of 2 sides each-Milling unit: swiveling-Number: 2 x motors Perske-Power: 0.15 kW-Voltage: 133 volts-Frequency: 200 Hz-Speed: 11,160 rpm-Other engines with other services in stock for an additional charge-Dimensions: 470/400/H620 mm-Weight: 55 kg

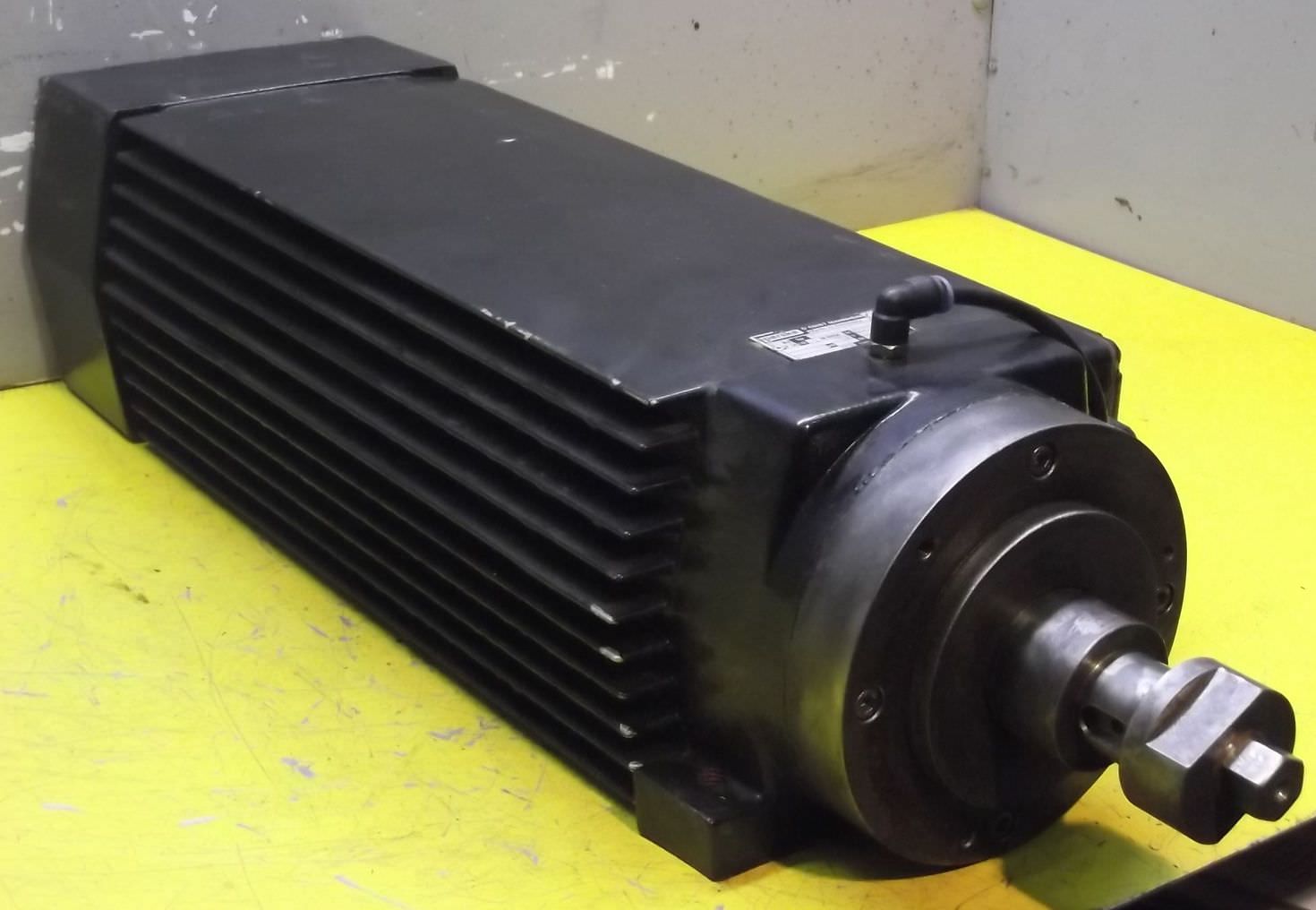

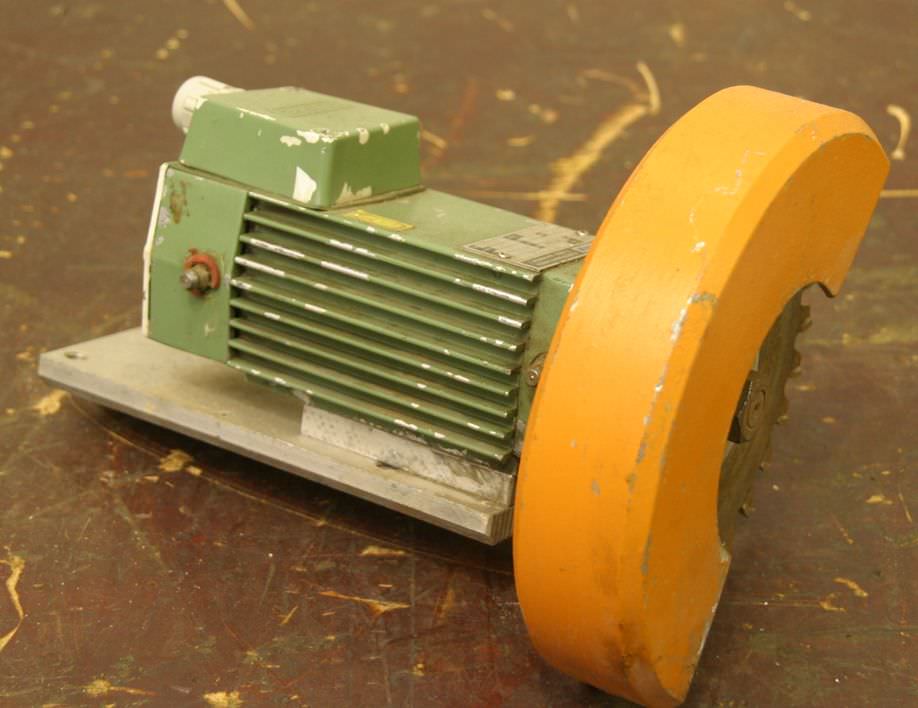

Double-end tenoner, edge processing machine, scoring motor, cutting motor, electric motor, spindle motor, milling motor -Power: 6.6 kW 8915 rpm at 300 Hz -Voltage: 165 volts -Shaft mounting: Ø 35 mm -Dimensions: 520/247/H145 mm -Weight: 41 kg

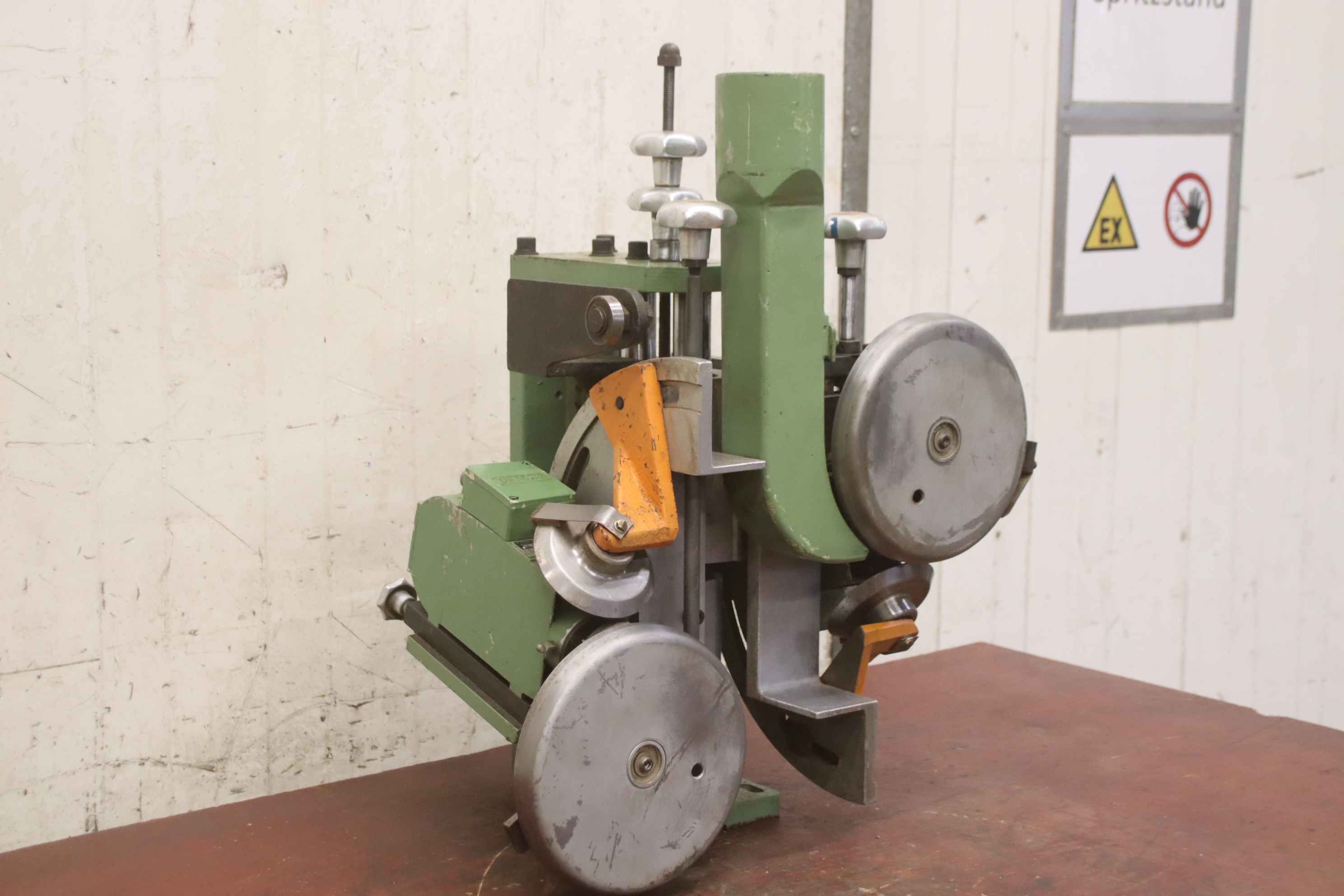

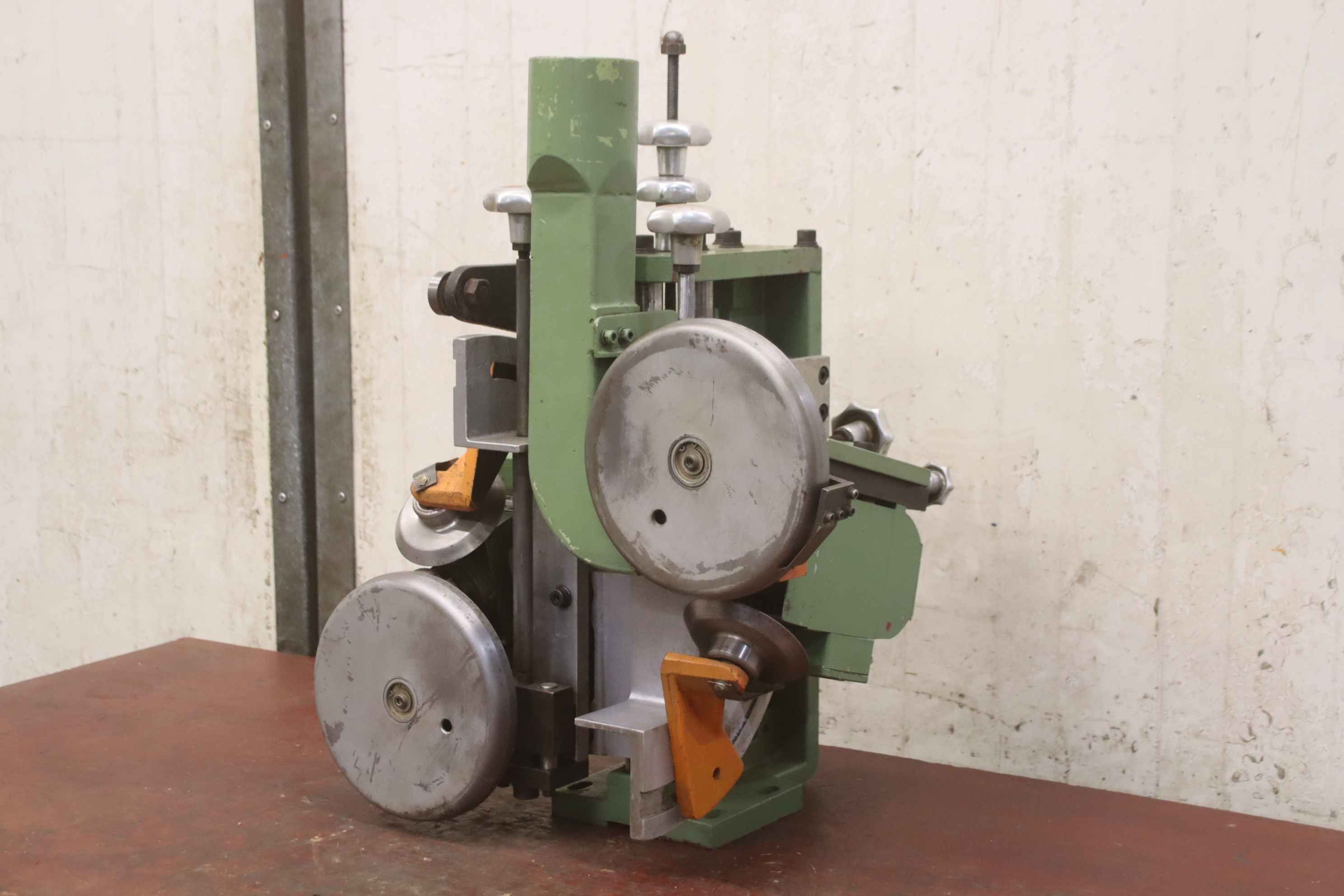

Modular unit, format processing unit, cutting unit, milling unit, profile milling unit, jointing milling unit, trimming unit, double-end profiler, edge processing machine, scoring motor, chipper motor, milling motor for edge processing machine -HOMAG milling unit can be rebated, grooved and profiled -with keying of 2 sides each -Milling unit pivotable -1x engines Perske -Power: 0.3 KW -Voltage: 165 volts -Frequency: 300 Hz -Speed: rpm -Other engines with other services in stock for an additional charge -Dimensions: 560/470/H570 mm -Weight: 66 kg

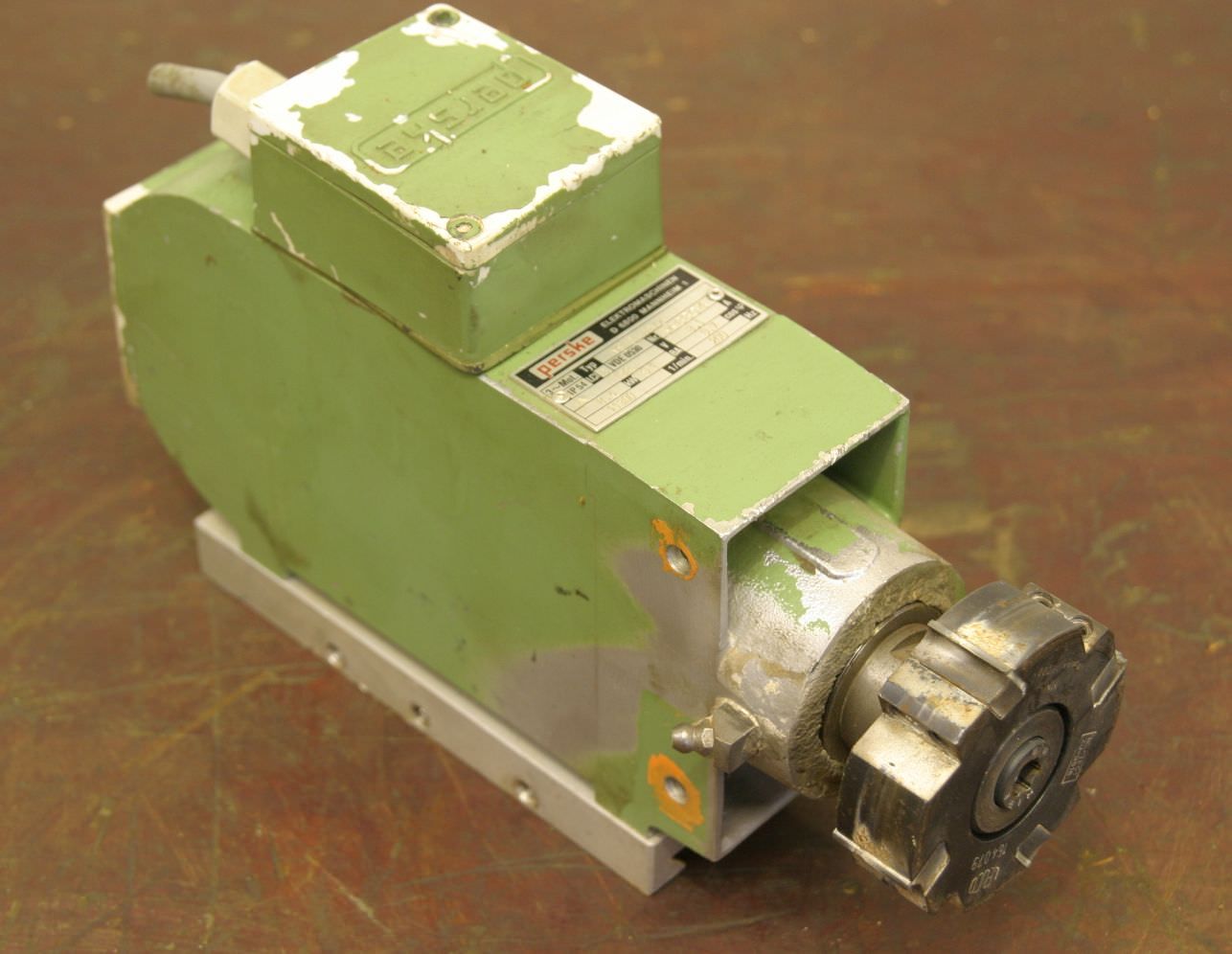

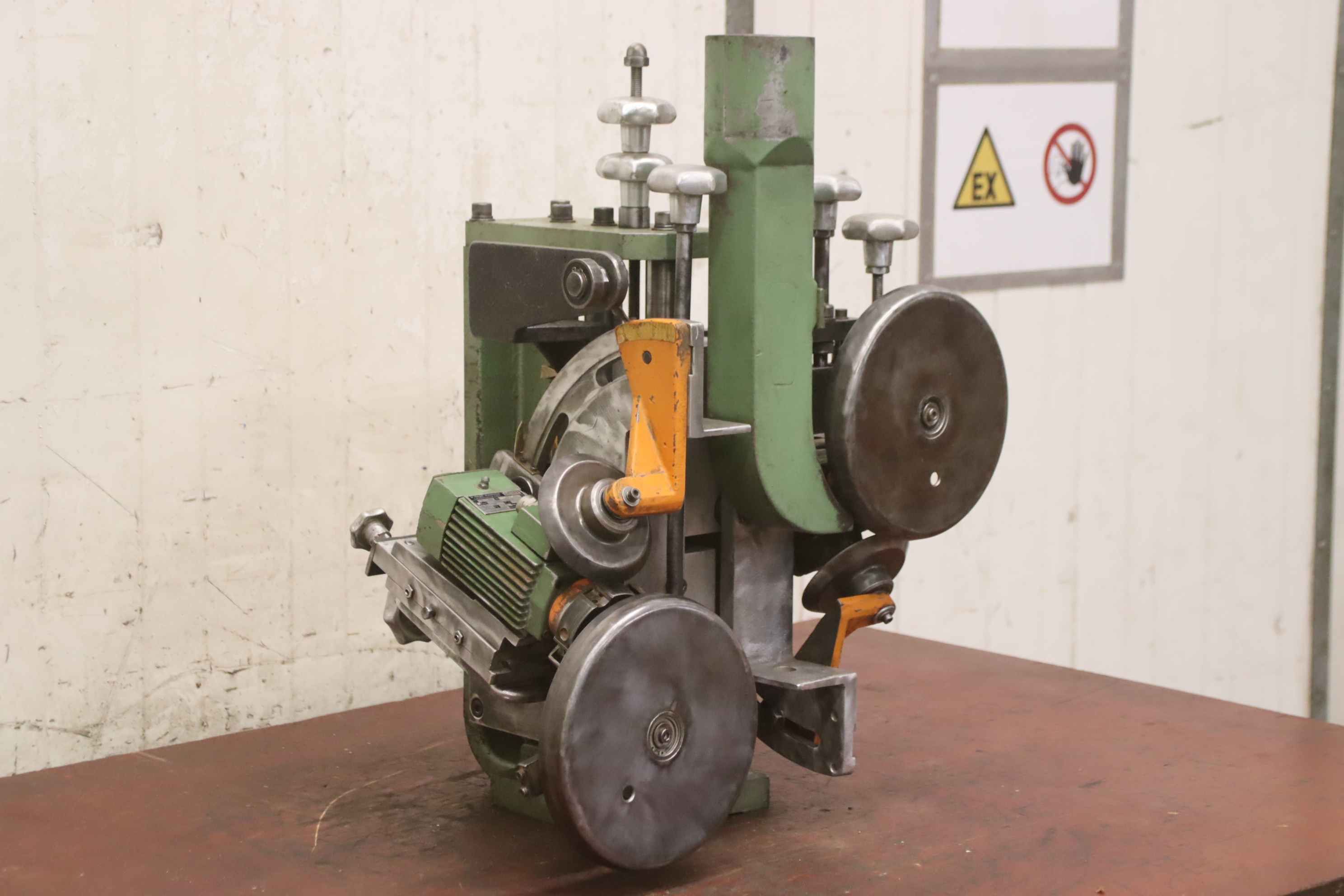

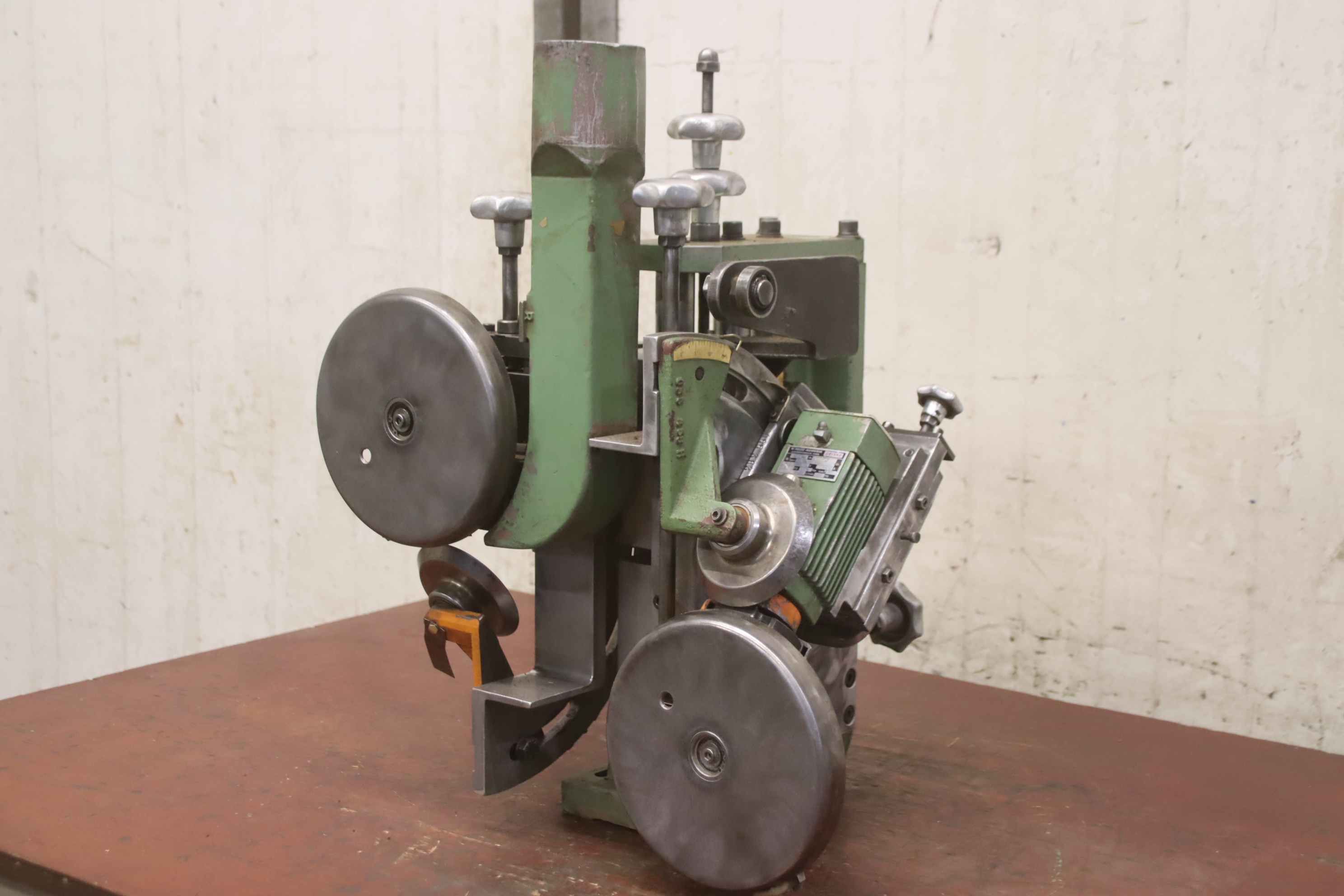

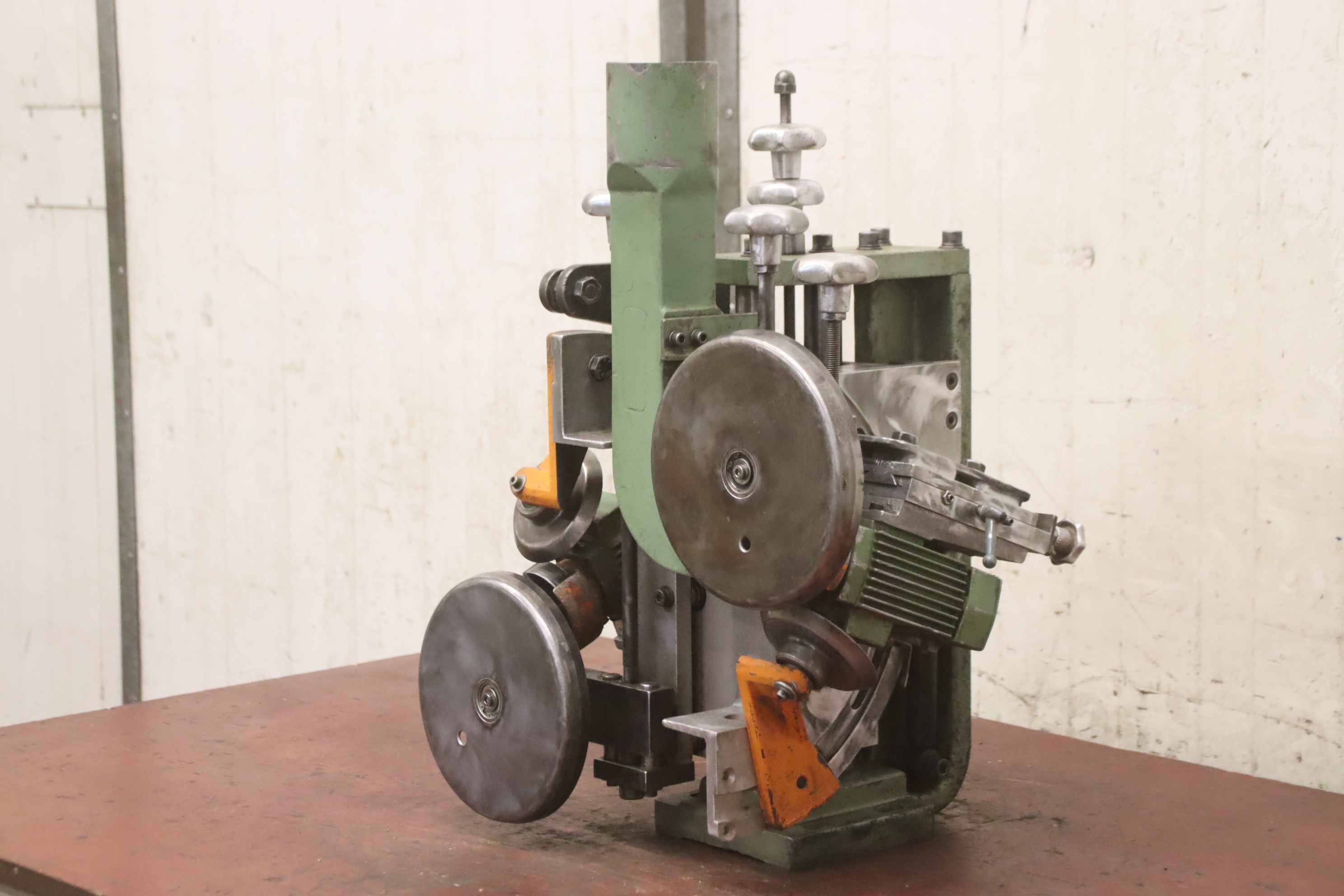

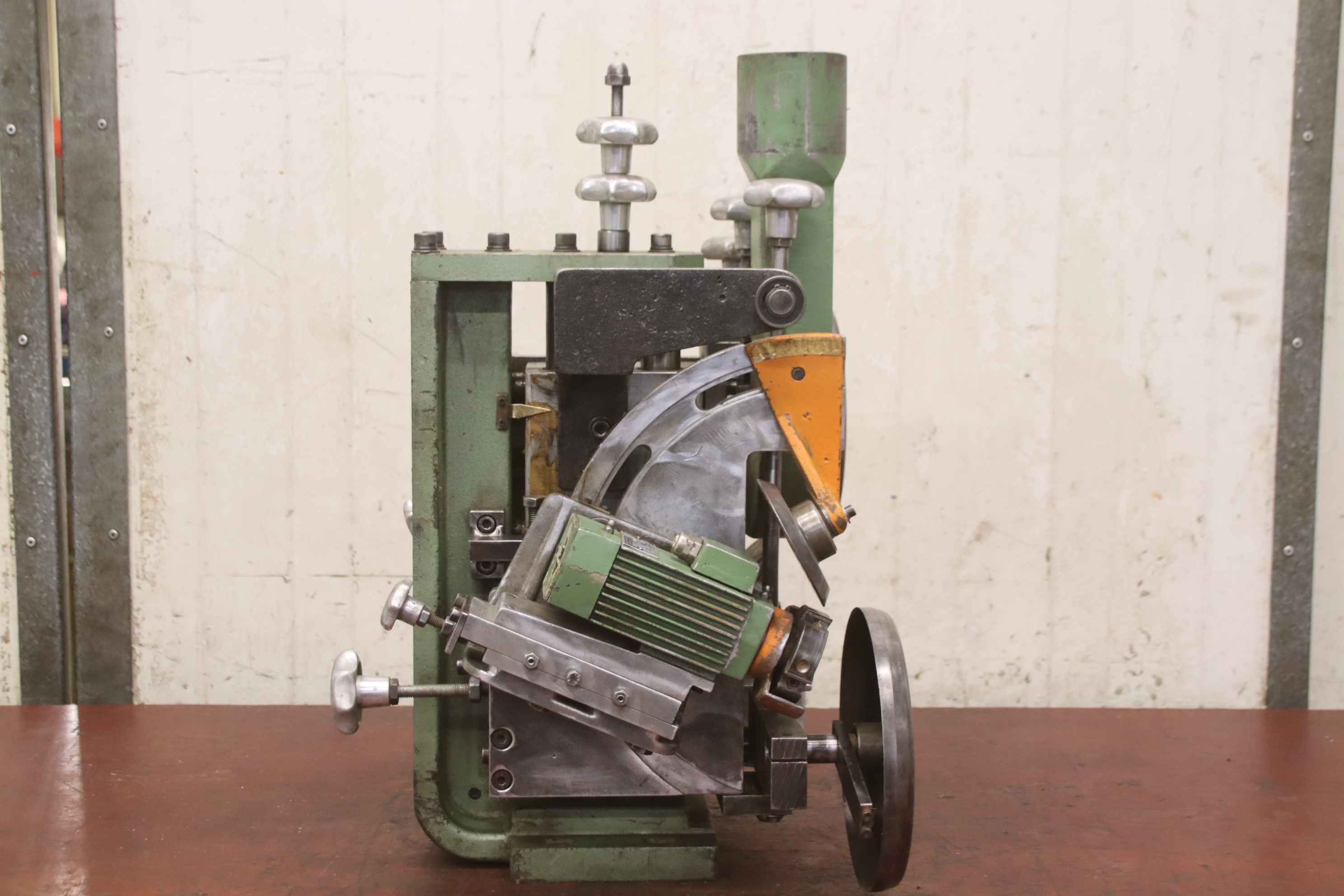

Aggregate kit, format processing unit, chipping unit, milling unit, form milling unit, jointing milling unit, trimming unit, double-end tenoner, edge processing machine, scoring motor, chipping motor, milling motor for edge processing machine-Manufacturer: Homag, milling unit for edge processing machines with Perske motor-Milling units: pivoting-Engine: Perske DVMS 903/2-Power: 0.40 kW-Frequency: 200 Hz-Speed: 12000 rpm-Dimensions: 440/380/H595 mm-Weight: 56 kg
Aggregate kit, format processing unit, chipping unit, milling unit, form milling unit, jointing milling unit, trimming unit, double-end tenoner, edge processing machine, scoring motor, chipping motor, milling motor for edge processing machine-Manufacturer: Homag, milling unit for edge processing machines with Perske motor-Milling units: pivoting-Engine: Perske DKNS 502/2-Power: 0.15 kW-Frequency: 200 Hz-Speed: 10400 rpm-Dimensions: 480/360/H595 mm-Weight: 60 kg

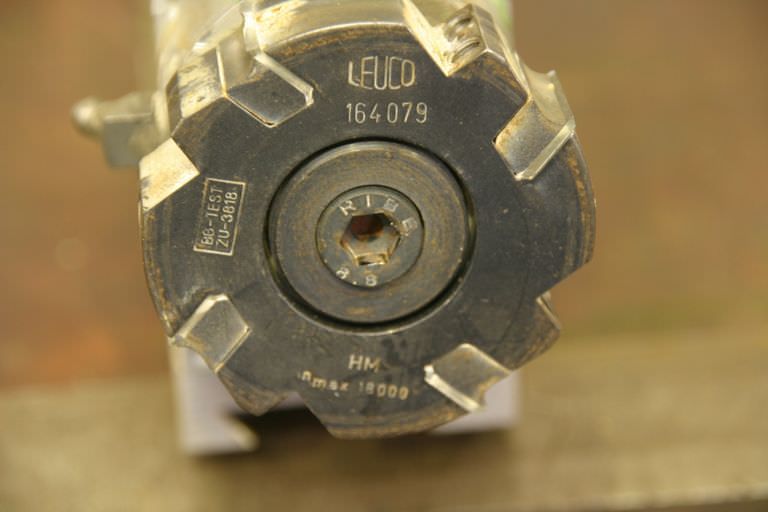

Wood milling cutter, milling head, milling tool, wood milling cutter, profile milling cutter-with: LEUCO quick release system-Outside saw blade: Ø 250 mm-Height: 4 mm-External cutter: Ø 237 mm-Height: 18 mm-Take: Ø 80 mm-1x: right-1x: left-Price: complete-Weight: 9.1 kg

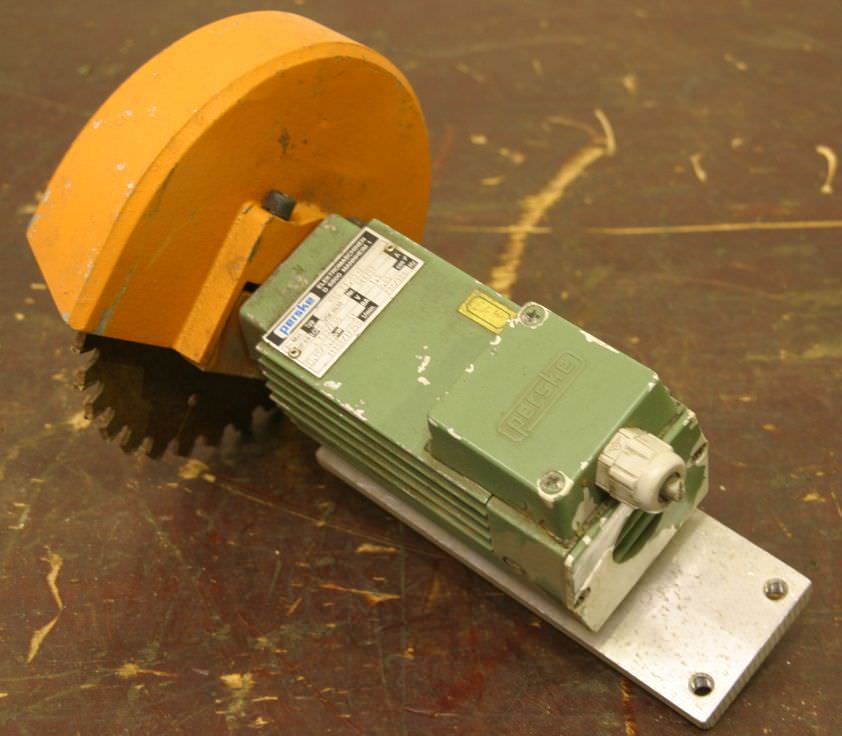

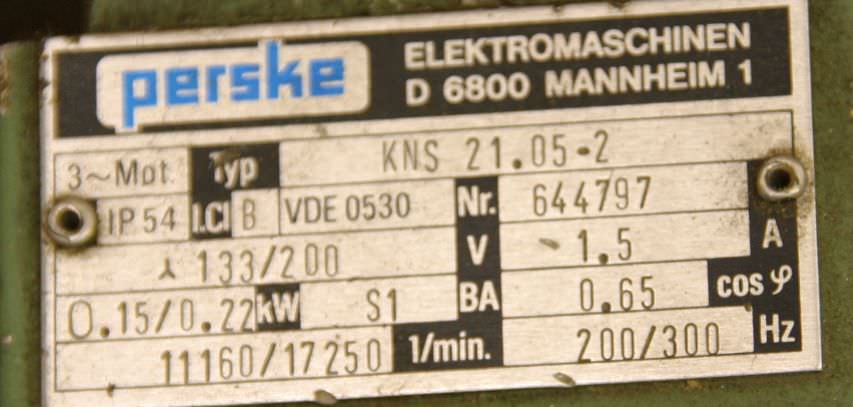

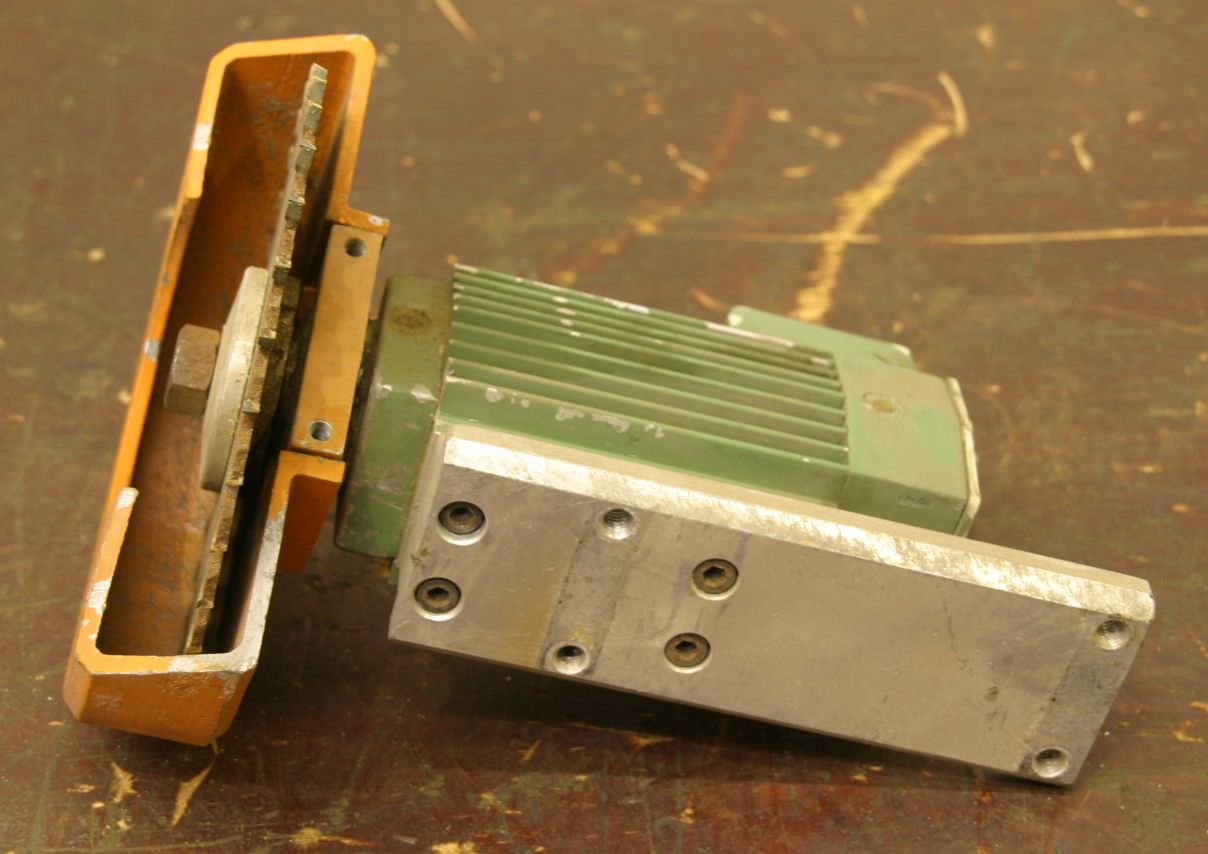

Double-end tenoner, edge processing machine, scoring motor, chipper motor, spindle motor, milling motor -Power: 0.15 kW at 11160 rpm at 200 Hz -Power: 0.22 kW at 17250 rpm at 300 Hz -Voltage: 133/200 volts -Receiving shaft: Ø 15 mm -Tool: Ø 150 x 3.0 mm -Dimensions: 200/85/H70 mm -Weight: 3 kg

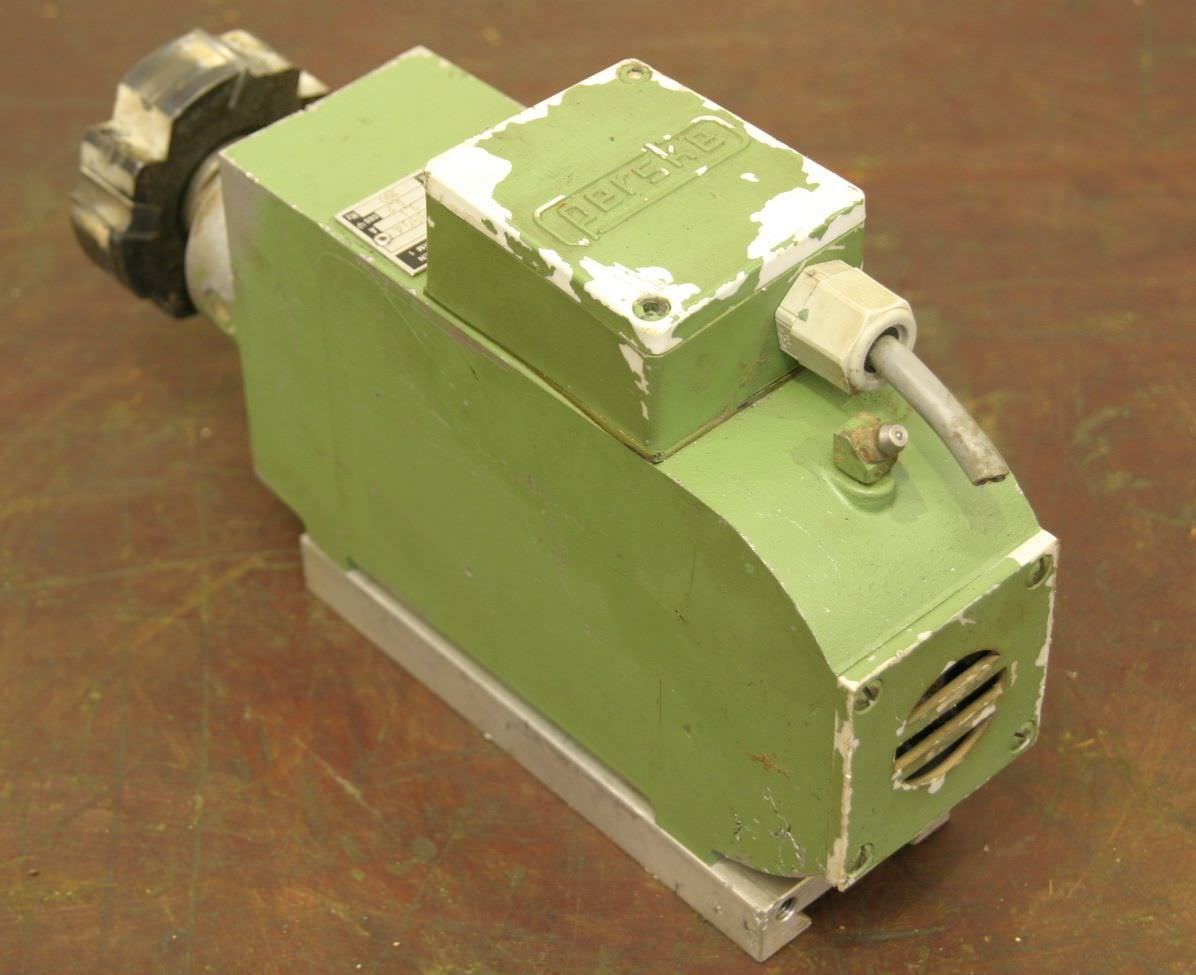

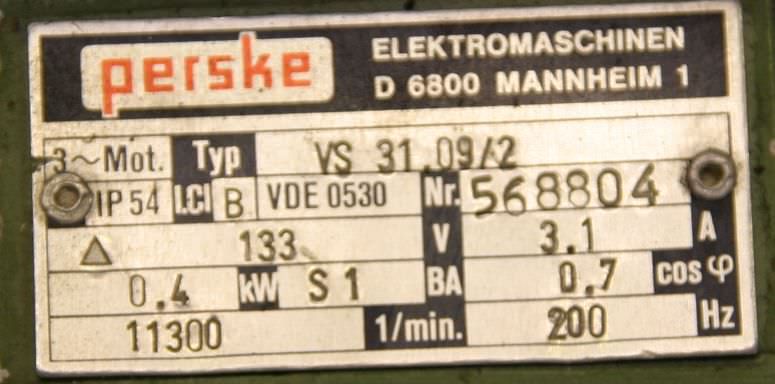

Double end profiler, edge processing machine, scoring motor, chipper motor, spindle motor, milling motor -Power: 0.4 kW 11300 rpm at 200 Hz -Voltage: 133 volts -Take shaft: Ø 20 mm -Tool: mm -Number: 3x motors available -Price: per piece -Dimensions: 250/60/H155 mm -Weight: 4.2 kg

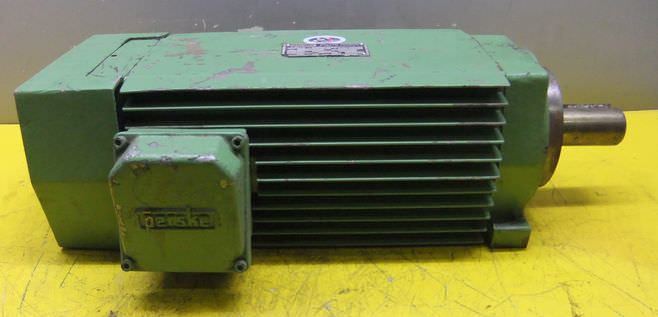

Double-end tenoner, edge processing machine, scoring motor, cutting motor, electric motor, spindle motor, milling motor -Motor: 1.5 kW 2820 rpm at 50 Hz -Motor: 2.2 kW 5800 rpm at 100 Hz -Voltage: 380 V -Shaft mounting: Ø 30 mm -Weight: 15 kg

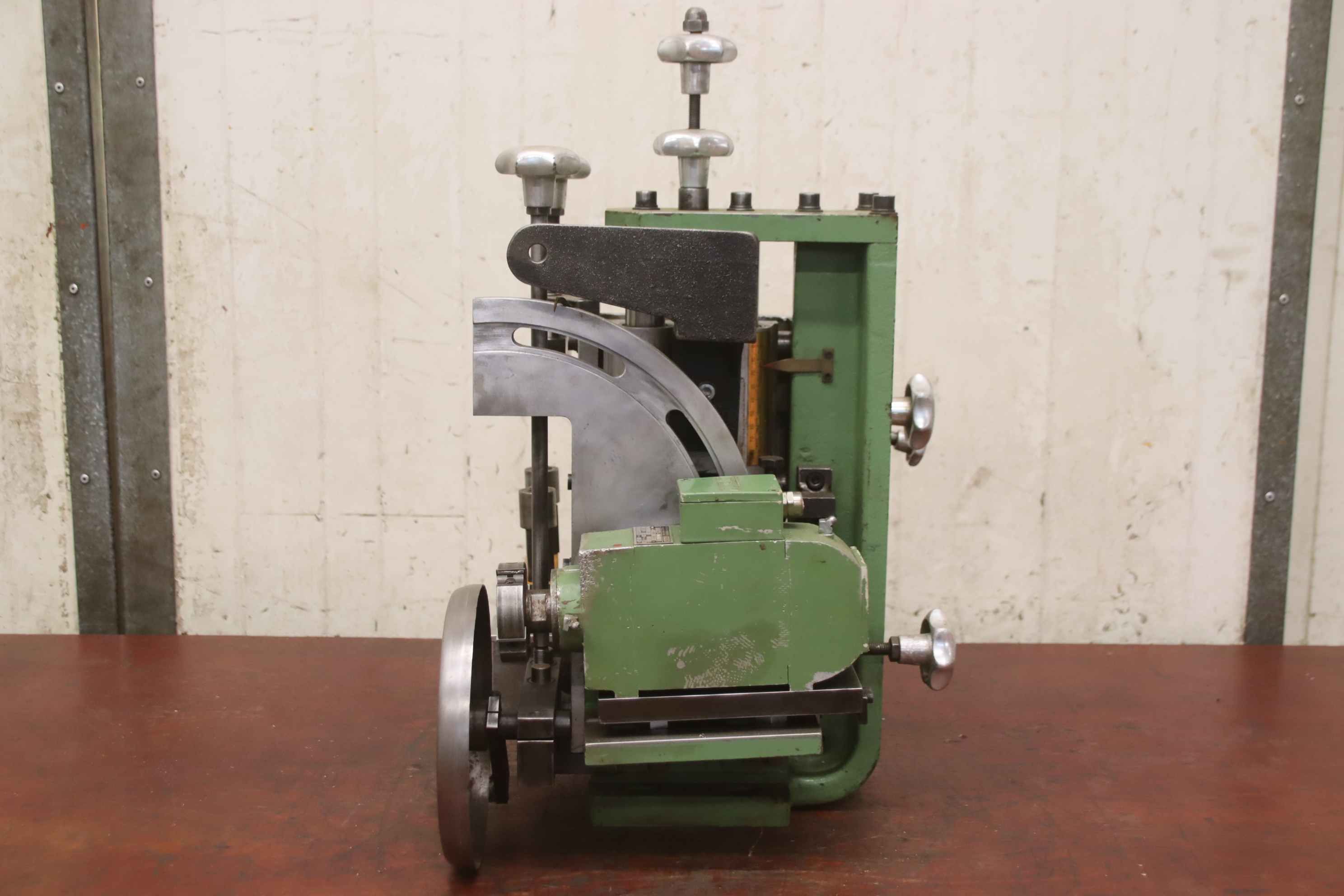

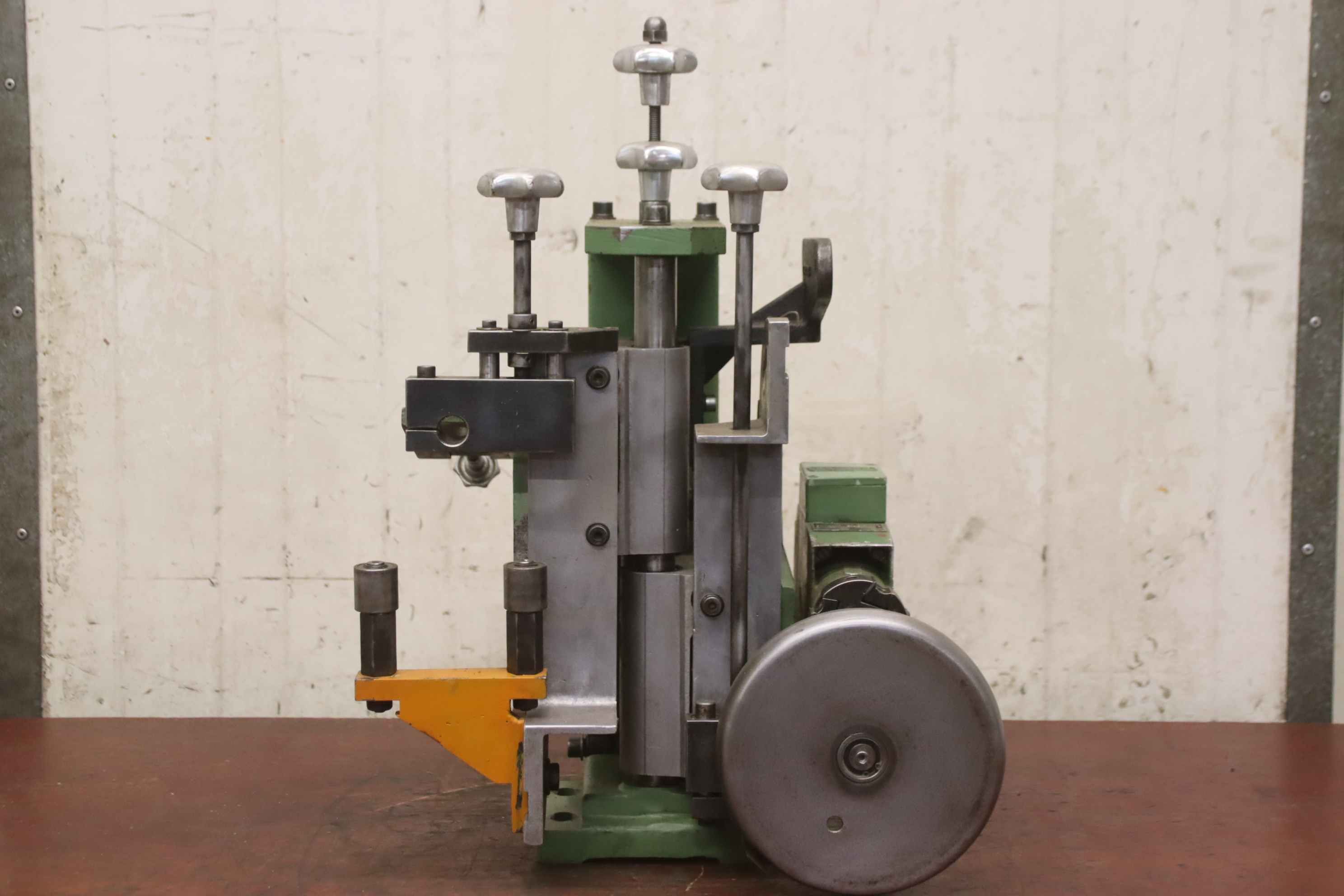

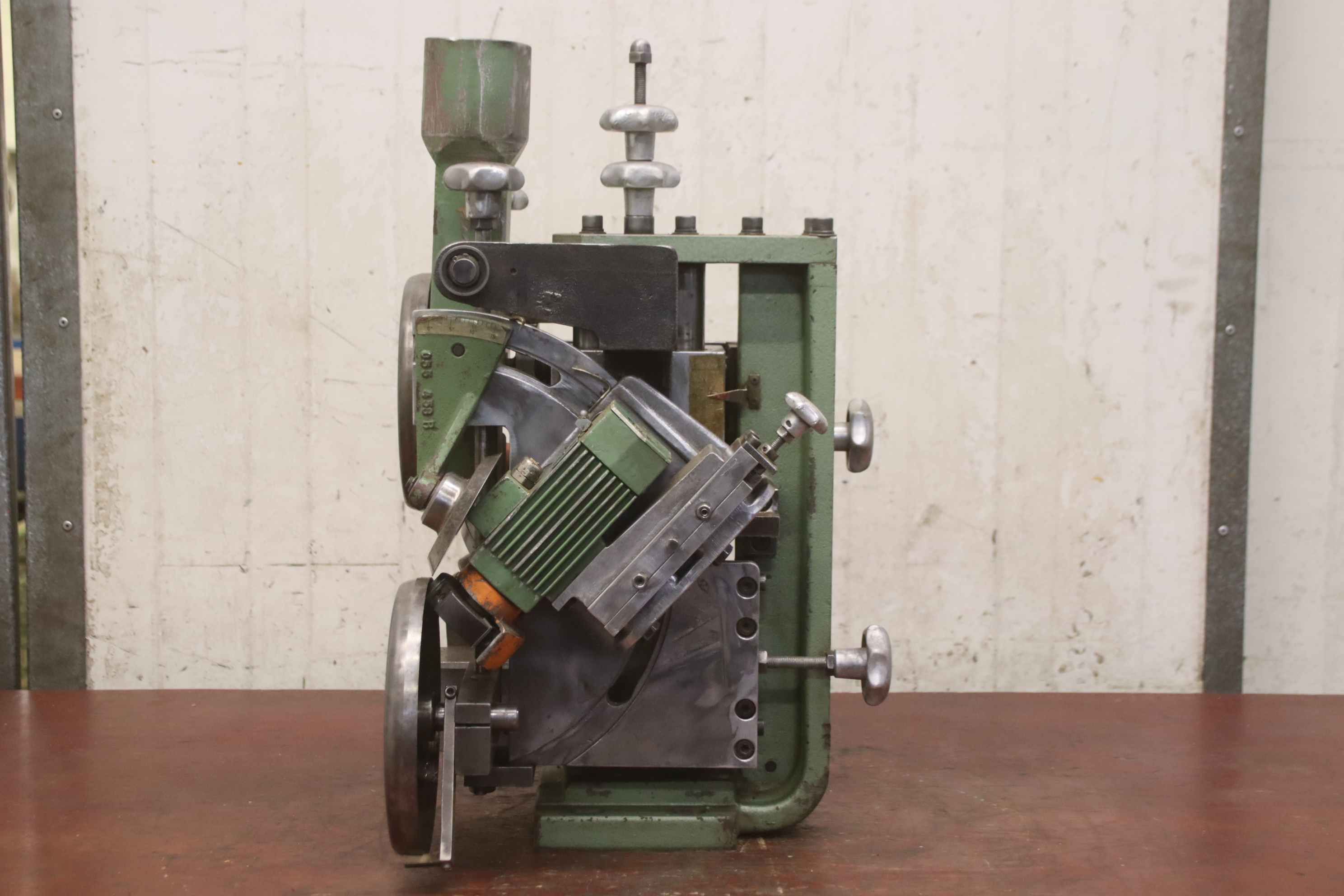

Aggregate kit, format processing unit, chipping unit, milling unit, form milling unit, jointing milling unit, trimming unit, double-end tenoner, edge processing machine, scoring motor, chipping motor, milling motor for edge processing machine-Manufacturer: Homag, milling unit for edge processing machines with Perske motors-Milling units: pivoting-Engine: 2 x Perske DVMS 903/2-Power: 0.4 kW-Frequency: 200 Hz-Speed: 12000 rpm-Number: 1x milling unit available-Dimensions: 490/370/H610 mm-Weight: 53 kg

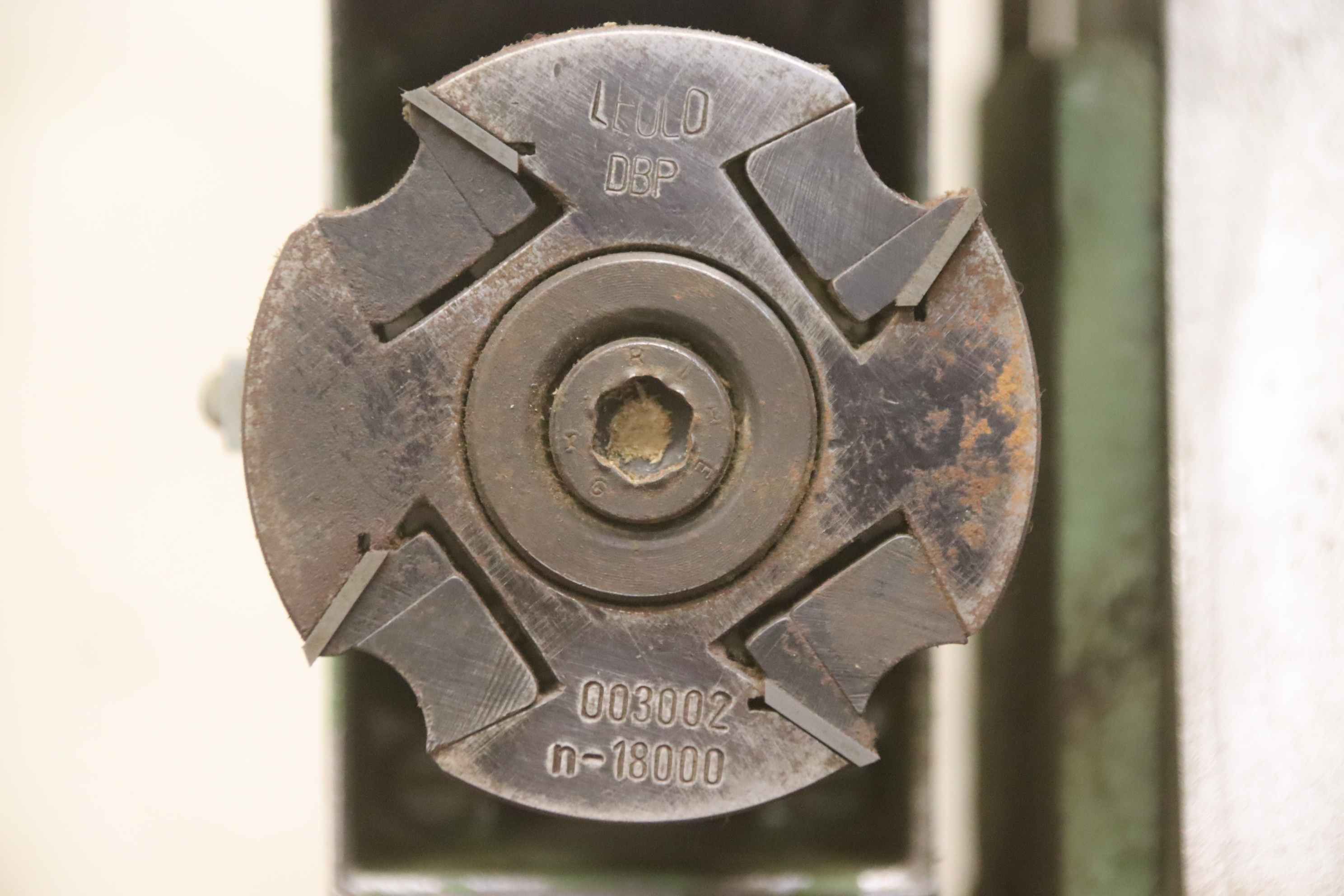

Wood milling cutter, milling head, milling tool, wood milling cutter, profile milling cutter-External milling cutter: Ø 180 mm-Height: 14 mm-Socket: Ø 35 mm-Radius-1x: right-1x: left-Price: complete-Weight: 9.1 kg
500 €
