Horizontal turning machine manufactured in 1999. This Gildemeister CTX400 Serie2 features a maximum turning diameter of 420 mm and a distance between centers of 600 mm. It includes a disc turret with 12 tool stations and a maximum spindle speed of 5000 rpm. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX400 Serie2 machine we have for sale. Contact us for further details.
This 5-axis Mazak INTEGREX 200 III S was manufactured in 2004. It features a maximum turning diameter of 660 mm and a maximum workpiece weight of 150 kg. The machine is equipped with a tool magazine capacity of 80 slots and a rapid traverse speed of 38 m/min on the X and Z axes. If you are looking to get high-quality turning and milling capabilities, consider the Mazak INTEGREX 200 III S turn-mill centre we have for sale. Contact us for further details.
Distance between centers: 2000mm, control: Siemens Sinumerik 810, the controls flash memory is currently probably defective, but the parameters can still be accessed. an on-site inspection is possible.
A Buffalo CNC lathe in need of repair is offered for sale. Center height: 200mm, distance between centers: 880mm, chuck diameter: 160mm, swing over bed: 410mm, swing over cross slide: 230mm, bed width: 260mm, spindle bore: 46mm, spindle nose: A2-5, max. spindle speed: 5000rpm, X-axis travel: 190mm, Z-axis travel: 855mm, rapid traverse: 12m/min, tailstock quill diameter: 58mm, tailstock quill travel: 140mm, tailstock quill taper: MT4, control: Fagor 8055 TC. Accessories included. Dimensions X/Y/Z: approx. 2286mm/1800mm/2230mm, weight: approx. 2350kg. The feed motor of the spindle drive is defective. An on-site inspection is possible.
Max. turning diameter: 1000mm, max. swing diameter: 1250mm, max. workpiece diameter: 1000mm, max. workpiece length: 850mm, max. workpiece weight: 1000kg, X/Z travel: 1250mm/1000mm, max. speed: 900rpm, feed rate: 14m/min, rapid traverse: 20m/min, spindle nose: DIN 55026 short taper size A15, tool interface: DIN 69880 VDI60 tool holder, spindle diameter at the front bearing: 240mm, control: Siemens Sinumerik 840D. Machine weight: approx. 25t, space requirement: 85m². Equipment: SMW IN-D 1000 chuck, chip conveyor. The machine has no driven tools. Documentation available. Inspection possible by appointment.
Fuse protection: 100A, control voltage: 220V, operating voltage: 380V, connected load: 30,4kW, weight: 14,4t, with four-jaw chuck (diameter: 900mm), tailstock, quill, three steady rests and control system. An on-site inspection is possible.
Center height: 450mm, distance between centers: 3000mm, fuse protection: 630A, rated current: 46A, control voltage: 220V, operating voltage: 380V, frequency: 50Hz, connected load: 22,5kW, weight: 6,1t, with four-jaw chuck (diameter: 800mm), tailstock, quill and three steady rests. An on-site inspection is possible.
Vários suportes de troca rápida / suportes de troca rápida / acessórios no total 42 PCs: 7 peças WDL 4/50 16 WDR 4/40 10 peças WDL 4/40 3 peças WB 4/60⌀ 3 unidades. WBW 4/60⌀ 1 pcs. WBW 23/60⌀ 2 peças sem tipo Por favor, diga-nos quais os artigos que lhe interessam para receber uma oferta. Teremos todo o gosto em fornecer-lhe mais fotografias.
Aqui temos uma Weiler DZ 65, torre de popa Duplomatic de 16 dobras, 2 fusos, cabeça de colete para ambos os fusos, ferramenta acionada em todos os pontos de rotação, Transportador de aparos, refrigerante através de 2 fusos, ejetor de mola do segundo fuso, ligação ao alimentador de hastes, remoção de peças via bandeja de gotejamento, correia transportadora de peças, vários tubos de inserção de fuso, transportador de aparos, alimentação de material Irco Profimat 3m,
Centro de Viragem Vertical de Dois Fusos - Controlo Siemens 840 D - Cama de máquina VSC 400 Duo - 2 x torre de disco de 12 x diâmetro 40 mm, acionada - 2 x estações adicionais de perfuração e aterramento - Sistema aberto de transporte de peças - Unidade de transferência e torneio - Interface com um sistema de tratamento externo - Alimentação central de arrefecimento para bomba de alta pressão 70 bar - Soprar o dispositivo de captação e os dispositivos de fixação - Medição da peça de trabalho - Monitorização de ferramentas - Opção de rede Emag - Gestão de ferramentas irmãs Diâmetro circunferencial 260 mm X-travel 860 mm Z-curso 200 mm Fuso principal 2 velocidade máxima até 4500 1/min Espaçamento do fuso 1055 mm Main Drive 2 Motor AC Assíncrono 6ß/100% ED 39/28 KW Torque máximo 460 Nm Travessia rápida x/ z 45/ 30 m/min
Cross slide NC1-left, X1-axis: 450mm, cross slide NC1-left, Z1-axis: 1980mm, cross slide NC2-right, X2-axis: 450mm, cross slide NC2-right, Z2-axis: 1980mm, M-head slide-left, Q1-axis: 1980mm, M-head slide-right, Q2-axis: 1980mm, tailstock + steady rest slide-left, W1-axis: 1980mm, tailstock + steady rest slide-right, W2-axis: 1980mm, Y-axis: +/-65mm, workpiece length: 760-3000mm, workpiece clamping diameter: 20-200mm, main drive power: 2x 37kW, main drive speed (stepless): 0-2200/min, tool drive speed (stepless): 0-2320/min, tool holder: VDI50, tailstock center: MK 5, number of tool holders: 12, steady rest: SLU-5 SO, steady rest clamping diameter: 20-200mm, working height: 1300mm, max. workpiece diameter: 20-200mm, max. workpiece weight: 250kg, workpiece drive/clamping: 2x hydraulically operated SAV front-end chucks, max. chuck through-bore diameter: 210mm, spindle power: 2x 37kW, max. ...
A CNC lathe Optimum is offered. Swing over bed/cross slide: 300mm/200mm, distance between centers: 430mm, X/Z travel: 145mm/465mm, X/Z rapid traverse: 10m/min/12m/min, bar capacity: 30mm, spindle bore: 30mm, max. spindle speed: 4000rpm, tool stations: 6, control: Siemens SINUMERIK 808D ADVANCED. Machine dimensions X/Y/Z: approx. 1655mm/1590mm/1955mm, weight: approx. 832kg. An on-site inspection is possible.
Workpiece length: 700-2400mm, workpiece diameter: 50-200mm, main spindle drive power: 2x 37kW, max. chuck through-bore: 210mm, chuck piston stroke: 25mm, chuck stroke per jaw: 11.1mm, max. chuck actuating force: 52.5kN, max. chuck actuating pressure: 30bar, max. chuck speed: 2000/min, loading and unloading unit range: 2600mm, center clamping head travel: 1200mm, center clamping head stroke: 1200mm, main fuse: 315A, connected load: 150kW, overall length: approx. 10,640mm, main section length: 6800mm, width: 2370mm, height: 2860mm, overall height including superstructure: 3450mm, operating hours: 3143h. With chip conveyor, loading and unloading unit, fixed center clamping head, movable center clamping head, control panel, ILT air cleaner, electrical cabinet, hydraulic cabinet, coolant tank for motor cooling and coolant tank for tool cooling and documentation. Partially overhauled by the ma ...
Machining processes: drilling, turning, milling, axes: Z3 longitudinal slide tool turret, Z4 longitudinal slide tool turret, X3 cross slide tool turret, X4 cross slide tool turret, C1 workpiece drive, C2 workpiece drive, K5 turret swivel axis, K6 tool drive, K7 turret swivel axis, K8 tool drive, travel X3: 251mm, X4: 251mm, Z3: 662mm, Z4: 662mm, tool turret: 12-station radial, DIN 69880-VDI40, drive: DIN 5480-W20x0.8, tool swing diameter: 580mm, specified dimension at tool area: 320mm, length: 13,000mm, width: 7300mm, height: 4100mm, weight: 22t, operating hours: 14,748h. Equipment: OP012 control panel, Kuka handling robot, chip conveyor, coolant tank, hydraulics, pneumatics, electrical cabinet, parts infeed and outfeed, documentation, installation plan, working area diagram, gearbox plan and transport plan. The following components should be overhauled: machine bed (guideways/ball screw ...
turning diameter over bed: 500 mmturning diameter over slide rest: 300 mmturning length: 1000 mmtotal power requirement: ? kWweight of the machine ca.: 1,5 tdimensions of the machine ca.: 2,511,5 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Traub TNX 65Year of manuf. : 2011 Control : Mitsubishi TX8i-s ____________Description:Mainspindle:Technology:MotorspindleSpeed:5.000 rpmPower:22,6 kWTorque:180 NmBarcapacity:65 mmWorkpiececlamping:Collet chuck, Hainbuch Spanntop Kombi Axfix Gr. 65Subspindle:Technology:MotorspindleSpeed:5.000 rpmPower:22,6 kWTorque:180 NmWorkpiececlamping:Collet chuck, Hainbuch Spanntop Kombi Axfix Gr. 65Ejector:Hydraulic with flushToolcarrier I (X/Y/Z):Technology:Turret with 10 stationsTaper:VDI30Tooldrive:6.000 rpm, 5,5 kW, 17,5 NmMovement in X/Y/Z:175/80/650 mmRapid travers in X/Y/Z:20/20/40 m/minToolcarrier II (X/Y/Z):Technology:Turret with 10 stationsTaper:VDI30Tooldrive:6.000 rpm, 5,5 kW, 17,5 NmMovement in X/Y/Z:175/80/650 mmRapid travers in X/Y/Z:20/20/40 m/minToolcarrier III (X/Y/Z):Technology:Turret with 10 stationsTaper:VDI30Tooldrive:6.000 rpm, 5,5 kW, 17,5 NmMovement in X/Y/Z:175/80/650 ...
Turning diameter: 500 mm, swing diameter over the cross slide: 290 mm, turning length: 1500 mm, spindle speed: 8 to 2800 rpm with three gear ranges, spindle bore diameter: 70 mm, three-jaw chuck diameter: 250 mm, tailstock quill taper: MT4, quill travel: 180 mm, connected load: 24 kVA, control system: Heidenhain Manual Plus, length: 3200 mm, width: 1700 mm, height: 1800 mm, weight: 3.2 t, operating hours: 42,733 h. The machine is equipped with a manual tailstock, chuck guard, coolant system, Multifix tool holder, various tool holders, various drill chucks, various turning and drilling tools, interchangeable jaws for the three-jaw chuck, a depth stop for the main spindle, a tool cabinet and documentation. The machine was completely overhauled by the manufacturer in 2010. An on-site inspection is possible.
A máquina era feita manutenção anual por Okuma Centro de torneamento e fresagem CNC com 9 eixos CNC, Okuma MacTurn 350 W, Ano de fabrico 2004, OSP-E 100L, Revista adicional, Compartimento do carregador 80 Ww, Fuso principal com eixo C, fuso contrário com eixo C, Eixo deslizante do eixo Y / eixo de fresagem, A montar o HSK 63, Eixo B escalonado como fuso de fresagem, Largura central 1500 mm, Diâmetro do eixo 80 mm, Circulação máxima: 550 mm, Giro 350 mm, Revólver inferior de 12 camadas com revólver aplicado. ferramentas, Sistema de Filtro Compacto Interlite 900 l, sucção, Tempo de funcionamento do fuso aproximadamente 18300 h, Päneförderer, Braço de empunhadura do trocador de ferramentas completamente renovado, arrefecimento de alta pressão, Braço medidor WZG, Trocador de ferramentas revisto, Fuso principal Kitagawa B - 210, Sub-fuso Kitagawa B ...
Weiler DZ 40, Ano de fabrico 2008, Controlo Siemens 840 D, Viagem X/Z 200/350 mm, Diâmetro de rotação 180 mm, Bobmkney Ev Iujrzedf Circulação Ø máx. 560 mm, Eixo Y +/- 25 mm, Eixo Q / contramão programável, Deslocação do eixo Q 360 mm, Sistema de medição do eixo Q rotativo, Contramão MK 4, Travessia máxima do eixo principal 42 mm, Diâmetro do eixo 52 mm, Travessia rápida X/Z/Q 30/30/20 m/min, Torre de 16 velocidades - todas as estações acionadas, VDI 25, Diâmetro do eixo 25 mm, Solicitado. Ferramentas até 4.500 rpm, Bandeja de peças, acessórios, Solicitado. Porta-ferramentas, portadores rígidos,
Mestre da Guilda CTX 510 Controlo: Siemens 840 D com Loja - Turn Ano de Fabricação: 2004 Curso X / Z: 300 / 1050 mm Revólver: 12 velocidades Porta-ferramentas: VDI 40 Bsbmezmxz Roknrzodf Velocidade do eixo até a: 3.500 rpm Passagem da barra: 90 mm Curso da pena: 150 mm Contramão Arrefecimento 20 bar Tamanho do mandril: 315 mm Horas de fuso aproximadas: 14.000 Foram produzidos lotes de 0 a 5 unidades na máquina A programação era feita na máquina

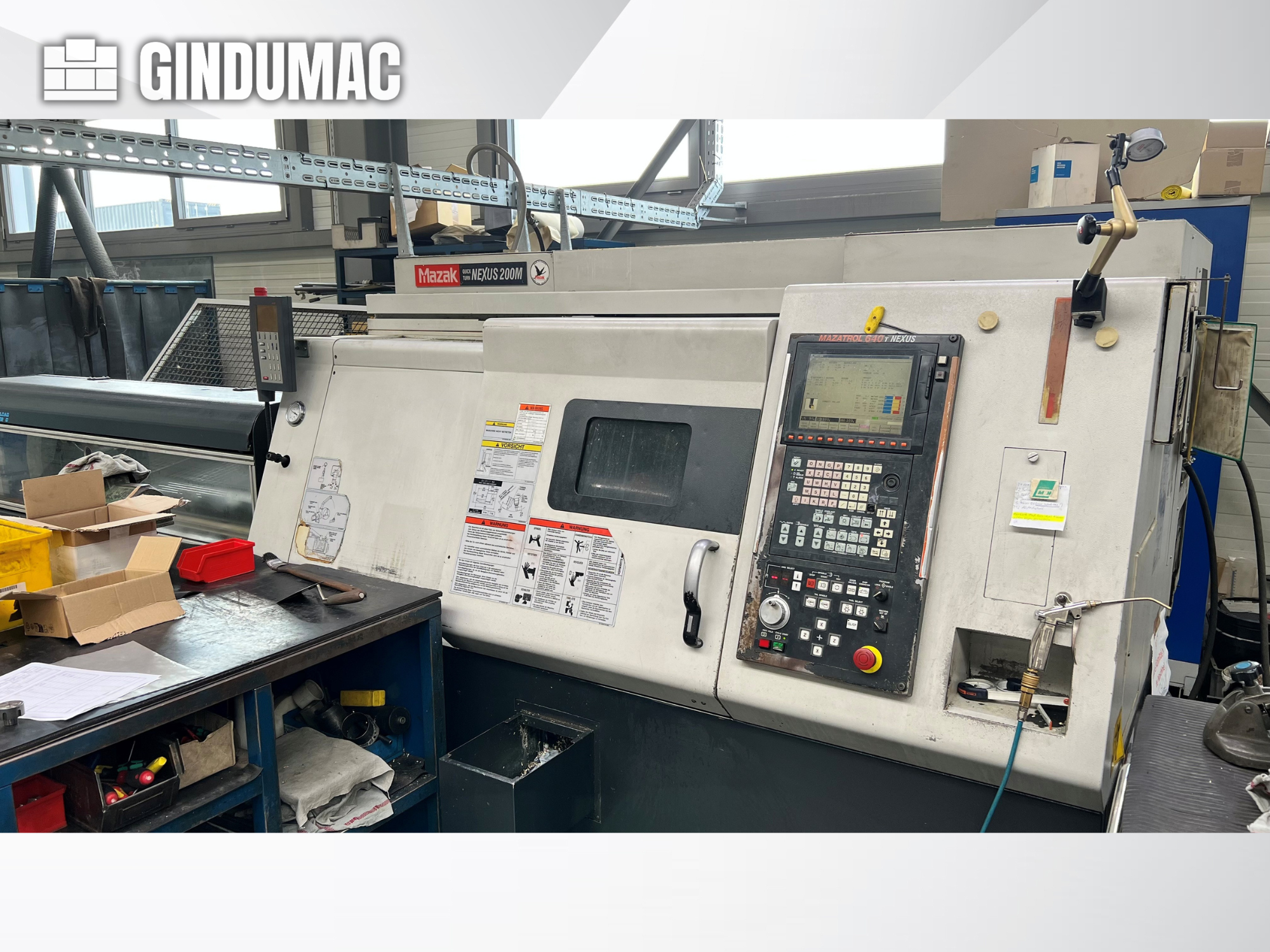

This 4-axis Mazak QTN-200M was manufactured in 2004. It features a maximum turning diameter of 380 mm and a maximum swing diameter of 675 mm. The machine is equipped with a powerful main spindle that reaches speeds of up to 5,000 rpm and a robust tool turret with 12 positions. If you are looking to get high-quality turning capabilities, consider the Mazak QTN-200M machine we have for sale. Contact us for further details.
Manual lead screw and feed rod lathe manufactured in 2018. This Optimum TH 4610 features a distance between centers of 1060 mm and a swing over bed of 460 mm. It has a spindle speed range of 25 – 2000 U/min and can handle a maximum workpiece weight of 300 kg. If you are looking to get high-quality turning capabilities, consider the Optimum TH 4610 machine we have for sale. Contact us for further details.
A Krewema CNC large-format semi-frontal lathe is available. X/Z travel: 1500mm/850mm, center height: 475mm, distance between centers base/bed extended: 1685mm/2685mm, max. turning diameter over bed/cross slide: 935mm/620mm, max. swing diameter in the gap: 1600mm, main spindle bore: 155mm, tailstock quill diameter: 140mm, quill taper: MK6, quill stroke: 300mm, tool turret: Sauter, tool stations: 4, 3-jaw chuck diameter: 630mm, faceplate: Schunk, faceplate diameter: 1000mm, control: Siemens 840D sl ShopMill. Including coolant system, external coolant nozzles and chip conveyor. Documentation available. An on-site inspection is possible.
Horizontal turning machine manufactured in 2018. This Weiler PRIMUS VCD features a connected load of 7.5 kVA and operates at a nominal current of 15.5 A. With a machine weight of 1050 kg, it is designed for robust performance. If you are looking to get high-quality turning capabilities, consider the Weiler PRIMUS VCD machine we have for sale. Contact us for further details.
A Xiangfan/SPARK CNC large-format engine lathe is available. Swing diameter over bed/cross slide: 2200mm/1800mm, bed width: 1100mm, distance between centers: 8000mm, max. turning length: 7500mm, max. workpiece weight: 20t, max. workpiece weight between centers: 19t, main spindle bore: 140mm, bar capacity: 100mm, spindle speed: 200rpm, X/Z-axis travel: 920mm/7500mm, feed rate: 2m/min, rapid traverse: 3m/min, tool stations: 4, chuck jaw count: 4, chuck diameter: 2200mm, chip conveyor length: 8000mm, control: Siemens SINUMERIK 802D. Including coolant system, mandrel, chip conveyor and measuring system. Documentation available. An on-site inspection is possible.
Controlo Philips B2T Diâmetro circunferencial 640 mm Diâmetro de maquinação longitudinal 550 mm Diâmetro de usinagem na torre de tambor 450 mm Comprimento de torneio 1000 mm Velocidade do fuso 2.240 min-1 Diâmetro do eixo 103 mm Torre de tambor de 12 velocidades VDI 60 Transportador de cavacos
