GENERAL
Project No.: 905776
Quantity: 1 pcs.

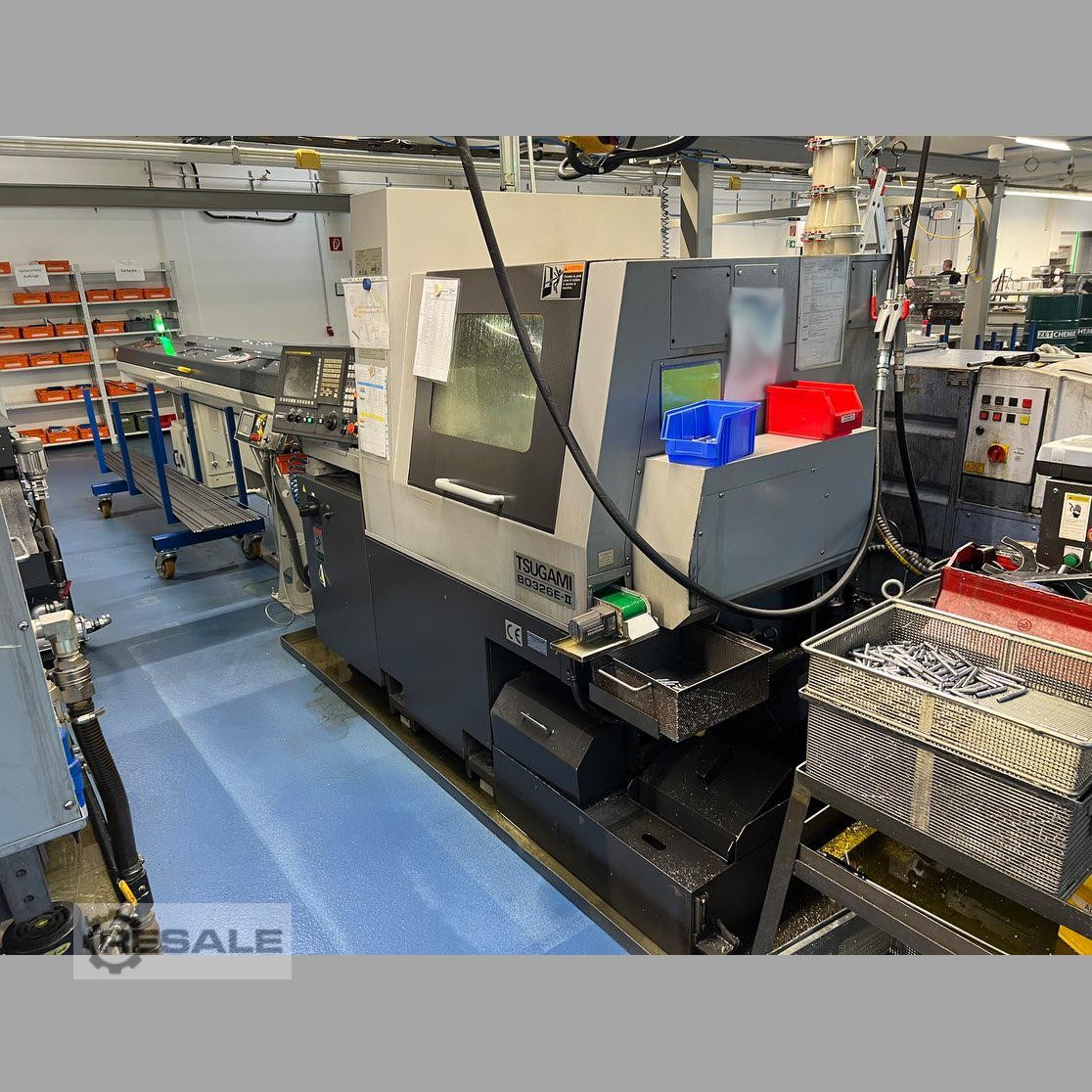

Manufacturer: TSUGAMI
Type: BO326E-II
Control: Fanuc 32i MB
Year of Make: 2014
Condition: Used machine
Approx. (hrs): 32126
DESCRIPTION
TURNING
8Axles
Max. turning diameter 32 mm
Max. turning length 320 mm
Max. speed main spindle 8000 1/min
Max. power main spindle at ED 10-40/100% 5.5/3.7 kW
Spindle aperture main spindle 8-32 mm
Axes on the main spindle unit C
Workpiece spindle stroke main spindle 320 mm
Hollow clamping cylinder on the main spindle
Max. speed sub-spindle 8000 1/min
Max. power sub-spindle at ED 10-40/100% 3.7/2.2 kW

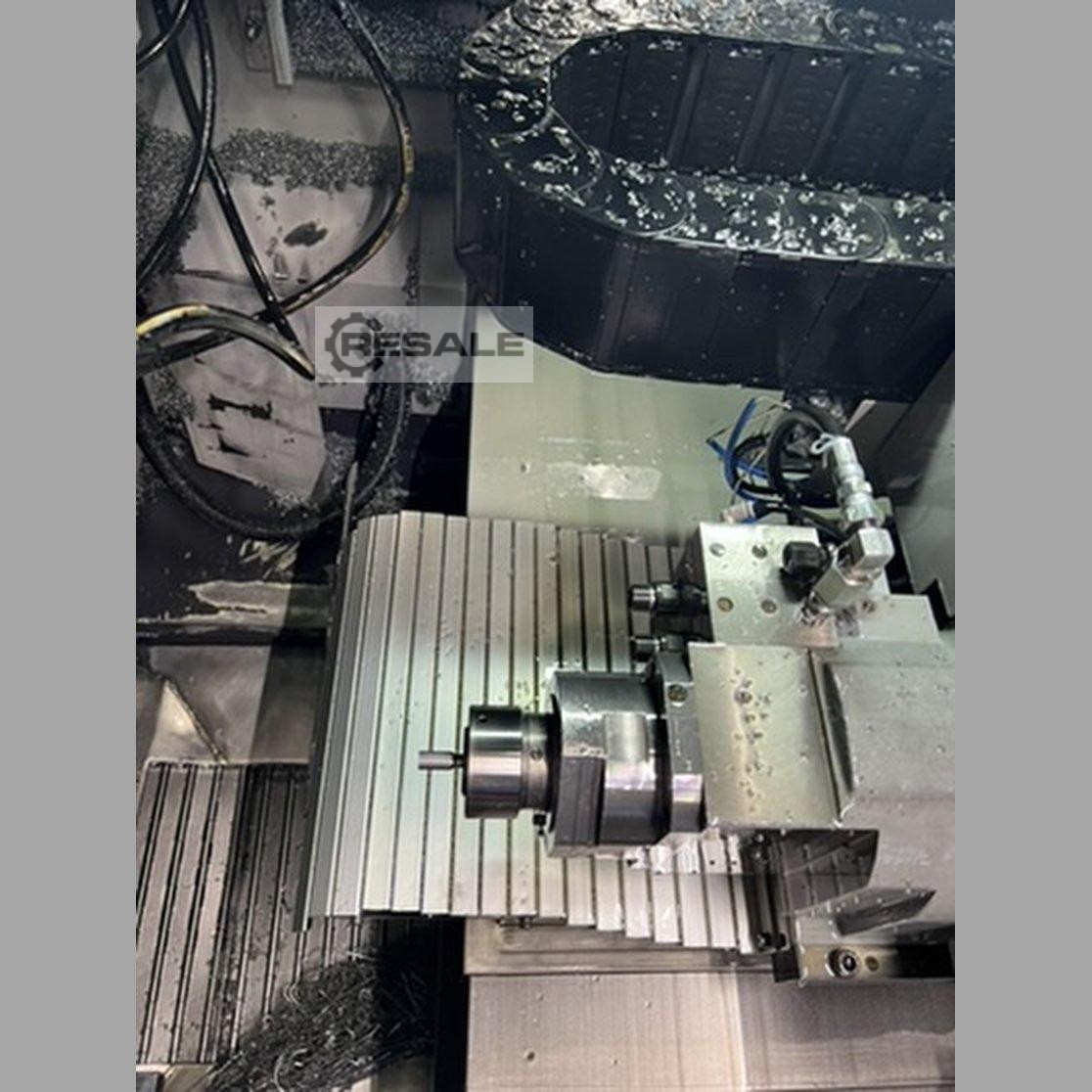

Axes on the sub-spindle unit C
Coolant supply through the sub-spindle
Workpiece ejection through the sub-spindle
Workpiece ejector in the sub-spindle
OTHER EQUIPMENT
Splash protection cladding with fully encapsulated working area
Lighting in the work area
Preparation for central oil/emulsion mist extraction system

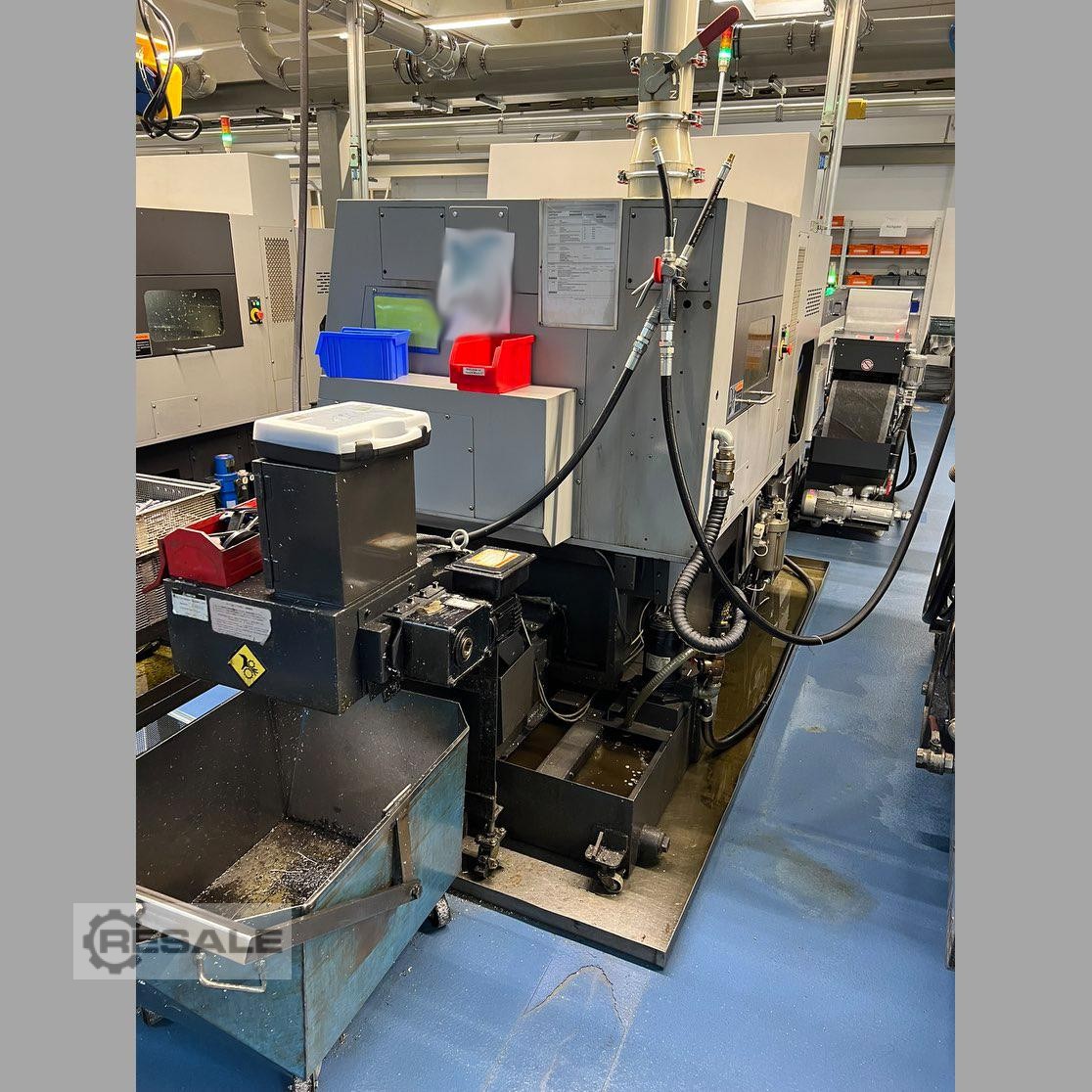

Chip conveyor
Engine is/was operated with oil
Coolant device with paper belt filter
High Pressure Pump
Automatic CO2 fire extinguishing system
Parts Discharge Belt

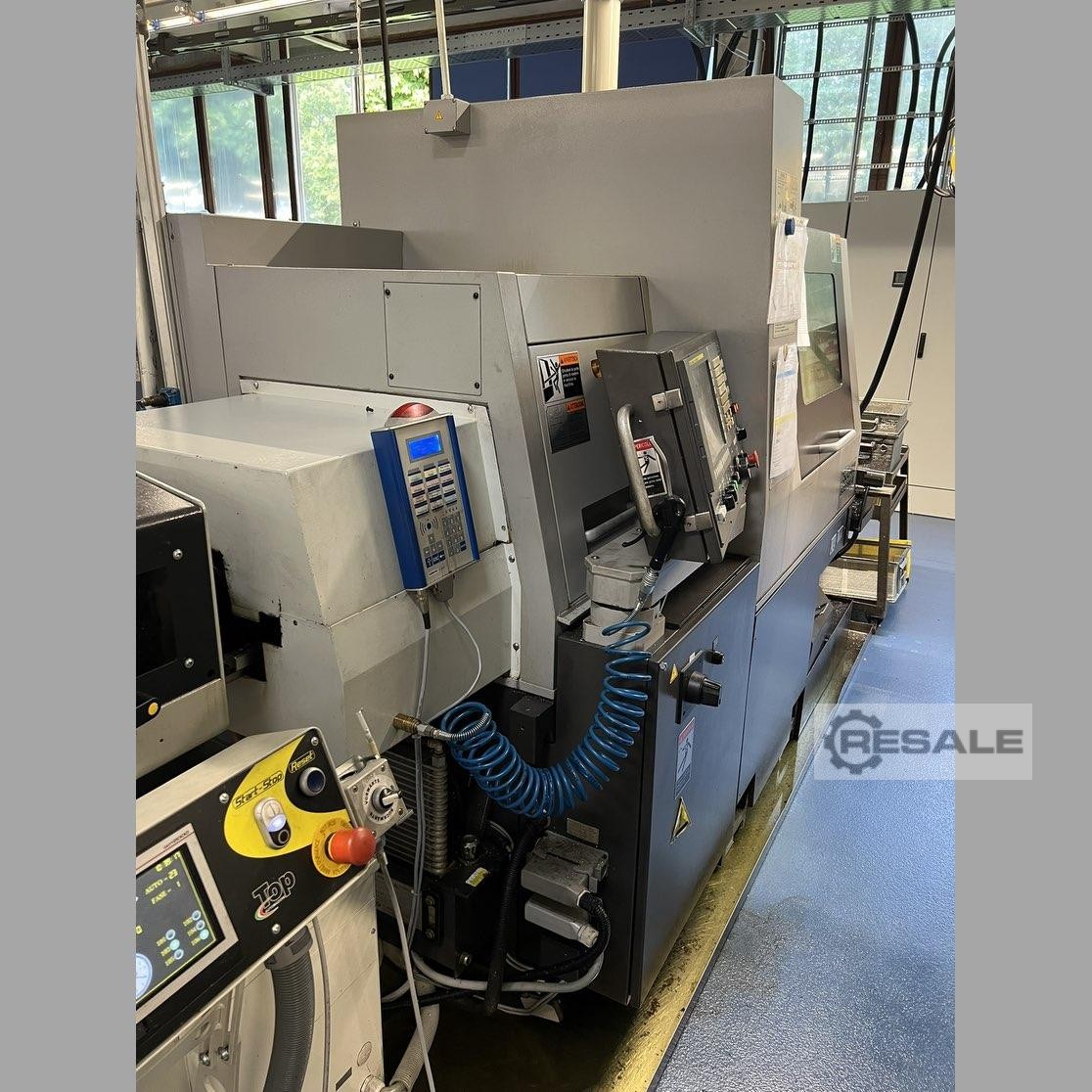

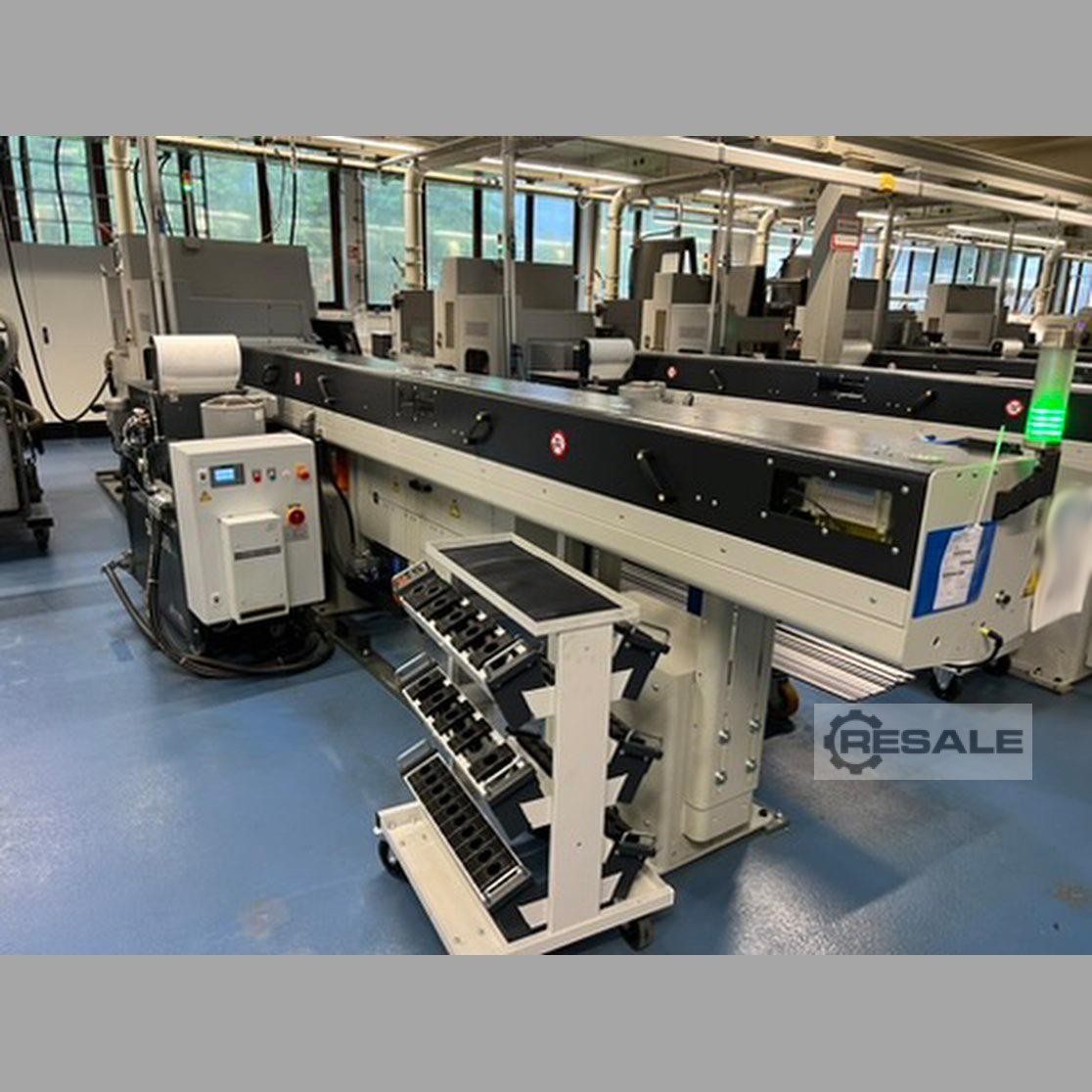

Bar Feeder/Bar Loading Magazine
Threading without compensating chuck
Shell surface milling (C and Z axis polarization)
Polygon milling
Machine condition light
ACCESSORIES
1 set of collet chuck

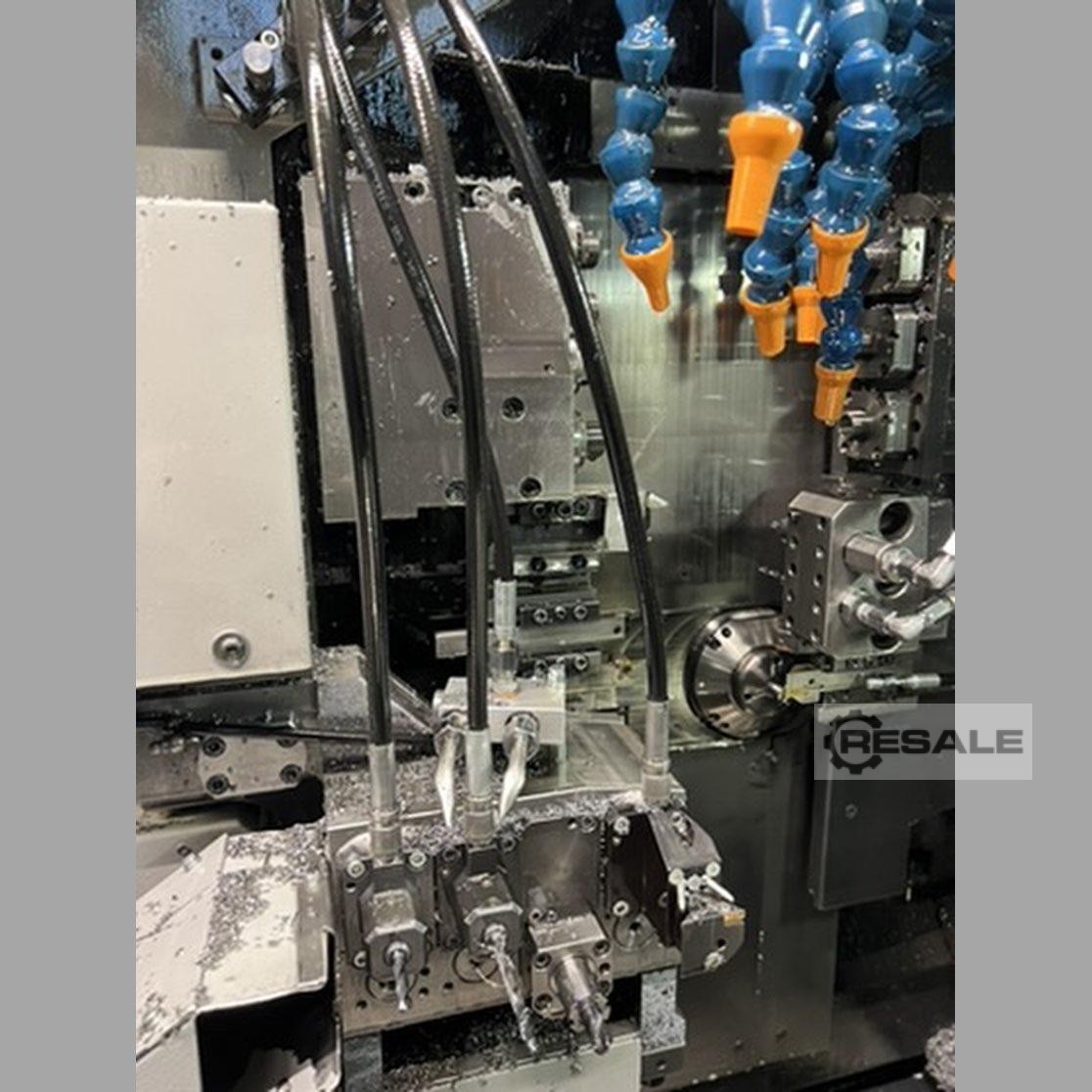

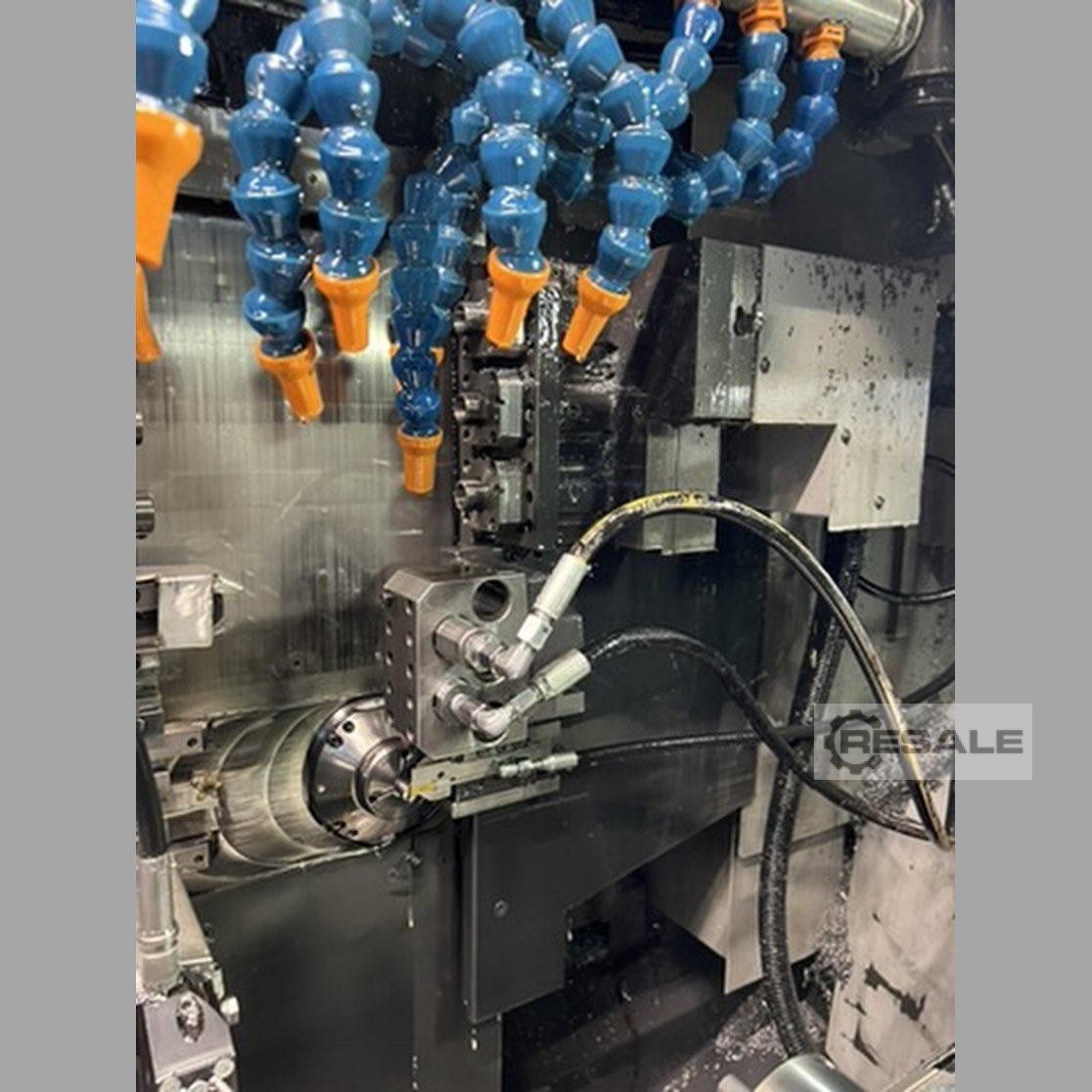

1 set of tool holders for turning tools
1 set of tool holders for powered tools
GENERAL TECHNICAL DATA
Total power requirement 21 kVA
Machine dimensions (LxWxH) approx. 2,150 x 1,280 x 2,010 mm
Machine weight approx. 3500 kg
NOTE
- Conversion to short-turning machines possible
- Driven guide bush
In 2023 with new coolant system Fabr. Büchele SFB 300eco (paper belt
filter with 100 bar high-pressure pump), as well as bar feeder from
FMB converted to the new TOP Automazioni NF 334SX.
We have described the named product with the greatest possible care.
However, since this does not come from our production, the data
mentioned and the equipment details may differ. We therefore ask you
to consider the description as non-binding and to check the data in
detail during an inspection.
