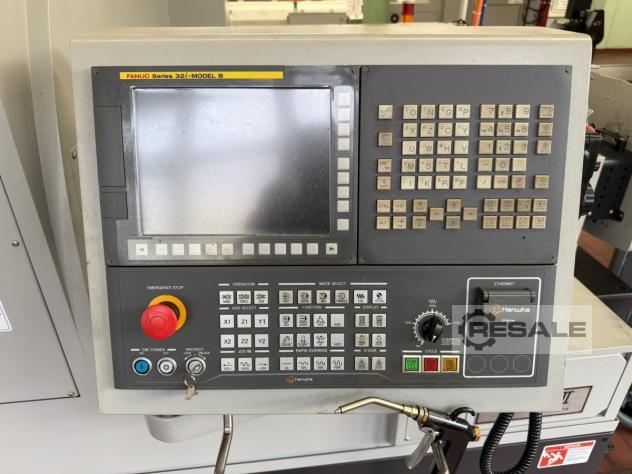

Control Fanuc 32i-TB
Main spindle:
Motor spindle technology
Speed (max.) 6,500 rpm
Power (max.) 7.5 kW
Bar passage 38 mm
Travel in Z (longitudinal turning operation) 320 mm
Workpiece Clamping Collet Chuck (Type F48)
Guide Bush Synchronous Running

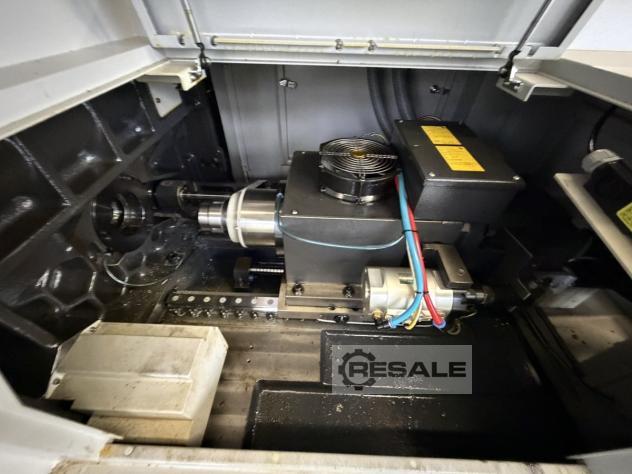

Sub-spindle:
Motor spindle technology
Speed (max.) 6,500 rpm
Power (max.) 5.5 kW
Workpiece Clamping Collet Chuck (Type F48)
Pneumatic ejector

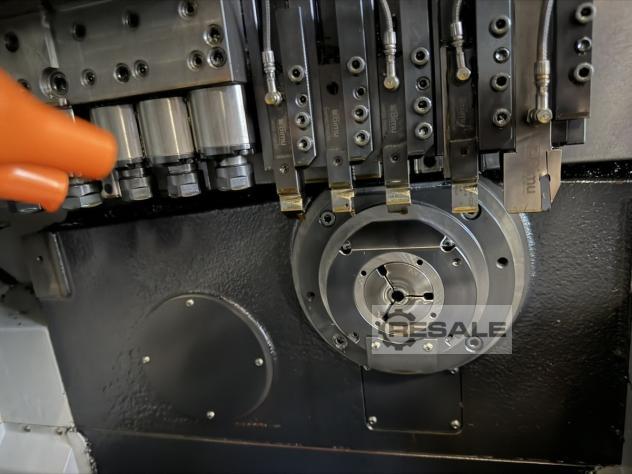

Linear slides:
Number of lathe chisel stations 5
Tool holder 16 x 16 mm/ 20 x 20 mm
Number of stations cross drilling rig 5
Tool holder ER16/ER20
Tool drive 6,000 rpm, 2.2 kW
Cross slide:
Number of stations 2
Tool holder ER16
Milling operations tool drive

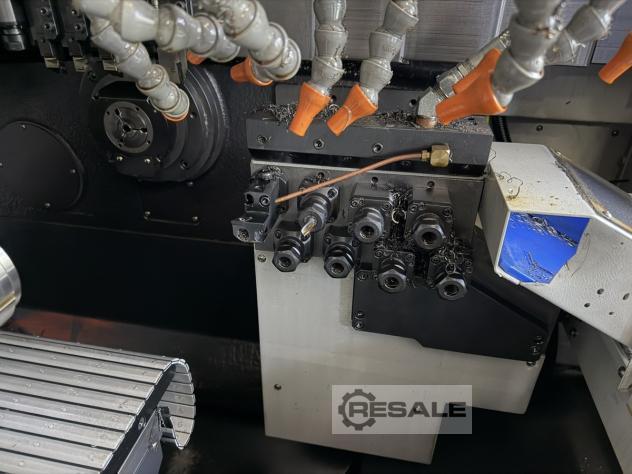

Residual apparatus:
Number of stations 8
Tool holder Ø32 mm
Number of driven stations 4
Tool holder ER16
Tool drive 6,000 rpm, 1 kW
Equipment/accessories:
Chip Management Chip Conveyor
Coolant system IKZ system with filter and high pressure, 120 bar
Raw material feed loading magazine, TOP Automazioni Infinity 340
Precast Removal Conveyor Belt with Drip Tray
Oil Mist Extraction Mechanical Separator, LNS Fox WS 2-1000
Fire extinguishing system Kraft + Bauer, FB 713
Tool holders Div. rigid and driven holders
