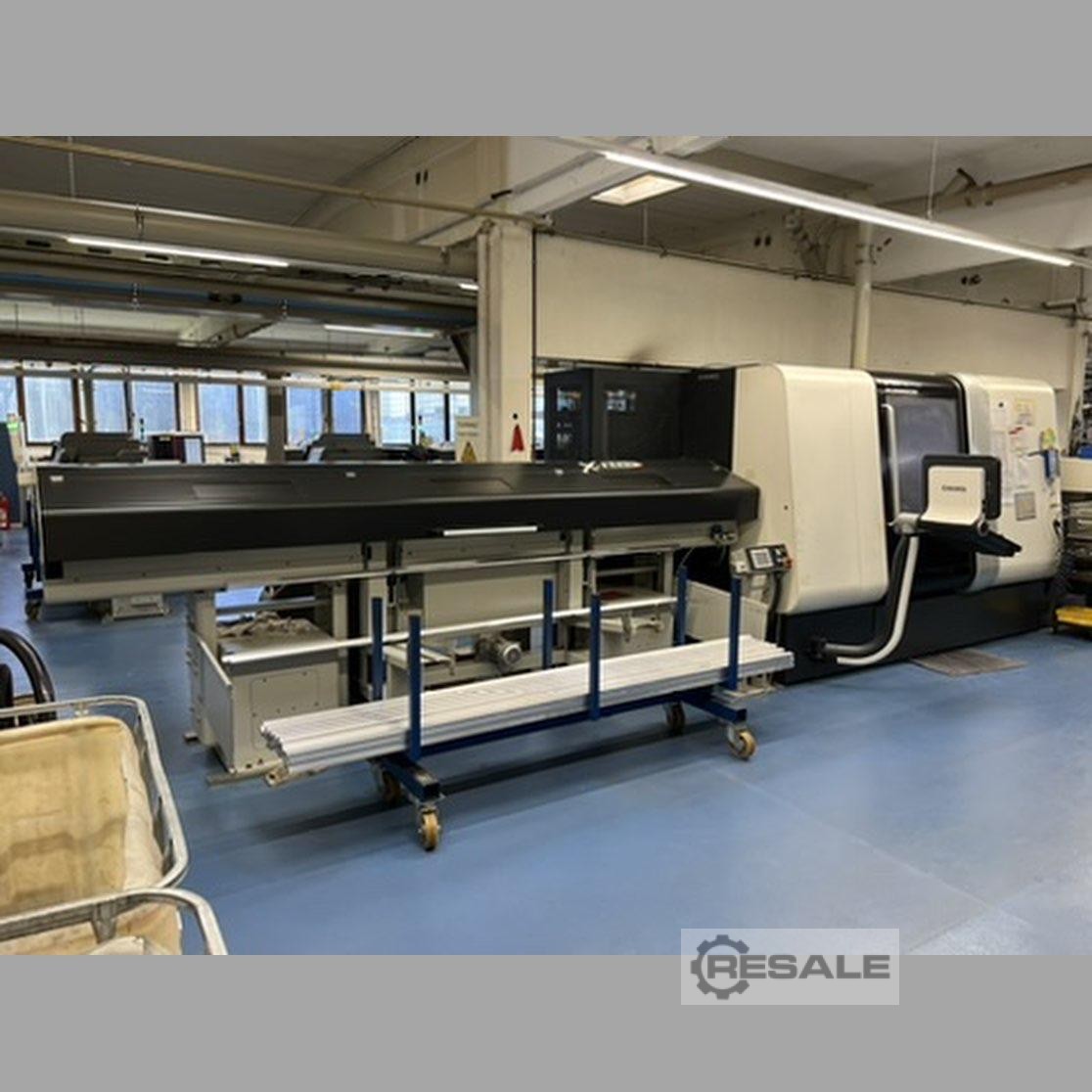

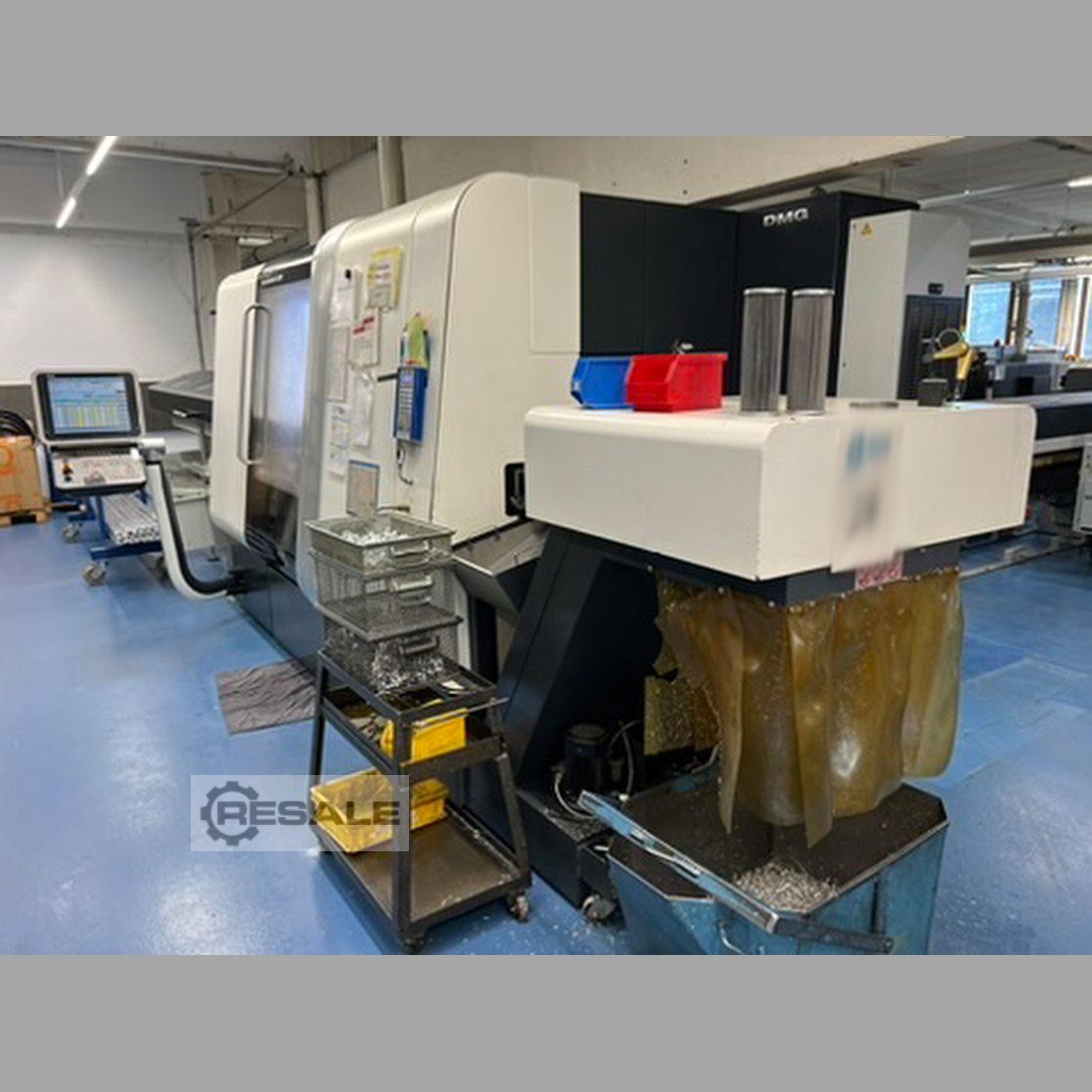

Centros de torno CNC GILDEMEISTER Sprint 65-3T

GENERAL

Project No.: 905647
Quantity: 1 pcs.
Manufacturer: GILDEMEISTER
Type: Sprint 65-3T

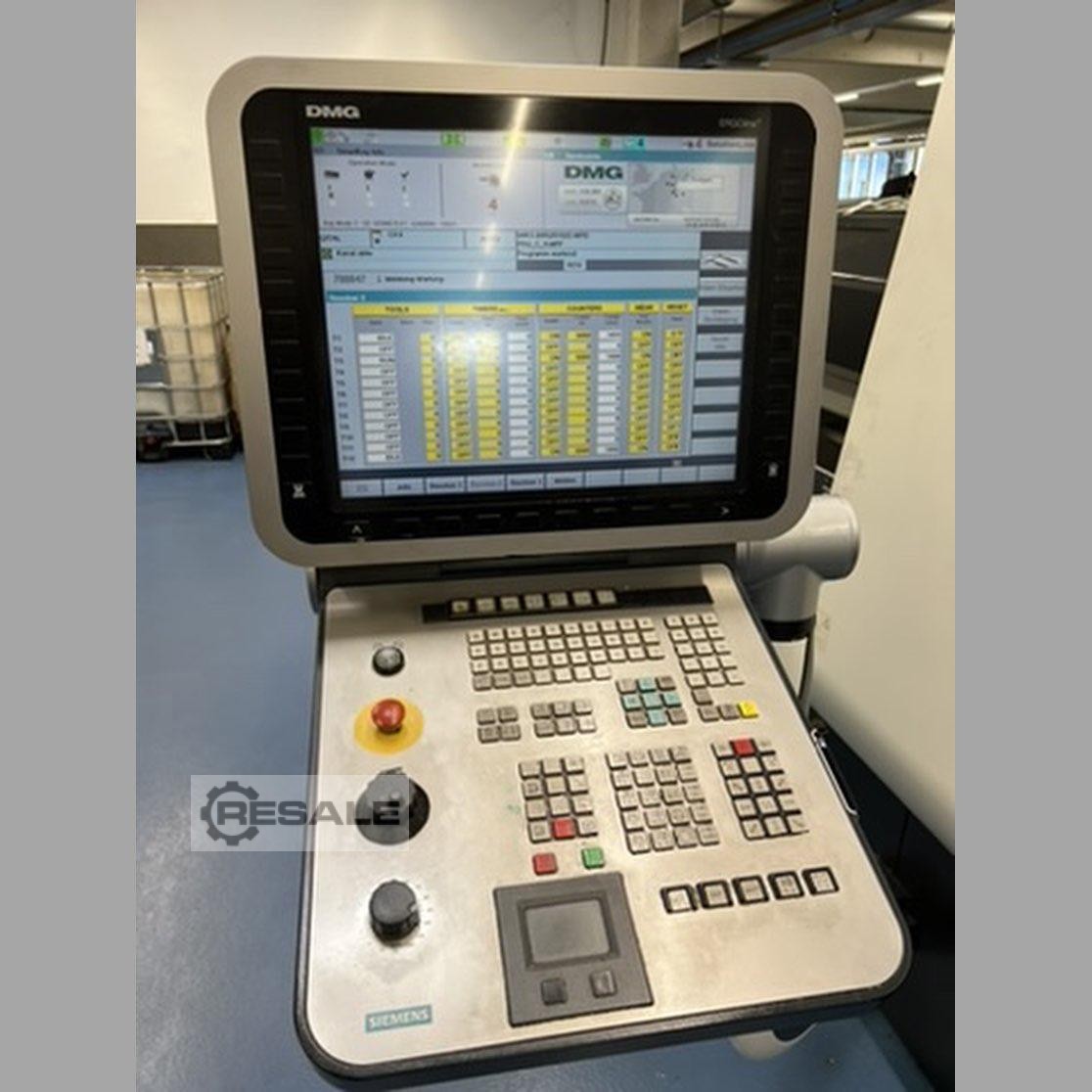

Control: Siemens 840 D solutionline
Year of Make: 2013
Condition: Used machine
Approx. (hrs): 61500
Program run approx. (hours): 45200

DESCRIPTION

TURNING

Max. speed main spindle 5000 1/min
Spindle aperture main spindle 65 mm
Axes on the main spindle unit C
Hollow clamping cylinder on the main spindle
Max. speed sub-spindle 5000 1/min
Axes on the sub-spindle unit C/Z
Full-clamping cylinder on the sub-spindle
Number of stations/powered by 12/12
Speed tool drive 12000 1/min
Axles in the turret X/Y/Z
Number of stations/powered by 12/12
Speed tool drive 12000 1/min
Axles in the turret X/Y/Z
Number of stations/powered by 12/12
Speed tool drive 12000 1/min
Axles in the turret X/Y/Z

OTHER EQUIPMENT

Splash protection cladding with fully encapsulated working area
Lighting in the work area
Preparation for central oil/emulsion mist extraction system
Chip conveyor
Engine is/was operated with oil
Coolant Setup
Parts Discharge Belt

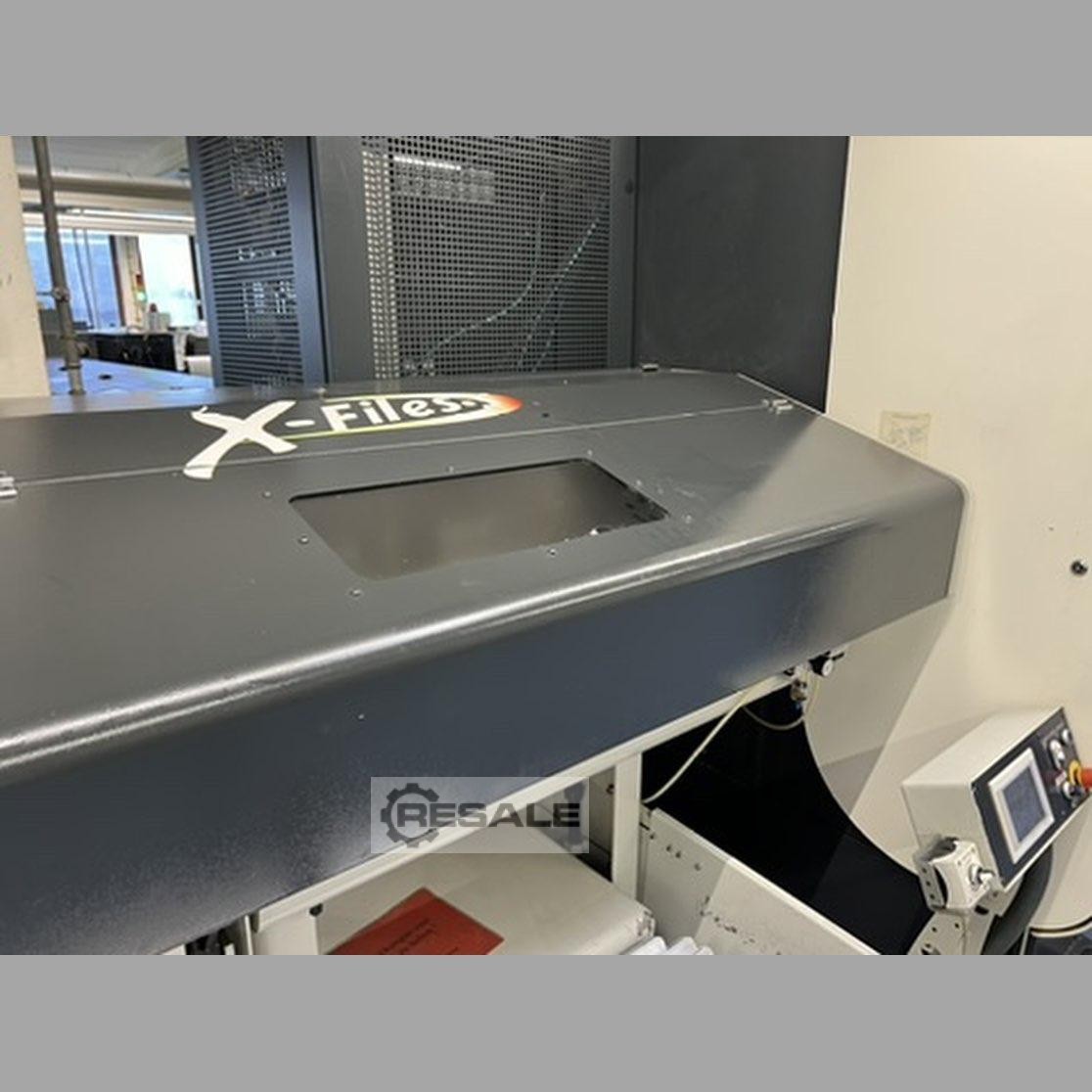

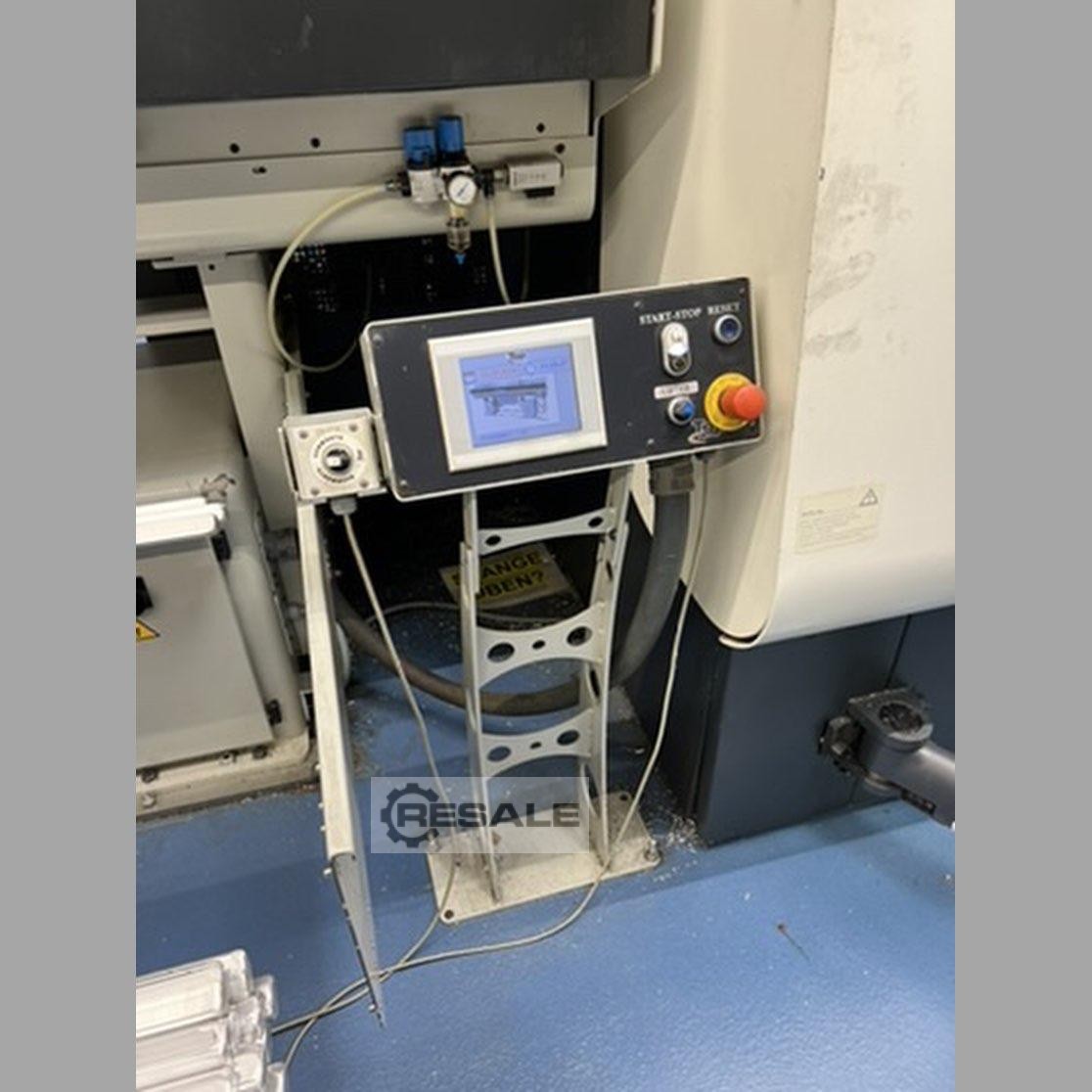

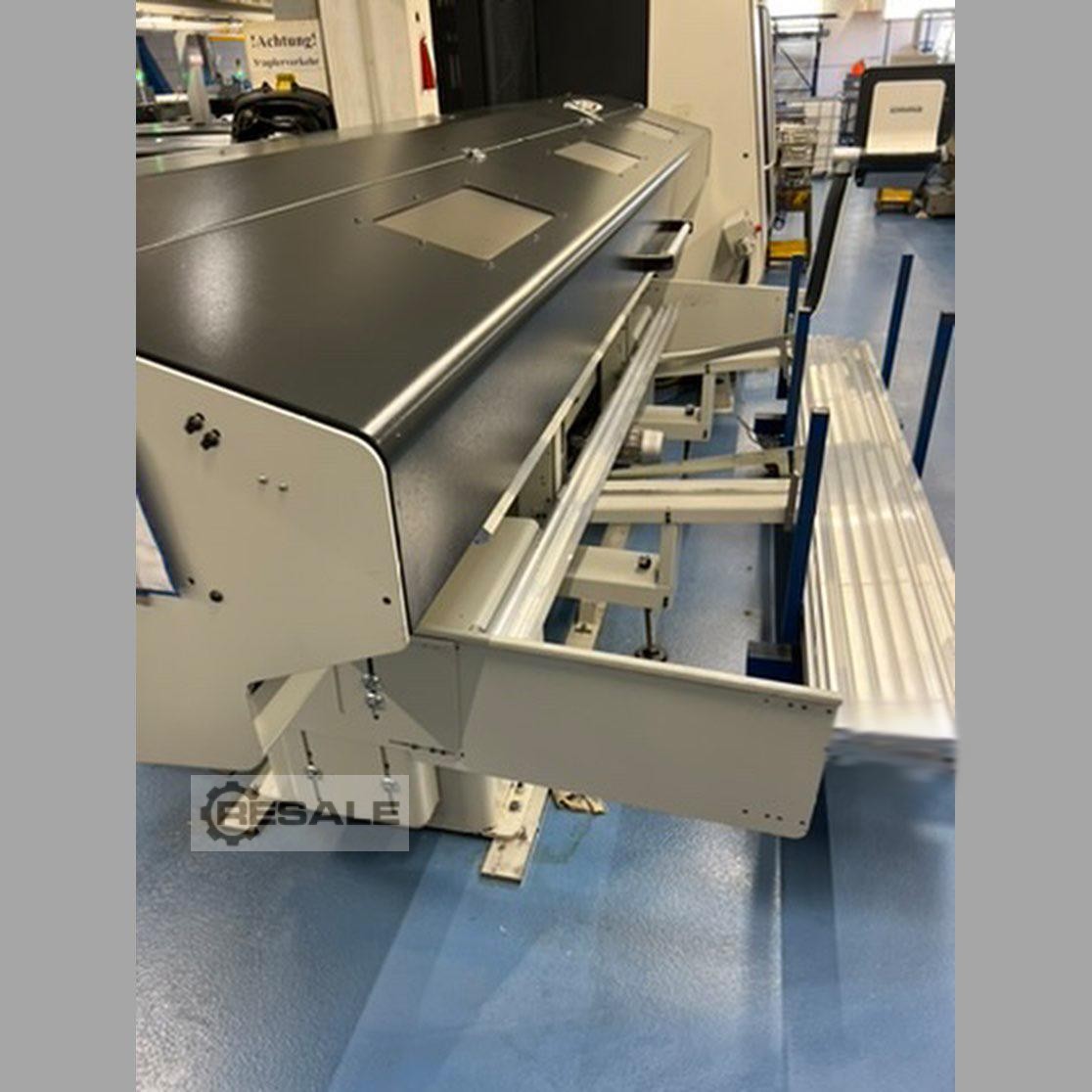

Bar Feeder/Bar Loading Magazine TOP Automazioni X-Files 365 M
Max. bar diameter 65 mm
Max. rod length 3000 mm

ACCESSORIES

2 pcs collet chuck mm
1 set of tool holders for turning tools
1 set of tool holders for powered tools

GENERAL TECHNICAL DATA

NOTE

We have described the named product with the greatest possible care. However, since this does not come from our production, the data mentioned and the equipment details may differ. We therefore ask you to consider the description as non-binding and to check the data in detail during an inspection.
